| Mpn | FEX-511G-WIFI-A |
| Wifi | 2x2 concurrent 2.4/5 GHz Wi-Fi 6 (802.11ax) |
| Brand | Fortinet |
| Model | FEX-511G-WiFi |
| Region Code | Region code A |

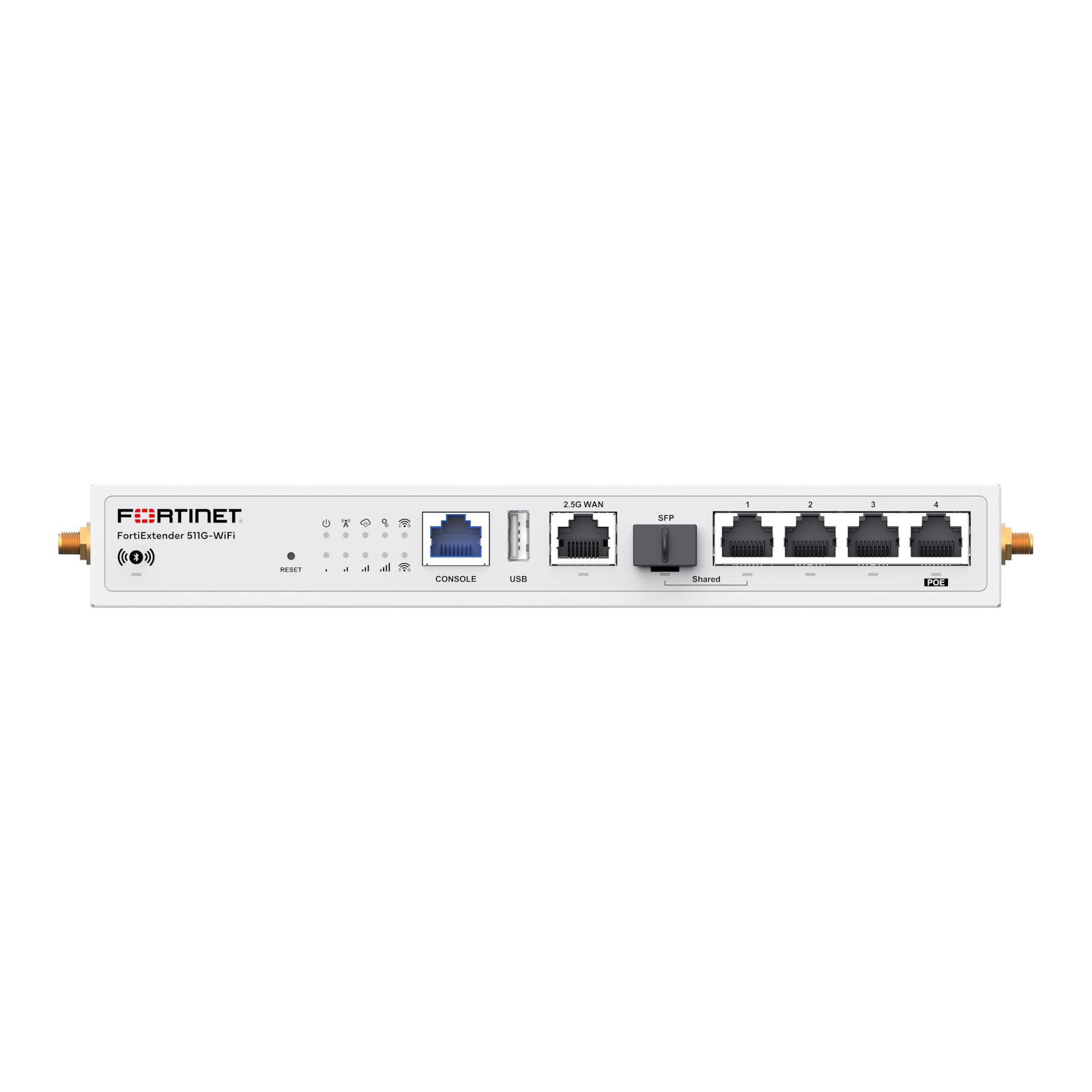

| Product Name | FortiExtender 511G-WiFi |
| Cellular Technology | 5G Sub-6 GHz with 4G LTE fallback |
| Lan Lan Layer2 | 950 Mbps |
| Ipsec Vpn Wired | 920 Mbps |
| Max Wan Uplinks | 1 |
| Ipsec Vpn Cellular | 400 Mbps over LTE/5G |
| Lan Wan Nat Layer3 | 900 Mbps |
| Lan Extension Vxlan Over Ipsec | 600 Mbps |
| Net Weight | 1.1 kg (2.4 lb) device |
| Gross Weight | 1.9 kg (4.2 lb) package |
| Height Width Length In | 1.27 x 8.98 x 5.83 in |
| Height Width Length Mm | 31 x 228 x 148 mm |
| Interface 1 | BLE |
| Interface 2 | Reset |
| Interface 3 | LED status |
| Interface 4 | 1x RJ45 console port (CLI management), 1x USB 2.0 port (USB-A) |
| Interface 5 | 1x 2.5G WAN port (RJ45) |
| Interface 6 | 1x SFP port |
| Interface 7 | 4x RJ45 ports |
| Interface 8 | 2x Wi-Fi antenna connectors (RP-SMA) |
| Humidity | 5% to 95% |
| Power Required | 25.5 W (PoE 802.3at) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Power Consumption Average | 18.8 W |
| Power Consumption Maximum | 22.5 W |
| Esim | Yes |
| Sim Size | Micro-SIM (3FF) |
| Dual Sim Failover | Dual-SIM with intelligent failover: Yes |
| Sim Security Cover | Yes |
| Imei Printed On Enclosure | IMEI printed on bottom of enclosure: Yes |
| Cb | IEC/EN 62368-1 |
| Ce | EMC 2014/30/EU (EN 55032, EN 55035, EN 61000-3-2/-3-3; EN 301 489-1/-17/-19/-52); RED 2014/53/EU (EN 300 328, EN 301 893, EN 300 440, EN 303 413, EN 301 908-1/-2/-13/-25, EN IEC 62311); LVD 2014/35/EU (EN 62368-1) |
| Ic | ICES-003, RSS-247, RSS-102 |
| Ul | UL/CSA 62368-1 |
| Fcc | FCC Part 15B, 15C, 15E, 2.1091 |
| Mimo | Yes |
| Diversity | Yes |
| Gnss Bias | N/A |
| Lte Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Modem Model | EM9291 |
| Wcdma Bands | 3G WCDMA: B1, B2, B4, B5, B8, B19 |
| Connector Type | 2x Wi-Fi (RP-SMA), 4x SMA (MAIN, MIMO1/GPS, MIMO2, MIMO3) |
| Umts Hspa Bands | 3G UMTS/HSPA+: B1, B2, B4, B5, B8, B19 |
| Additional Ports | None listed |
| 5g Nr Sa Nsa Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
| Module Certifications | None listed |
| Type | Indoor |
| Bluetooth | BLE 5.0+ |
| Usb Ports | 1x USB 2.0 Type-A |
| Poe Powered | 1x Port4 (IEEE 802.3at, 25.5 W) |
| Modem Support | 5G Sub-6 GHz module EM9291 |
| Ethernet Ports | 1x 2.5G WAN, 1x SFP+RJ45 combo 1G WAN, 3x 1G LAN |
| Ieee Standards | 802.1q, 802.1d, 802.1x, 802.3ab, 802.3bz, 802.3z, 802.3af, 802.3at, 802.11a/b/g/n/ac/ax, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w |
| Gps Antenna Port | Shared with 5G/LTE RF port 1 |
| Mounting Options | Desktop / Wall-mounted |
| Number Of Antennas | 4x 5G/LTE/GNSS antennas, 2x Wi-Fi antennas |
| Att | Yes |
| Ptcrb | Yes |
| Verizon | Yes |
| T Mobile | Yes |
| Anatel Brazil | Yes |
| Public Safety Network | FirstNet Capable (5G); FirstNet Trusted in progress |
| Applied Region | Global Carriers |
| Esim Carrier Regions | Reserved eSIM for NA/EU/APAC carriers |
| Mimo 2x2 | 2x2 MIMO: Yes |
| Mimo 4x4 | 4x4 MIMO: Yes |
| Dual Modem | Not supported |
| Wifi 5 Wave2 2x2 | 2x2 802.11ac Wave2 Wi-Fi: Not supported |
| Receiver Diversity | Yes |
| Nr Dl 4x4 Mimo Bands | 5G downlink 4x4 MIMO (n1, n2, n3, n7, n25, n38, n40, n41, n48, n66, n77, n78, n79): Yes |
| Receiver Equalization | Not supported |
| Wifi 6 2x2 Concurrent | 2x2 concurrent 2.4/5 GHz Wi-Fi 6 (802.11ax): Yes |
| Nr Ul 2x2 Mimo Band N41 | 5G uplink 2x2 MIMO (n41): Yes |
| Lte Dl 4x4 Mimo Bands Set B34 | LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B34, B38, B39, B40, B41, B42, B43, B48, B66): Not supported |
| Lte Dl 4x4 Mimo Bands Set B66 | LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B66): Not supported |
| Lte Dl 4x4 Mimo Bands Set B70 | LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B42, B43, B48, B66, B70): Yes |
| Auto Connect | Yes |
| L2 Tunnel Mode | Yes |
| Data Byte Count | Yes |
| Network Profile | Yes |
| Power Management | Power management (standby and hibernate selective suspend): Yes |
| Self Diagnostics | Yes |
| Connection Status | Yes |
| Auto Select Network | Yes |
| Diag And At Commands | Yes |
| Private Ip Sim Support | Yes |
| Single Pane Management | Single-pane management via FortiGate and FortiManager: Yes |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
It is the Fortinet region code. The 511G-WiFi is ordered per region code, and this listing is the region code A variant.
It has a 2x2 concurrent 2.4 GHz and 5 GHz Wi-Fi 6 (802.11ax) radio with two RP-SMA antenna connectors. The Wi-Fi radio is separate from the 5G cellular modem.
The EM9291 module supports 5G NR SA and NSA on 28 bands (n1 to n79), 31 LTE bands and 3G UMTS/HSPA+. Fortinet lists Verizon, AT&T, T-Mobile, PTCRB and ANATEL certifications. It is FirstNet Capable on 5G, with FirstNet Trusted status in progress.
Yes. It is powered by IEEE 802.3at PoE (25.5 W) on Port 4, and its maximum consumption is 22.5 W. An optional DC 12V/2A adapter is an alternative.
It supports single-pane management via FortiGate and FortiManager, with cloud and on-premises options. It also supports VxLAN LAN extension and L2 tunnel mode over VLAN or CAPWAP.
