| Mpn | FEX-211G |
| Brand | Fortinet |
| Console Port | 1x RJ45 console port |

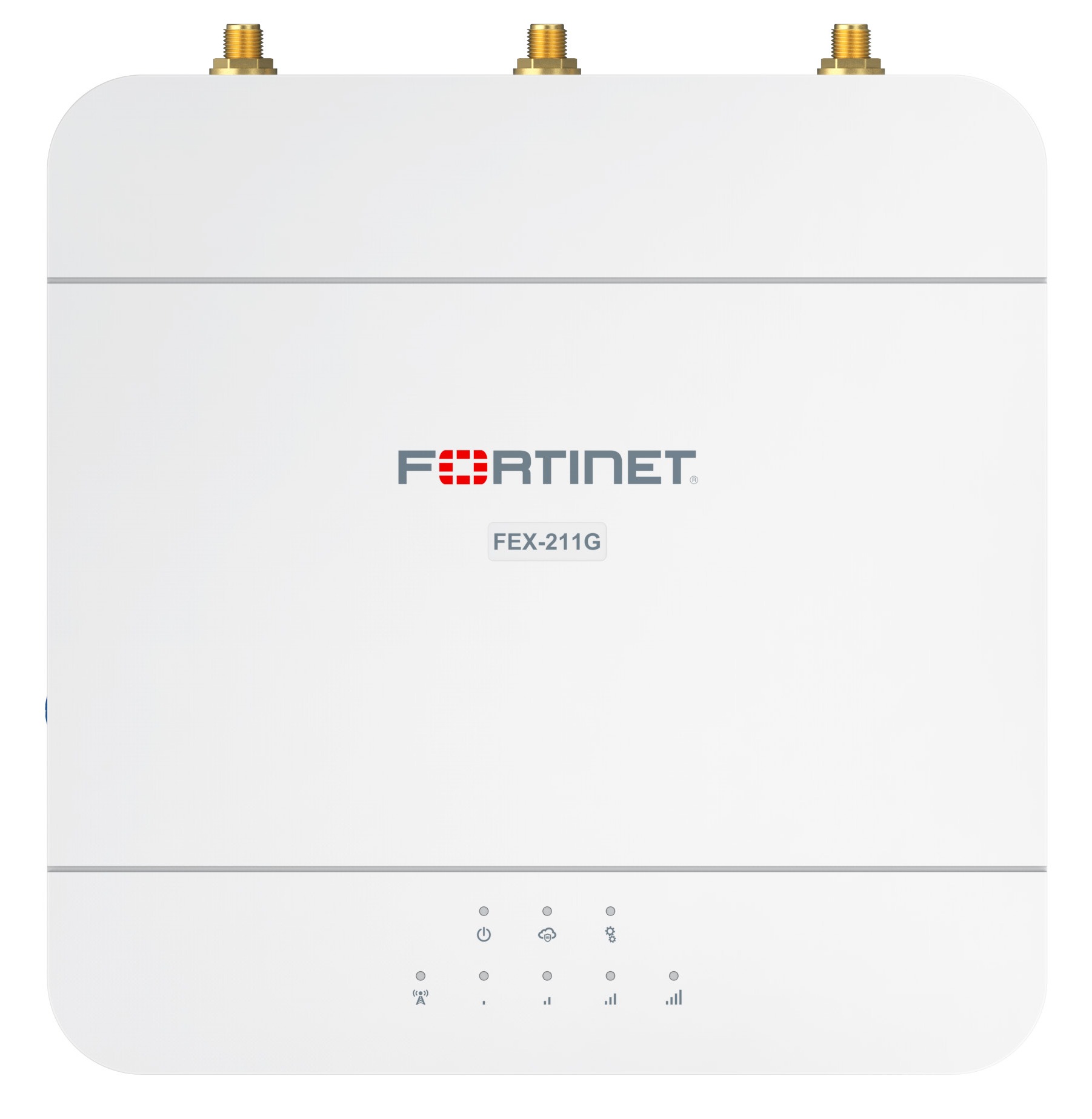

| Product Name | FortiExtender 211G |
| Cellular Technology | 4G LTE CAT-12 |
| Rated Lte Throughput | Up to 600 Mbps down / 150 Mbps up |
| Lan Lan Layer2 | 950 Mbps |
| Ipsec Vpn Wired | 890 Mbps |
| Max Wan Uplinks | 1 |
| Ipsec Vpn Cellular | 170 Mbps over cellular |
| Lan Wan Nat Layer3 | 900 Mbps |
| Lan Extension Vxlan Over Ipsec | 600 Mbps down / 350 Mbps up |
| Weight | 0.90 lb (0.41 kg) |
| Height Width Length In | 1.5 x 6.22 x 6.22 in (not including antenna length) |
| Height Width Length Mm | 38 x 158 x 158 mm (not including antenna length) |
| Humidity | 5% to 95% |
| Power Required | PoE 802.3af/at or 12V/3A external adapter |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Power Consumption Average | 9.18 W |
| Power Consumption Maximum | 10.64 W |
| Esim | Yes |
| Sim Size | Micro-SIM (3FF) |
| Dual Sim Failover | Dual-SIM with intelligent failover: Yes |
| Sim Security Cover | Yes |
| Imei Printed On Enclosure | IMEI printed on bottom of enclosure: Yes |
| Cb | IEC/EN 62368-1 |
| Ce | EMC 2014/30/EU (EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489-1/-17/-19/-52); RED 2014/53/EU (EN 300 328, EN 303 413, EN 301 908-1/-2/-13, EN IEC 62311, EN 50665, EN 50385); LVD 2014/35/EU (EN 62368-1) |
| Ic | ICES-003, RSS-247, RSS-102 |
| Ul | UL/CSA 62368-1 |
| Fcc | FCC Part 15B, 15C, 2.1091 |
| Mimo | Yes |
| Diversity | Yes |
| Gnss Bias | Yes |
| Lte Bands | LTE bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48 (CBRS), 66, 71 |
| Modem Model | Telit LN920A12-WW (CAT-12) |
| Wcdma Bands | 3G WCDMA bands 1, 2, 4, 5, 6, 8, 9, 19 |
| 5g Nr Sa Nsa | Not supported |
| Connector Type | SMA (MAIN, AUX, GPS) |
| Umts Hspa Bands | 3G UMTS/HSPA+ bands 1, 2, 4, 5, 8 |
| Additional Ports | GPS antenna port |
| Module Certifications | RCM, ANATEL, ISED, CCC/NAL/SRRC, RED, JATE/TELEC, KCC, NCC, UKCA, FCC, PTCRB, GCF, TELSTRA, KDDI, DOCOMO, SPK NZ, AT&T, VZW, TMO |
| Type | Indoor |
| Bluetooth | BLE 5.0+ |
| Usb Ports | 1x USB 2.0 Type-A |
| Poe Powered | 1x Port4, IEEE 802.3at (25.5 W) |
| Modem Support | Internal (1x Modem) LTE CAT-12 |

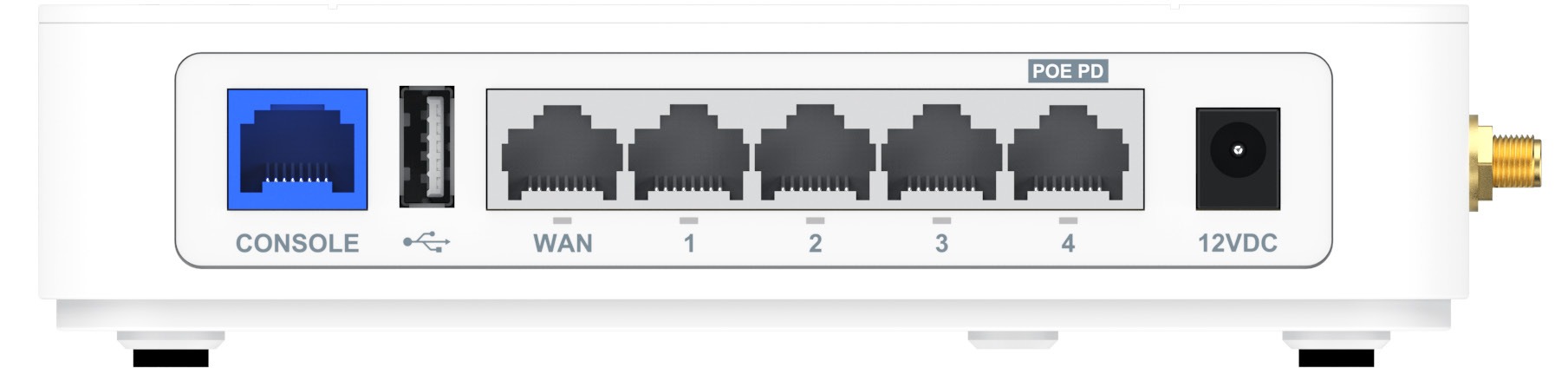

| Ethernet Ports | 1x 1GigE WAN, 4x 1GigE LAN |
| Ieee Standards | 802.1q, 802.1d, 802.1x, 802.3ab, 802.3af, 802.3at |
| Gps Antenna Port | Yes |

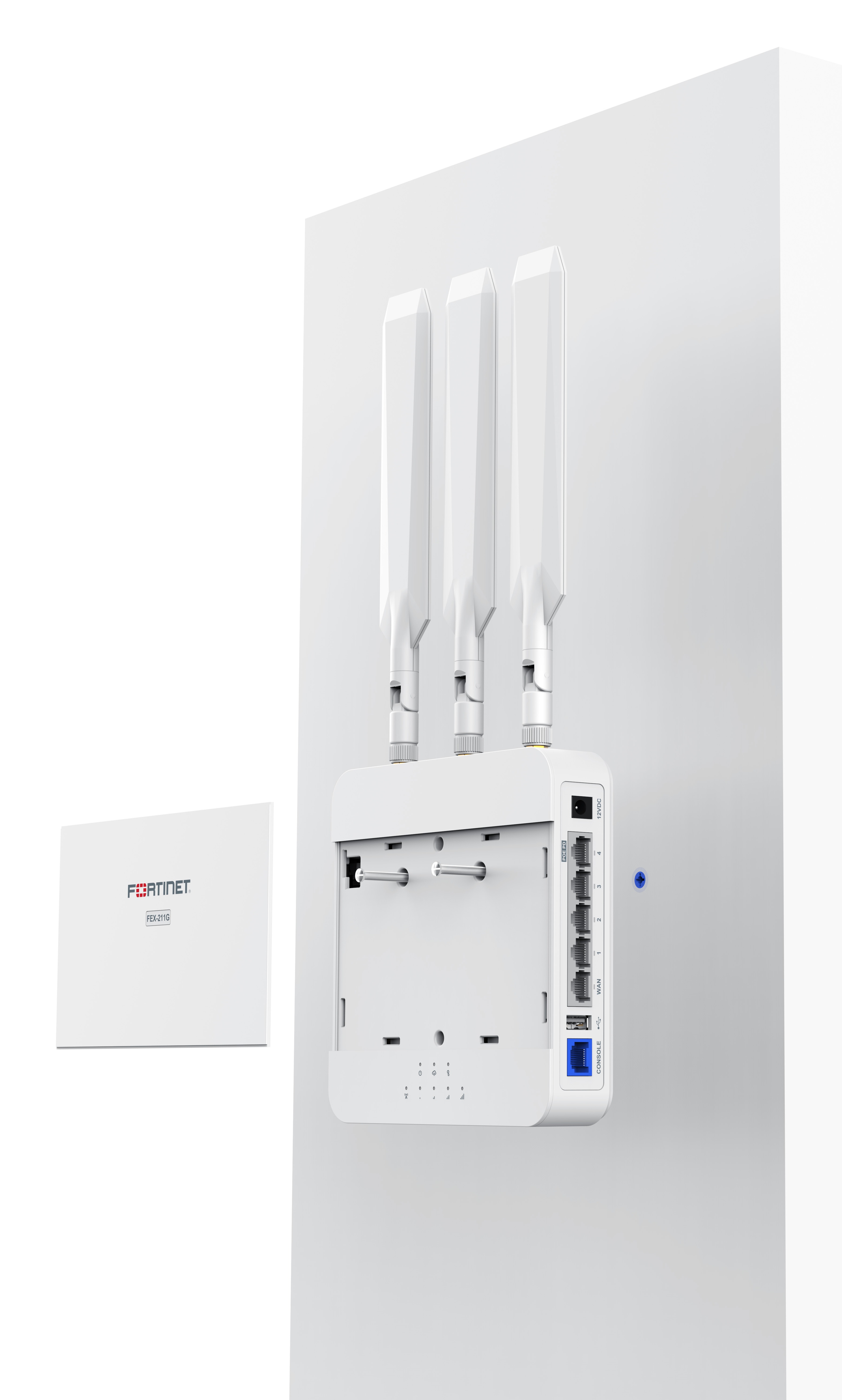

| Mounting Options | Wall-Mount / Desktop |
| Number Of Antennas | 3 SMA External (2x LTE + 1x GNSS) |
| Att | Yes |
| Ptcrb | Yes |
| Verizon | Yes |
| T Mobile | Yes |
| Anatel Brazil | Not listed |
| Public Safety Network | FirstNet Capable (4G); FirstNet Trusted in progress |
| Applied Region | Global Carriers |
| Esim Carrier Regions | Reserved eSIM for NA/APAC/EMEA carriers |
| Mimo 2x2 | 2x2 MIMO: Yes |
| Mimo 4x4 | 4x4 MIMO: Not supported |
| Dual Modem | Not supported |
| Wifi 5 Wave2 2x2 | 2x2 802.11ac Wave2 Wi-Fi: Not supported |
| Receiver Diversity | Yes |
| Nr Dl 4x4 Mimo Bands | 5G downlink 4x4 MIMO (n1, n2, n3, n7, n25, n38, n40, n41, n48, n66, n77, n78, n79): Not supported |
| Receiver Equalization | Yes |
| Wifi 6 2x2 Concurrent | 2x2 concurrent Wi-Fi 6 (802.11ax): Not supported |
| Nr Ul 2x2 Mimo Band N41 | 5G uplink 2x2 MIMO (n41): Not supported |
| Lte Dl 4x4 Mimo Bands Set B34 | LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B34, B38, B39, B40, B41, B42, B43, B48, B66): Not supported |
| Lte Dl 4x4 Mimo Bands Set B66 | LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B66): Not supported |
| Lte Dl 4x4 Mimo Bands Set B70 | LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B42, B43, B48, B66, B70): Not supported |
| Auto Connect | Yes |
| L2 Tunnel Mode | Yes |
| Data Byte Count | Yes |
| Network Profile | Yes |
| Power Management | Power management (standby and hibernate selective suspend): Yes |
| Self Diagnostics | Yes |
| Connection Status | Yes |
| Auto Select Network | Yes |
| Diag And At Commands | Yes |
| Private Ip Sim Support | Yes |
| Single Pane Management | Single-pane management via FortiGate and FortiManager: Yes |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
No. The 211G uses a Telit LN920A12-WW LTE CAT-12 modem rated up to 600 Mbps down and 150 Mbps up. 5G NR is not supported on this model.
Port 4 accepts IEEE 802.3af/at PoE. The unit can also run from an optional external DC adapter. Region-specific power adapters are sold separately.
Fortinet lists Verizon, AT&T, T-Mobile and PTCRB certifications. The router is FirstNet Capable on 4G, with FirstNet Trusted status in progress. Supported bands depend on modem firmware, the Fortinet software version and carrier configuration.
It supports single-pane management through FortiGate and FortiManager, with cloud and on-premises management options. It also supports Layer 2 tunnel mode over VLAN or CAPWAP and VxLAN LAN extension.
It has two Micro-SIM (3FF) slots with intelligent failover behind a SIM security cover, plus a reserved eSIM.
