| Mpn | FEX-202F-AM |
| Upc | 195875130362 |
| Brand | Fortinet |

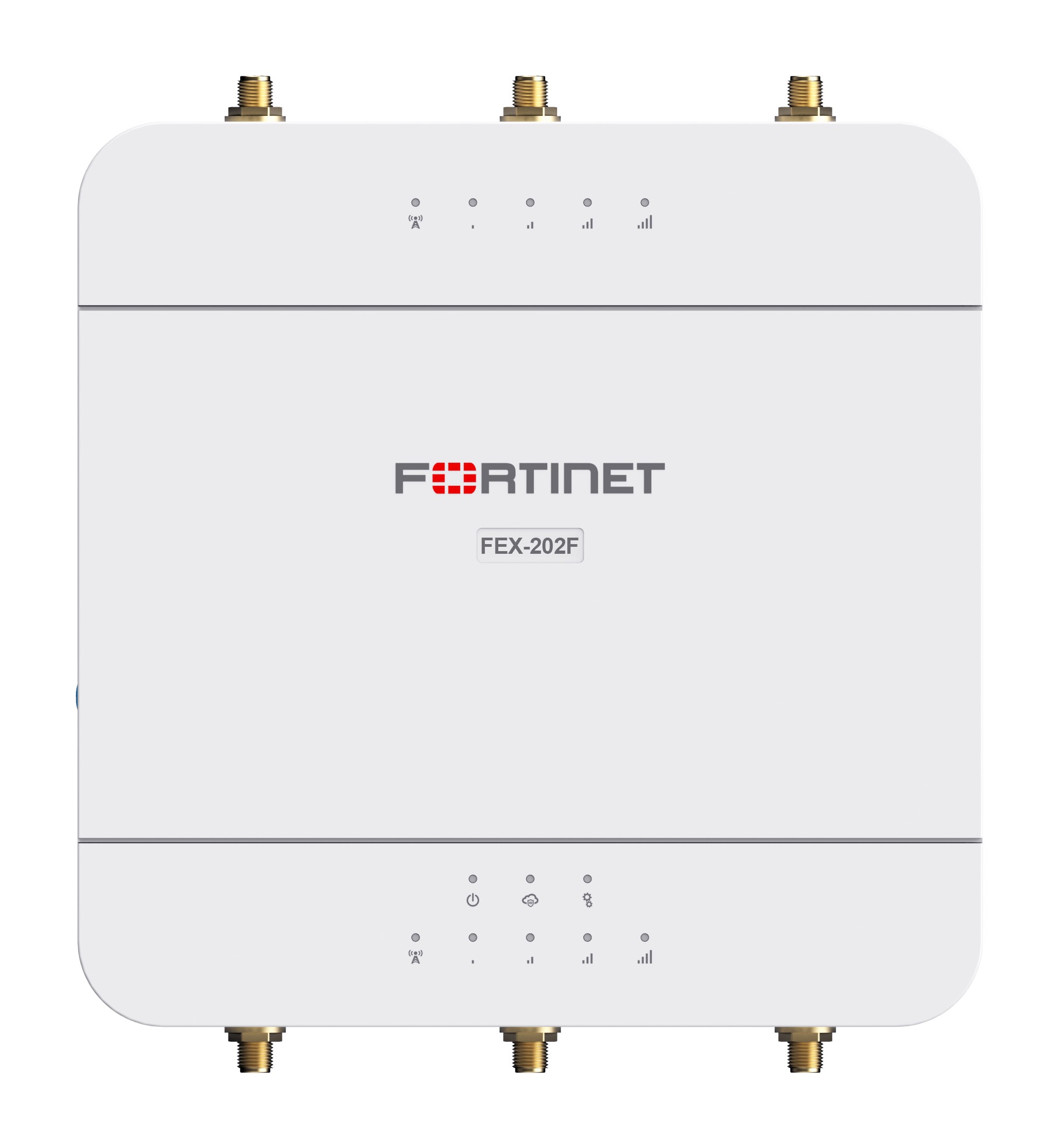

| Product Name | FortiExtender 202F |
| Cellular Modules | 2x dual-SIM 3G/4G LTE Cat 7 M.2 modules, 300 Mbps down / 150 Mbps up |
| Optional Power Adapter | SP-FEX12V3A-PA-1-US (US power adapter, ordered separately) |
| Ipsec Vpn Wired | 220 Mbps |
| Max Wan Uplinks | 1 |
| Ipsec Vpn Cellular | 100 Mbps (LTE) |
| Lan Lan Layer2 Frames | 930 Mbps |
| Lan Wan Nat Layer3 Packets | 930 Mbps |
| Lan Extension Vxlan Over Ipsec | 200 Mbps |
| Weight | 0.90 lbs (0.41 kg) |
| Height Width Length In | 1.5 x 6.22 x 6.22 in (not including antenna length) |
| Height Width Length Mm | 38 x 158 x 158 mm (not including antenna length) |
| Humidity | 5% to 95% |
| Power Required | 12V/3A external adapter or PoE (802.3af/at) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Power Consumption Average | 7.55 W |
| Power Consumption Maximum | 9.40 W |
| Esim | Not supported |
| Sim Size | Micro-SIM (3FF) |

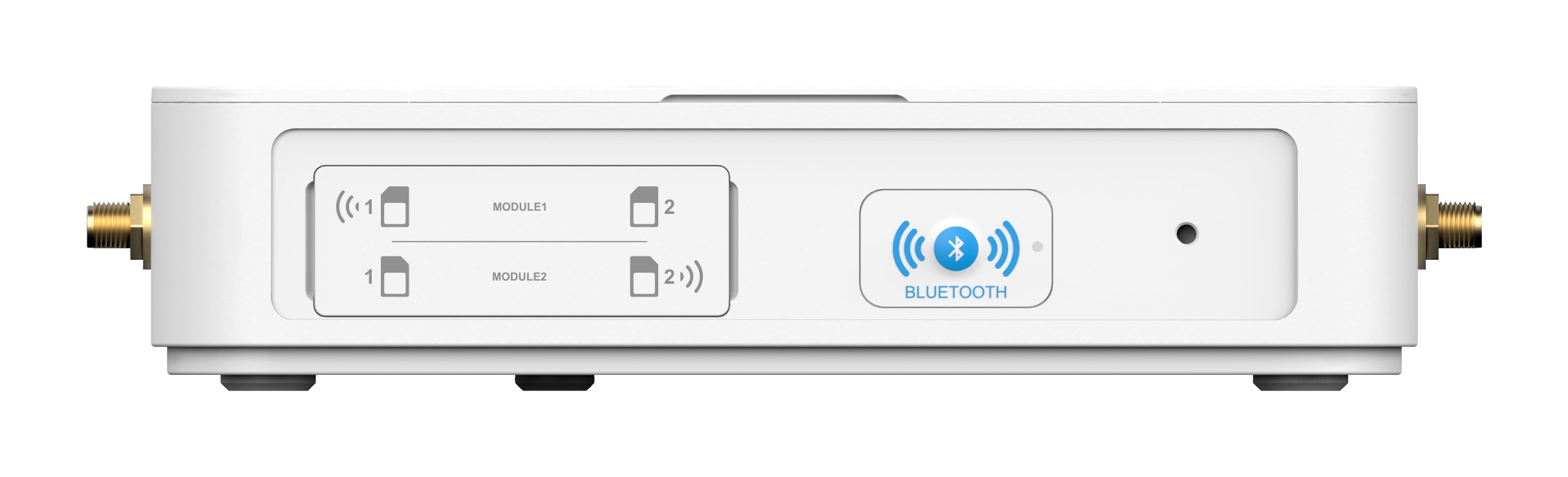

| Dual Sim Failover | Dual-SIM with intelligent failover: Yes |
| Sim Security Cover | Yes |
| Imei Printed On Enclosure | IMEI printed on bottom of enclosure: Yes |
| Cb | IEC/EN 62368-1 |
| Ce | EMC 2014/30/EU (EN 55032, EN 55035, EN 61000-3-2/-3; EN 301 489-1/-17/-52); RED 2014/53/EU (EN 300 328, EN 303 413, EN 301 908-1/-2/-13) |
| Ic | ICES-003, RSS-247, RSS-102 |
| Ul | UL/CSA 62368-1 |
| Fcc | FCC Part 15B, 15C, 2.1091 |
| Mimo | Yes |
| Diversity | Yes |
| Gnss Bias | Yes |
| Lte Bands | 4G LTE Cat 7 bands 2, 4, 5, 7, 12, 13, 14, 25, 26, 41, 42, 43, 48, 66, 71 |
| Modem Model | Sierra Wireless EM7411 (2x modem) |
| Wcdma Bands | 3G WCDMA bands 2, 4, 5 |
| 5g Nr Sa Nsa | Not supported |
| Connector Type | SMA: LTE1 (MAIN, AUX, GPS), LTE2 (MAIN, AUX, GPS) |
| Umts Hspa Bands | 3G UMTS/HSPA+ bands 2, 4, 5 |
| Additional Ports | GPS antenna port |
| Module Certifications | FCC, IC, GCF, PTCRB |
| Type | Indoor |
| Bluetooth | 2.4 GHz, 10 dBm maximum transmit power |
| Usb Ports | 1x USB 2.0 Type-A |
| Poe Powered | IEEE 802.3af (15.4 W) |
| Modem Support | Internal (2x modem) |

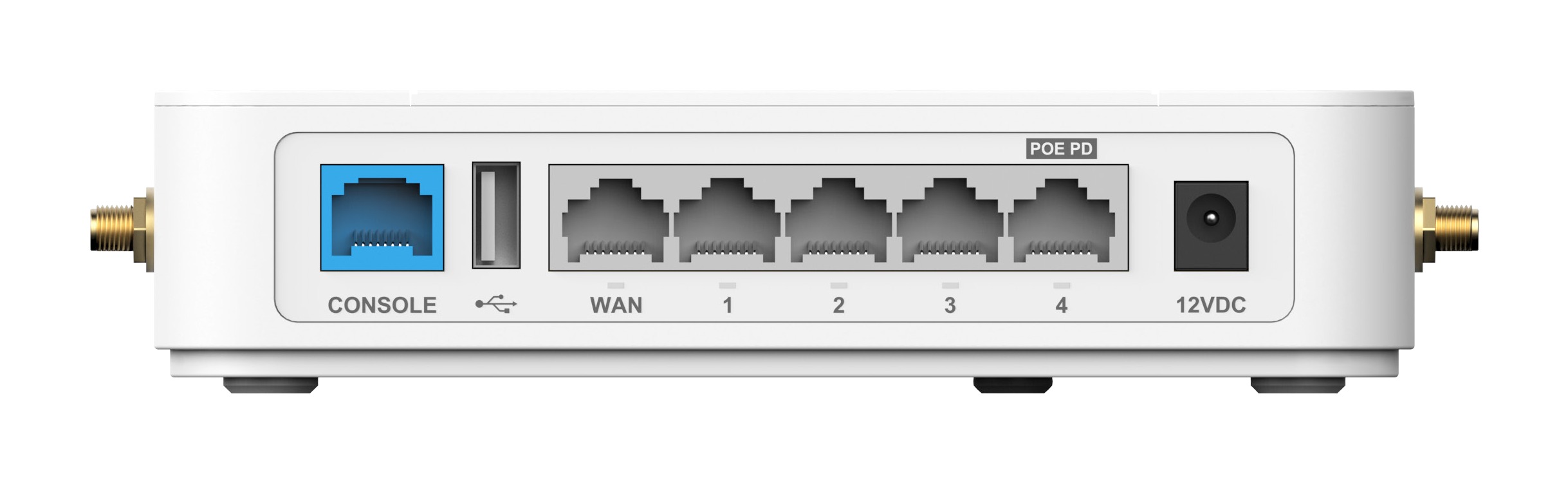

| Ethernet Ports | 5x Gigabit RJ45 (WAN/LAN configurable) |
| Ieee Standards | 802.1q, 802.1d, 802.3ab, 802.3af |
| Gps Antenna Port | Yes |
| Mounting Options | Wall mount / desktop |
| Number Of Antennas | 6 external SMA |
| Att | Yes |
| Ptcrb | Yes |
| Verizon | Yes |
| T Mobile | Yes |
| Anatel Brazil | Not listed |
| Public Safety Network | Not listed |
| Applied Region | North America carriers |
| Mimo 2x2 | 2x2 MIMO: Yes |
| Mimo 4x4 | 4x4 MIMO: Not supported |
| Dual Modem | Yes |
| Wifi 6 2x2 | 2x2 2.4/5 GHz concurrent Wi-Fi 6 (802.11ax): Not supported |
| Wifi 5 Wave2 2x2 | 2x2 2.4/5 GHz 802.11a/b/g/n/ac Wave 2 Wi-Fi: Not supported |
| Receiver Diversity | Yes |
| 5g Dl 4x4 Mimo Bands | 5G downlink 4x4 MIMO (n1, n2, n3, n7, n25, n38, n40, n41, n48, n66, n77, n78, n79): Not supported |
| Receiver Equalization | Yes |
| 5g Ul 2x2 Mimo Band N41 | 5G uplink 2x2 MIMO band n41: Not supported |
| Lte Dl 4x4 Mimo Bands Set 1 | LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B34, B38, B39, B40, B41, B42, B43, B48, B66): Not supported |
| Lte Dl 4x4 Mimo Bands Set 2 | LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B66): Not supported |
| Lte Dl 4x4 Mimo Bands Set 3 | LTE downlink 4x4 MIMO (B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B42, B43, B48, B66, B70): Not supported |
| Auto Connect | Yes |
| L2 Tunnel Mode | Yes |
| Data Byte Count | Yes |
| Network Profile | Yes |
| Power Management | Standby and hibernate selective suspend: Yes |
| Self Diagnostics | Yes |
| Connection Status | Yes |
| Auto Select Network | Yes |
| Diag And At Commands | Yes |
| Private Ip Sim Support | Yes |
| Single Pane Management | Single pane of glass management via FortiGate and FortiManager: Yes |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
No. It uses two Sierra Wireless EM7411 LTE Cat 7 modems, each rated at 300 Mbps down and 150 Mbps up, with 3G UMTS/HSPA+ and WCDMA fallback. 5G NR is not supported.
The FEX-202F-AM is the North America carrier version. Its LTE bands are 2, 4, 5, 7, 12, 13, 14, 25, 26, 41, 42, 43, 48, 66 and 71.
It can be powered over PoE (802.3af/at) or by a 12V/3A external adapter. The US power adapter is part SP-FEX12V3A-PA-1-US and is ordered separately. Average consumption is 7.55 W.
No. The 202F has no built-in Wi-Fi and no eSIM. It uses Micro-SIM (3FF) cards on two dual-SIM modules with intelligent failover and connects devices over five Gigabit Ethernet ports.
It supports single-pane management through FortiGate and FortiManager, with cloud and on-premises options. It also integrates with Fortinet Secure SD-WAN and supports VxLAN extension and L2 tunnel mode via VLAN or CAPWAP.
