| VPN Tunnels | 20 VPN tunnels |
| Idle Consumption | 9 W |
| Sleep Consumption | 15 mW |
| Power Consumption (W) | 14.5 W typical |
| Heavy Load Consumption | 15.2 W |
| Form Factor | Ruggedized metal enclosure |
| GPIO Cable | Black GPIO cable with small 2x2 connector, 3 m length and 20 AWG conductors |
| Included Service | NetCloud Mobile Essentials |
| Antennas Included | Antennas excluded |
| Included Hardware | R920 Cat 7 LTE router with Wi-Fi |
| Subscription Term | 5 years |
| Regional Configuration | Australia, European Union, Malaysia, New Zealand, Singapore, South Africa and United Kingdom |
| AC Power Supply Included | AC power supply excluded |
| Included Installation Accessories | GPIO cable and mounting template |
| Software Updates | Software updates through NetCloud Manager for the 5-year subscription term |
| Device Management | NetCloud Manager for the 5-year subscription term |
| Hardware Warranty | Limited lifetime hardware warranty while the device has an active NetCloud Service subscription |
| Technical Support | Technical support for the 5-year subscription term |
| Cellular Type | Embedded Cat 7 LTE modem |
| Dual Modem Support | Second LTE or 5G modem supported through a separately purchased RX20 managed accessory |
| Cellular Generation | 4G LTE |
| Rated Cellular Speed | 300 Mbps |

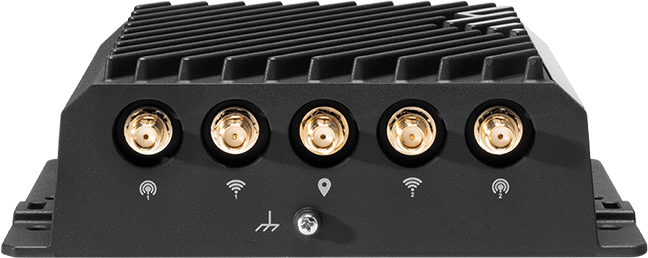

| Cellular Antenna Connectors | 2 SMA cellular antenna connectors |
| Extensibility | Container applications, connectors, SDK and API support |
| SD-WAN Support | Cellular-optimized SD-WAN available through NetCloud Exchange services |
| Cloud Management | NetCloud Manager with zero-touch deployment and group policy management |
| Ignition Sensing | Ignition-controlled startup and delayed shutdown |
| UPC | 840292703605 |
| Brand | Cradlepoint |
| Model | R920 |
| Manufacturer | Ericsson Enterprise Wireless |
| Manufacturer Part Number | MA05-0920-C7B-GA |
| Width | 5.26 in |
| Depth (In) | 4.78 in |
| Height (In) | 1.61 in |
| Shipping Weight | 2.20 lb |

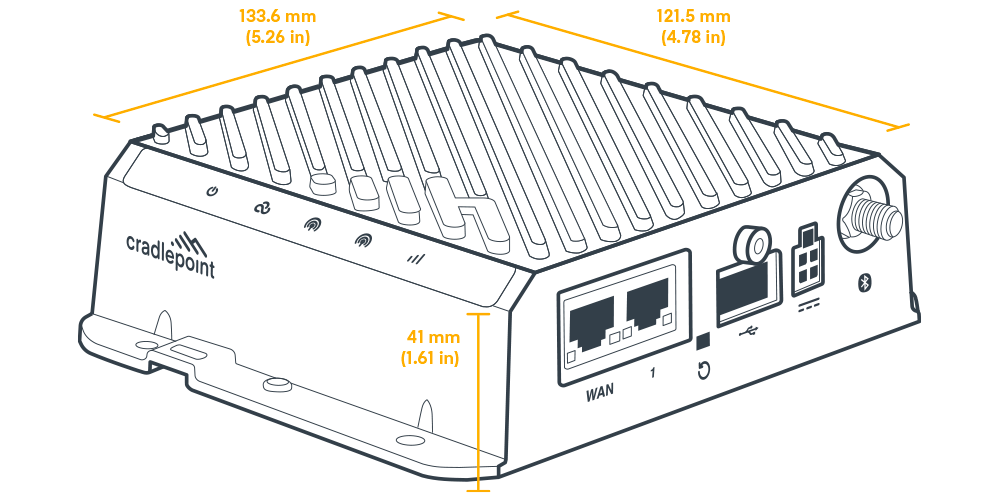

| Metric Dimensions | 133.6 × 121.5 × 41 mm |
| Weight (Approximate) | 595 g |
| VPN Supported | VPN supported |
| Integrated Firewall | Stateful zone-based firewall |
| Advanced Security Entitlement | Application-aware firewall, IDS/IPS and web filtering require the Advanced Mobile Service plan |
| DFS | Dynamic Frequency Selection supported |
| Bluetooth | Embedded Bluetooth Low Energy 5.1 |
| Frequency Band | Concurrent 2.4 GHz and 5 GHz |
| 5 GHz Link Rate | 1.2 Gbps at 5 GHz |
| Operating Modes | Access point, wireless client and Wi-Fi as WAN |
| 2.4 GHz Link Rate | 574 Mbps at 2.4 GHz |
| Roaming Standards | IEEE 802.11k in access point mode and IEEE 802.11v |
| Wireless Security | WPA, WPA2 and WPA3 Personal; WPA2 and WPA3 Enterprise; Open |
| Radio Configuration | Dual concurrent radios with 2x2 MU-MIMO |
| Wi-Fi Antenna Connectors | 2 RP-SMA Wi-Fi antenna connectors |
| Bluetooth Antenna Connector | 1 RP-SMA Bluetooth antenna connector |
| Bluetooth Maximum Transmit Power | 10 dBm |
| Calculated MTBF | 637,911 hours under Telcordia SR332 at 25 °C |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Throughput (MB/S) | 117.5 MB/s equivalent to the rated 940 Mbps stateful firewall throughput |
| Stateful Firewall Throughput | 940 Mbps stateful firewall throughput |
| GNSS/GPS | Active GNSS/GPS |
| Protocol | NMEA 0183 |
| Constellations | Simultaneous GPS, Galileo, GLONASS, BeiDou and QZSS tracking |
| GNSS Antenna Connector | 1 SMA GNSS antenna connector |
| Cold Start Time To First Fix | 32 seconds |
| PoE | No PoE support |
| USB | 1 USB 2.0 Type A port with screw lock |
| GPIO | 1 GPIO connector with 2 pins, shared with the DC power connector |

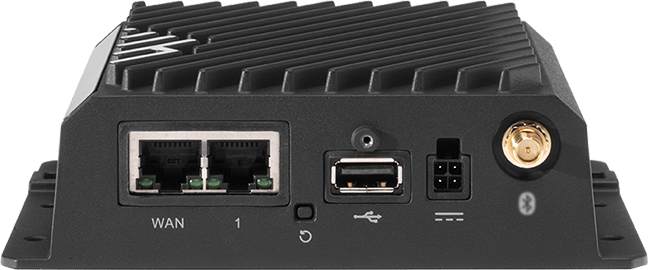

| Port Count | 2 Gigabit Ethernet ports |
| Wi-Fi Standard | Wi-Fi 6 / IEEE 802.11ax |
| Power Connector | 2x2 Molex Micro-Fit locking connector, 3 mm |
| USB Power Output | 5 V, 500 mA, 2.5 W |
| Ethernet Technology | Gigabit Ethernet |
| Integrated Serial Ports | 0 integrated serial ports |
| Broadband Transmission Technology | Cellular LTE |
| LAN Ports | Up to 2 Gigabit Ethernet LAN ports; shared LAN/WAN configuration |
| WAN Ports | Up to 2 Gigabit Ethernet WAN ports; shared LAN/WAN configuration |
| CPU | Dual-core ARMv8 64-bit processor |
| Available Memory | Up to 921 MB; allocation depends on configuration |
| Application Format | Docker containerized applications |
| Available Flash Storage | Up to 8 GB; allocation depends on configuration |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
R920 names the router model. MA05-0920-C7B-GA identifies the international Cat 7 configuration with Wi-Fi and a 5-year NetCloud Mobile Essentials plan. This package covers the specified international markets and excludes antennas and an AC power supply.
The package includes the R920 router, a 5-year NetCloud Mobile Essentials subscription, a black 3 m GPIO cable with 20 AWG conductors, and a mounting template. Antennas and an AC power supply must be selected separately.
The included modem is Cat 7 LTE with a rated cellular speed of 300 Mbps. A second LTE or 5G modem can be added through a separately purchased RX20 managed accessory. The supplied router does not include an embedded 5G modem.
Mobile Essentials provides cloud device management, software updates and the router's stateful zone-based firewall. Application-aware firewall capabilities, intrusion detection and prevention, web filtering, and advanced GNSS/GPS features such as location tracking and cellular coverage maps require the Advanced Mobile Service plan.
