| Fuse | 3 A fuse (9–24 VDC); 2.5 A fuse (>24 VDC) |
| Features | ISO 7637-2 reverse polarity/transient protection; ignition sensing (auto ON, time-delay OFF) |
| Connector | 4-pin 2x2 Molex micro-fit |
| Light Rail | 24 VDC nominal for light rail applications |
| Consumption | Sleep 15 mW; Idle 11 W; Typical 19 W; Heavy 22 W |
| Input Voltage | 9–36 VDC steady state (in-line fuse required for vehicle installations) |
| Mpn | MB05-19005GB-GA |
| Upc | 810007807300 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint R1900 |
| Region | All Regions |
| Package Plan | 5-Year NetCloud Mobile Performance Essentials Plan |
| Product Status | Active |
| Subscription Term | 5 years |
| Package Inclusions | 24x7 support and limited lifetime warranty |
| Hardware Configuration | 5G with Wi-Fi; no AC power supply or antennas included |
| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Mimo | 4x4 MIMO |
| 3g Bands | 1, 2, 3, 4, 5, 6, 8, 9, 19 |
| Gnss Gps | Discrete active GPS with dead reckoning |
| Lte Bands | FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48 |
| Modulation | Up to 256 QAM downlink and uplink (carrier-equipment dependent) |
| Peak Rates | Up to 4.14 Gbps down / 660 Mbps up |
| Regulatory | FCC, IC, CE, RCM |
| Technology | 5G FR1 NSA/SA + LTE Advanced Pro Cat 20; dual 4FF SIM; 3GPP Release 15 |
| 5g Nr Bands | NSA/SA: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 |
| Transmit Power | 5G NR 23 dBm ±1.5; ENDC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41 SA only) |
| Carrier Aggregation | LTE: up to 7 CA DL / 2 CA UL; LTE + 5G NR ENDC: 1 CA DL / 1 CA UL |
| Private Cellular Network | Yes, including FCC Part 96 (CBRS Band 48) |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Public Safety Certifications | ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified |
| Network Operator Certifications | AT&T, EE, Telstra, T-Mobile, Verizon |
| Power | 3.1–3.8 V supply; 30 mA max current |
| Accuracy | Autonomous 1 meter |
| Protocols | NMEA 0183, TAIP |
| Frequencies | L1 (1559–1606 MHz) |
| Sensitivity | Acquisition -147 dBm; Tracking -165 dBm; Reacquisition -159 dBm |
| Update Rate | 1 Hz (once per second) |
| Constellations | GPS, Galileo, GLONASS, BeiDou (concurrent reception) |
| Time To First Fix | 30 seconds (cold start) |
| Weight | 0.98 kg (2.15 lb) |

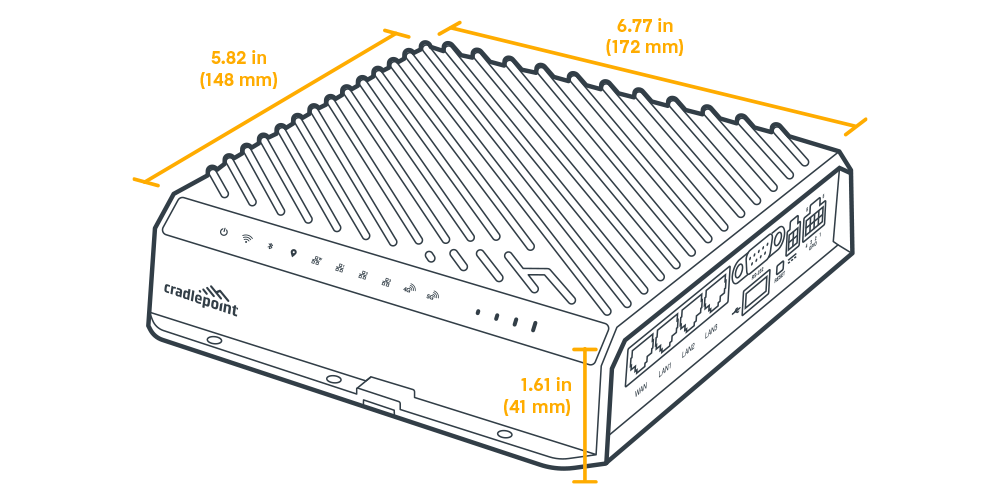

| Dimensions | 172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in) |
| Shipping Weight | 6.32 lb |
| Poe | Optional RX30 PoE switch: 4 x 802.3bt Type 3, up to 60 W per port, 60 W total budget |
| Wifi | Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) & 1,200 Mbps (5 GHz); 2 x RP-SMA; WPA3; 802.11k/v; Wi-Fi Alliance Certified |
| Modem | Embedded 5G NR FR1 + 4G LTE Cat 20 modem; 4 x SMA cellular antenna connectors |

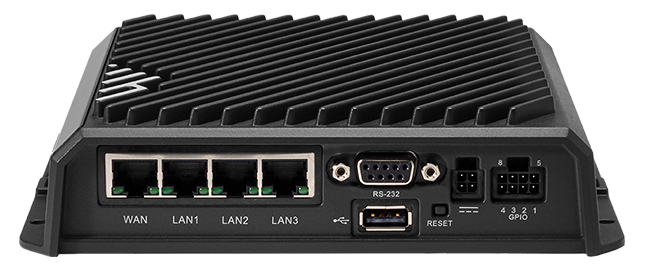

| Ethernet | 4 x GbE (LAN/WAN switchable) |
| Bluetooth | Bluetooth LE 5.2, 10 dBm max TX, 1 x RP-SMA connector |
| Expansion Console | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W); 1 x DB9 RS-232; 1 x 8-pin GPIO (2x4 Molex micro-fit); optional RX30-POE and RX30-MC |
| Gnss Gps Connector | 1 x SMA GNSS antenna connector |
| Eu | 2.4 GHz 14.00 dBm; 5500–5700 MHz 18.00 dBm |
| Fcc | 2.4 GHz 23 dBm; 5260–5825 MHz 21.90 dBm |
| Japan | 2.4 GHz 16.92 dBm; 5500–5720 MHz 21.00 dBm |
| Canada | 2.4 GHz 23.00 dBm; 5500–5580 MHz 22.00 dBm; 5660–5825 MHz 21.89 dBm |
| Global Safe Mode | 2.4 GHz 14 dBm |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Stateful Firewall | 940 Mbps |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 32,000 |
| Point To Point Ipsec Vpn | 400 Mbps |
| Sase Secure Connect Sd Wan | IPsec 400 Mbps; Microtunnel 600 Mbps |
| Ips Application Aware Client Analytics | 940 Mbps |
| Calculated Mtbf | 340,644 hours (Telcordia SR332 at 25 °C) |
| Humidity | 5% to 95% operating and storage |
| Ingress Protection | IP64 (dust tight and splashing water) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Rail | EN 45545-2:2020 HL3; EN 50121-3-2; EN 50155 Class S1 |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Vehicle | E-Mark, SAE J1455 |
| Security | FIPS 140-3 Level 1 module in process (FIPS models only) |
| Shock Vibration | MIL-STD-810G, Section 2.2.2, Procedure 1 |
| Hazardous Locations | Class I Div 2 |
| Flame Smoke Toxicity | BSS 7239 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| North American Fire Safety | NFPA 130 |
| Support | Support for the full subscription term |
| Warranty | Limited lifetime warranty with active NetCloud subscription |
| Service Plans | Ericsson NetCloud Service for Mobile Performance |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Cpu | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB |
| Applications | Docker containerized applications |
| Flash Storage | Up to 6 GB |
| Poe | Yes, with RX30-PoE |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Category | Mobile |
| Gps Gnss | Discrete active GNSS with dead reckoning |
| 5g Status | 5G Embedded |
| Bluetooth | Yes, embedded Bluetooth 5.2 |
| Usb Ports | 1 |
| Throughput | 940 Mbps (Firewall) |
| Form Factor | Ruggedized Metal |
| Vpn Tunnels | 20 |
| Serial Ports | 1 |
| Ethernet Ports | 4 GbE (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | Add 4 GbE PoE ports or 4 GbE and second modem |
| Dual Modem Support | Yes, with RX30-MC |
| Subscription Terms | 1, 3 & 5 years |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Wireless Connectivity | 5G/4G Dual Connectivity |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
The R1900 5G router with Wi-Fi and a 5-year NetCloud Mobile Performance Essentials plan, which includes NetCloud Manager, software updates and 24x7 support for the term. No AC power supply or antennas are included.
No. PoE is added with the optional RX30-POE accessory, which provides four 802.3bt Type 3 ports with a 60 W total power budget.
It is certified on AT&T, EE, Telstra, T-Mobile and Verizon. Public safety certifications include FirstNet Trusted, Verizon Frontline Verified, T-Mobile Connecting Heroes and ESN (4G).
It accepts 9–36 VDC through a 4-pin Molex micro-fit connector, with an in-line fuse required for vehicle installs. It has ISO 7637-2 protection and ignition sensing with automatic on and time-delay off.
Yes. A NetCloud Mobile Performance Advanced plan can be added at any time for threat management, web filtering, application visibility, analytics, location tracking and cellular coverage maps.
