| Poe | 802.3af PSE Type 1 (15 W) |
| Dc Input | 9–33 VDC (3 A fuse for 9–12 VDC; 2 A fuse above 12 VDC) |
| Protection | Reverse polarity and transient voltage (ISO 7637-2) |
| Consumption | Power Consumption (DC): Idle 3.3 W, Typical 4.1 W, Heavy 5.8 W; sleep not supported |
| Mpn | Part Number: TBV5-0400-C6-NA-N |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint S400 |
| Region | North America (U.S. & Canada) |
| Package Plan | 5-Year NetCloud IoT Essentials + Advanced Plans |
| Product Status | Manufacturer Status: Active |
| Shipping Weight | 1.23 lb |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 6 with Wi-Fi, AC power supply and antennas |
| 3g | N/A |
| Sms | Yes |
| Gnss | Modem GNSS: Active; GPS, GLONASS, BeiDou, Galileo |
| Mimo | 2x2 |
| 3g Bands | N/A |
| Antennas | 2 x SMA female, 600 MHz–6 GHz paddle antennas |
| Modulation | Up to 16 QAM |
| Peak Rates | Peak LTE Rates: 300 Mbps down / 50 Mbps up |
| Regulatory | Modem Regulatory: FCC, IC |
| Technology | Cat 6 LTE (3GPP Rel. 11), dual 4FF SIM, auto-carrier selection |
| Lte Bands Fdd | LTE FDD Bands: B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 |
| Lte Bands Tdd | LTE TDD Bands: B41, B48 |
| Transmit Power | LTE 23 dBm ± 2 |
| Carrier Aggregation | DL up to 2 CA, UL up to 1 CA |
| Private Cellular Network | Yes, CBRS Band 48 (FCC Part 96) |
| Network Operator Standards | Operator Standards: PTCRB (U.S., Canada) |
| Public Safety Certifications | Public Safety Network Certifications: N/A |
| Network Operator Certifications | Operator Certifications: AT&T, T-Mobile, Verizon |
| Power | GNSS Antenna Power: Passive (no power provided) |
| Accuracy | 2 m autonomous, open sky (CEP-50) |
| Protocols | NMEA 0183, TAIP |
| Frequencies | L1 |
| Sensitivity | -147 dBm acquisition, -159 dBm tracking/reacquisition |
| Update Rate | 1 Hz |
| Constellations | GPS, Galileo, GLONASS, BDS |
| Time To First Fix | 30 seconds (cold start) |
| Weight | 221 g (7.8 oz) |

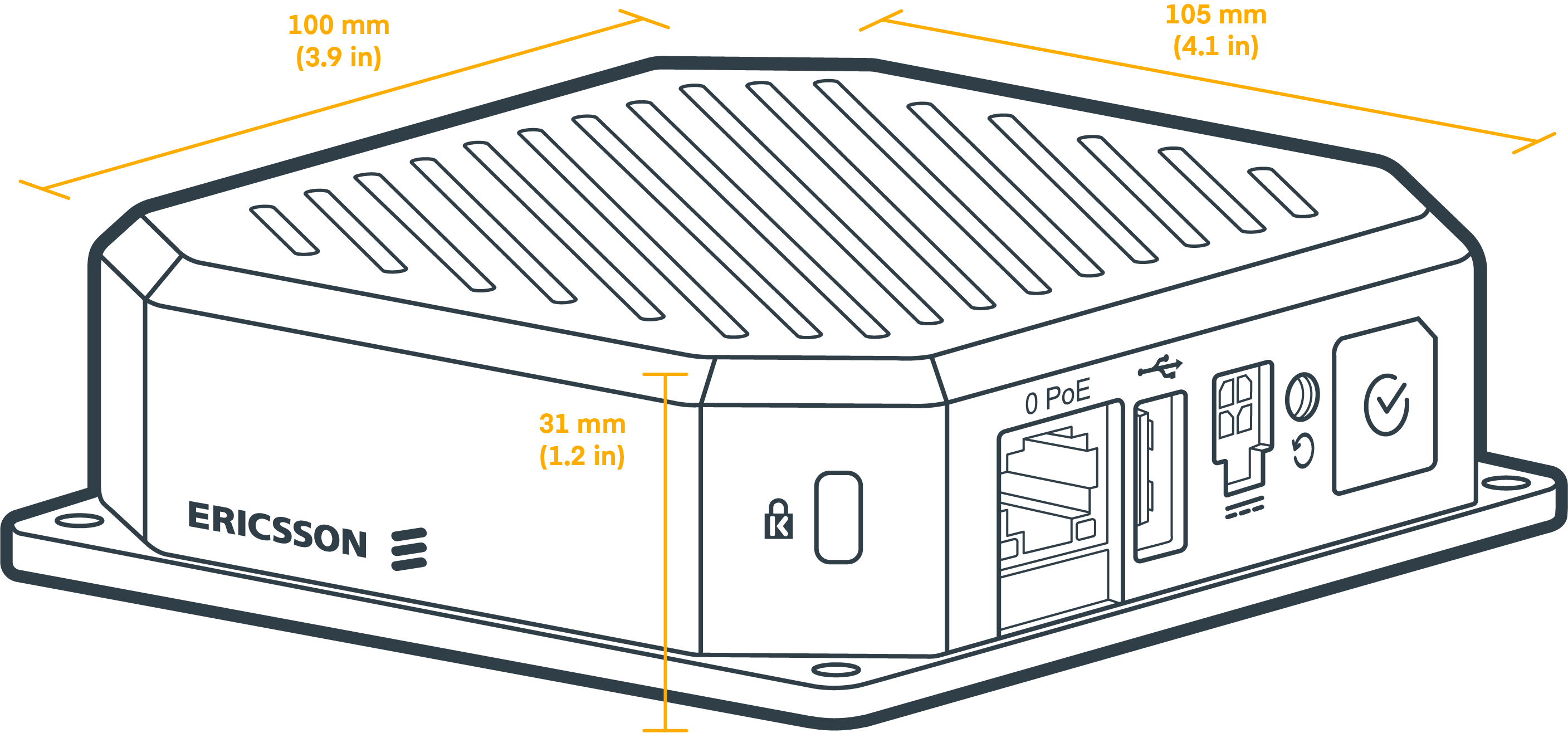

| Dimensions | Size: 100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in) |
| Construction | Plastic housing |
| Usb | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Gnss | Passive (multiplexed with cellular antenna) |
| Wifi | 1x1 802.11ac Wi-Fi 5, 2.4 GHz or 5 GHz (non-concurrent), 150/433 Mbps, 1 x RP-SMA |

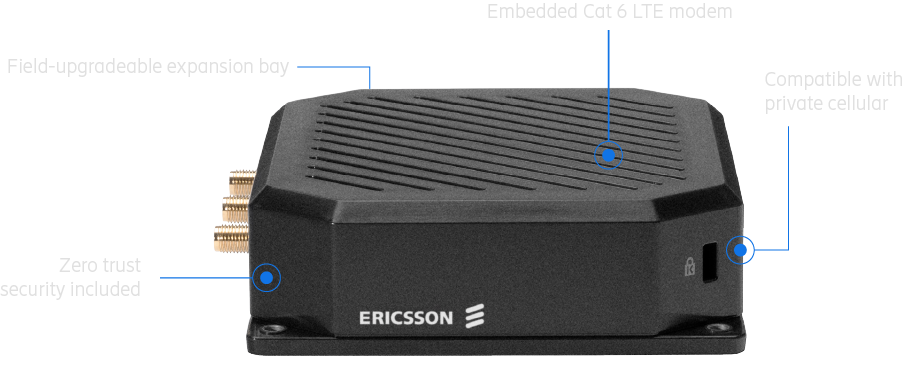

| Modem | Embedded Cat 6 LTE; 2 x SMA cellular antenna connectors |

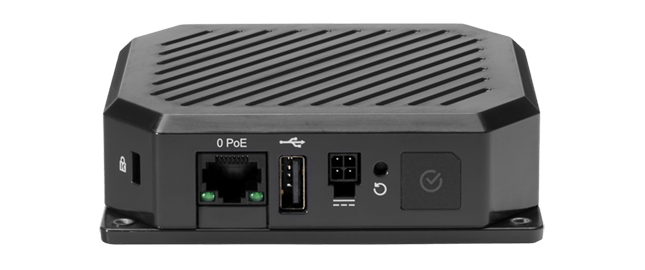

| Ethernet | 1 x GbE RJ45 (LAN/WAN selectable) |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v |

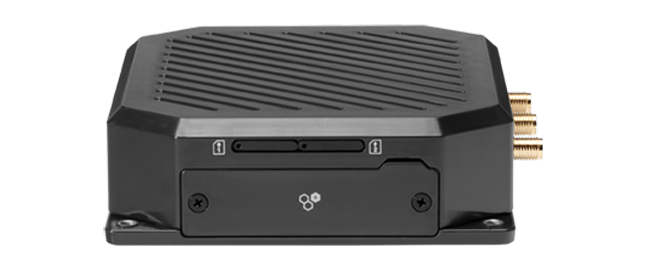

| Expansion Slot | 1 x expansion module slot |
| Expansion Modules | Serial DB-9 RS232; Dual FE RJ45; GPIO 20-pin Molex Micro-Fit 3.0 |
| Wifi Certification | Wi-Fi Alliance Certified; Global Optimized Wi-Fi & International SDR |
| Ce | 17.50 dBm (2.4 GHz); 11.50–17.01 dBm (5 GHz) |
| Rcm | 17.50 dBm (2.4 GHz); 14.38–17.01 dBm (5 GHz) |
| Ukca | 17.50 dBm (2.4 GHz); 16.12–17.01 dBm (5 GHz) |
| Fcc Ic | 19.60 dBm (2.4 GHz); 14.38–16.25 dBm (5 GHz) |
| Global Safe Mode | 14 dBm (2.4 GHz) |
| Vlans | Layer 2 / Layer 3 VLANs: Up to 64 |
| Ipsec Vpn | Point-to-Point IPsec VPN: 20 Mbps |
| Stateful Firewall | 95 Mbps |
| Concurrent Sessions | 32,000 |
| Typical Iot Clients | Typical IoT Client Count: 25 |
| Concurrent Vpn Tunnels | 5 |
| Mtbf | 1,828,355 hours (Telcordia SR332, 25 °C) |
| Mtbf Db9 Module | MTBF with DB9 Module: 1,712,886 hours |
| Mtbf Gpio Module | MTBF with GPIO Module: 1,343,279 hours |
| Mtbf Ethernet Module | MTBF with Ethernet Module: 1,659,720 hours |
| Humidity | 5–95% non-condensing |
| Ingress Protection | IP30 |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Safety | UL/cUL, CB Scheme, EN 62368-1 |
| Security | N/A |
| Regulatory | FCC, IC, CE, RCM, UKCA, ANATEL, IFT, SUBTEL, MCMC, IMDA |
| Hazardous Locations | Class I Div 2, ATEX Zone 2 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Shock Vibration Humidity | MIL-STD-810H 514.8 (Cat 4), 516.8 Proc. I and V |
| Support | Phone 24h weekdays + weekend emergency, web 24x7, chat 24x5 |
| Warranty | Limited lifetime with active NetCloud subscription |
| Service Plan | NetCloud IoT Essentials + Advanced |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Via NetCloud Manager, full term |
| Device Management | NetCloud Manager, full term |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
No. The S400 uses an embedded Cat 6 LTE modem. It supports peak rates of 300 Mbps download and 50 Mbps upload, with dual SIM slots and SIM-based auto-carrier selection.
This North America (U.S. and Canada) package includes the S400 router with Wi-Fi, an AC power supply and antennas. It also includes 5 years of NetCloud IoT Essentials plus the NetCloud IoT Advanced Plan.
It accepts a 9–33 VDC input with reverse-polarity and transient protection. It can also be powered by 802.3af PoE (Type 1, 15 W). An AC power supply is included in this package.
Yes. The S400 has one expansion module slot that supports a serial DB-9 RS232 module, a dual Fast Ethernet module or a 20-pin GPIO module.
NetCloud packages include support for the full subscription term. Phone support is available 24 hours on weekdays with weekend emergency response, web support 24x7 and chat 24x5. Cradlepoint hardware carries a limited lifetime warranty while an active NetCloud Service Plan is in place.
