| Input | 100–240 VAC, 1 A |
| Output | 12 VDC, 3 A |
| Consumption | 9 W idle / 13 W typical / 17 W heavy |
| Power Supply | External power supply included |
| Mpn | Part number BF05-03005GB-GN |
| Taa | Non-TAA SKU |
| Upc | UPC 840292702271 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint E300 |
| Region | U.S. & Canada |
| Fips Model | Standard (non-FIPS) model |
| Package Plan | 5-Year NetCloud Enterprise Branch Essentials Plan |
| Subscription Term | 5 years |
| Hardware Configuration | 5GB modem with Wi-Fi |
| Sim | Dual 2FF SIM slots |
| Sms | SMS supported |
| Gnss | Passive GNSS via DIV/MIMO2 ports |
| Mimo | 4x4 MIMO |
| Three G | WCDMA/UMTS/HSPA+ |
| Antennas | 4 x included 600 MHz–6 GHz paddle antennas, SMA female |
| Modulation | Up to 256 QAM DL/UL |
| Regulatory | FCC, CE, RCM |
| Technology | 5G FR1 NSA/SA, LTE Advanced Pro Cat 20, 3GPP Rel. 15 |
| Peak Uplink | Up to 660 Mbps |
| Lte Fdd Bands | FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 |
| Lte Tdd Bands | TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48 |
| Peak Downlink | Up to 4.14 Gbps |
| Transmit Power | 5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; HPUE 25 dBm ± 1 (B41 SA) (typical conducted) |
| Five G Nr Bands | n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900) |
| Carrier Aggregation | LTE: 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL |
| Private Cellular Network | Private cellular incl. CBRS Band 48 |
| Network Operator Standards | PTCRB, GCF |
| Public Safety Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Weight | 0.86 kg (1 lb 14 oz) |

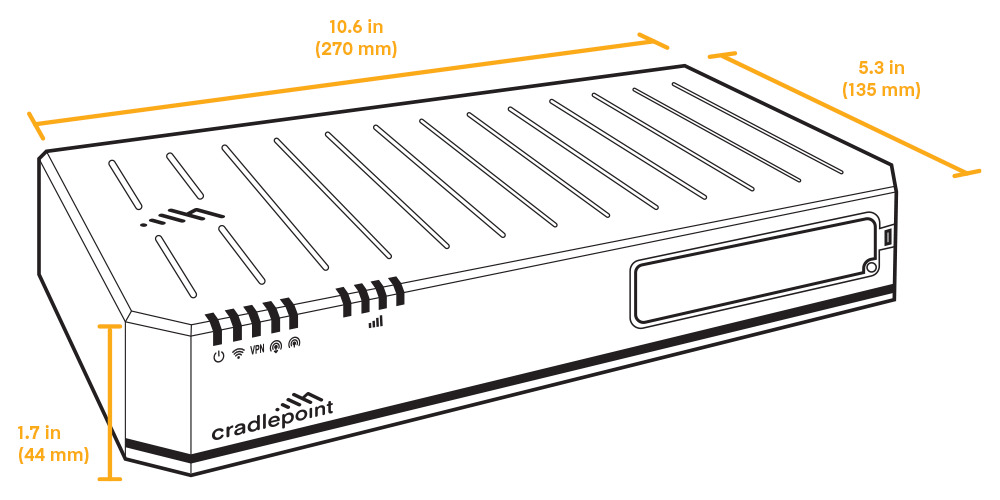

| Dimensions | 135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in) |
| Shipping Weight | 3.00 lb shipping weight |
| Usb | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Wifi | Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS, internal antenna |
| Modem | Embedded 5GB modem, 4 x SMA; optional MC400 second modem |

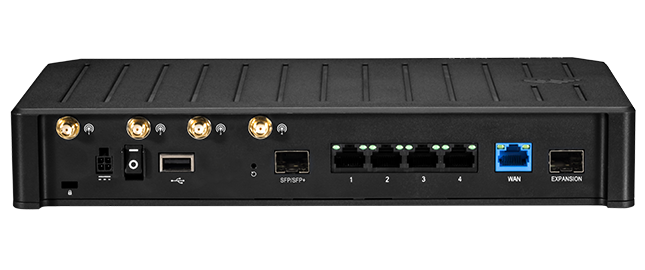

| Ethernet | 5 x GbE, 1 x 10GbE SFP+ (all LAN/WAN switchable) |
| Modem Slot | 1 x MC400 modular modem slot (300 Mbps peak) |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v |
| Expansion Slot | 1 x expansion slot; MC20BT Bluetooth LE module |
| Gnss Connector | 1 x SMA GNSS antenna connector |
| Wifi Data Rates | 574 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz) |
| Supported Sfp Modules | SFP: Finisar FTLF8519P3BNL, FTLF1318P3BTL |
| Supported Sfp Plus Modules | SFP+: Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx |
| Ic | 33.14 / 25.74 / 25.84 / 29.82 / 32.81 dBm EIRP |
| Fcc | 33.14 / 32.94 / 29.90 / 30.00 / 32.81 dBm EIRP |
| Europe | 19.93 / 22.76 / 22.92 / 29.08 dBm EIRP |
| Australia New Zealand | AU/NZ: 19.93 / 22.98 / 22.98 / 29.82 / 32.81 dBm EIRP |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Stateful Firewall | 940 Mbps |
| Typical Client Count | 50 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 130,000 |
| Point To Point Ipsec Vpn | 400 Mbps |
| Sase Secure Connect Sd Wan | IPsec 400 Mbps; Microtunnel 600 Mbps |
| Ips Application Aware Client Analytics | 940 Mbps |
| Mtbf | E300-5GB: 399,642 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | 24x7 support for the subscription term |
| Warranty | Limited lifetime warranty with active subscription |
| Service Plan | NetCloud Service for Enterprise Branch |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Software and firmware updates for the term |
| Device Management | NetCloud Manager |
| Poe | No |
| Wifi | Dual-band, dual-concurrent Wi-Fi 6 |
| Category | Branch |
| Gps Gnss | Yes |
| Usb Ports | 1 |
| Throughput | 940 Mbps (firewall) |
| Form Factor | Industrial plastic enclosure |
| Vpn Tunnels | 20 |
| Serial Ports | None |
| Five G Status | 5G embedded or with Cradlepoint 5G Adapter |
| Ethernet Ports | 5 x GbE (LAN/WAN switchable), 1 x SFP+ |
| Cloud Management | Cloud managed |
| Special Features | 5G embedded or paired with W-Series Adapters, dual modem, private cellular, NetCloud Exchange |
| Dual Modem Support | Yes |
| Subscription Terms | Available in 1, 3 & 5 year terms |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Wireless Connectivity | 5G or LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Branch Routers typically save 10% vs. retail pricing. Create a free account to see your price.
An E300 router with the embedded 5GB modem and Wi-Fi, four cellular paddle antennas, the external power supply, and a 5-year NetCloud Enterprise Branch Essentials plan for the U.S. and Canada.
No. The E300 has no PoE output. It provides five GbE RJ45 ports and one 10GbE SFP+ port, all LAN/WAN switchable.
Yes. The MC400 modular modem slot, with up to 300 Mbps peak throughput, adds a second modem. The E300 can also act as a captive modem controller for Cradlepoint 5G Wideband Adapters.
Cradlepoint hardware carries a limited lifetime warranty for as long as it has an active NetCloud Service Plan subscription. This package includes five years.
Cradlepoint rates the E300 for about 50 typical clients, with 940 Mbps firewall throughput, 20 concurrent VPN tunnels and 130,000 concurrent TCP sessions.
