| Input | 100–240 VAC, 1 A |
| Output | 12 VDC, 3 A |
| Consumption | Idle 9 W, typical 13 W, heavy 17 W |
| Power Supply | External power supply included |
| Mpn | BFA1-03005GB-GN |
| Upc | UPC 840292702226 |
| Fips | Non-FIPS SKU |
| Brand | Cradlepoint (Ericsson) |
| Model | Cradlepoint E300 (E300-5GB) |
| Region | North America (U.S. & Canada) |
| Service Plan | NetCloud Enterprise Branch Essentials + Advanced Plans |
| Taa Compliant | Non-TAA SKU |
| Subscription Term | 1-year subscription |
| Hardware Configuration | 5G with Wi-Fi |
| 3g | WCDMA/UMTS/HSPA+ |
| Sms | SMS supported |
| Gnss | Passive GNSS (multiplexed with DIV/MIMO2 ports) |
| Mimo | 4x4 MIMO |
| Antennas | 4 x external 600 MHz–6 GHz paddle antennas included (SMA female) |
| Lte Bands | FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48 |
| Sim Slots | Dual 2FF SIM slots |
| Modulation | Up to 256 QAM DL and UL (UL 256 QAM on particular carrier equipment) |
| Regulatory | FCC, CE, RCM |
| Technology | 5G FR1 NSA/SA and 4G LTE (LTE-A Pro Cat 20), 3GPP Rel. 15 |
| 5g Nr Bands | NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900) |
| Peak Uplink | Up to 660 Mbps |
| Peak Downlink | Up to 4.14 Gbps |
| Transmit Power | 5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; HPUE 25 dBm ± 1 (B41 SA only), typical conducted |
| Carrier Aggregation | LTE: up to 7 CA DL / 2 CA UL; LTE + 5G NR ENDC: 1 CA DL / 1 CA UL |
| Private Cellular Network | Yes, FCC Part 96 CBRS Band 48 |
| Network Operator Standards | PTCRB (U.S., Canada), GCF (worldwide) |
| Public Safety Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Weight | 0.86 kg (1 lb 14 oz) |

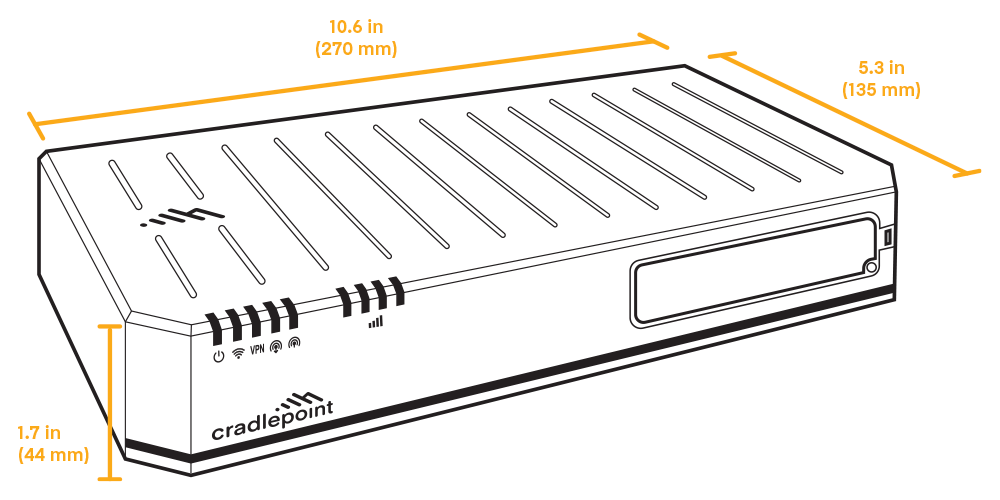

| Dimensions | 135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in) |
| Shipping Weight | 3.00 lb shipping weight |
| Usb | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Modem | Embedded 5GB low/mid-band modem (4 x SMA); optional MC400 modular modem for dual modem |

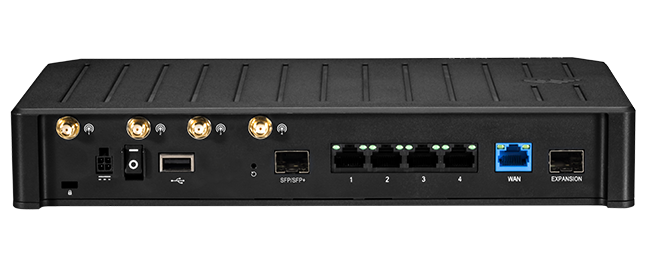

| Ethernet | 5 x GbE RJ45 + 1 x 10GbE SFP+, all LAN/WAN switchable |
| Wifi Radios | Dual-radio, dual-band concurrent (2.4 GHz and 5 GHz) |
| Wifi Antenna | Internal 2x2 antenna |
| Wifi Roaming | 802.11k, 802.11v |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open |
| Wifi Standard | 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS |
| Expansion Slot | 1 x expansion slot (MC20BT Bluetooth Low Energy module) |
| Gnss Connector | 1 x SMA GNSS antenna connector |
| Wifi Data Rates | 574 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz) |
| Wifi Optimization | Global Optimized Wi-Fi |
| Modular Modem Slot | 1 x MC400 modular modem slot (300 Mbps peak) |
| Supported Sfp Modules | SFP: Finisar FTLF8519P3BNL, FTLF1318P3BTL |
| Supported Sfp Plus Modules | SFP+: Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx |
| Ic | 2.4 GHz 33.14; 5150–5250 MHz 25.74; 5250–5350 MHz 25.84; 5470–5725 MHz 29.82; 5725–5850 MHz 32.81 dBm EIRP |
| Fcc | 2.4 GHz 33.14; 5150–5250 MHz 32.94; 5250–5350 MHz 29.90; 5470–5725 MHz 30.00; 5725–5850 MHz 32.81 dBm EIRP |
| Europe | 2.4 GHz 19.93; 5150–5250 MHz 22.76; 5250–5350 MHz 22.92; 5500–5700 MHz 29.08 dBm EIRP |
| Australia New Zealand | 2.4 GHz 19.93; 5150–5250 MHz 22.98; 5250–5350 MHz 22.98; 5500–5700 MHz 29.82; 5475–5825 MHz 32.81 dBm EIRP |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Stateful Firewall | 940 Mbps |
| Typical Client Count | 50 clients |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 130,000 |
| Point To Point Ipsec Vpn | 400 Mbps |
| Sase Secure Connect Sd Wan | IPsec 400 Mbps; Microtunnel 600 Mbps |
| Ips Application Aware Client Analytics | 940 Mbps |
| Calculated Mtbf | E300-5GB: 399,642 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | Support for the full subscription term (phone 24 hr weekdays with weekend emergency response, web 24x7, chat 24x5) |
| Warranty | Limited lifetime warranty while an active NetCloud Service Plan is licensed |
| Service Plans | NetCloud Service for Enterprise Branch |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Software updates via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full term |
| Poe | No PoE |
| Wifi | Dual-band, dual-concurrent Wi-Fi 6 (802.11ax) |
| Category | Branch |
| Gps Gnss | GPS/GNSS supported |
| Mounting | Desktop or wall mount |
| 5g Status | 5G embedded or with Cradlepoint 5G Adapter |
| Usb Ports | 1 USB port |
| Throughput | 940 Mbps (firewall) |
| Form Factor | Industrial plastic enclosure |
| Vpn Tunnels | 20 VPN tunnels |
| Serial Ports | None |
| Ethernet Ports | 5 x GbE (LAN/WAN switchable), 1 x SFP+ |
| Cloud Management | Cloud managed |
| Special Features | 5G embedded or paired with W-Series Adapters, dual modem, private cellular, NetCloud Exchange |
| Dual Modem Support | Dual-modem support |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Wireless Connectivity | 5G or LTE |
| Private Cellular Network | CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
| Subscription Terms Available | 1, 3 and 5 years |
Business account holders on Branch Routers typically save 10% vs. retail pricing. Create a free account to see your price.
The Cradlepoint E300 router in its 5G-with-Wi-Fi configuration and a 1-year NetCloud Enterprise Branch Essentials + Advanced plan. The kit also includes four external cellular paddle antennas and an external power supply.
It is the North American SKU for the U.S. and Canada.
Yes. The embedded 5GB modem supports 5G FR1 in both NSA and SA modes, with LTE Advanced Pro Category 20 fallback and dual 2FF SIM slots.
Yes. The MC400 modular modem slot accepts an optional second modem for dual cellular connectivity.
Cradlepoint hardware is covered by a limited lifetime warranty for as long as it has an active NetCloud Service Plan subscription.
