| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Mimo | 4x4 MIMO |
| Power | 5G NR bands: 23 dBm ± 1.5; LTE + 5G NR ENDC: 20 dBm ± 1; LTE bands: 23 dBm ± 1; LTE HPUE: 25 dBm ± 1 (B41 standalone mode only) (typical conducted) |
| Antennas | SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 4, included) |
| Gnss Gps | Passive GNSS (multiplex with DIV/MIMO2 antenna ports) |
| Lte Bands | FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600); TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500) |
| Modulation | 5GB FR1: downlink up to 256 QAM; uplink up to 256 QAM (only enabled on particular carrier equipment) |
| Peak Rates | Downlink: up to 4.14 Gbps; Uplink: up to 660 Mbps |
| Regulatory | FCC (U.S.); CE (EU); RCM (AU/NZ) |
| Technology | 5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Category 20; Dual SIM slots, 2FF form factor; 3GPP Release 15 |
| 5g Nr Bands | NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900) |
| Carrier Aggregation | LTE only: downlink up to 7 CA, uplink up to 2 CA; LTE + 5G NR ENDC: downlink 1 CA, uplink 1 CA |
| Private Cellular Network | Yes, includes FCC Part 96 (CBRS Band 48) |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Public Safety Network Certifications | FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline |
| Required | External power supply (included); Input: 100-240 VAC 1 A; Output: 12 VDC 3 A |
| Consumption | Idle: 9 W; Typical: 13 W; Heavy: 17 W |
| Mpn | BF01-03005GB-GN |
| Upc | UPC 840292702257 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint E300 (5GB with Wi-Fi) |
| Region | North America (U.S. & Canada) |
| Package Plan | 1-Year NetCloud Enterprise Branch Essentials Plan |
| Shipping Weight | 3.00 lb shipping weight |
| Subscription Term | 1 year |
| Hardware Configuration | 5G with Wi-Fi |

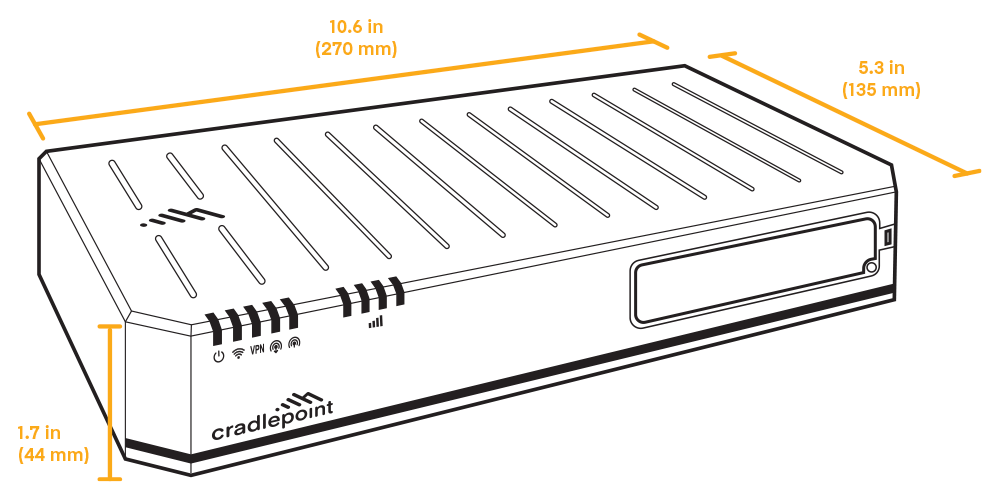

| Size | 135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in) |
| Weight | 0.86 kg (1 lb 14 oz) |
| Modem | Embedded 5GB low/mid-band modem with 4 x SMA cellular antenna connectors; optional dual modem: modular MC400 modem |
| Wi Fi | Dual-radio, dual-band, concurrent (2.4 GHz and 5 GHz); 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS; 574 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz); internal 2x2 antenna; Global Optimized Wi-Fi; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k, 802.11v |
| Ethernet | 5 x GbE RJ45 (LAN/WAN switchable); 1 x 10 GbE SFP+ (LAN/WAN switchable); SFP: Finisar FTLF8519P3BNL, FTLF1318P3BTL; SFP+: Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx |
| Gnss Gps | 1 x SMA GNSS antenna connector |
| Expansion | 1 x MC400 Modular Modem Slot (peak throughput: 300 Mbps); 1 x USB 2.0 Type A (output: 5 V, 500 mA, 2.5 W); 1 x Expansion Slot (MC20BT Bluetooth Low Energy module) |
| Stateful Firewall | 940 Mbps |
| Layer2 Layer3 Vlans | Up to 64 |
| Typical Client Count | 50 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Sessions Tcp | 130,000 |
| Point To Point Ipsec Vpn | 400 Mbps |
| Sase Secure Connect Sd Wan | IPsec: 400 Mbps; Microtunnel: 600 Mbps |
| Ips Application Aware Client Analytics | 940 Mbps |
| Calculated Mtbf | E300-5GB: 399,642 hours (Telcordia SR332 at 25 °C) |
| Ic | 2.4 GHz: 33.14 dBm EIRP; 5150–5250 MHz: 25.74 dBm EIRP; 5250–5350 MHz: 25.84 dBm EIRP; 5470–5725 MHz: 29.82 dBm EIRP; 5725–5850 MHz: 32.81 dBm EIRP |
| Fcc | 2.4 GHz: 33.14 dBm EIRP; 5150–5250 MHz: 32.94 dBm EIRP; 5250–5350 MHz: 29.90 dBm EIRP; 5470–5725 MHz: 30.00 dBm EIRP; 5725–5850 MHz: 32.81 dBm EIRP |
| Europe | 2.4 GHz: 19.93 dBm EIRP; 5150-5250 MHz: 22.76 dBm EIRP; 5250-5350 MHz: 22.92 dBm EIRP; 5500-5700 MHz: 29.08 dBm EIRP |
| Australia New Zealand | 2.4 GHz: 19.93 dBm EIRP; 5150-5250 MHz: 22.98 dBm EIRP; 5250-5350 MHz: 22.98 dBm EIRP; 5500-5700 MHz: 29.82 dBm EIRP; 5475-5825 MHz: 32.81 dBm EIRP |
| Humidity | Operating: 10% to 90%; Storage: 5% to 95% |
| Temperature | Operating: 0 °C to 45 °C (32 °F to 113 °F); Storage: -20 °C to 70 °C (-4 °F to 158 °F) |
| Safety | UL/cUL; CB Scheme; EN 60950-1; EN 62368-1 |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Support | NetCloud packages include support for the full subscription term |
| Warranty | Limited lifetime warranty for as long as an active NetCloud Service plan subscription is in place |
| Service Plans | NetCloud Service for Enterprise Branch |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | No |
| Wi Fi | Dual-band, dual-concurrent; 802.11ax (Wi-Fi 6) |
| Category | Branch |
| Gps Gnss | Yes |
| 5g Status | 5G embedded or with Cradlepoint 5G Adapter |
| Usb Ports | 1 |
| Throughput | 940 Mbps (Firewall) |
| Form Factor | Industrial Plastic |
| Vpn Tunnels | 20 |
| Serial Ports | 0 |
| Ethernet Ports | 5 GbE (LAN/WAN switchable), 1 SFP+ |
| Cloud Management | Yes |
| Special Features | 5G embedded or paired with W-Series Adapters, dual modem, private cellular, NetCloud Exchange |
| Dual Modem Support | Yes |
| Subscription Terms | 1, 3 & 5 years |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Wireless Connectivity | 5G or LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Branch Routers typically save 10% vs. retail pricing. Create a free account to see your price.
This SKU uses the embedded 5GB low/mid-band modem: 5G FR1 in NSA and SA modes with LTE Advanced Pro Category 20, 4x4 MIMO and dual 2FF SIM slots, with peak rates up to 4.14 Gbps downlink and 660 Mbps uplink.
Yes. The E300 has an MC400 modular modem slot for an optional second modem, enabling dual 5G or LTE connectivity.
NetCloud Manager for device management and software updates for the full term, 24x7 support (phone 24 hours on weekdays with weekend emergency response, web 24x7, chat 24x5), and a limited lifetime hardware warranty while a NetCloud subscription is active.
No. The E300 does not have PoE ports. It is powered by an included external 12 VDC power supply.
This part number is the North America configuration for the U.S. and Canada.
