| Input | 100–240 VAC, 1 A |
| Output | 12 VDC, 3 A |
| Consumption | Idle 9 W; typical 13 W; heavy 17 W |
| Power Supply | External power supply included |
| Mpn | BFA5-03005GB-GN |
| Upc | 840292702240 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint E300-5GB |
| Region | North America (U.S. & Canada) |
| Product Status | Active |
| Hardware Configuration | 5G with Wi-Fi |
| Weight | 0.86 kg (1 lb 14 oz) |

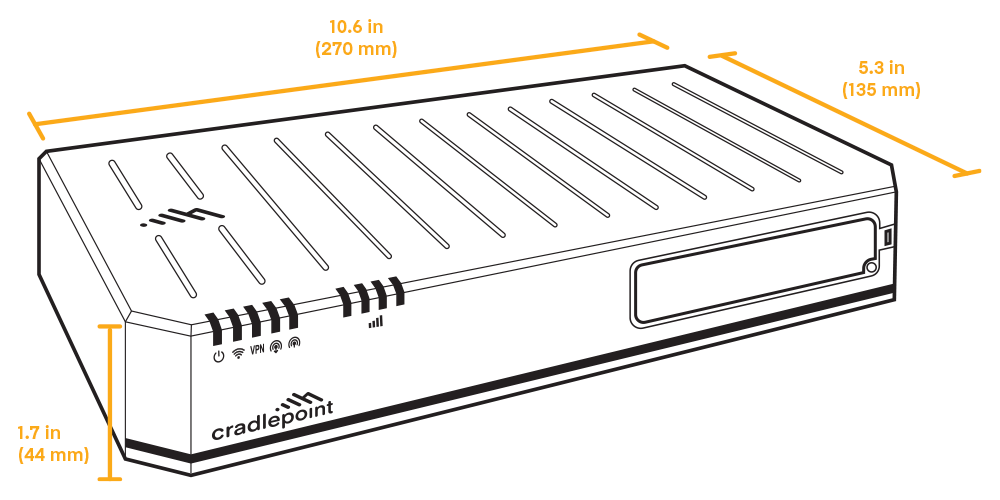

| Dimensions | 135 x 270 x 44 mm (5.3 x 10.6 x 1.7 in) |
| Shipping Weight | 3.00 lb |
| Usb | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output) |
| Wifi | Dual-radio, dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS |
| Modem | Embedded 5GB low/mid-band modem, 4 x SMA cellular antenna connectors; optional MC400 modular modem for dual modem |
| Ethernet | 5 x GbE RJ45 + 1 x 10GbE SFP+, all LAN/WAN switchable |
| Modem Slot | 1 x MC400 modular modem slot (300 Mbps peak) |
| Wifi Rates | 574 Mbps (2.4 GHz) and 1,200 Mbps (5 GHz) |
| Wifi Antenna | Internal 2x2 antenna |
| Wifi Features | Global Optimized Wi-Fi; 802.11k, 802.11v |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open |
| Expansion Slot | 1 x expansion slot; MC20BT Bluetooth Low Energy module |
| Gnss Connector | 1 x SMA GNSS antenna connector |
| Supported Sfp Modules | SFP: Finisar FTLF8519P3BNL, FTLF1318P3BTL |
| Supported Sfp Plus Modules | SFP+: Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx |
| Ic | 2.4 GHz 33.14; 5150–5250 MHz 25.74; 5250–5350 MHz 25.84; 5470–5725 MHz 29.82; 5725–5850 MHz 32.81 dBm EIRP |
| Fcc | 2.4 GHz 33.14; 5150–5250 MHz 32.94; 5250–5350 MHz 29.90; 5470–5725 MHz 30.00; 5725–5850 MHz 32.81 dBm EIRP |
| Europe | 2.4 GHz 19.93; 5150–5250 MHz 22.76; 5250–5350 MHz 22.92; 5500–5700 MHz 29.08 dBm EIRP |
| Australia New Zealand | AU/NZ: 2.4 GHz 19.93; 5150–5250 MHz 22.98; 5250–5350 MHz 22.98; 5500–5700 MHz 29.82; 5475–5825 MHz 32.81 dBm EIRP |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Stateful Firewall | 940 Mbps |
| Typical Client Count | 50 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 130,000 |
| Point To Point Ipsec Vpn | 400 Mbps |
| Sase Secure Connect Sd Wan | IPsec 400 Mbps; Microtunnel 600 Mbps |
| Ips Application Aware Client Analytics | 940 Mbps |
| Mtbf | E300-5GB: 399,642 hours (Telcordia SR332 at 25 °C) |
| Plan | NetCloud Enterprise Branch Essentials + Advanced Plans |
| Term | 5 years |
| Support | 24x7 support: phone 24 hours weekdays with weekend emergency response; web 24x7; chat 24x5 |
| Available Terms | Subscription terms offered: 1, 3 & 5 years |
| Storage Humidity | 5% to 95% |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| 3g | WCDMA/UMTS/HSPA+ |
| Sim | Dual SIM slots (2FF) |
| Sms | Yes |
| Gnss | Passive GNSS (multiplexed with DIV/MIMO2 antenna ports) |
| Mimo | 4x4 MIMO |
| Antennas | 4 x external 600 MHz–6 GHz paddle antennas included (SMA female) |
| Modulation | Up to 256 QAM downlink and uplink (uplink 256 QAM only on particular carrier equipment) |
| Regulatory | FCC (U.S.), CE (EU), RCM (AU/NZ) |
| Technology | 5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Cat 20; 3GPP Release 15 |
| 5g Nr Bands | NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900) |
| Peak Uplink | Up to 660 Mbps |
| Lte Fdd Bands | FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600) |
| Lte Tdd Bands | TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500) |
| Peak Downlink | Up to 4.14 Gbps |
| Transmit Power | 5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only), typical conducted |
| Carrier Aggregation | LTE only: up to 7 CA DL / 2 CA UL; LTE + 5G NR ENDC: 1 CA DL / 1 CA UL |
| Private Cellular Network | Yes, FCC Part 96 (CBRS Band 48) |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (worldwide) |
| Public Safety Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | NetCloud packages include support for the full subscription term |
| Warranty | Limited lifetime warranty for as long as an active NetCloud Service Plan subscription is in place |
| Service Plans | NetCloud Service for Enterprise Branch |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Software updates via NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | No |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Category | Branch |
| Gps Gnss | Yes |
| 5g Status | 5G embedded or with Cradlepoint 5G Adapter |
| Usb Ports | 1 |
| Throughput | 940 Mbps (firewall) |
| Form Factor | Industrial plastic |
| Vpn Tunnels | 20 |
| Serial Ports | 0 |
| Ethernet Ports | 5 x GbE (LAN/WAN switchable), 1 x SFP+ |
| Cloud Management | Yes |
| Special Features | 5G embedded or paired with W-Series Adapters, dual modem, private cellular, NetCloud Exchange |
| Dual Modem Support | Yes |
| Wireless Connectivity | 5G or LTE |
| Private Cellular Network | Yes: CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Branch Routers typically save 10% vs. retail pricing. Create a free account to see your price.
The Cradlepoint E300 router in its 5G with Wi-Fi configuration, an external power supply, four cellular paddle antennas, and 5-year NetCloud Enterprise Branch Essentials and Advanced plans with NetCloud Manager, support and software updates for the full term.
It is the North America version for the U.S. and Canada.
Yes. The E300 has an MC400 modular modem slot for an optional second modem, with peak throughput of 300 Mbps on that slot.
The 5G modem is certified on AT&T, T-Mobile and Verizon, carries FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications, and supports private CBRS Band 48 networks.
Cradlepoint hardware carries a limited lifetime warranty for as long as it has an active NetCloud Service Plan subscription, which this package includes for 5 years.
