| Sms | Yes |
| Mimo | 4x4 MIMO |
| Three G | WCDMA/UMTS/HSPA+ |
| Gnss Gps | Discrete active GPS with dead reckoning |
| Lte Bands | FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48 |
| Modulation | Up to 256 QAM DL/UL |
| Peak Rates | Up to 4.14 Gbps down / 660 Mbps up |
| Regulatory | FCC, IC, CE, RCM |
| Technology | 5G FR1 NSA/SA + LTE Advanced Pro Cat 20; dual 4FF SIM; 3GPP Rel. 15 |
| Nr 5g Bands | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (NSA/SA) |
| Three G Bands | 1, 2, 3, 4, 5, 6, 8, 9, 19 |
| Transmit Power | 5G NR 23 dBm; EN-DC 20 dBm; LTE 23 dBm; HPUE 25 dBm (B41) |
| Carrier Aggregation | LTE: 7 CA DL / 2 CA UL; EN-DC: 1 CA DL / 1 CA UL |
| Gcf Global Operators | GCF members directory |
| Private Cellular Network | Yes, including CBRS Band 48 |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (worldwide) |
| Public Safety Certifications | ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified |
| Ptcrb North America Operators | PTCRB operators |
| Network Operator Certifications | AT&T, EE, Telstra, T-Mobile, Verizon |
| Fuse | 3 A fuse (9–24 VDC); 2.5 A fuse (> 24 VDC) |
| Dc Input | 9–36 VDC steady state (in-line fuse required for vehicle installations) |
| Features | ISO 7637-2 reverse polarity/transient protection; ignition sensing |
| Connector | 4-pin 2x2 Molex micro-fit |
| Light Rail | 24 VDC nominal for light rail applications |
| Consumption | Sleep 15 mW; Idle 11 W; Typical 19 W; Heavy 22 W |
| Mpn | MBA3-19005GB-GA |
| Upc | 810007807324 |
| Brand | Cradlepoint (Ericsson Cradlepoint) |
| Model | Cradlepoint R1900 |
| Region | All Regions |
| Taa Model | Non-TAA model |
| Fips Model | Non-FIPS model |
| Manufacturer | Ericsson Enterprise Wireless |
| Package Plan | 3-Year NetCloud Mobile Performance Essentials + Advanced Plans |
| Product Status | Active |
| Subscription Term | 3 years |
| Hardware Configuration | 5G with Wi-Fi; no AC power supply or antennas included |
| Power | 3.1–3.8 V supply; 30 mA max |
| Accuracy | Autonomous 1 meter |
| Protocols | NMEA 0183, TAIP |
| Frequencies | L1 (1559–1606 MHz) |
| Sensitivity | Acquisition -147 dBm; Tracking -165 dBm; Reacquisition -159 dBm |
| Update Rate | 1 Hz (once per second) |
| Constellations | GPS, Galileo, GLONASS, BeiDou (concurrent) |
| Time To First Fix | 30 seconds (cold start) |

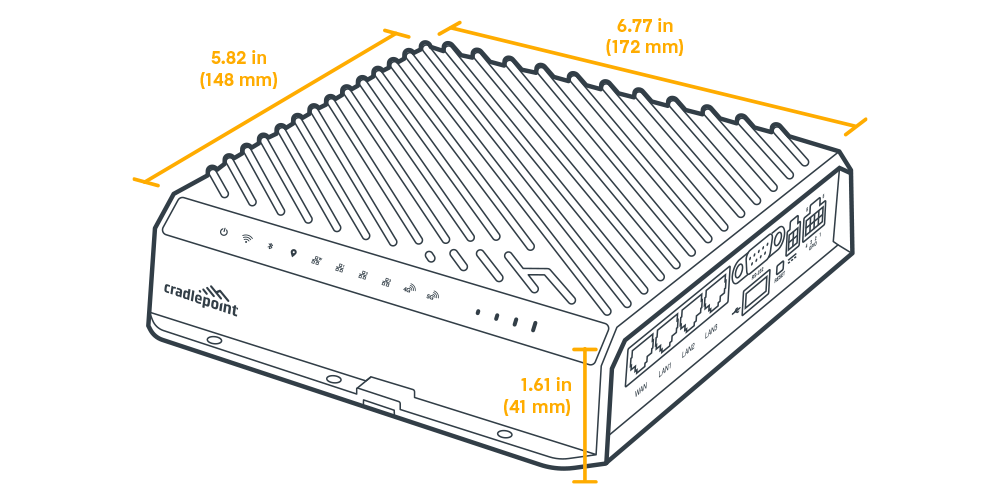

| Size | 172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in) |
| Weight | 0.98 kg (2.15 lb) |
| Shipping Weight | 6.32 lb |
| Poe | Optional RX30 PoE switch: 4 x 802.3bt Type 3 (up to 60 W per port), 60 W total budget |
| Wifi | Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 574/1,200 Mbps; 2 x RP-SMA; WPA3; 802.11k/v; Wi-Fi Alliance Certified |

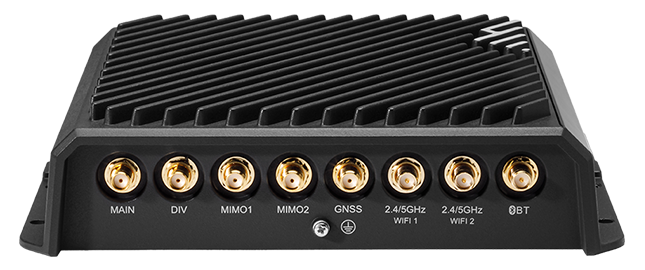

| Modem | Embedded 5G NR FR1 low/mid-band + 4G LTE Cat 20 modem; 4 x SMA cellular antenna connectors |

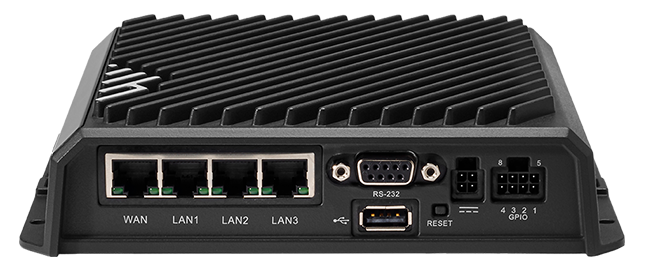

| Ethernet | 4 x GbE (LAN/WAN switchable) |
| Gnss Gps | 1 x SMA GNSS antenna connector |
| Bluetooth | Bluetooth LE 5.2, 10 dBm max TX, 1 x RP-SMA connector |
| Expansion Console | USB 2.0 Type A (5 V, 500 mA), DB9 RS-232, 8-pin GPIO; optional RX30-POE or RX30-MC |
| Eu | 2.4 GHz 14.00 dBm; 5500–5700 MHz 18.00 dBm conducted |
| Fcc | 2.4 GHz 23 dBm; 5260–5825 MHz 21.90 dBm conducted |
| Japan | 2.4 GHz 16.92 dBm; 5500–5720 MHz 21.00 dBm conducted |
| Canada | 2.4 GHz 23.00 dBm; 5500–5580 MHz 22.00 dBm; 5660–5825 MHz 21.89 dBm conducted |
| Global Safe Mode | 2.4 GHz 14 dBm conducted |
| Stateful Firewall | 940 Mbps |
| Layer2 Layer3 Vlans | Up to 64 |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 32,000 |
| Point To Point Ipsec Vpn | 400 Mbps |
| Sase Secure Connect Sd Wan | IPsec 400 Mbps; Microtunnel 600 Mbps |
| Ips Application Aware Client Analytics | 940 Mbps |
| Calculated Mtbf | 340,644 hours (Telcordia SR332 at 25 °C) |
| Humidity | 5%–95% operating and storage |
| Ingress Protection | IP64 (dust tight and splashing water) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Rail | EN 45545-2:2020 HL3; EN 50121-3-2; EN 50155 Class S1 |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Vehicle | E-Mark, SAE J1455 |
| Security | FIPS 140-3 Level 1 in process (FIPS models only; this SKU is non-FIPS) |
| Shock Vibration | MIL-STD-810G, Section 2.2.2, Procedure 1 |
| Hazardous Locations | Class I Div 2 |
| Flame Smoke Toxicity | BSS 7239 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| North American Fire Safety | NFPA 130 |
| Support | Support for the full subscription term (24x7) |
| Warranty | Limited lifetime warranty with active subscription |
| Service Plans | Ericsson NetCloud Service for Mobile Performance |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Via NetCloud Manager (full term) |
| Device Management | NetCloud Manager (full term) |
| Cpu | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB |
| Applications | Docker containerized applications |
| Flash Storage | Up to 6 GB |
| Poe | Yes, with RX30-PoE |
| Wifi | Dual-band, dual-concurrent Wi-Fi 6 (802.11ax) |
| Category | Mobile |
| Gps Gnss | Discrete active GNSS with dead reckoning |
| Bluetooth | Embedded Bluetooth 5.2 |
| Usb Ports | 1 |
| Throughput | 940 Mbps (firewall) |
| Form Factor | Ruggedized metal |
| Vpn Tunnels | 20 |
| Serial Ports | 1 |
| Five G Status | 5G Embedded |
| Ethernet Ports | 4 x GbE (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | Add 4 GbE PoE ports or 4 GbE and a second modem |
| Dual Modem Support | Yes, with RX30-MC |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Wireless Connectivity | 5G/4G Dual Connectivity |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
| Subscription Terms Available | 1, 3 & 5 years |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
It includes the Cradlepoint R1900 5G router with Wi-Fi and a 3-year Ericsson NetCloud Mobile Performance Essentials + Advanced plan. It does not include an AC power supply or antennas.
Yes. The embedded modem connects automatically to LTE Advanced Pro Category 20 when the vehicle moves outside 5G coverage.
Yes. The optional RX30-MC managed accessory adds a modular modem slot and four GbE ports for simultaneous dual-carrier connectivity. The RX30-POE accessory instead adds four 802.3bt PoE ports.
It accepts 9–36 VDC through a 4-pin Molex micro-fit connector and requires an in-line fuse in vehicle installations: 3 A for 9–24 VDC and 2.5 A above 24 VDC. It supports ignition sensing.
The Advanced Mobile Performance plan adds threat management, web filtering, application visibility, analytics, and advanced GNSS functions such as location tracking and cellular coverage maps.
