| Fusing | Use a 3 A fuse for 9–24 VDC; 2.5 A fuse for >24 VDC installations |
| Dc Input | 9–36 VDC steady state; 380 mm (14.96 in) non-removable DC cable with 4-pin 2x2 Molex Micro-Fit connector |
| Poe Input | Alternatively powered by 802.3at PSE Type 2 (30 W); 802.3at Class 4 PD |
| Power Features | Ignition sensing (automatic ON & time-delay OFF) |
| Consumption Idle | 6 W (R2155) |
| Consumption Heavy | 11.5 W (R2155) |
| Consumption Sleep | 50 mW (R2155) |
| Consumption Typical | 10 W (R2155) |
| Mpn | MBA3-2155-5GB-GA |
| Upc | 840292702431 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint R2155 (R2100 Series) |
| Region | All Regions |
| Product Status | Active |
| Hardware Configuration | R2155 5G router without Wi-Fi (Mobile), integrated antennas |
| Sim Card | 4FF SIM optional, not included |
| Ac Power Supply | No AC power supply |
| Shipping Weight | 5.03 lb |
| Subscription Plan | 3-Year NetCloud Mobile Performance Essentials + Advanced Plans |
| Subscription Term | 3 years |
| Essentials Inclusions | Purpose-built endpoint, 24x7 support (phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5), limited lifetime warranty, Enterprise Wireless University access |
| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Mimo | 4x4 MIMO |
| 3g Bands | 1, 2, 4, 5, 6, 8, 9, 19 |
| Antennas | 4 x cellular internal antennas |
| Gnss Gps | Passive GNSS |
| Sim Slots | Dual SIM slots, 4FF form factor |
| Modulation | 5G FR1: Downlink up to 256 QAM; Uplink up to 256 QAM (only enabled on particular carrier equipment) |
| Regulatory | FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ) |
| Technology | 5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Category 20; 3GPP Release 15 |
| 5g Nr Bands | NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900) |
| Peak Uplink | Up to 660 Mbps |
| Lte Bands Fdd | FDD: B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600) |
| Lte Bands Tdd | TDD: B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500) |
| Peak Downlink | Up to 4.14 Gbps |
| Transmit Power | 5G NR bands: 23 dBm ± 1.5; LTE + 5G NR ENDC: 20 dBm ± 1; LTE bands: 23 dBm ± 1; LTE HPUE: 25 dBm ± 1 (B41 standalone mode only) — typical conducted |
| Carrier Aggregation | LTE only: Downlink up to 7 CA, Uplink up to 2 CA; LTE + 5G NR ENDC: Downlink 1 CA, Uplink 1 CA |
| Private Cellular Network | Yes, includes FCC Part 96 (CBRS Band 48) |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Public Safety Certifications | FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline Verified |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Weight | 1.46 kg (3 lb 4 oz) |

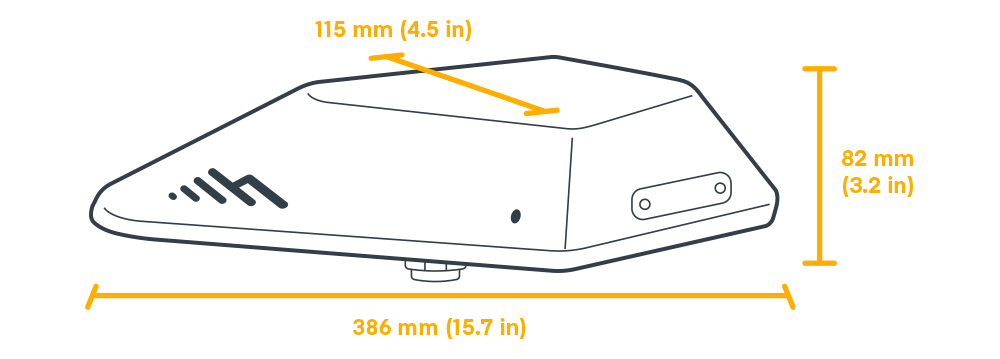

| Dimensions | 115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in) |
| Wifi | Not included on R2155 (Wi-Fi 6 is offered on the R2105 model) |
| Modem | Embedded 5G NR FR1 low-, mid-band, and 4G LTE Category 20 modem |
| Ethernet | 1 x 2.5 GbE RJ45 (LAN only); 380 mm (14.96 in) non-removable CAT5e shielded twisted pair flat cable with male RJ45 connector |
| Gnss Gps | Passive GNSS (multiplex with internal cellular antennas) |
| Bluetooth | N/A |
| Expansion Console | N/A |
| Vlans | Up to 64 Layer 2/Layer 3 VLANs |
| Ipsec Vpn | 300 Mbps point-to-point IPsec VPN |
| Stateful Firewall | 900 Mbps |
| Concurrent Sessions | 32,000 (TCP) |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 10 |
| Ips Application Aware Client Analytics | 650 Mbps |
| Mtbf | 1,895,792 hours (Telcordia SR332 at 25 °C) |
| Shock Vibration | MIL-STD-810G, Section 2.2.2, Procedure 1 (Shock, Vibration); Procedure 5 (Shock) |
| Humidity | Operating: 5% to 95%; Storage: 5% to 95% |
| Impact Protection | IK09 (protected against 10 joules impact) |
| Ingress Protection | IP67 (dust tight and water immersion up to 1 meter) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Corrosion Resistance | IEC60068-2-11 corrosion resistance (salt mist) |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Rail | N/A |
| Safety | CB Scheme; IEC/EN 62368-1 |
| Vehicle | E-Mark; SAE J1455 Category 2 |
| Security | FIPS 140-3 Level 1 in process for R2100 FIPS models only; this SKU is not a FIPS model |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Support | Support included for the full subscription term |
| Warranty | Limited lifetime warranty while an active NetCloud Service subscription is in place |
| Service Plans | Ericsson NetCloud Service for Mobile Performance, Ericsson NetCloud Service for Ruggedized IoT |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Via Ericsson NetCloud Manager for the full subscription term |
| Device Management | Ericsson NetCloud Manager for the full subscription term |
| Cpu | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB |
| Applications | Docker containerized applications |
| Flash Storage | Up to 8 GB |
| Poe | 802.3at |
| Gps Gnss | Passive |
| 5g Status | 5G Embedded |
| Throughput | 900 Mbps (Firewall) |
| Form Factor | Polycarbonate |
| Vpn Tunnels | 10 |
| Ethernet Ports | 1 x 2.5 GbE RJ45 |
| Cloud Management | Yes |
| Special Features | External mounting for best reception with no signal loss |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Wireless Connectivity | Dual Connectivity; 5G & Cat 20 LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S. & Canada), GCF (worldwide) |
| Subscription Terms Available | 1, 3 & 5 years |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
No. The R2155 is the model without Wi-Fi. It provides 5G connectivity over its 2.5 GbE LAN port. The R2105 is the R2100-series model with dual-band Wi-Fi 6.
It accepts 9–36 VDC through a non-removable cable with a 4-pin Molex Micro-Fit connector and supports ignition sensing. It can also be powered by 802.3at PoE (30 W). An AC power supply is not included.
Yes. It can run as a captive modem with supported Cradlepoint controlling routers. NetCloud Manager then treats it as an internal modem, so no separate licence is needed.
Essentials includes NetCloud Manager, software updates, 24x7 support, Enterprise Wireless University access and a limited lifetime warranty while the subscription is active. Advanced adds features such as GNSS-based location and cellular coverage mapping.
No. The R2155 has dual 4FF SIM slots, and SIM cards are not included.
