| Power | GNSS Power: Passive (no power provided) |
| Accuracy | 2 m autonomous @ open sky (CEP-50) |
| Protocols | NMEA 0183, TAIP |
| Frequencies | L1 |
| Sensitivity | Acquisition -147 dBm, Tracking -159 dBm, Reacquisition -159 dBm |
| Update Rate | 1 Hz (once per second) |
| Constellations | GPS, Galileo, GLONASS, BDS |
| Time To First Fix | 30 seconds (cold start) |
| Poe | 802.3af PSE Type 1 (15 W) |
| Fusing | 3 A fuse for 9–12 VDC, 2 A fuse for >12 VDC |
| Dc Input | 9–33 VDC |
| Protection | Reverse polarity and transient voltage (ISO 7637-2) |
| Consumption Idle | Power Consumption (Idle): 3.3 W |
| Consumption Heavy | Power Consumption (Heavy): 5.8 W |
| Consumption Sleep | Sleep Mode: Not supported |
| Consumption Typical | Power Consumption (Typical): 4.1 W |
| Mpn | Manufacturer Part Number: TBV3-0400-C6-NA-N |
| Brand | Cradlepoint |
| Model | Cradlepoint S400 |
| Region | North America (U.S. & Canada) |
| Device Type | Cloud-managed, semi-ruggedized IoT router |
| Manufacturer | Ericsson Enterprise Wireless (Ericsson Cradlepoint) |
| Product Status | Manufacturer Product Status: Active |
| Hardware Configuration | Cat 6 (150 Mbps) with Wi-Fi, with AC power supply and antennas |
| Contents | Package: S400 router, AC power supply, antennas, 3-year NetCloud IoT Essentials + Advanced |
| Documentation | Cradlepoint S400 Datasheet |
| 3g | N/A |
| Sim | Dual 4FF slots, SIM-based auto-carrier selection |
| Sms | Yes |
| Mimo | 2x2 |
| Antennas | SMA female, external 600 MHz–6 GHz paddle antennas (Qty 2, package-dependent) |
| Modem Gnss | Active GNSS; GPS, GLONASS, BeiDou, Galileo |
| Modulation | Up to 16 QAM |
| Technology | Cat 6 LTE (3GPP Rel. 11) |
| Peak Upload | Peak LTE Upload: 50 Mbps |
| Lte Bands Fdd | LTE FDD Bands: B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71 |
| Lte Bands Tdd | LTE TDD Bands: B41, B48 |
| Peak Download | Peak LTE Download: 300 Mbps |
| Transmit Power | LTE 23 dBm ± 2 (typical conducted) |
| Modem Regulatory | FCC (U.S.), IC (Canada) |
| Carrier Aggregation | DL up to 2 CA, UL up to 1 CA |
| Private Cellular Network | Yes, FCC Part 96 (CBRS Band 48) |
| Network Operator Standards | PTCRB (U.S., Canada) |
| Public Safety Certifications | Public Safety Network Certifications: N/A |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Weight | 221 g (7.8 oz) |

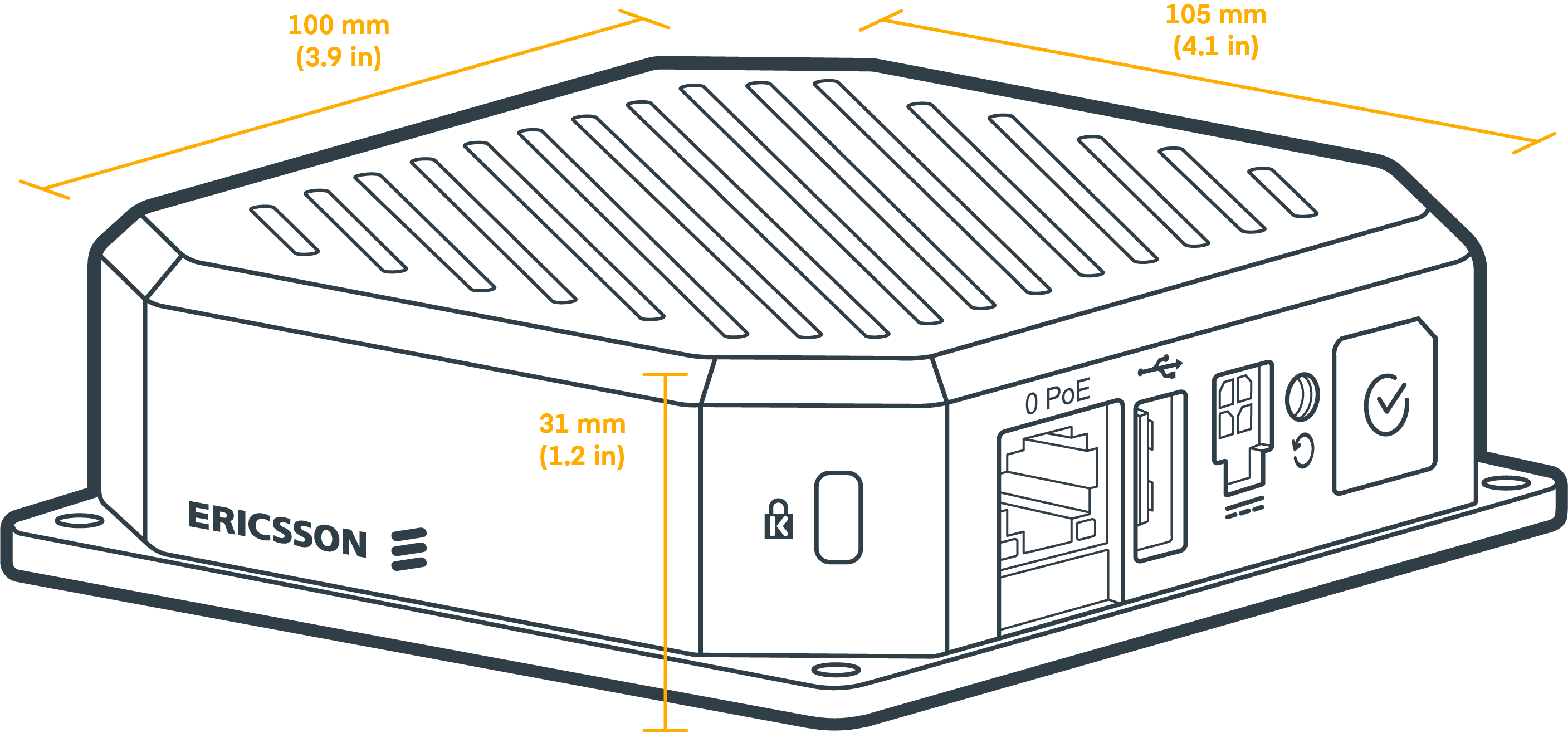

| Dimensions | Size: 100 x 105 x 31 mm (3.9 x 4.1 x 1.2 in) |
| Construction | Plastic housing |
| Shipping Weight | 1.23 lb |
| Usb | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Gnss | Passive (multiplexed with cellular antenna) |
| Wifi | 802.11ac Wi-Fi 5, 1x1, 2.4 GHz or 5 GHz (non-concurrent), 150/433 Mbps, 1 x RP-SMA |
| Modem | Embedded Cat 6 LTE, 2 x SMA cellular antenna connectors |
| Ethernet | 1 x GbE RJ45 (LAN/WAN selectable) |
| Gpio Module | 20-pin (2 x 10) Molex Micro-Fit 3.0 |
| Serial Module | DB-9 RS232 with hardware flow control |
| Wifi Features | Global Optimized Wi-Fi & International SDR, 802.11k/v, Wi-Fi Alliance Certified |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open |
| Expansion Slot | 1 x Expansion module slot |
| Ethernet Module | 2 x FE RJ45 (LAN/WAN selectable) |
| Ce | 2.4 GHz 17.50 dBm; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5875 11.50 dBm conducted |
| Ic | 2.4 GHz 19.60 dBm; 5150–5250 16.25; 5250–5350 15.89; 5470–5725 15.93; 5725–5850 14.38 dBm conducted |
| Fcc | 2.4 GHz 19.60 dBm; 5150–5250 16.25; 5250–5350 15.89; 5470–5725 15.93; 5725–5850 14.38 dBm conducted |
| Rcm | 2.4 GHz 17.50 dBm; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5850 14.38 dBm conducted |
| Ukca | 2.4 GHz 17.50 dBm; 5150–5250 16.64; 5250–5350 16.64; 5470–5725 17.01; 5725–5875 16.12 dBm conducted |
| Global Safe Mode | 2.4 GHz 14 dBm conducted |
| Vlans | Layer 2 / Layer 3 VLANs: Up to 64 |
| Ipsec Vpn | Point-to-Point IPsec VPN: 20 Mbps |
| Stateful Firewall | 95 Mbps |
| Concurrent Sessions | 32,000 |
| Concurrent Vpn Tunnels | 5 |
| Typical Iot Client Count | 25 |
| Mtbf | Calculated MTBF: 1,828,355 hours (Telcordia SR332 at 25 °C) |
| Mtbf Db9 Module | MTBF with DB9 Module: 1,712,886 hours (Telcordia SR332 at 25 °C) |
| Mtbf Gpio Module | MTBF with GPIO Module: 1,343,279 hours (Telcordia SR332 at 25 °C) |
| Mtbf Ethernet Module | MTBF with Ethernet Module: 1,659,720 hours (Telcordia SR332 at 25 °C) |
| Plan | Included Plan: 3-Year NetCloud IoT Essentials + Advanced Plans |
| Term | Subscription Term: 3 years |
| Support | Phone 24-hour weekdays (weekend emergency response), web 24x7, chat 24x5 |
| Security | Connect and go zero trust security included |
| Plan Family | NetCloud IoT |
| Storage Humidity | 5% to 95% non-condensing |
| Ingress Protection | IP30 |
| Operating Humidity | 5% to 95% non-condensing |
| Storage Temperature | -20 °C to 70 °C (-4 °F to 158 °F) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Safety | UL/cUL, CB Scheme, EN 62368-1 |
| Security | N/A |
| Regulatory | FCC, IC, CE, RCM, UKCA, ANATEL, IFT, SUBTEL, MCMC, IMDA |
| Hazardous Locations | Class I Div 2 (North America), ATEX 2 (Europe) |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Shock Vibration Humidity | MIL-STD-810H Method 514.8 (Annex C-1, Cat. 4); Method 516.8 Procedures I and V |
| Support | Included for the full subscription term |
| Warranty | Limited lifetime while an active NetCloud Service Plan is maintained |
| Service Plans | NetCloud Service for IoT |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
No. The S400 uses an embedded Cat 6 LTE (4G) modem with dual SIM slots and 2x2 MIMO. Its data sheet lists peak rates of 300 Mbps down and 50 Mbps up.
TBV3-0400-C6-NA-N is the North America (U.S. and Canada) version. Its modem carries AT&T, T-Mobile and Verizon network operator certifications, is PTCRB certified, and supports CBRS Band 48 for private LTE networks.
The package includes 3-year NetCloud IoT Essentials and Advanced Plans. These cover NetCloud Manager for management and software updates, connect-and-go zero trust security, and 24x7 support for the full term. Cradlepoint also provides a limited lifetime hardware warranty while an active NetCloud plan is in place.
Yes. The S400 accepts 802.3af PoE (15 W) or a 9–33 VDC input with reverse polarity and transient voltage protection. This package also includes an AC power supply.
Yes, through the expansion module slot. It accepts a serial DB-9 RS232 module with hardware flow control, a dual Fast Ethernet module, or a 20-pin GPIO module.
