| Sms | Yes |
| Gnss | Discrete active GPS with dead reckoning |
| Mimo | 4x4 MIMO |
| Three G | WCDMA/UMTS/HSPA+ |
| Tx Power | 5G NR 23 dBm, ENDC 20 dBm, LTE 23 dBm, HPUE 25 dBm (B41 SA only) |
| Lte Bands | FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48 |
| Modulation | 256 QAM downlink and uplink (on particular carrier equipment) |
| Peak Rates | Up to 4.14 Gbps down / 660 Mbps up |
| Regulatory | FCC, IC, CE, RCM |
| Technology | 5G FR1 NSA/SA + LTE Advanced Pro Cat 20, dual 4FF SIM, 3GPP Rel 15 |
| Three G Bands | 1, 2, 3, 4, 5, 6, 8, 9, 19 |
| Five G Nr Bands | n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 (NSA and SA) |
| Carrier Aggregation | LTE: 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL |
| Private Cellular Network | Yes, including FCC Part 96 CBRS Band 48 |
| Network Operator Standards | PTCRB (U.S., Canada), GCF (worldwide) |
| Public Safety Certifications | ESN (4G), FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified |
| Network Operator Certifications | AT&T, EE, Telstra, T-Mobile, Verizon |
| Features | ISO 7637-2 reverse polarity/transient protection; ignition sensing |
| Connector | 4-pin 2x2 Molex micro-fit |
| Consumption | Sleep 15 mW, idle 11 W, typical 19 W, heavy 22 W |
| Dc Input Voltage | 9–36 VDC steady state (in-line fuse required for vehicle installations) |
| Fuse Requirements | 3 A fuse for 9–24 VDC; 2.5 A fuse above 24 VDC |
| Light Rail Nominal | 24 VDC nominal for light rail |
| Mpn | MBA1-19005GB-GA |
| Upc | 810007807317 |
| Brand | Cradlepoint (Ericsson Cradlepoint) |
| Model | Cradlepoint R1900 |
| Region | All regions |
| Manufacturer | Ericsson Enterprise Wireless (Ericsson Cradlepoint) |
| Service Plan | 1-Year NetCloud Mobile Performance Essentials + Advanced Plans |
| Product Status | Active |
| Subscription Term | 1 year |
| Package Inclusions | 24x7 support and limited lifetime warranty |
| Hardware Configuration | 5G with Wi-Fi; no AC power supply or antennas |
| Power | 3.1–3.8 V supply, 30 mA max |
| Accuracy | Autonomous 1 meter |
| Protocols | NMEA 0183, TAIP |
| Frequencies | L1 (1559–1606 MHz) |
| Sensitivity | Acquisition -147 dBm, tracking -165 dBm, reacquisition -159 dBm |
| Update Rate | 1 Hz (once per second) |
| Constellations | GPS, Galileo, GLONASS, BeiDou (concurrent) |
| Time To First Fix | 30 seconds (cold start) |
| Weight | 0.98 kg (2.15 lb) |

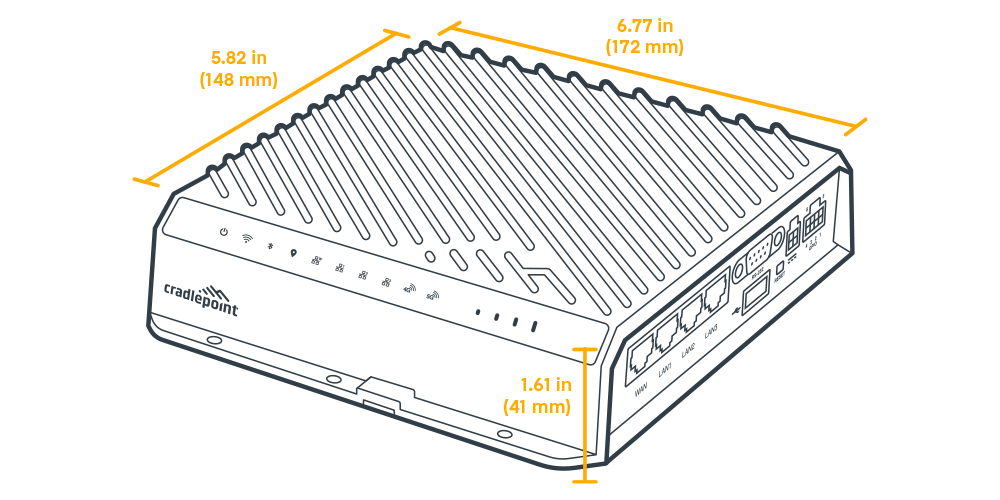

| Dimensions | 172 x 148 x 41 mm (6.77 x 5.82 x 1.61 in) |
| Poe | Optional RX30 PoE switch: 4 x 802.3bt Type 3, up to 60 W per port, 60 W total budget |
| Wifi | Dual-radio concurrent 2.4/5 GHz 2x2 MU-MIMO Wi-Fi 6 with DFS; 574 + 1,200 Mbps; 2 x RP-SMA; WPA3; 802.11k/v; Wi-Fi Alliance Certified |
| Modem | Embedded 5G NR FR1 low/mid-band and LTE Cat 20 modem; 4 x SMA cellular connectors |

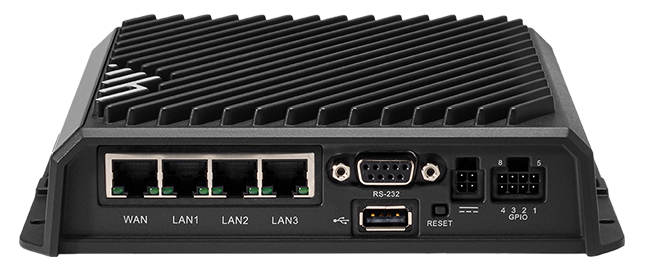

| Ethernet | 4 x GbE (LAN/WAN switchable) |
| Bluetooth | Bluetooth LE 5.2, 10 dBm max TX, 1 x RP-SMA connector |
| Expansion Console | USB 2.0 Type A (5 V, 500 mA), DB9 RS-232, 8-pin GPIO (2x4 Molex micro-fit); optional RX30-POE and RX30-MC |
| Gnss Gps Connector | 1 x SMA GNSS antenna connector |
| Eu | 14 dBm (2.4 GHz), 18 dBm (5500–5700 MHz) |
| Fcc | 23 dBm (2.4 GHz), 21.90 dBm (5260–5825 MHz) |
| Japan | 16.92 dBm (2.4 GHz), 21 dBm (5500–5720 MHz) |
| Canada | 23 dBm (2.4 GHz), 22.00/21.89 dBm (5 GHz) |
| Global Safe Mode | 14 dBm (2.4 GHz) |
| Vlans | Up to 64 Layer 2/Layer 3 VLANs |
| Ipsec Vpn | 400 Mbps point-to-point IPsec VPN |
| Sase Sd Wan | SASE/Secure Connect/SD-WAN: 400 Mbps IPsec, 600 Mbps Microtunnel |
| Stateful Firewall | 940 Mbps |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 32,000 |
| Ips Application Aware Client Analytics | 940 Mbps |
| Calculated Mtbf | 340,644 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Ingress Protection | IP64 (dust tight and splashing water) |
| Operating Humidity | 5% to 95% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Rail | EN 45545-2:2020 HL3, EN 50121-3-2, EN 50155 Class S1 |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Vehicle | E-Mark, SAE J1455 |
| Security | FIPS 140-3 Level 1 module in process (R1900 FIPS models only) |
| Shock Vibration | MIL-STD-810G Section 2.2.2, Procedure 1 (shock, vibration) |
| Hazardous Locations | Class I Div 2 |
| Flame Smoke Toxicity | BSS 7239 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| North American Fire Safety | NFPA 130 |
| Support | Support for the full subscription term |
| Warranty | Limited lifetime warranty with active NetCloud subscription |
| Service Plans | NetCloud Service for Mobile Performance |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full term |
| Device Management | NetCloud Manager for the full term |
| Cpu | Quad-core ARMv8 64-bit |
| Memory | Up to 1.8 GB |
| Applications | Docker containerized applications |
| Flash Storage | Up to 6 GB |
| Poe | Yes, with RX30-PoE |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Category | Mobile |
| Gps Gnss | Discrete active GNSS with dead reckoning |
| Bluetooth | Yes, embedded Bluetooth 5.2 |
| Usb Ports | 1 |
| Throughput | 940 Mbps (firewall) |
| Form Factor | Ruggedized metal |
| Vpn Tunnels | 20 |
| Serial Ports | 1 |
| Five G Status | 5G embedded |
| Ethernet Ports | 4 GbE (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | Add 4 GbE PoE ports or 4 GbE plus second modem |
| Dual Modem Support | Yes, with RX30-MC |
| Subscription Terms | 1, 3 & 5 years |
| Operating Temperature | -30 °C to 75 °C (-22 °F to 167 °F) |
| Wireless Connectivity | 5G/4G dual connectivity |
| Private Cellular Network | Yes: CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
No. PoE is added with the optional RX30-POE managed accessory. It provides four 802.3bt Type 3 ports with up to 60 W per port and a 60 W total budget. The base router has four GbE ports that are LAN/WAN switchable.
Yes, with the optional RX30-MC accessory. It adds a modular second modem slot and four GbE ports, enabling simultaneous dual-carrier connectivity alongside the embedded 5G modem and its two SIM slots.
The Advanced Mobile Performance plan adds threat management, web filtering, application visibility and analytics. It also adds advanced GNSS/GPS functionality, including location tracking and cellular coverage maps. Essentials covers NetCloud Manager, software updates, 24x7 support and a limited lifetime warranty while subscribed.

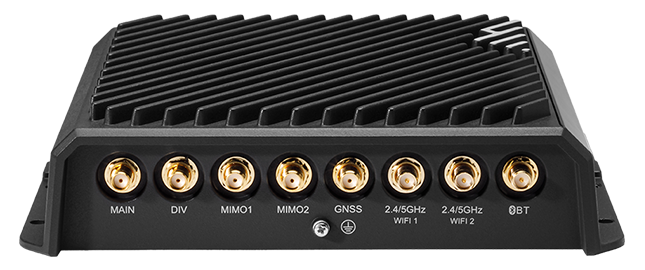

No. This configuration ships without an AC power supply or antennas. The router has four SMA cellular connectors, two RP-SMA Wi-Fi connectors, one RP-SMA Bluetooth connector and one SMA GNSS connector. It runs on 9–36 VDC with ignition sensing.
The embedded modem automatically connects to LTE Advanced Pro Category 20 when 5G is not available, so the vehicle network stays online.
