Advantech ICR-3241 Industrial 4G LTE Cat 4 Dual-SIM

Name: Advantech ICR-3241 Industrial 4G LTE Cat 4 Router with Dual SIM, RS232/RS485 and Digital I/O
Brand: Advantech
SKU: ICR-3241
Price: 509.12 USD
Availability: BackOrder

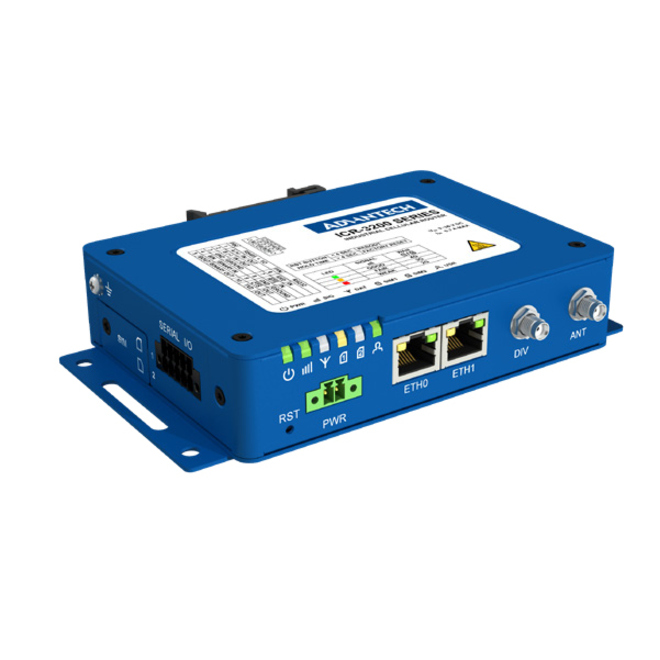

Advantech ICR-3241 industrial 4G LTE router in a compact metal enclosure with two SMA antenna connectors, dual Ethernet ports and terminal-block connectors.

The Advantech ICR-3241 is a 4G LTE Cat 4 gateway for industrial M2M and IoT deployments where IP and serial devices need a dependable cellular uplink. It covers LTE bands B2, B4, B5, B12, B13, B14, B66 and B71, with HSPA+/UMTS fallback. Rated speeds reach 150 Mbps down and 50 Mbps up. Two Mini SIM (2FF) slots under a cover allow failover between carriers. Carrier approvals cover Verizon, AT&T and T-Mobile, and the order code is specified for the North American (NAM) region. In Advantech's order-code table, FirstNet certification is marked for the ICR-3241-1ND, ICR-3241W-1ND and ICR-3241-EL variants rather than this standard ICR-3241. For wired connections, the router has two RJ45 10/100 Ethernet ports with 1.5 kV isolation. A 10-pin terminal block carries RS232, RS485, one digital input and one digital output. Other hardware includes a battery-backed real-time clock, a hardware watchdog, sleep mode and power-ignition support. It takes 9–36 V DC through a 2-pin terminal block. The IP30 metal case has a grounding screw, and the wall-mount kit and DIN clip are both included. The unit meets E-Mark, EN 50155 railway, EN 45545-2 and MIL-STD-810G requirements. At the edge, a 1 GHz Cortex-A8 CPU runs with 512 MB RAM and 4 GB of pSLC eMMC, and 1.3 GB of that storage is allocated to customer applications and data. ICR-OS is Linux-based and supports development in Python, BASH, C/C++, Node-RED and Docker through Router Apps. Advantech's Router App library adds Modbus, DNP3, IEC 60870-5 and MQTT gateways. Security covers WireGuard, OpenVPN, IPsec, GRE and L2TP VPNs, a firewall, RADIUS/TACACS+ and 2FA. Fleets can be managed at scale through WebAccess/DMP. The Advantech datasheet is available for full specifications.

Ideal For

SCADA and remote telemetry for utilities, water and oil and gas sites
Serial-to-cellular conversion for meters, PLCs and UPS systems via RS232/RS485
Connectivity for traffic controllers, CCTV and roadside cabinets
Kiosk, digital signage and vending uplinks with dual-SIM failover
Edge computing with custom Python, Node-RED or Docker applications on the router

Why This Product

1Standard ICR-3241 order code has no Wi-Fi, Bluetooth or GNSS; the ICR-3241W adds Wi-Fi 802.11ac
2FirstNet certification is marked for the ICR-3241-1ND, ICR-3241W-1ND and ICR-3241-EL, not this standard ICR-3241
3ICR-3241-EL adds EdgeLink support; this order code does not
4Stands apart from basic LTE routers with 1.3 GB of user application space and Docker/Node-RED support

System

Cpu	Cortex-A8, 1000 MHz
Rtc	Battery Backup RTC
Memory	RAM – 512 MB; eMMC – 4096 MB (838 MB for Router Apps, 512 MB for customer data)
Watchdog	Hardware Watchdog

General

Mpn	ICR-3241
Brand	Advantech
Life Cycle	Production
Product Family	ICR-3200 Industrial Cellular Router Family
Country Of Origin	Made in Czech Republic

Package

Din Clip	BB-DIN-ICR32 DIN Clip: Included
Wall Mount Kit	Included
Power Connector	BB-CON-WR2 Power Connector: Included
Serial Io Connector	BB-CON-ICR32-10 Serial/IO Connector: Included
Optional Lte Antenna	ANT-LTE5G-025 5G/LTE Terminal Antenna (2 recommended)
Optional Gnss Antenna	OPT1-ANT-GNS-20 GPS/GLONASS Antenna
Optional Power Supply	OPT1-RPS-1212 12 V/1 A Power Supply (US, EU or UK plug)
Optional Wifi Antenna	OPT1-ANT-WFT-06 Wi-Fi Antenna

Physical

Weight	457 g (ICR-3241); 477 g (ICR-3241W)
Mounting	Wall Mount Kit, DIN Rail
Enclosure	Metal Case with Grounding Screw
Dimensions	31.2 × 94 × 129 mm

Software

Note	*Functionality available with installed Router App
Security	HTTPS, SSH, SFTP, DMZ, Firewall; VPN: WireGuard, OpenVPN, IPsec (IKEv1/IKEv2), GRE, L2TP, PPTP; Auth: RADIUS, TACACS+, 2FA, SCEP*; Encryption: DES, 3DES, AES, RSA up to 4096, Ed25519, MD5, SHA
Event Engine	StartUp and Up/Down scripts with rules on inputs, network, data usage, timer, power, temperature; reports via SMS, email, SNMP Trap
Configuration	Web server, SSH, 4 switchable profiles, automatic config update from server, Backup & Restore
Diagnostic Log	Signal/Data Usage/Long-Term Statistics; One-Click Report; System, Reboot and Kernel Logs; Remote Diagnostics via SSH
Operating System	ICR-OS (Linux based)
Sw Customization	Router App
Firmware Management	Automatic firmware updates (server, LAN or WAN); OTA cellular module firmware updates
Networking Features	DHCP, NAT/PAT, SSH, VRRP, PPPoE, SNMP, SMTP, DDNS, DNS proxy, VLAN, QoS, DMVPN, NTP, RIP/BGP/OSPF/IS-IS/NHRP, Backup Routes, Port Forwarding, Host Port Routing, Ethernet Bridging, Load Balancing, IPv6 Dual Stack
Advanced Software Tools	WebAccess/DMP; EdgeLink*
Application Development	Open Linux, Python, BASH, C/C++, Node-RED, Docker*
Industrial Protocols Iot	Modbus RTU/TCP, IEC 60870-5-101 to 104, DF1, DNP3, MQTT, LWM2M

Interfaces

Io	1× Digital Input; 1× Digital Output, 10-pin terminal block
Ethernet	2× Ethernet, RJ45, 10/100 Mbps, Isolation 1.5 kV
Reset Button	Reboot / Factory reset
Serial Lines	1× RS232 (Tx, Rx, RTS, CTS, GND); 1× RS485 (A(-), B(+), GND), 10-pin terminal block
Led Indicators	System, 3-level signal strength, Data activity, SIM1/SIM2 status, 2G/3G/4G technology, User, ETH

Order Code

Io	Yes
Gnss	No
Wifi	No
Region	North America (NAM)
Dual Sim	2× SIM: Yes
Bluetooth	No
Lte Ant Div	Yes
Region Note	Compatible with cellular networks in the indicated region
Rs232 Rs485	Yes
Dual Ethernet	2× Ethernet: Yes
Edgelink Support	No
Firstnet Certification	No (marked for ICR-3241-1ND, ICR-3241W-1ND, ICR-3241-EL)

Environmental

Humidity	5 to 95 %
Ip Rating	IP30
Sleep Mode	100 mW (HW Rev 1.0), 20 mW (HW Rev 2.0)
Consumption	With WiFi: Idle 2.5 W / Avg 4 W / Max 11 W (HW Rev 1.0); Idle 2.6 W / Avg 4.3 W / Max 5.8 W (HW Rev 2.0)
Power Supply	9 – 36 V DC (2-pin terminal block)
Storage Temperature	-40 to +85 °C
Operating Temperature	-40 to +75 °C

Gnss Optional

Antenna	Active, 1× SMA
Systems	GPS, GLONASS, BeiDou, Galileo, QZSS
Protocol	NMEA
Availability	Optional (not fitted on ICR-3241)
Time To First Fix	Cold 35 s, Warm 26 s

Wifi Optional

Modes	Access Point (unlimited clients), Station, Multirole STA & AP
Antenna	2× R-SMA, 2×2 MIMO
Security	WEP, WPA, WPA2, WPA3, 802.1X
Standards	IEEE 802.11 ac/a/b/g/n, 2.4 GHz / 5 GHz
Availability	Optional (not fitted on ICR-3241)

Bluetooth Optional

Antenna	Shared R-SMA Wi-Fi antenna connector
Version	Bluetooth 5.1, Class 1 (BLE), Bluetooth SIG Qualified
Data Rate	1 Mbps (GFSK), 2 Mbps (π/4-DQPSK), 3 Mbps (8-DPSK)
Availability	Optional (not fitted on ICR-3241)

Cellular Interface

Antennas	2× SMA (1× Main, 1× Diversity)
Lte Bands	LTE FDD: B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz), B12, B13, B14 (700 MHz), B66 (1700 MHz), B71 (600 MHz)
Sim Slots	2× SIM (Mini SIM – 2FF) with cover, 1× Chip SIM (MFF2) (project-based customization)
Lte Category	LTE Cat.4, 3GPP E-UTRA Release 11
Hspa Umts Bands	B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz)
Lte Transfer Rate	150 Mbps (DL), 50 Mbps (UL)
Hspa Umts Transfer Rate	4.2 Mbps (DL) / 2.2 Mbps (UL)

Standards Regulations

Emc	EN 61000-6-2, FCC Part 15.B, ICES-003 Issue 6
Note	Module approvals apply to the integrated cellular module only, not necessarily the whole router
Radio	FCC Part 22H, 24E, 27; PTCRB
Safety	UL/EN/AS/NZS 62368-1
Railway	EN 50155 Compliant
Climatic	EN 60068-2-2/-1/-14/-78, MIL-STD-810G, SAE J1455
National	FCC, IC
Mechanical	EN 60068-2-27, EN 60068-2-64
Environmental	REACH, RoHS3, WEEE Compliant
Transportation	E-Mark, EN 45545-2
Carrier Approval	Verizon, AT&T, FirstNet, T-Mobile
Cellular Module Approvals	Module – Regulatory: GCF, FCC, PTCRB, IC; Carrier: Verizon, AT&T, FirstNet, T-Mobile, U.S. Cellular, Rogers, Telus

Purchasing this for your business?

Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Advantech ICR-3241 Datasheet

0.8mb

Frequently Asked Questions

Is the ICR-3241 FirstNet certified?▾

In Advantech's order-code table, FirstNet certification is marked for the ICR-3241-1ND, ICR-3241W-1ND and ICR-3241-EL. It is not marked for this standard ICR-3241. This router carries carrier approvals for Verizon, AT&T and T-Mobile.

Does the ICR-3241 have Wi-Fi?▾

No. The standard ICR-3241 order code has no Wi-Fi, Bluetooth or GNSS. The ICR-3241W variant adds 802.11ac Wi-Fi.

What power input does it need?▾

It accepts 9–36 V DC through a 2-pin terminal block. Advantech offers optional 12 V/1 A power supplies with US, EU or UK plugs.

Are antennas included?▾

The package includes the wall-mount kit, DIN clip, serial/IO connector and power connector. Antennas are optional. Advantech recommends two ANT-LTE5G-025 antennas, one each on the main and diversity SMA ports, for full cellular performance.

Can I run my own software on the router?▾

Yes. ICR-OS is Linux-based and sets aside 1.3 GB of storage for customer applications and data. It supports BASH and C/C++, plus Python, Node-RED and Docker through Router Apps.
