Wilson Electronics 970024-10 Solderless Captive-Pin N-Male Connector for LMR-400 Cable (10-Pack)

Name: Wilson Electronics 970024-10 Solderless Captive-Pin N-Male Connector for LMR-400 Cable (10-Pack)
Brand: Wilson Electronics
SKU: 970024-10
Price: 61.82 USD
Availability: InStock

Wilson Electronics|

MPN: 970024-10

UPC: 811815029601

Low Stock (6 left)

$61.82$115.59

Request for QuoteCall 224-955-1644 for Sales

Free 2-3 Day ShippingArrives by Friday, Nov 13

Order within 11h 49m to get it by Friday, Nov 13

Authorized Dealer — Full manufacturer warranty

Save 44% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Solderless, no-crimp termination via gold-plated captive center pin
Terminates Wilson-400, LMR-400, CNT-400 and TWS-400 cable
0-3.0 GHz supported frequencies, 50 Ω impedance
VSWR ≤ 1.18 at 0-3.0 GHz; withstanding voltage ≥ 1500 V
Nickel-plated brass body, acceptable for indoor or outdoor use

The 970024 Solderless Field Termination Captive Pin N Connector is designed to let installers build custom cable lengths on location. It removes the need to measure every run in advance and pre-build cables in the shop. The gold-plated captive center pin allows the cable to be terminated without soldering or crimping, which makes a good termination easier to achieve in the field. This SKU packs 10 connector kits together. Each kit includes the connector body, nut, clamp, bushing, insulator and shrink boot. The connectors terminate LMR-400 or equivalent cable and are specified for Wilson-400, LMR-400, CNT-400 and TWS-400. They can only be used on cables with a solid center conductor. Construction is nickel-plated brass, and Wilson rates the connector as acceptable for indoor or outdoor use. Electrically, Wilson specifies 0-3.0 GHz supported frequencies, 50 Ω impedance, VSWR of 1.18 or less across 0-3.0 GHz, and a withstanding voltage of at least 1500 V. Wilson backs the connector with a 2 year warranty, and a manufacturer spec sheet is available for the part. With ten kits per pack, one order covers five complete two-ended cable runs.

Ideal For

Field-terminating custom-length Wilson-400 or LMR-400 runs on site
Repairing or shortening an existing 400-series cable run
Indoor and outdoor antenna feed lines for signal booster installations
Stocking installer kits for jobs where run lengths are not known in advance

Why This Product

1Solderless captive-pin design, whereas the 970014-10 ring-flare connectors are for 1/2-inch plenum cable
2Fits the same Wilson-400 cable used in the 952310 to 952375 pre-terminated range
3VSWR ≤ 1.18 specified across the full 0-3.0 GHz range

General

Mpn	970024-10
Brand	Wilson Electronics
Product Name	Solderless Field Termination Captive Pin N Connectors
Connector Type	N-Male
Upc Single Kit	811815029359 (970024 single kit)
Base Part Number	970024 (single connector kit)
Country Of Origin	United States

Package

Master Carton	50 qty: 16 L x 12 W x 6 H, 5.88 lb
Pack Quantity	10 connector kits
Shipping Weight	0.9 lb (10-pack)
Single Kit Packaging	Sealed polybag, 3.0 in L x 5.5 in W
Single Kit Package Weight	0.10 lb

Support

Warranty

2 year warranty

Features

Material	Nickel-plated brass
Center Pin	Gold-plated captive center pin, no soldering or crimping
Environment	Acceptable for indoor or outdoor use
Compatible Cables	Wilson-400, LMR-400, CNT-400, TWS-400 (LMR-400 or equivalent)
Conductor Requirement	For cables with a solid conductor only

Electrical

Vswr	≤ 1.18 at 0-3.0 GHz
Impedance	50 Ω
Withstanding Voltage	≥ 1500 V
Supported Frequencies	0-3.0 GHz

Kit Includes

Components

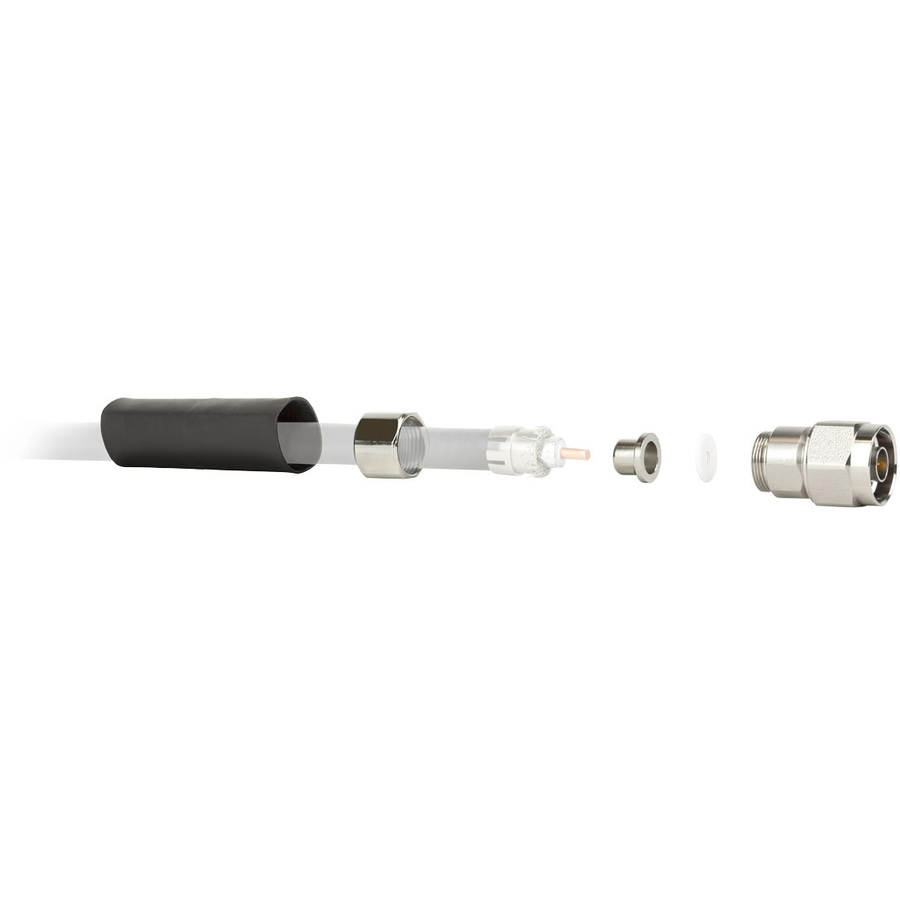

Connector body, nut, clamp, bushing, insulator and shrink boot

Specifications

Weight

0.01 lb

Purchasing this for your business?

Business account holders on Couplers & Connectors typically save 44% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Solderless Field Termination Captive Pin N Connectors Spec Sheet

1.0mb

Frequently Asked Questions

Which cables do these connectors fit?▾

They terminate LMR-400 or equivalent cable, specifically Wilson-400, LMR-400, CNT-400 and TWS-400. The cable must have a solid center conductor.

Do I need to solder or crimp?▾

No. The gold-plated captive center pin allows termination without soldering or crimping.

What is included in each kit?▾

Each kit includes a connector body, nut, clamp, bushing, insulator and shrink boot. This SKU contains 10 kits.

What are the electrical ratings?▾

0-3.0 GHz supported frequencies, 50 Ω impedance, VSWR of 1.18 or less at 0-3.0 GHz, and a withstanding voltage of at least 1500 V.

Can the connectors be used outdoors?▾

Yes. Wilson states the nickel-plated brass connector is acceptable for indoor or outdoor use.
