| Other 5g | 5G (other regions): n1, n3, n8, n77, n78 |
| Other Lte | LTE (other regions): B1, B3, B7, B20, B28, B42, B43, B46 |
| North America 5g | 5G (North America): n2, n5, n12, n25, n26, n41, n48, n66, n71, n77 |
| North America Lte | LTE (North America): B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71 |
| Mpn | PTAWM2L15W-VM |
| Brand | Parsec |

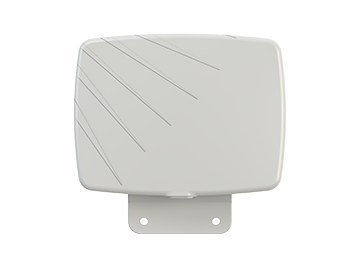

| Form Factor | Wall mount (pole mount capable) |
| Applications | Primary Network, Retail Enterprise, IoT Applications |
| Radome Color | White |
| Build Variant | -VM build variant of PTAWM2L15W |
| Configuration | 2:1 (2 cellular elements) |
| Product Family | Labrador PTA Series |
| Shipping Weight | 1.83 lb |
| Mimo | 2x2 MIMO cellular |
| Polarization | Linear |
| Max Input Power | 5 W |
| Measurement Note | Isolation, return loss and peak gain do not include cable loss |
| Radiation Pattern | Omni-directional |
| Isolation 617 698 Mhz | 12 dB (617-698 MHz) |
| Isolation 698 894 Mhz | 10 dB (698-894 MHz) |
| Peak Gain 617 698 Mhz | 2.5 dBi (617-698 MHz) |
| Peak Gain 698 894 Mhz | 3 dBi (698-894 MHz) |
| Isolation 1710 2700 Mhz | 16 dB (1710-2700 MHz) |
| Isolation 3400 4000 Mhz | 20 dB (3400-4000 MHz) |
| Isolation 5150 5925 Mhz | 27 dB (5150-5925 MHz) |
| Peak Gain 1710 2700 Mhz | 4 dBi (1710-2700 MHz) |
| Peak Gain 3400 4000 Mhz | 6 dBi (3400-4000 MHz) |
| Peak Gain 5150 5925 Mhz | 10 dBi (5150-5925 MHz) |
| Return Loss 617 698 Mhz | 2 dB (617-698 MHz, 50 Ω) |
| Return Loss 698 894 Mhz | 7 dB (698-894 MHz, 50 Ω) |
| Return Loss 1710 2700 Mhz | 7 dB (1710-2700 MHz, 50 Ω) |
| Return Loss 3400 4000 Mhz | 6 dB (3400-4000 MHz, 50 Ω) |
| Return Loss 5150 5925 Mhz | 5 dB (5150-5925 MHz, 50 Ω) |
| Radiated Efficiency 617 698 Mhz | 50% (617-698 MHz) |
| Radiated Efficiency 698 894 Mhz | 80% (698-894 MHz) |
| Radiated Efficiency 1710 2700 Mhz | 75% (1710-2700 MHz) |
| Radiated Efficiency 3400 4000 Mhz | 55% (3400-4000 MHz) |
| Radiated Efficiency 5150 5925 Mhz | 80% (5150-5925 MHz) |
| Dimensions | 8.13 x 7.78 x 1.72 in (excluding mounting bracket) |
| Pole Mounting | Pole mount for 1.5-2.5 in mast diameter (V-bolt, saddle clamp and related hardware) |
| Rf Cable Type | LSR200 |
| Wall Mounting | Bracket with screws to a non-metallic surface |
| Rf Cable Length | 15 ft |
| Range 1 | 617-698 MHz |
| Range 2 | 698-894 MHz |
| Range 3 | 1710-2700 MHz |
| Range 4 | 3400-4000 MHz |
| Range 5 | 5150-5925 MHz |
| Cellular Technology | 4G/5G cellular |
| Ingress Protection | IP54 |
| Operating Temperature | -30 °C to 85 °C (-22 °F to 180 °F) |
| Installation Environment | Indoor or outdoor |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.
Yes. It supports 4G and 5G, covering 617 MHz to 5925 MHz, including North American 5G bands n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77.
It mounts with a bracket screwed to a non-metallic surface or on a pole 1.5-2.5 in in diameter using a V-bolt and saddle clamp. It is IP54 rated for indoor or outdoor use.
This configuration has two 15 ft LSR200 low-loss cables, one for each cellular element.
Yes. Mounting close to wiring or metal wall studs degrades performance, so choose a non-metallic surface with clear exposure toward the carrier's coverage.
