| Cable Type | LSR240 |
| Connectors | 4x SMA male |
| Sma Max Torque | 3-5 inch-lb |
| Emea Lte | B1, B3, B7, B8, B20, B28, B32, B42, B43, B46 |
| Emea 5g Nr | n1, n3, n8, n28, n77, n78 |
| North America Lte | B2, B4, B5, B7, B12, B14, B17, B24, B25, B26, B29, B30, B41, B46, B48, B66, B71 |
| North America 5g Nr | n2, n5, n12, n25, n26, n41, n48, n66, n71, n77 |
| Mpn | PRO4A4L01W |
| Mimo | 4x4 MIMO cellular |
| Brand | Parsec |

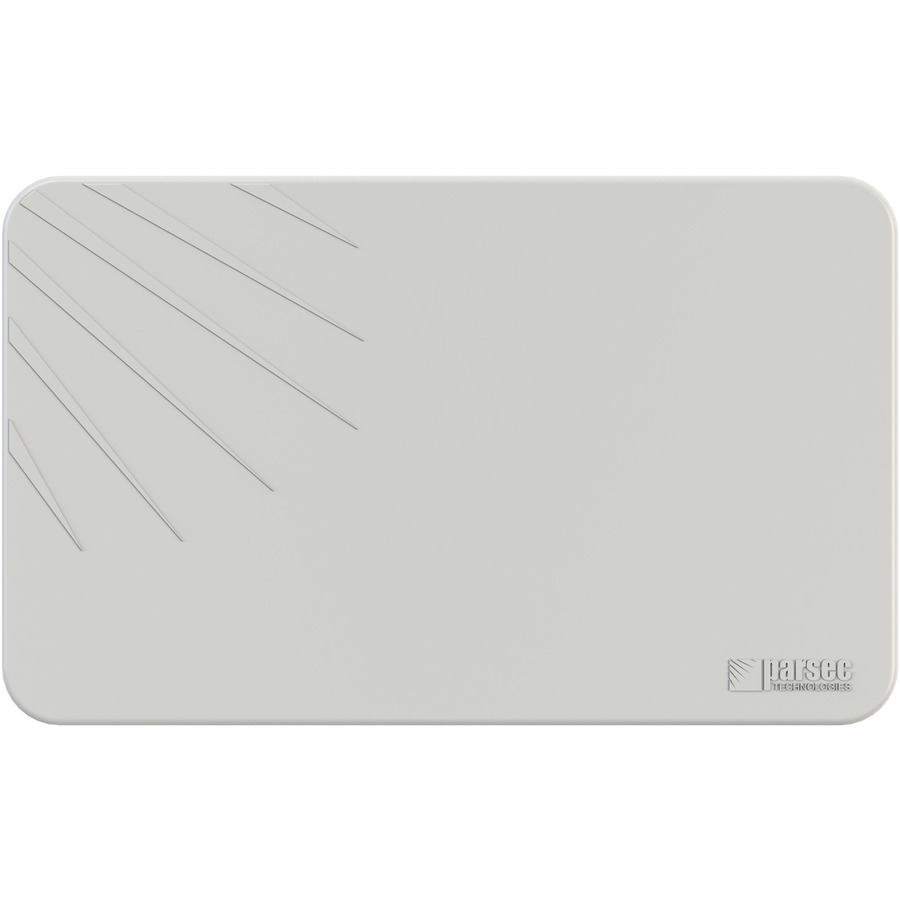

| Radome Color | White |
| Configuration | 4:1 (4 cellular elements) |
| Product Family | Akita PRO Series |
| Antenna Pattern | Omni-directional |
| Country Of Origin | United States |
| Shipping Weight | 3.70 lb |
| Polarization | Linear |
| Max Input Power | 10 W |
| Measurement Note | Isolation, return loss and peak gain exclude cable loss |
| Peak Gain 617 663 Mhz | 3 dBi (617-663 MHz) |
| Peak Gain 663 930 Mhz | 4 dBi (663-930 MHz) |
| Peak Gain 930 1427 Mhz | 2 dBi (930-1427 MHz) |
| Peak Gain 1427 1915 Mhz | 5 dBi (1427-1915 MHz) |
| Peak Gain 1915 6000 Mhz | 5 dBi (1915-6000 MHz) |
| Return Loss 617 663 Mhz | 10 dB (617-663 MHz) |
| Return Loss 663 930 Mhz | 7 dB (663-930 MHz) |
| Return Loss 930 1427 Mhz | 10 dB (930-1427 MHz) |
| Return Loss 1427 1915 Mhz | 7 dB (1427-1915 MHz) |
| Return Loss 1915 6000 Mhz | 6 dB (1915-6000 MHz) |
| Isolation Adjacent 617 663 Mhz | 10 dB CELL adjacent (617-663 MHz) |
| Isolation Adjacent 663 930 Mhz | 11 dB CELL adjacent (663-930 MHz) |
| Isolation Cell 1 2 617 663 Mhz | 15 dB CELL 1-2 (617-663 MHz) |
| Isolation Cell 1 2 663 930 Mhz | 20 dB CELL 1-2 (663-930 MHz) |
| Isolation Adjacent 930 1427 Mhz | 17 dB CELL adjacent (930-1427 MHz) |
| Isolation Cell 1 2 930 1427 Mhz | 19 dB CELL 1-2 (930-1427 MHz) |
| Radiated Efficiency 617 663 Mhz | 70% (617-663 MHz) |
| Radiated Efficiency 663 930 Mhz | 80% (663-930 MHz) |
| Isolation Adjacent 1427 1915 Mhz | 15 dB CELL adjacent (1427-1915 MHz) |
| Isolation Adjacent 1915 6000 Mhz | 16 dB CELL adjacent (1915-6000 MHz) |
| Isolation Cell 1 2 1427 1915 Mhz | 18 dB CELL 1-2 (1427-1915 MHz) |
| Isolation Cell 1 2 1915 6000 Mhz | 20 dB CELL 1-2 (1915-6000 MHz) |
| Radiated Efficiency 930 1427 Mhz | 70% (930-1427 MHz) |
| Radiated Efficiency 1427 1915 Mhz | 85% (1427-1915 MHz) |
| Radiated Efficiency 1915 6000 Mhz | 70% (1915-6000 MHz) |
| Mounting | Bracket with screws to a non-metallic surface |
| Dimensions | 15.5 x 9.5 x 1.4 in (thickness excluding bracket) |
| Pole Mount | Pole mount for 2.5-3.5 in mast diameter (two worm drive clamps and hardware) |
| Rf Cable Length | 1 ft |
| Cellular Range 1 | 617-663 MHz |
| Cellular Range 2 | 663-930 MHz |
| Cellular Range 3 | 930-1427 MHz |
| Cellular Range 4 | 1427-1915 MHz |
| Cellular Range 5 | 1915-6000 MHz |
| Ingress Protection | IP54 Outdoor |
| Operating Temperature | -30 °C to 85 °C (-22 °F to 180 °F) |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.
It has four cellular elements, each on its own 1 ft LSR240 cable with an SMA male connector, for a router or gateway with four cellular antenna ports running 4x4 MIMO.
Yes. The Akita is IP54 rated for outdoor use and operates from -30 °C to 85 °C. It can be mounted on a wall or on a 2.5-3.5 in mast with the worm-drive clamp pole mount.
Yes. Coverage runs from 617 MHz to 6000 MHz, including C-Band and 5G NR bands n2, n5, n12, n25, n26, n41, n48, n66, n71 and n77 in North America.
No. PRO4A4L01W is the 4:1 cellular-only configuration. GPS is available in the 5:1 Akita (PRO5A4LG models).
Mount it on a non-metallic surface away from electrical wiring and metal wall studs, which degrade performance.
