| Gps Type | GPS Element: L1 GPS |
| Cable Type | GPS Cable: LSR100 |
| L1 Frequency | L1 GPS: 1575.42 MHz |
| Polarization | GPS Polarization: RHCP |
| Rf Connector | GPS Connector: SMA(M) |
| Preamp Current | GNSS Preamp Current: < 45 mA |
| Preamp Voltage | GNSS Preamp Voltage: 3 to 5 V |
| Antenna Preamp Gain L1 | Antenna + Preamp Gain (L1, 1563-1587 MHz): 28 dBic |
| Wifi Elements | 2 |
| Frequency 5ghz | Wi-Fi: 4900-5900 MHz |
| Frequency 2 4ghz | Wi-Fi: 2400-2483.5 MHz |
| Wifi 6 Compatible | Yes |
| Mpn | PRO12GP8L2WBG15B |
| Brand | Parsec |
| Color | Radome Color: Black |
| Series | Great Pyrenees PRO Series |
| Categories | Enterprise, Public Safety, 5G, RV |
| Applications | Best For: Remote Network, Urban and Rural Areas |
| Manufacturer | Parsec Technologies, Inc. |
| Configuration | 12:1 – 8 Cellular, 2 Wi-Fi, 1 Bluetooth, L1 GPS |
| Antenna Pattern | Omni-Directional |
| Antennas Included | Cellular, Wi-Fi, Bluetooth and GPS |
| Shipping Weight | 7.50 lbs |
| Height | 2.23 in |
| Diameter | 10.75 in |
| Mounting | Single 1.5 in hole |
| Mount Type | Roof Mount |
| Radome Material | Plastic with UV Additive |
| Ingress Protection | IP67 Waterproof |
| Operating Temperature | -40 °C to 85 °C |
| Height With Magnetic Mount | Height with Optional Magnetic Mount: 5.34 in |
| Mounting Accessories Available | Pole Mount, Mag Mount |
| Wifi 2400 2483 Mhz | Wi-Fi, 2400-2483.5 MHz: 23 dB |
| Wifi 4900 5900 Mhz | 22 dB |
| Cell Mimo 1 617 746 Mhz | 16 dB |
| Cell Mimo 5 746 894 Mhz | 10 dB |
| Cell Adjacent 617 746 Mhz | 6 dB |
| Cell Adjacent 746 894 Mhz | 8 dB |
| Cell Mimo 1 1710 2200 Mhz | 18 dB |
| Cell Mimo 1 2200 2700 Mhz | 21 dB |
| Cell Mimo 1 3300 4000 Mhz | 25 dB |
| Cell Mimo 1 5150 5925 Mhz | 30 dB |
| Cell Mimo 5 1710 2700 Mhz | 14 dB |
| Cell Mimo 5 3300 4000 Mhz | 16 dB |
| Cell Mimo 5 5150 5925 Mhz | 30 dB |
| Cell Adjacent 1710 2000 Mhz | 14 dB |
| Cell Adjacent 2000 2700 Mhz | 20 dB |
| Cell Adjacent 3300 4000 Mhz | 18 dB |
| Cell Adjacent 5150 5925 Mhz | 25 dB |
| Wifi 2400 2483 Mhz | Wi-Fi 1-2, 2400-2483.5 MHz: 7 dBi |
| Wifi 4900 5900 Mhz | Wi-Fi 1-2, 4900-5900 MHz: 9 dBi |
| Cell 1 4 617 663 Mhz | 2.5 dBi |
| Cell 1 4 663 746 Mhz | 5 dBi |
| Cell 5 8 746 798 Mhz | 3 dBi |
| Cell 5 8 798 894 Mhz | 3 dBi |
| Cell 1 4 1710 2200 Mhz | 6 dBi |
| Cell 1 4 2200 2700 Mhz | 7 dBi |
| Cell 1 4 3300 4000 Mhz | 8 dBi |
| Cell 1 4 5150 5925 Mhz | 8 dBi |
| Cell 5 8 1710 2000 Mhz | 6 dBi |
| Cell 5 8 2000 2700 Mhz | 7 dBi |
| Cell 5 8 3300 4000 Mhz | 8 dBi |
| Cell 5 8 5150 5925 Mhz | 8 dBi |
| Polarization | Linear |
| Max Input Power | 5 W |
| Measurement Notes | Isolation, return loss and peak gain exclude cable loss; measured on a 2 ft x 2 ft external ground plane |
| Max Radiated Efficiency | Radiated Efficiency: Up to 85% |
| Gps 1575 Mhz | GPS, 1575.42 MHz: 10 dB |
| Wifi 2400 2483 Mhz | Wi-Fi 1-2, 2400-2483.5 MHz: 11 dB |
| Wifi 4900 5900 Mhz | Wi-Fi 1-2, 4900-5900 MHz: 6 dB |
| Cell 1 4 617 663 Mhz | 6 dB |
| Cell 1 4 663 746 Mhz | 8 dB |
| Cell 5 8 746 798 Mhz | 10 dB |
| Cell 5 8 798 894 Mhz | 5 dB |
| Cell 1 4 1710 2200 Mhz | 11 dB |
| Cell 1 4 2200 2700 Mhz | 8 dB |
| Cell 1 4 3300 4000 Mhz | 6 dB |
| Cell 1 4 5150 5925 Mhz | 6 dB |
| Cell 5 8 1710 2000 Mhz | 9 dB |
| Cell 5 8 2000 2700 Mhz | 5 dB |
| Cell 5 8 3300 4000 Mhz | 6 dB |
| Cell 5 8 5150 5925 Mhz | 3 dB |
| Emea 5g | n1, n3, n28, n77, n78 |
| Emea Lte | B1, B3, B7, B20, B28, B42, B43, B46 |
| North America 5g | n2, n5, n12, n25, n26, n41, n48, n66, n71, n77 |
| North America Lte | B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71 |
| Cable Length | 15 ft |
| Gps Connector | SMA(M) |
| Gps Cable Type | LSR100 |
| Wifi Connector | RP-SMA(M) |
| Wifi Cable Type | LSR200 |
| Cellular Connector | SMA(M) |
| Cellular Cable Type | LSR200 |
| Wifi 2400 2483 Mhz | Wi-Fi 1-2, 2400-2483.5 MHz: 60% |
| Wifi 4900 5900 Mhz | Wi-Fi 1-2, 4900-5900 MHz: 60% |
| Cell 1 4 617 663 Mhz | 40% |
| Cell 1 4 663 746 Mhz | 50% |
| Cell 5 8 746 798 Mhz | 40% |
| Cell 5 8 798 894 Mhz | 40% |
| Cell 1 4 1710 2200 Mhz | 70% |
| Cell 1 4 2200 2700 Mhz | 80% |
| Cell 1 4 3300 4000 Mhz | 85% |
| Cell 1 4 5150 5925 Mhz | 80% |
| Cell 5 8 1710 2000 Mhz | 60% |
| Cell 5 8 2000 2700 Mhz | 70% |
| Cell 5 8 3300 4000 Mhz | 80% |
| Cell 5 8 5150 5925 Mhz | 65% |
| Cbrs Laa | CBRS and LAA: Supported |
| Cellular Mimo | Double 4x4 MIMO |
| Band 71 Tuning | One 4x4 set tuned for T-Mobile Band 71 |
| Frequency Range 1 | 4G/5G Cellular: 617-894 MHz |
| Frequency Range 2 | 4G/5G Cellular: 1710-2700 MHz |
| Frequency Range 3 | 4G/5G Cellular: 3300-4000 MHz |
| Frequency Range 4 | 4G/5G Cellular: 5150-5925 MHz |
| Ground Plane | Ground Plane, 20 in x 20 in, Adhesive Back: PTA0587 |
| Roof Mount Kit | PTA0610 |
| Pole Mount Bracket | PTA0149H |
| Pole Mount Heavy Duty | Pole Mount Bracket, Heavy Duty, High Vibration: PTA0721 |
| Lightning Arrestor Sma | PTA0476 |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.
Yes. The eight cellular elements form two separate 4x4 MIMO sets. Parsec designed them to run dual radios and dual SIMs on two different carriers without interference.
Cellular leads are LSR200 with SMA(M) connectors, Wi-Fi leads are LSR200 with RP-SMA(M) connectors, and the GPS lead is LSR100 with an SMA(M) connector. All cables are 15 ft long.
Yes. One cellular set is tuned for T-Mobile's Band 71 (600 MHz). The antenna also supports CBRS (B48/n48) and LAA (B46), along with n41, n71 and n77 in North America.
It is a roof-mount antenna that installs through a single 1.5 in hole. Parsec also offers pole mount brackets and a magnetic mount as separate accessories. Parsec publishes an installation guide for the Great Pyrenees.
Yes. The UV-stabilised plastic radome is rated IP67 and the antenna operates from -40 °C to 85 °C. It is designed for public safety vehicles, fleets, rooftops and RVs.
Save 19%Parsec · PRO4AT4L03B

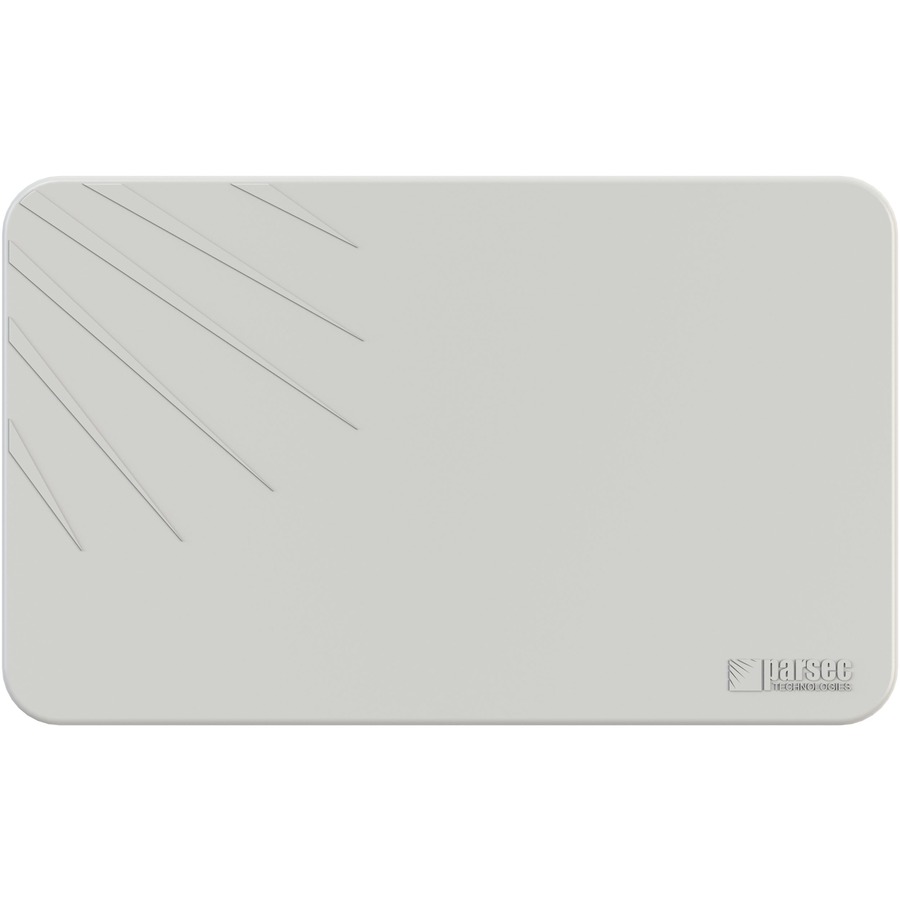

Save 19%Parsec · PRO4A4L01W
