| Mpn | PTA3BC2LG03B |
| Brand | Parsec |
| Elements | 2 Cellular (2x2 MIMO) + GPS |
| Radome Color | Black |
| Configuration | 3:1 (3 elements in one housing) |
| Product Family | Border Collie (PTA Series) |
| Radiation Pattern | Omni-directional |
| Shipping Weight | 0.80 lb |
| Packaged Quantity | 1 |

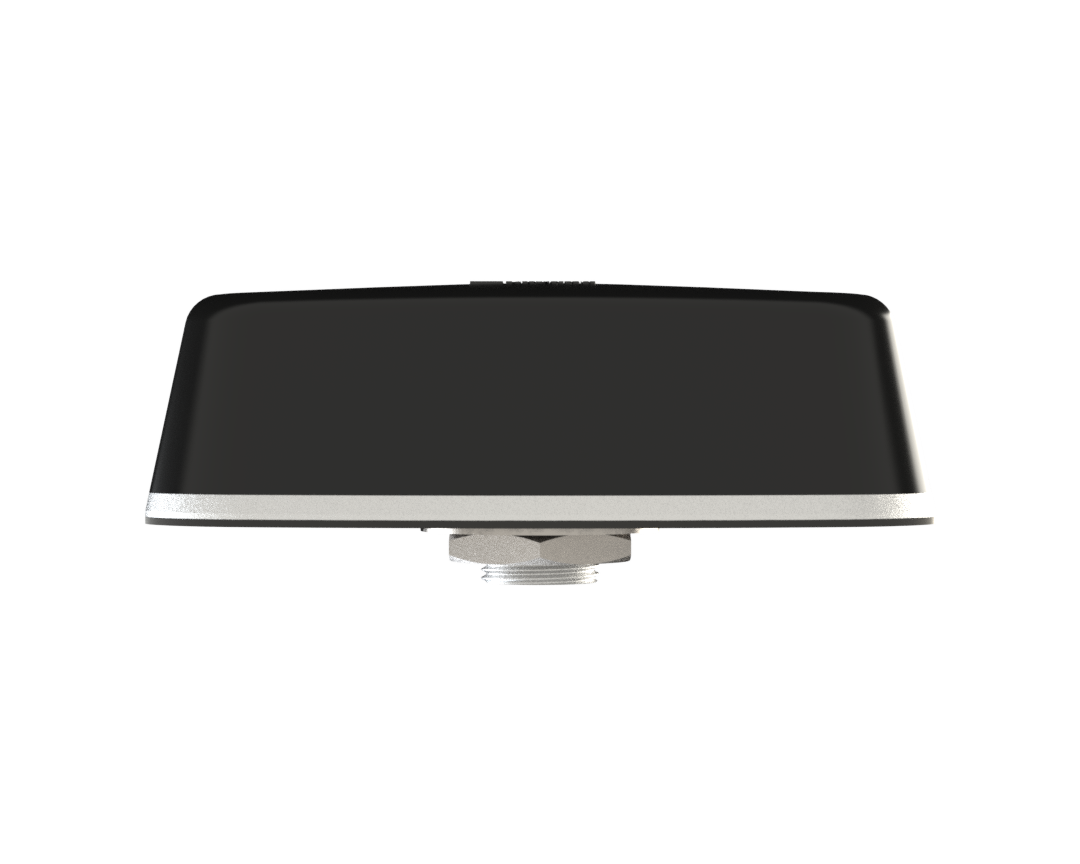

| Mounting | Single 1-inch hole |
| Dimensions | 6.6 x 2.3 x 2.02 in |
| Rf Cable Length | 3 ft |
| Nr Bands International | 5G NR Bands (International): n1, n3, n8, n28, n77, n78 |
| Nr Bands North America | 5G NR Bands (North America): n2, n5, n12, n25, n26, n41, n48, n66, n71, n77 |
| Lte Bands International | B1, B3, B7, B8, B20, B28, B42, B43, B46 |
| Lte Bands North America | B2, B4, B5, B7, B12, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66 |
| Cellular Frequency Ranges | 4G/5G Cellular: 617-698 / 698-960 / 1710-2700 / 3300-4000 / 5150-5925 MHz |
| Ingress Protection | IP67 (power wash safe) |
| Operating Temperature | -30 °C to 85 °C (-22 °F to 180 °F) |
| Polarization | RHCP |
| Rf Connector | GPS RF Connector: SMA male |
| Gps Frequency | 1570-1581 MHz |
| Rf Cable Type | GPS RF Cable Type: LSR100 |
| Preamp Current | GNSS Preamp Current: 5 to 15 mA |
| Preamp Voltage | GNSS Preamp Voltage: 2.2 to 5 V |
| Filter Rejection | 12 dB at 1625 MHz |
| Antenna Preamp Gain | 33 dBic typ. |
| Polarization | Linear |
| Rf Cable Type | LSR200 |
| Rf Connectors | SMA male |
| Sma Max Torque | SMA Connector Max Torque: 3-5 inch lbs |
| Test Condition | Electrical specs based on a 2 ft x 2 ft external ground plane |
| Max Input Power | 10 W |
| Measurement Note | Note: Isolation, return loss and peak gain do not include cable loss |
| Isolation 617 698 | 8 dB typ. |
| Isolation 698 960 | 7 dB typ. |
| Peak Gain 617 698 | 3 dBi typ. |
| Peak Gain 698 960 | 5 dBi typ. |
| Isolation 1710 2700 | 15 dB typ. |
| Isolation 3300 4000 | 24 dB typ. |
| Isolation 5150 5925 | 24 dB typ. |
| Peak Gain 1710 2700 | 6 dBi typ. |
| Peak Gain 3300 4000 | 7 dBi typ. |
| Peak Gain 5150 5925 | 8 dBi typ. |
| Return Loss 617 698 | Return Loss (50Ω), 617-698 MHz: 4 dB typ. |
| Return Loss 698 960 | Return Loss (50Ω), 698-960 MHz: 7 dB typ. |
| Return Loss 1710 2700 | Return Loss (50Ω), 1710-2700 MHz: 7 dB typ. |
| Return Loss 3300 4000 | Return Loss (50Ω), 3300-4000 MHz: 12 dB typ. |
| Return Loss 5150 5925 | Return Loss (50Ω), 5150-5925 MHz: 7 dB typ. |
| Radiated Efficiency 617 698 | Radiated Efficiency, CELL 1/2, 617-698 MHz: 50% typ. |
| Radiated Efficiency 698 960 | Radiated Efficiency, CELL 1/2, 698-960 MHz: 80% typ. |
| Radiated Efficiency 1710 2700 | Radiated Efficiency, CELL 1/2, 1710-2700 MHz: 70% typ. |
| Radiated Efficiency 3300 4000 | Radiated Efficiency, CELL 1/2, 3300-4000 MHz: 75% typ. |
| Radiated Efficiency 5150 5925 | Radiated Efficiency, CELL 1/2, 5150-5925 MHz: 55% typ. |
| L Bracket | PTA0756 (sold separately) |
| Sma Wrench | PTA0194 (sold separately) |
| Star Washer | PTA0251 (sold separately) |
| Ground Plane | Ground Plane with Adhesive Back, 20 x 20 in, cut to size: PTA0587 (sold separately) |
| Magnetic Mount | PTA0330 (sold separately) |
| Rooftop Gasket | Replacement Rooftop Gasket: PTA0561 (sold separately) |
| Shaft Hardware Kit | Hardware Kit for 1" Shaft, Nut/Washer: PTA0760 (sold separately) |
| Lightning Arrestor N | PTA0736 (sold separately) |
| Mini Plate Pole Mount | PTA0637 (sold separately) |
| Lightning Arrestor Sma | PTA0476 (sold separately) |
| Round Plate Pole Mount | Round Plate Pole Mount Bracket Assembly, 1" Hole: PTA0149 (sold separately) |
| Horizontal Truss Pole Mount | Pole Mount Bracket, Horizontal Truss Mounting: PTA0149-F (sold separately) |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.
No. This 3:1 model has two 4G/5G cellular elements and one GPS element. Border Collie 4:1 and 5:1 models add Wi-Fi elements.

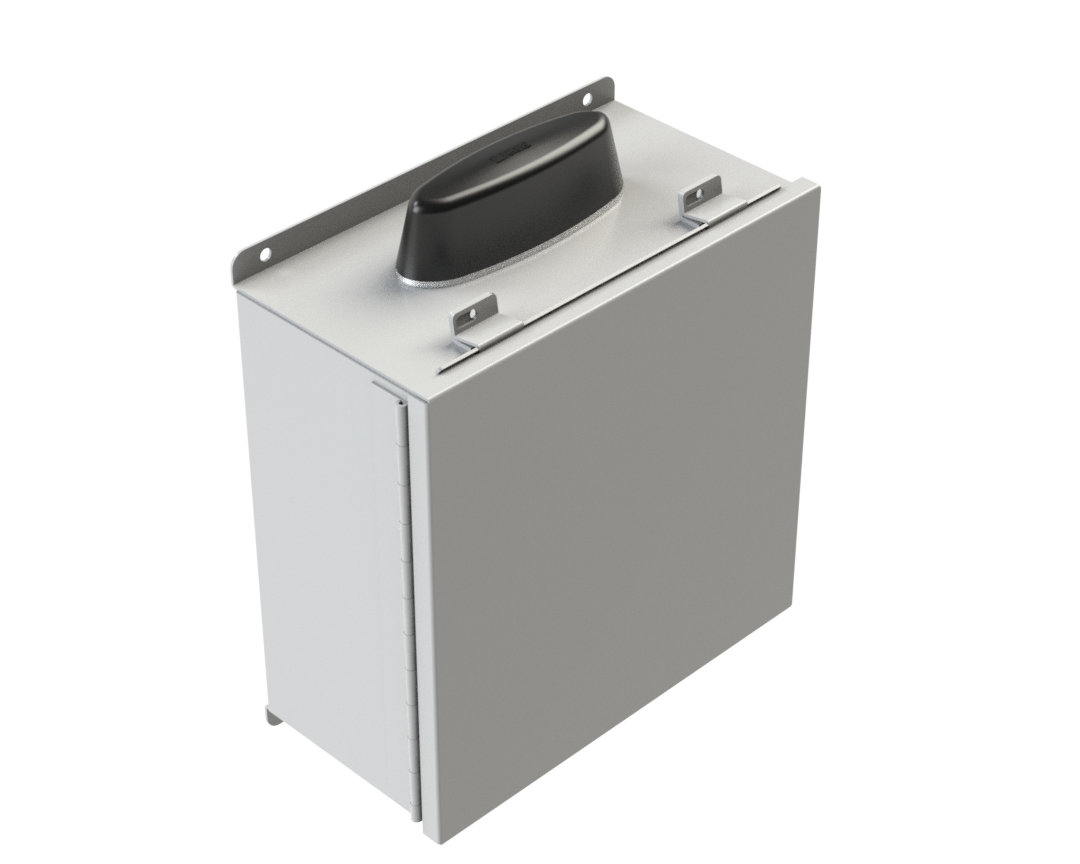

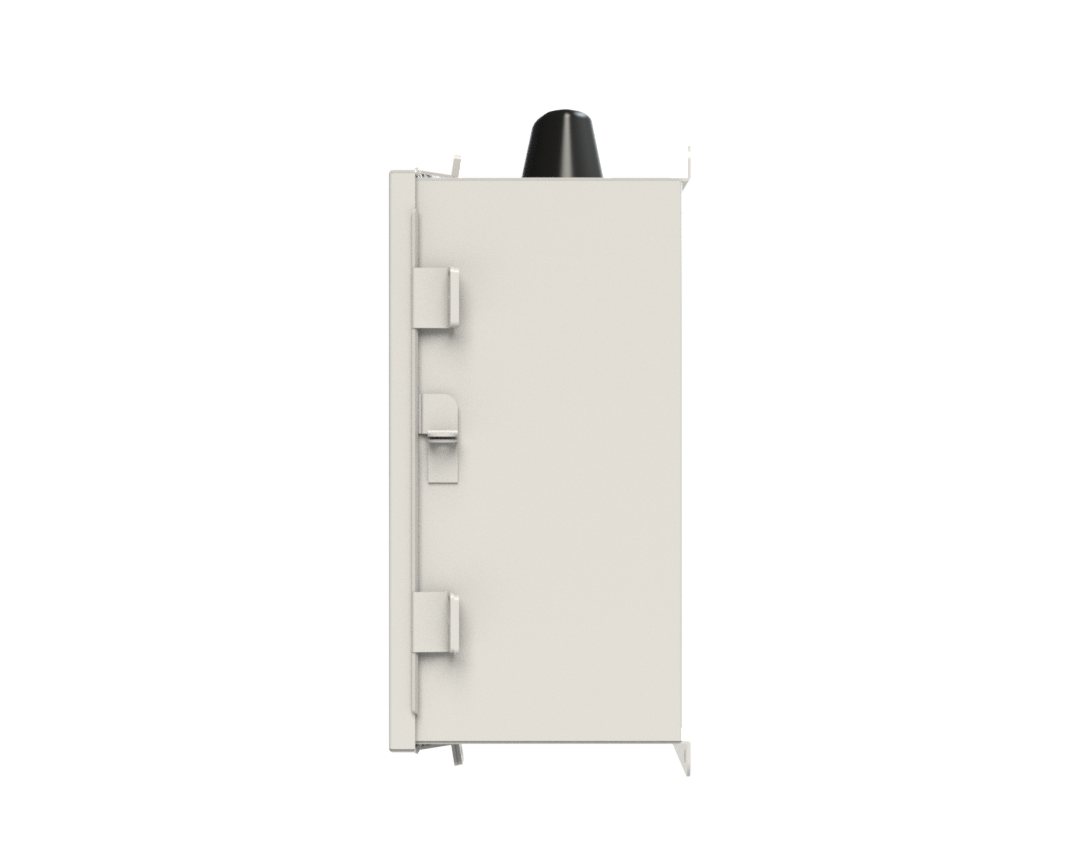

It installs through a single 1-inch hole. Parsec also offers optional pole mount brackets, an L bracket, a magnetic mount and an adhesive ground plane, each sold separately.
Yes. The housing is IP67 rated and power-wash safe, and it operates from -30 °C to 85 °C. Parsec lists first responders, remote video monitoring and kiosks among its applications.
Yes. The GPS element is active, with a preamp that runs on 2.2 to 5 V bias supplied by the connected device and draws 5 to 15 mA.
All three leads are 3 ft with SMA male connectors. The cellular leads use LSR200 cable and the GPS lead uses LSR100.
