Parsec Australian Shepherd PTA7AS4L2WG01B 7-in-1 5G

Name: Parsec Australian Shepherd PTA7AS4L2WG01B 7-in-1 Low-Profile 5G Vehicle Antenna with 4x4 Cellular, Wi-Fi and GPS
Brand: Parsec
SKU: PTA7AS4L2WG01B
Price: 436.75 USD
Availability: InStock

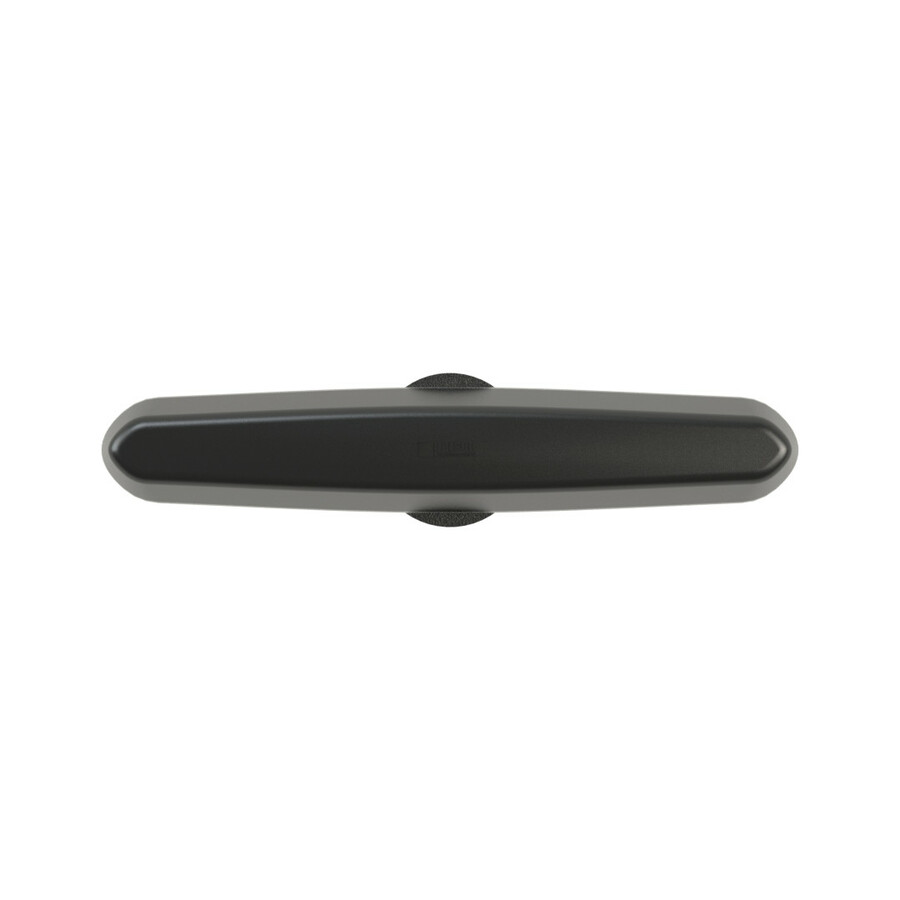

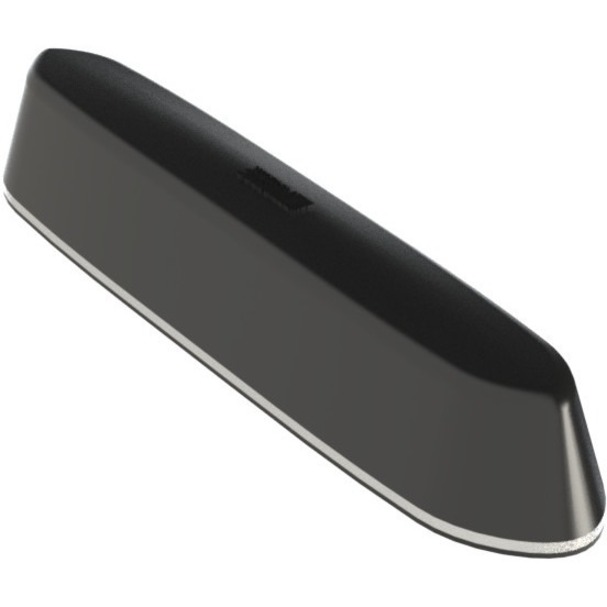

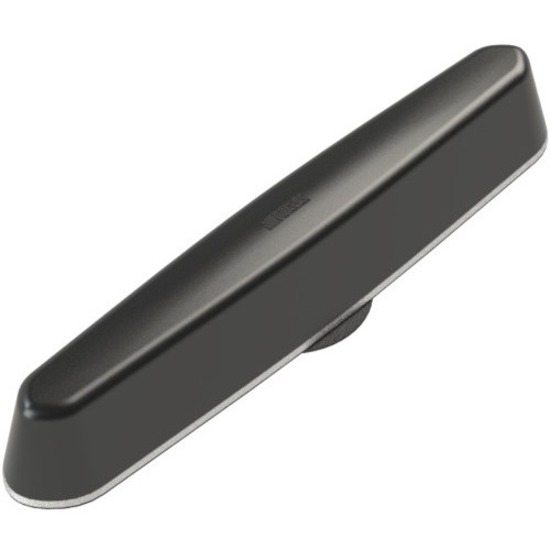

The Australian Shepherd PTA Series is Parsec's covert, low-profile 5G antenna. It was designed to sit alongside the low-profile LED light bars on modern police vehicles, with a narrow housing that fits between roof ridges and an aerodynamic shape that keeps wind noise down. This PTA7AS4L2WG01B is the 7:1 configuration. It has four cellular elements, two Wi-Fi elements and one L1 GPS element, uses 1 ft cables and has a black radome. The four cellular ports cover 617-894 MHz, 1710-2700 MHz, 3400-4000 MHz and 5150-5925 MHz. That range includes the common North American LTE and 5G NR bands, among them B14, B71, n41, n71 and n77, plus CBRS (B48/n48) and LAA (B46). The ports can feed one modem in full 4x4 MIMO or two cellular modems running at the same time. Peak cellular gain reaches 7 dBi in the 3400-4000 MHz range. The Wi-Fi elements cover 2400-2483.5 MHz and 4900-5900 MHz with 10 dBi peak gain. The GPS element is an active RHCP L1 antenna with 28 dBic combined antenna and preamp gain. The antenna is built for vehicle duty. It has an IP67 rating, a UV-stabilised plastic radome, an adhesive sealing gasket and a -40 °C to 85 °C operating range. Parsec states every unit is 100% tested. Cellular and GPS leads terminate in SMA(M) and the Wi-Fi leads in RP-SMA(M). The 1 ft leads suit installs where the router sits close to the mount point. Pole, magnetic and suction mounting accessories are available for the family. Parsec's datasheet and installation guide cover dimensions and mounting.

Ideal For

Police, fire and ambulance vehicles on FirstNet or commercial 5G networks
Transportation and fleet vehicles running in-vehicle routers with GPS tracking
City buses providing passenger Wi-Fi and cellular backhaul
Remote surveillance and mobile broadband units

Why This Product

1The 7:1 carries two Wi-Fi elements and L1 GPS; the 9:1 adds four Wi-Fi elements and L1/L5 dual-band GPS
2The 1 ft leads suit short runs; 15 ft variants are offered for routers mounted farther away
3A 2.01 in height and 2.45 in width make it lower and narrower than typical puck-style multi-element antennas

Gnss

Polarization	GPS Polarization: RHCP
Preamp Current	GNSS Preamp Current: < 45 mA
Preamp Voltage	GNSS Preamp Voltage: 3 to 5 V
Antenna Preamp Gain L1	28 dBic

General

Mpn	PTA7AS4L2WG01B
Brand	Parsec
Color	Radome Color: Black
Family	Australian Shepherd PTA Series
Categories	Mobile, Public Safety, 5G
Antenna Pattern	Omni-Directional

Package

Shipping Weight

1.40 lb

Isolation

Cell 617 663 Mhz	Cellular 617-663 MHz: 6 dB
Cell 663 798 Mhz	Cellular 663-798 MHz: 6 dB
Cell 798 894 Mhz	Cellular 798-894 MHz: 7 dB
Cell 1710 2700 Mhz	Cellular 1710-2700 MHz: 10 dB
Cell 3400 4000 Mhz	Cellular 3400-4000 MHz: 18 dB
Cell 5150 5925 Mhz	Cellular 5150-5925 MHz: 23 dB
Wifi 2400 2483 Mhz	Wi-Fi 2400-2483.5 MHz: 11 dB
Wifi 4900 5900 Mhz	17 dB

Peak Gain

Cell 617 663 Mhz	Cellular 617-663 MHz: 3.5 dBi
Cell 663 798 Mhz	Cellular 663-798 MHz: 5.5 dBi
Cell 798 894 Mhz	Cellular 798-894 MHz: 4 dBi
Cell 1710 2700 Mhz	Cellular 1710-2700 MHz: 6.5 dBi
Cell 3400 4000 Mhz	Cellular 3400-4000 MHz: 7 dBi
Cell 5150 5925 Mhz	Cellular 5150-5925 MHz: 6 dBi
Wifi 2400 2483 Mhz	Wi-Fi 2400-2483.5 MHz: 10 dBi
Wifi 4900 5900 Mhz	10 dBi

Mechanical

Width	2.45 in
Height	2.01 in
Length	13.5 in
Mounting	Single 1.5 in hole
Mount Type	Mobile Roof/Direct Mount
Radome Material	Plastic with UV Additive
Mounting Accessories Available	Pole Mount, Mag Mount, Suction Mount

Frequencies

Wifi	2400-2483.5, 4900-5900 MHz
L1 Gps	1575.42 MHz
Cellular 4g 5g	4G/5G Cellular: 617-894, 1710-2700, 3400-4000, 5150-5925 MHz

Lte 5g Bands

Emea Lte	B1, B3, B7, B20, B28, B42, B43, B46
Emea 5g Nr	n1, n3, n28, n77, n78
North America Lte	B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71
North America 5g Nr	n2, n5, n12, n25, n26, n41, n48, n66, n71, n77

Configuration

Gps Element	L1 GPS
Configuration	7:1
Wifi Elements	2
Antennas Included	Cellular, Wi-Fi, GPS
Cellular Elements	Cellular (4G/5G) Elements: 4

Environmental

Ingress Protection	IP67 Waterproof
Operating Temperature	-40 °C to 85 °C

Connectors Cables

Gps Cable	LSR100
Wifi Cable	LSR200
Cable Length	1 ft
Gps Connector	SMA(M)
Cellular Cable	LSR200
Wifi Connector	RP-SMA(M)
Cellular Connector	SMA(M)

Electrical General

Polarization	Linear
Max Input Power	5 W
Test Conditions	2 ft x 2 ft external ground plane; isolation and return loss exclude cable loss

Return Loss 50 Ohm

Cell 617 663 Mhz	Cellular 617-663 MHz: 6 dB
Cell 663 798 Mhz	Cellular 663-798 MHz: 10 dB
Cell 798 894 Mhz	Cellular 798-894 MHz: 6 dB
Cell 1710 2700 Mhz	Cellular 1710-2700 MHz: 7 dB
Cell 3400 4000 Mhz	Cellular 3400-4000 MHz: 10 dB
Cell 5150 5925 Mhz	Cellular 5150-5925 MHz: 6 dB
Wifi 2400 2483 Mhz	Wi-Fi 2400-2483.5 MHz: 8 dB
Wifi 4900 5900 Mhz	10 dB

Radiated Efficiency

Cell 617 663 Mhz	Cellular 617-663 MHz: 40%
Cell 663 798 Mhz	Cellular 663-798 MHz: 60%
Cell 798 894 Mhz	Cellular 798-894 MHz: 50%
Cell 1710 2700 Mhz	Cellular 1710-2700 MHz: 70%
Cell 3400 4000 Mhz	Cellular 3400-4000 MHz: 65%
Cell 5150 5925 Mhz	Cellular 5150-5925 MHz: 45%
Wifi 2400 2483 Mhz	Wi-Fi 2400-2483.5 MHz: 60%
Wifi 4900 5900 Mhz	60%

Purchasing this for your business?

Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Parsec Part Number Legend

0.1mb

Australian Shepherd Installation Guide

0.5mb

Australian Shepherd Datasheet

21.6mb

Frequently Asked Questions

What elements are in the PTA7AS4L2WG01B?▾

It has four 4G/5G cellular elements, two Wi-Fi elements and one L1 GPS element in a single black housing. It does not include a Bluetooth element.

Does it support FirstNet Band 14 and CBRS?▾

Yes. Its North American band list includes B14, CBRS on B48/n48 and LAA on B46, along with n41, n71 and n77.

Can I connect two cellular modems?▾

Yes. The four cellular ports can run one modem in 4x4 MIMO or two cellular modems at the same time.

How is it installed?▾

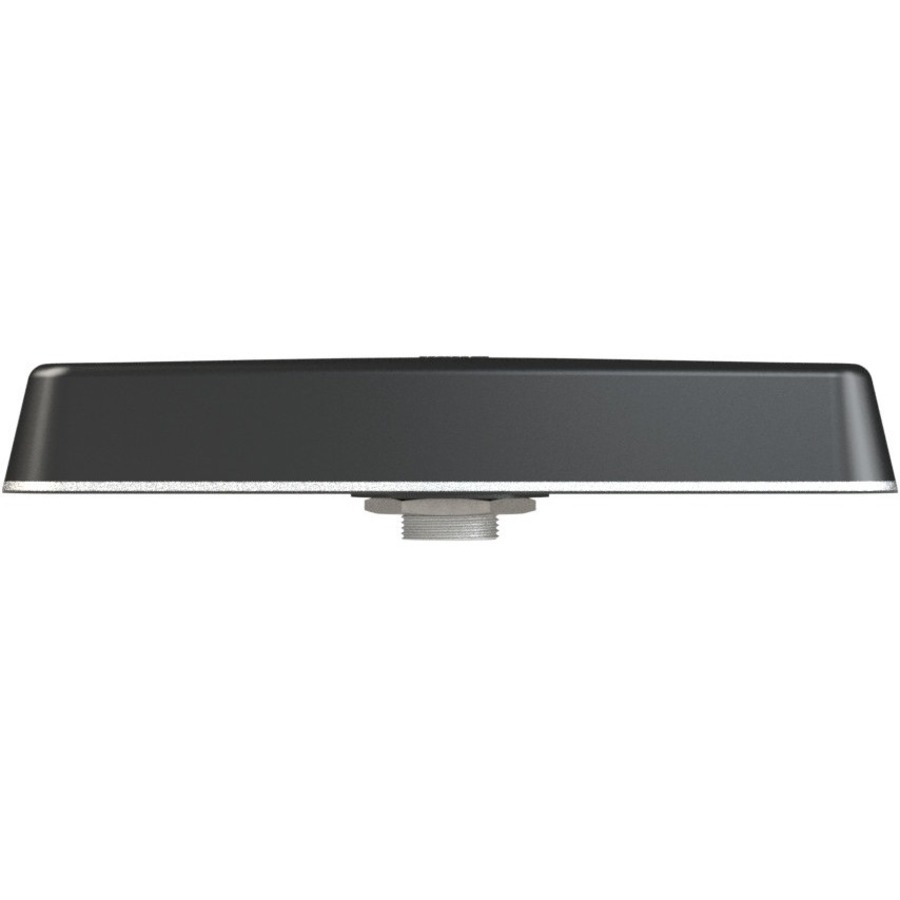

It mounts on the roof through a single 1.5 in hole and seals with an adhesive gasket. Pole, magnetic and suction mounting accessories are available, and Parsec provides an installation guide.

What connectors does it use?▾

The cellular and GPS leads end in SMA(M) connectors. The Wi-Fi leads end in RP-SMA(M) connectors. All leads are 1 ft long.
