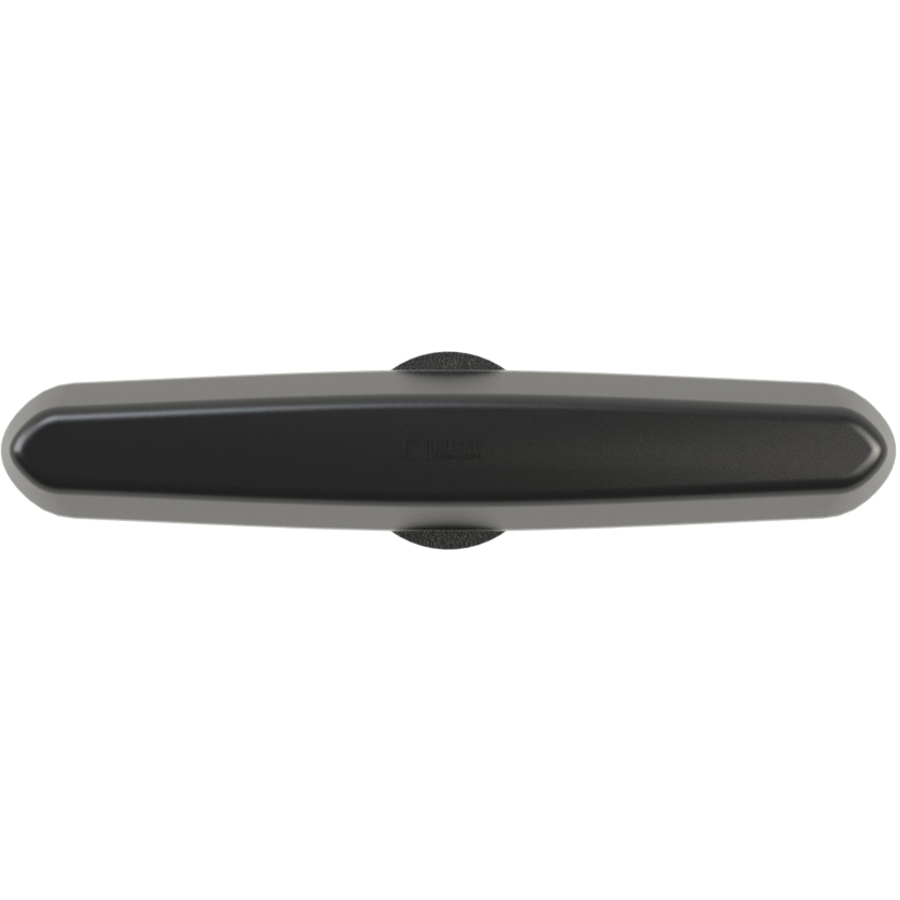

| Mpn | PTA4AS4L15B |
| Brand | Parsec |
| Color | Black radome |
| Categories | Mobile, Public Safety, 5G |
| Configuration | 4:1 (4 cellular elements) |
| Product Family | Australian Shepherd PTA Series |
| Antenna Pattern | Omni-directional |
| Documents | Datasheet, installation guide, part number legend |
| Shipping Weight | 2.70 lb |
| Mimo | 4x4 MIMO cellular or dual simultaneous modems |
| Emea 5g Bands | 5G n1, n3, n28, n77, n78 |
| Emea Lte Bands | LTE B1, B3, B7, B20, B28, B42, B43, B46 |
| Frequency Range 1 | 617-894 MHz |
| Frequency Range 2 | 1710-2700 MHz |
| Frequency Range 3 | 3400-4000 MHz |
| Frequency Range 4 | 5150-5925 MHz |
| North America 5g Bands | 5G n2, n5, n12, n25, n26, n41, n48, n66, n71, n77 |
| North America Lte Bands | LTE B2, B4, B5, B7, B12, B13, B14, B17, B25, B26, B29, B30, B41, B46, B48, B66, B71 |
| Width | 2.45 in |
| Height | 2.01 in |
| Length | 13.5 in |
| Cable Type | LSR200 (cellular) |
| Connectors | SMA male (cellular) |
| Mount Type | Mobile roof/direct mount |
| Mounting Hole | Single 1.5 in hole |
| Radome Material | Plastic with UV additive |
| Rf Cable Length | 15 ft |
| Mounting Accessories Available | Pole, magnetic and suction mounts (sold separately) |
| Ingress Protection | IP67 waterproof |
| Operating Temperature | -40 °C to 85 °C |
| Impedance | 50 Ω |
| Polarization | Linear |
| Max Input Power | 5 W |
| Test Conditions | Measured on 2 x 2 ft ground plane; excludes cable loss |
| Cell 617 663 Mhz | 6 dB (617-663 MHz) |
| Cell 663 798 Mhz | 6 dB (663-798 MHz) |
| Cell 798 894 Mhz | 7 dB (798-894 MHz) |
| Cell 1710 2700 Mhz | 10 dB (1710-2700 MHz) |
| Cell 3400 4000 Mhz | 18 dB (3400-4000 MHz) |
| Cell 5150 5925 Mhz | 23 dB (5150-5925 MHz) |
| Cell 617 663 Mhz | 3.5 dBi (617-663 MHz) |
| Cell 663 798 Mhz | 5.5 dBi (663-798 MHz) |
| Cell 798 894 Mhz | 4 dBi (798-894 MHz) |
| Cell 1710 2700 Mhz | 6.5 dBi (1710-2700 MHz) |
| Cell 3400 4000 Mhz | 7 dBi (3400-4000 MHz) |
| Cell 5150 5925 Mhz | 6 dBi (5150-5925 MHz) |
| Cell 617 663 Mhz | 6 dB (617-663 MHz) |
| Cell 663 798 Mhz | 10 dB (663-798 MHz) |
| Cell 798 894 Mhz | 6 dB (798-894 MHz) |
| Cell 1710 2700 Mhz | 7 dB (1710-2700 MHz) |
| Cell 3400 4000 Mhz | 10 dB (3400-4000 MHz) |
| Cell 5150 5925 Mhz | 6 dB (5150-5925 MHz) |
| Cell 617 663 Mhz | 40% (617-663 MHz) |
| Cell 663 798 Mhz | 60% (663-798 MHz) |
| Cell 798 894 Mhz | 50% (798-894 MHz) |
| Cell 1710 2700 Mhz | 70% (1710-2700 MHz) |
| Cell 3400 4000 Mhz | 65% (3400-4000 MHz) |
| Cell 5150 5925 Mhz | 45% (5150-5925 MHz) |
Business account holders on Antennas typically save 21% vs. retail pricing. Create a free account to see your price.
No. This is the 4:1 configuration with four cellular elements only. Parsec's 5:1, 7:1, 8:1 and 9:1 Australian Shepherd versions add GPS, Wi-Fi and, on the 8:1, Bluetooth.
Yes. The four cellular elements can serve one modem in full 4x4 MIMO or two cellular modems running simultaneously.
All four cellular ports cover 617-894 MHz, 1710-2700 MHz, 3400-4000 MHz and 5150-5925 MHz. That includes Band 14, Band 71, n41, n77, CBRS (B48/n48) and LAA (B46).
It is a roof or direct mount through a single 1.5-inch hole, sealed with an adhesive gasket. Pole, magnetic and suction mounts are available separately. An installation guide is available for this model.
It uses 15 ft LSR200 cables terminated in SMA male connectors.
