Panorama GPSD4-7-49-D Reef Sharkee 7-in-1 Low-Profile 4x4 MIMO 5G Antenna with GPS/GNSS and 2x2 Wi-Fi

Name: Panorama GPSD4-7-49-D Reef Sharkee 7-in-1 Low-Profile 4x4 MIMO 5G Antenna with GPS/GNSS and 2x2 Wi-Fi
Brand: Panorama
SKU: GPSD4-7-49-D
Price: 257.20 USD
Availability: InStock

Panorama|

MPN: GPSD4-7-49-D

UPC: 5055416084897

Digital Delivery

$257.20$347.29

Request for QuoteCall 224-955-1644 for Sales

Available — Digital DeliveryInstant access after purchase

Authorized Dealer — Full manufacturer warranty

Save 30% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

7-in-1: 4x4 MIMO 4G LTE/5G NR, one GPS/GNSS module and 2x2 MIMO Wi-Fi
Cellular coverage 698–960 MHz and 1427–4900 MHz; typical VSWR below 2.5:1
2x2 Wi-Fi supporting Wi-Fi 6E (2.4 / 5.150–7.125 GHz)
Whip position (FME male) for single, dual or tri-band VHF, UHF and 7/800 MHz whips
52 mm (2.05 in) tall low-profile sharkfin; single-hole panel mount

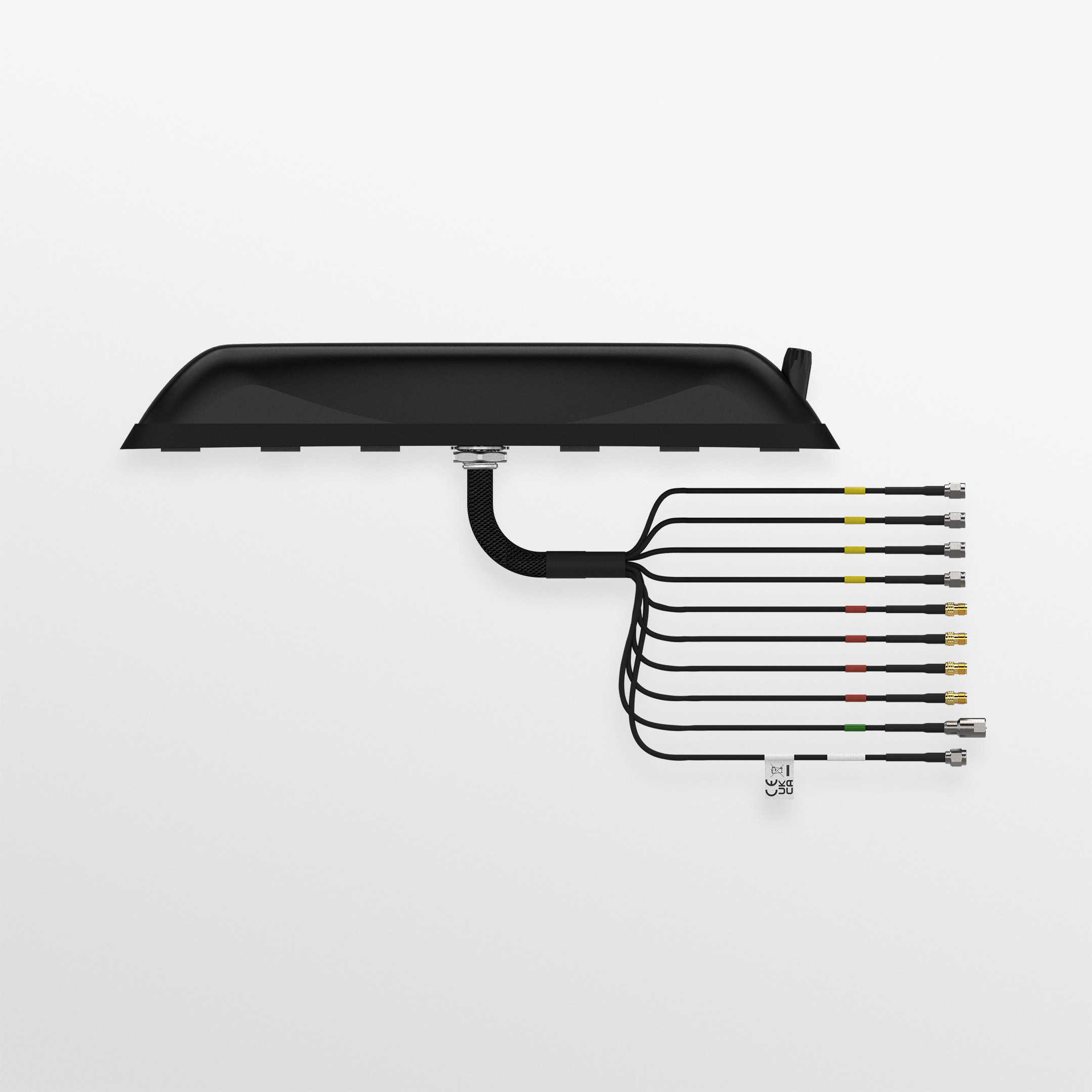

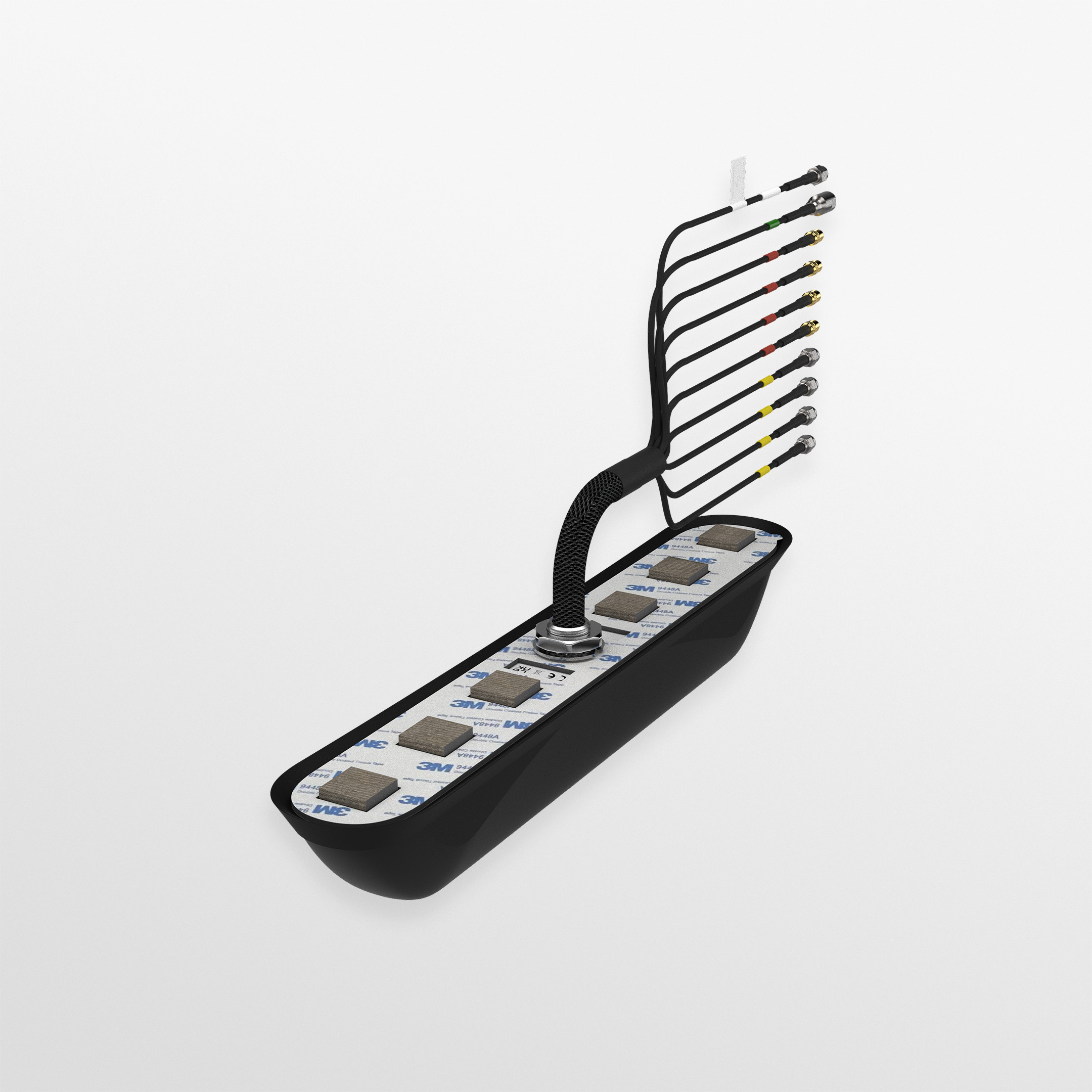

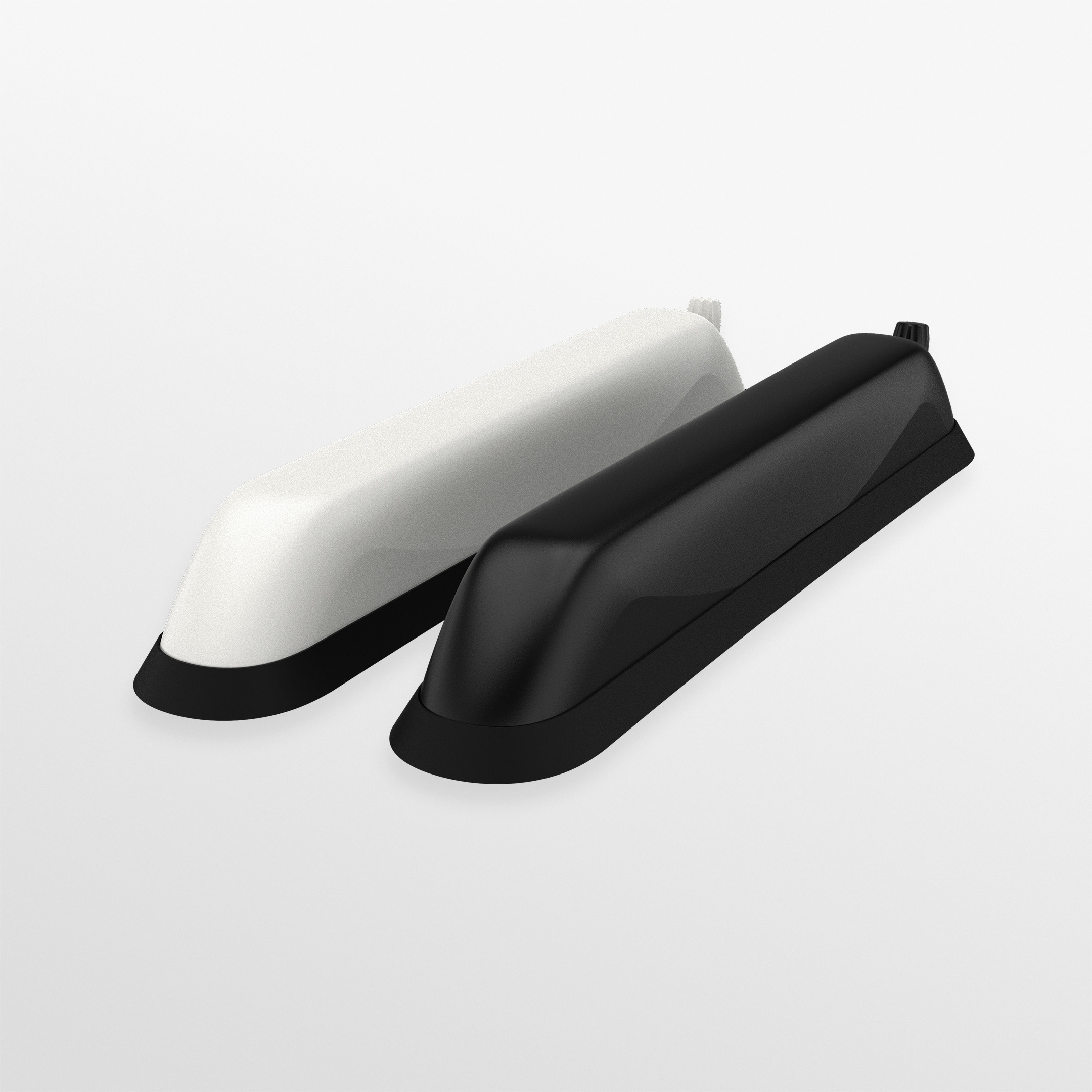

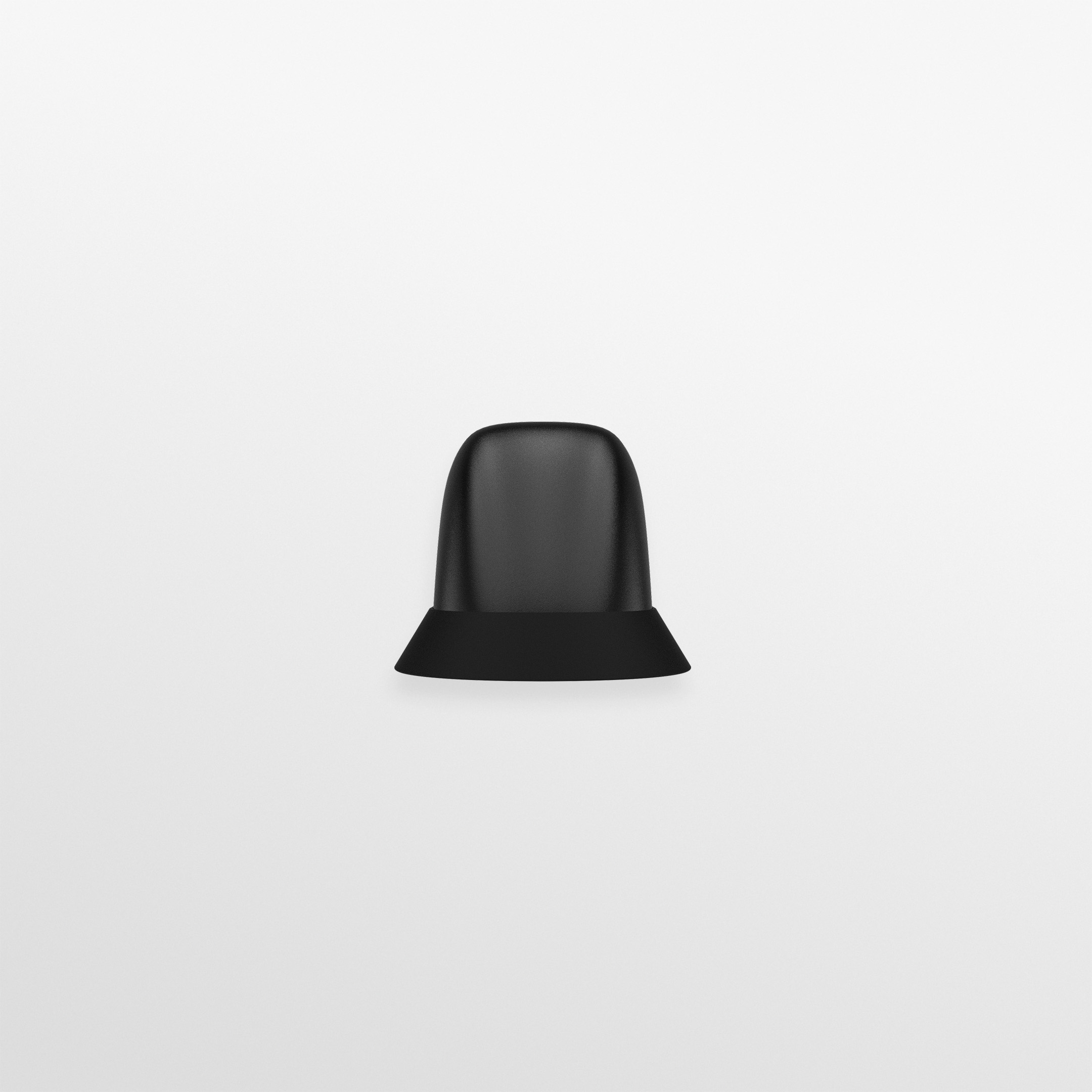

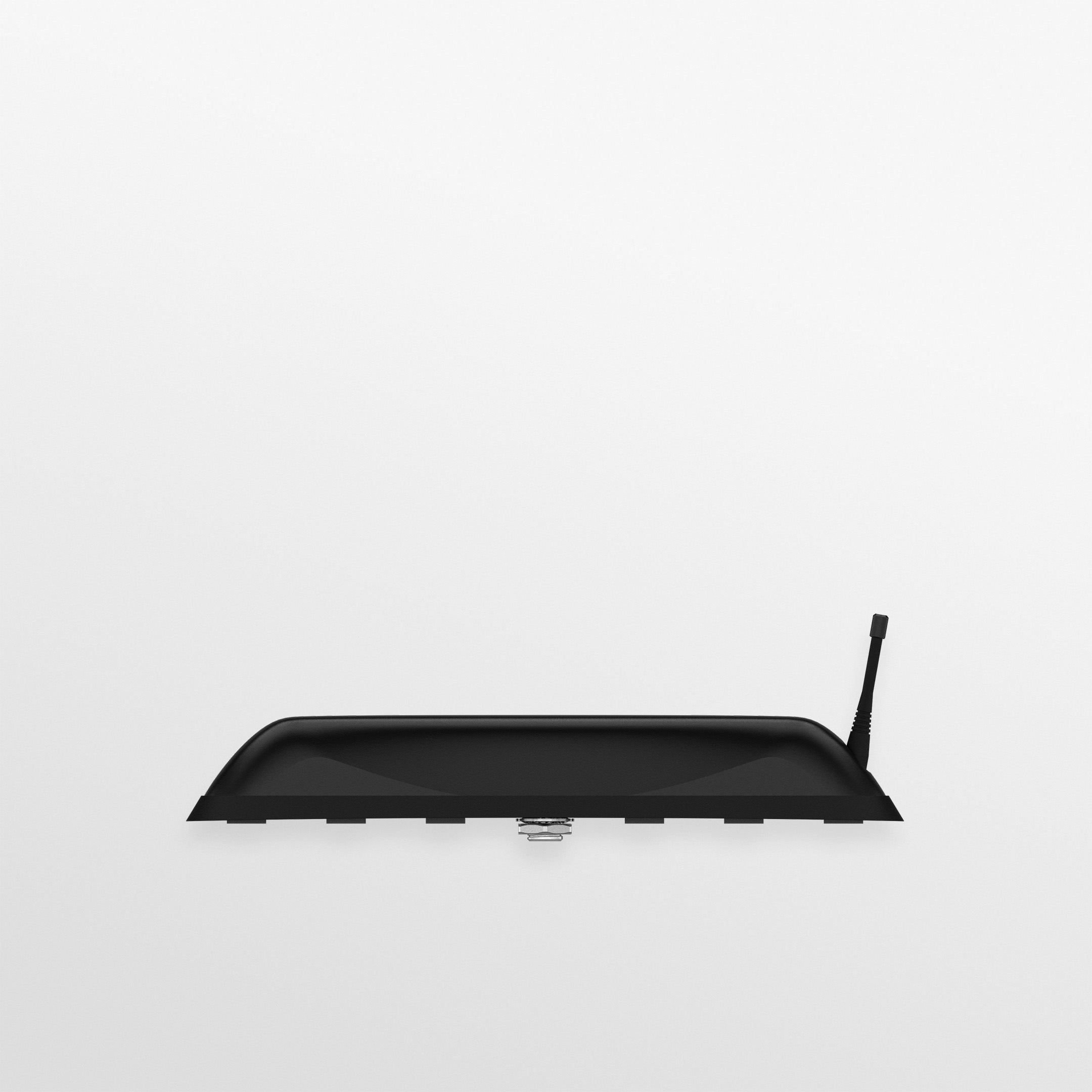

The Panorama GPSD4-7-49-D belongs to the Reef Sharkee family. It is a discreet, low-profile roof antenna designed as a one-size-fits-all option for police, fire, EMS and other mobile fleets. The black housing is 365 mm long, 60 mm wide and only 52 mm high. Panorama notes that at this height the antenna can comply with certain state laws on light-bar obscuration on police vehicles. The -D configuration holds seven elements: four cellular, one GPS/GNSS and two Wi-Fi. The four 4G LTE/5G NR elements form a 4x4 MIMO array covering 698–960 MHz and 1427–4900 MHz, with typical VSWR below 2.5:1. Panorama lists CBRS, FirstNet and ESN among the family's supported technologies. The two Wi-Fi elements provide 2x2 MIMO and support Wi-Fi 6E across 2.4 and 5.150–7.125 GHz. The GPS/GNSS module rounds out the package for vehicle location. The leads are 0.3 m low-loss, flame-retardant pigtails approved to UN ECE R118. Terminations are SMA (m) for cellular and GPS and SMA (f) for Wi-Fi. The whip position, with an FME (m) connection and a 0.3 m RG174 lead, accepts single, dual or tri-band whips operating across VHF, UHF and 7/800 MHz. Voice radio can therefore share the same fin. The antenna installs through a single hole on conductive or non-conductive panels. Installations with a whip need a conductive ground plane. Panorama lists the SAB-350 magnetic mount adapter as a compatible accessory. The housing is IP69K rated for operation from -40 °C to +85 °C. Panorama publishes a datasheet, the SW3-1107 installation instructions and a Reef Sharkee flyer for this family.

Ideal For

Police vehicles where antenna height must not obscure the light bar
Fire, EMS and first-responder vehicles running 5G routers with Wi-Fi and GNSS
Vehicles combining cellular data with VHF/UHF or 7/800 MHz voice radio
Mobility fleets wanting a discreet, low-profile multi-function antenna

Why This Product

152 mm tall, much lower than the 82 mm Dual Sharkee, for light-bar clearance
2Cellular range 698–4900 MHz including CBRS, versus 617–6000 MHz on the Dual Sharkee
3-D = 2x2 Wi-Fi; -T (3x3) and -Q (4x4) versions share the same housing
4Whip position supports single, dual or tri-band VHF, UHF and 7/800 MHz whips

Gps

Lna Gain Family	Family: 26 dB (L1) or 30 dB / 26 dB (L1/L5)
Number Of Gps Elements	1 module
Gps Frequency Range Family	Family: 1559–1612 MHz (L1) or 1164–1189 / 1559–1612 MHz (L1/L5)

Cable

Cable Type Gps	FR CS29; RG174; FR RG174
Cable Type Lte	FR CS32; CS30
Cable Type Whip	RG174
Cable Type Wifi	FR CS32; CS30
Cable Length Gps	0.3 m (0.98 ft) pigtail
Cable Length Lte	0.3 m (0.98 ft) pigtails
Cable Length Whip	0.3 m (0.98 ft)
Cable Length Wifi	0.3 m (0.98 ft) pigtails
Quantity Of Cell Cable	4
Cable Length Family Range	Family range: 0.3 m to 5 m (16.4 ft)
Quantity Of Wifi Extension	Up to 4 (family)
Quantity Of Gps Gnss Extension	1

General

Mpn	GPSD4-7-49-D
Upc	5055416084897
Brand	Panorama Antennas
Product Family	Reef Sharkee 4x4 MIMO Antenna

Package

Shipping Weight

1.90 lb

Mounting

Mounting Methods	Panel
Mounting Type Fixed	Panel (single hole)

Approvals

Ip Rating	IP69K
Cable Flammability	UN ECE R118

Electrical

Pattern	Omnidirectional
Typical Vswr	<2.5:1
Uhf Elements	No
Wifi Elements	2x2 MIMO (Wi-Fi 6E, 2.4 / 5.150–7.125 GHz)
Frequency Range	698–960 MHz / 1427–4900 MHz
Cellular Lte Elements	4x4 MIMO

Mechanical

Width	60 mm (2.36 in)
Colour	Black
Height	52 mm (2.05 in)
Length	365 mm (14.37 in)
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)

Technology

4G/5G, 5G, 2G/3G, 2G/3G/4G, CBRS, GPS, Wi-Fi MIMO, Wi-Fi, GNSS, Wi-Fi 6E, ESN, FirstNet

Termination

Connector Gps	SMA (m)
Connector Lte	SMA (m)
Connector Whip	VHF/UHF whip: FME (m)
Connector Wifi	SMA (f)

Purchasing this for your business?

Business account holders on Software & Services typically save 30% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Panorama Installation Instructions: SW3-1107 Reef Sharkee

1.0mb

Panorama Flyer: 03_Reef_Sharkee_Flyer

6.2mb

Panorama GPSD[X]4-7-49[X] Datasheet

7.0mb

Frequently Asked Questions

What makes the GPSD4-7-49-D a 7-in-1 antenna?▾

It combines four 4G LTE/5G NR cellular elements (4x4 MIMO), one GPS/GNSS module and two Wi-Fi elements (2x2 MIMO) in one housing.

How tall is the Reef Sharkee?▾

It is 52 mm (2.05 in) high. Panorama notes that this height can comply with certain state laws on light-bar obscuration on police vehicles.

Which cellular frequencies does it cover?▾

698–960 MHz and 1427–4900 MHz, with typical VSWR below 2.5:1.

Can I use a radio whip with it?▾

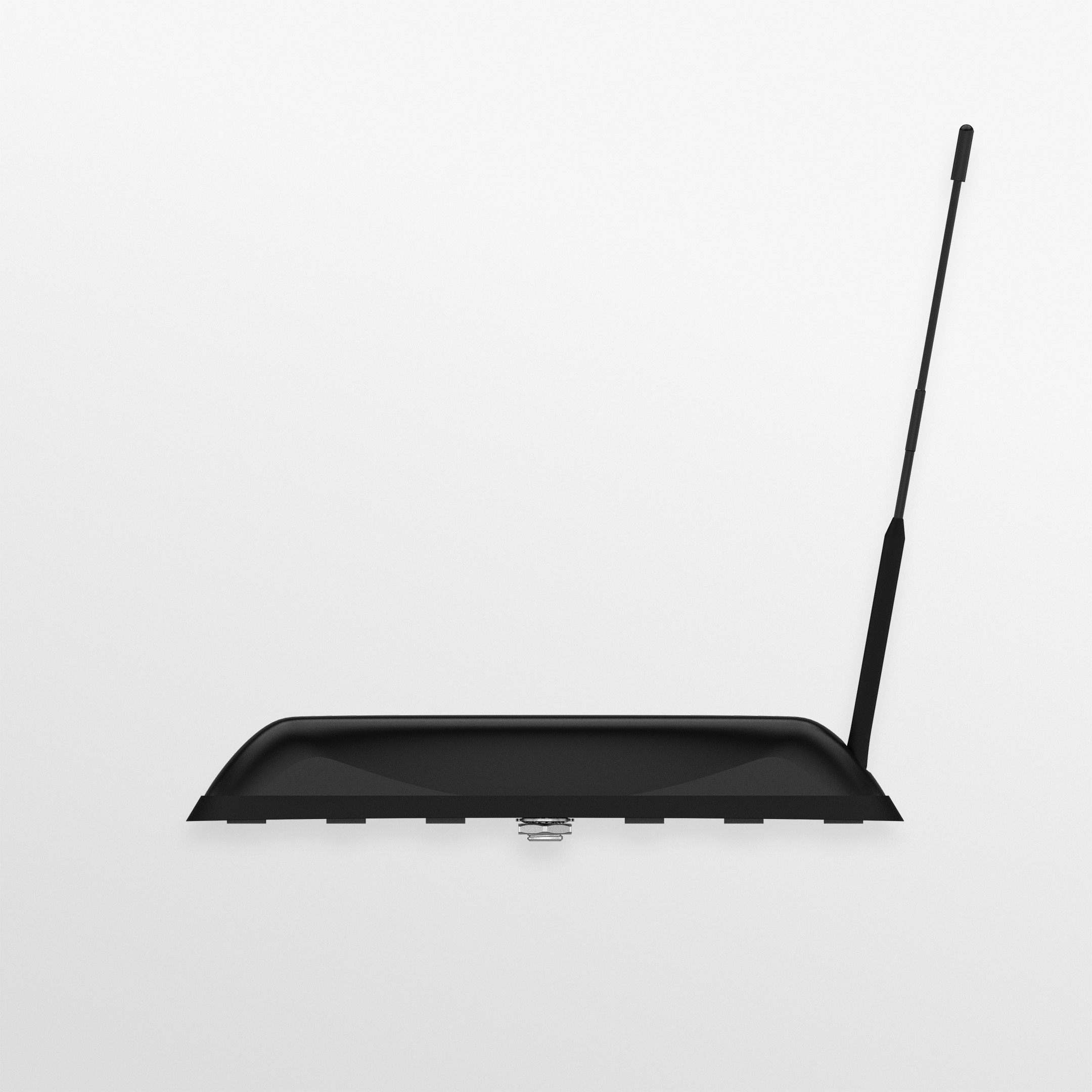

Yes. The whip position (FME male) accepts single, dual or tri-band whips across VHF, UHF and 7/800 MHz. Installations with a whip require a conductive ground plane.

What connectors are fitted?▾

The 0.3 m pigtails end in SMA (m) for the four cellular leads and the GPS lead, and SMA (f) for the two Wi-Fi leads.
