| Cpu | Based on DSTni-EX Enhanced 16-bit x86 Architecture |
| Memory | 256 KB SRAM, 1 MB Flash |
| Parity | Odd, even, more |
| Series | XDirect-IAP |
| Weight | 0.068 Kg (0.15 lbs) |

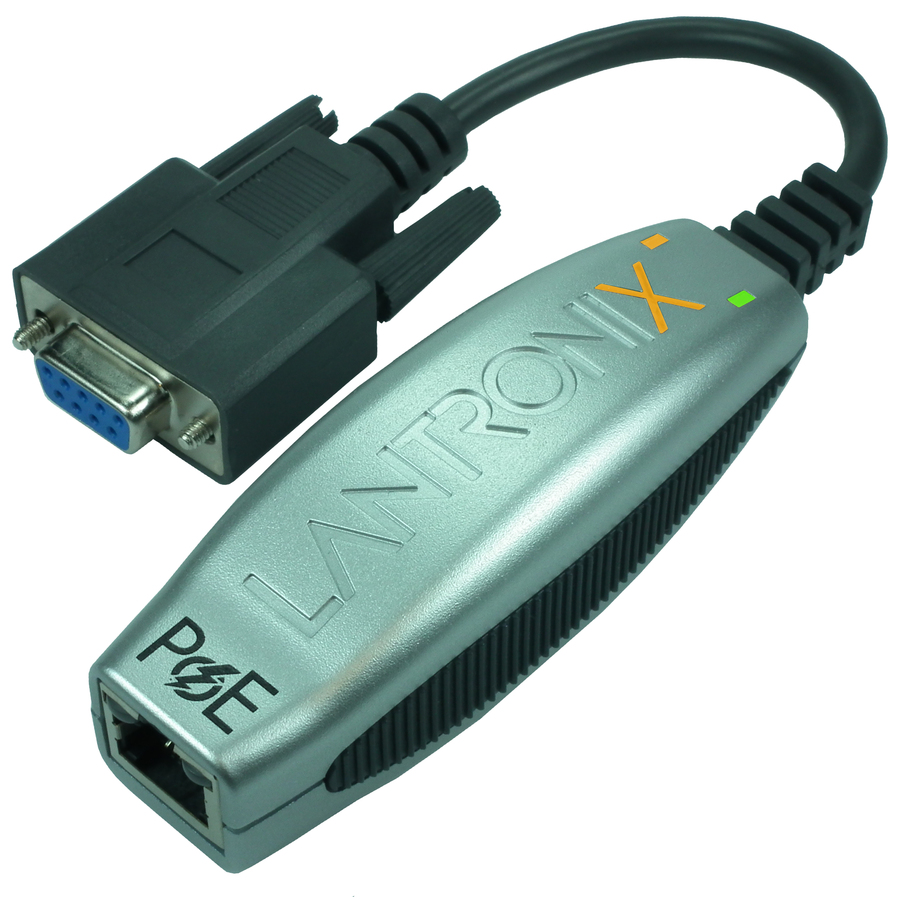

| Sku Name | XDirect-IAP PoE |
| Baud Rate | 300bps to 115.2 Kbps |
| Emissions | FCC Part 15, Subpart B, Class B EN55022, Class B EN61000-3-2, EN61000-3-3 ICES-003 Issue 4 AS/NZS CISPR22 |
| Protocols | UDP, TCP, ARP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, HTTP, Modbus TCP, Modbus ASCII, Modbus RTU |
| Stop Bits | 1 or 2 |
| Characters | 7 or 8 data bits |
| Flow Control | XON/XOFF (software), CTS/RTS (hardware) |
| Serial Modes | RS-232, RS-422 or RS-485 (2 and 4 wire support) |
| Input Voltage | 5V at mini-USB-B jack; 5-15 VDC at DB9F pin 9 |
| Poe Isolation | 1500 VAC isolation |
| Ethernet Speed | 10/100 Mbps |
| Led Indicators | Power/Status, Link, Activity, Serial RX Activity & TX Activity |
| Serial Connector | DB9F (DCE Pinned) |
| Relative Humidity | 0% to 90% non-condensing |
| Ethernet Connector | RJ-45 |
| Ethernet Interface | 10Base-T /100Base-T (Auto-sensing) |
| Shipping Dimensions | 149 x 97 x 37 mm (5.88″ x 3.81″ x 1.44″), PoE model |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Configuration Options | Telnet Client, Serial Terminal |
| Modem Control Signals | DTR, DSR/DCD |
| Operating Temperature | -40° to 70° C (-40° to 158° F), PoE model |
| Serial Port Protection | 15 KV ESD protection on RS-232 and RS-422/485 transceivers |
| Ethernet Port Isolation | 1500 VAC isolation shielded |
| Power Consumption With Poe | 2.0W max |
| Power Consumption Without Poe | 1.3W max |
Business account holders on Enterprise IoT Gateways typically save 6% vs. retail pricing. Create a free account to see your price.
No. The Lantronix part row describes XDT10P0IA-01-S as xDirect-IAP PoE with No Power Supply.
It supports RS232, RS422 or RS485, with 2 and 4 wire support, through a DB9F (DCE Pinned) serial connector.
Yes. Lantronix lists Modbus TCP, Modbus ASCII and Modbus RTU support for the xDirect-IAP series.
The Lantronix environmental table lists -40° to 70° C (-40° to 158° F) for the PoE model.
