| Cli | Over Serial Ports, Telnet or SSH |

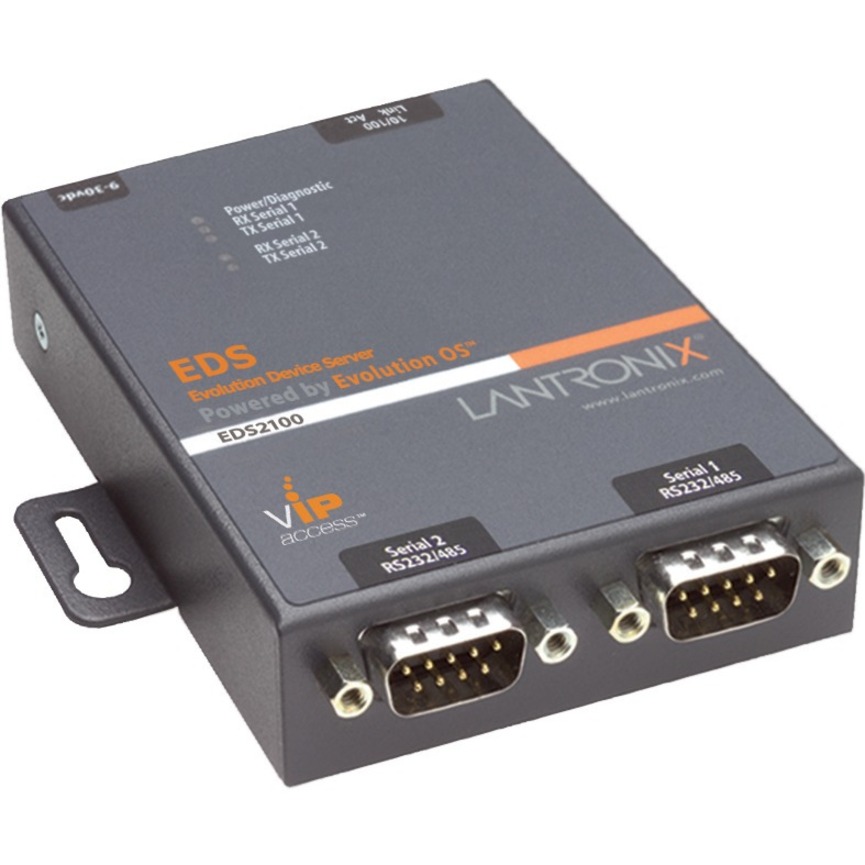

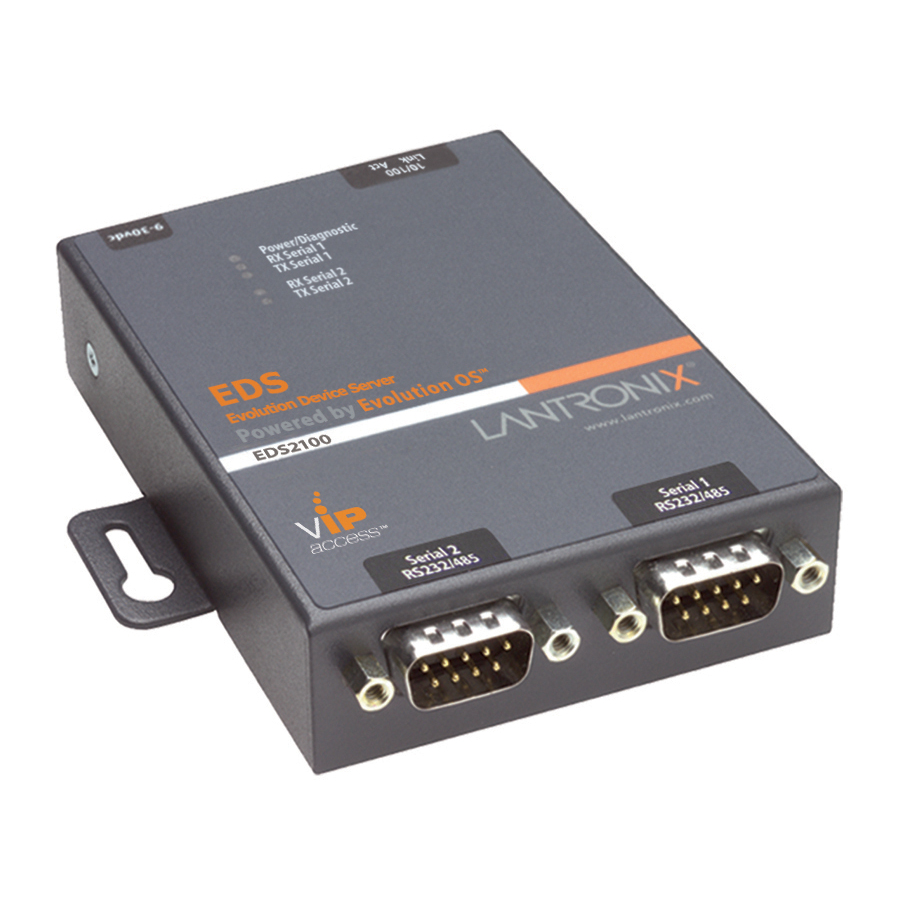

| Model | EDS2100 |
| Parity | Odd, even, none |
| Storage | -40° to 85° C (-40° to 185° F) |
| Firmware | Upgradeable via FTP, TFTP, Web, and Serial Port |
| Security | SSL v3, SSH v2 Client & Server, Selectable 128/256/512/1024 Bit certificates |
| Software | Windows 98/NT/2000/XP/Vista-Based DeviceInstaller; ComPort Redirector; Secure ComPort Redirector |
| Data Bits | 7 or 8 data bits |
| Processor | 32-bit processor |
| Protocols | HTTP, HTTPS, FTP, TFTP, Telnet, TCP/IP, UDP/IP, LPD,DHCP, SSHv2, SSLv3, SNMP v2, Auto IP, RSS, ARP, ICMP, SYSLOG, AES, SMTP, DNS, BOOTP, PPP, RFC2217 |
| Stop Bits | 1 or 2 |
| Encryption | AES, 3DES, RC4 |
| Form Factor | Desktop |
| Flow Control | XON/XOFF (software), CTS/RTS (hardware) |
| Power Supply | 100-240 VAC International power supply |
| Serial Modes | Software selectable RS-232, RS-422 or RS-485 (2- and 4-wire configurations supported) |
| Serial Ports | 2 |
| Extended Temp | -40° to 85° C (-40° to 185° F) |
| Authentication | SHA-1, MD5, Base-64 User Access Lists |
| On-Board Memory | 8MB SDRAM/8MB Flash |
| Network Standard | 10/100Base-TX |
| Network Interface | 10BaseT and 100Base-TX Link |
| Serial Connectors | 2 x DB9M (DTE) |
| Serial Data Rates | Standard and customizable serial data rates from 300 to 921kbps |
| Ethernet Technology | Fast Ethernet |
| Network Rj-45 Ports | 1 |
| Internal Web Manager | SSL Option for secure login |
| Modem Control Signals | CTS, RTS, DTR/DCD |
| Xml Configuration Records | Via CLI or FTP |
| Rs-485 422 Termination And Biasing | Software selectable RS-485/422 termination and biasing |
Business account holders on Enterprise IoT Gateways typically save 6% vs. retail pricing. Create a free account to see your price.
ED2100002-01 supports software selectable RS232, RS422 or RS485 modes, including 2- and 4-wire configurations. Standard and customizable serial data rates run from 300 to 921kbps.
The EDS2100 has 2 x DB9M (DTE) serial connectors.
Security features include SSL v3, SSH v2 Client & Server, selectable 128/256/512/1024 Bit certificates, AES, 3DES and RC4 encryption, and SHA-1, MD5 and Base-64 User Access Lists authentication.
Management options include Internal Web Manager, CLI over Serial Ports, Telnet or SSH, XML Configuration Records via CLI or FTP, DeviceInstaller software, and firmware upgrades via FTP, TFTP, Web, and Serial Port.
