| Depth | 11.8” [300 mm] |
| Width | 17.4” [442 mm] |
| Height | 1.73” [44 mm] |
| Weight | 13.3 lbs [6.03 kg] |
| Protocols | CSMA/CD |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| Power Input | Dual Hot-Swappable Power Supplies; Power Redundancy, Failover: PS-ACDC-1200 |
| Rj-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Console Port | (1) RJ console port |
| Poe Standard | IEEE 802.3af |
| Poe+ Standard | IEEE 802.3at |
| Poe++ Standard | IEEE 802.3bt |
| Troubleshooting | Network diagnostic, protection mechanism, performance and link management |
| Ac Low-Line Input | 100 - 120VAC |
| Mac Address Table | 8K |
| Ac High-Line Input | 200 - 277VAC |
| Switching Capacity | 52 Gbps |
| Traffic Monitoring | Traffic Monitoring |
| Hvdc Low-Line Input | 192 - 254VDC |
| Poe Output Per Port | Max 90 Watts output per port |
| Graphical Monitoring | Topology view, Floor view, Map view |
| Hvdc High-Line Input | 306-334VDC |
| Operating Temperature | 0°C to +40°C |
| Ac Low-Line Poe Budget | 900W (single PS), 1,800W (dual PS) |
| Ac High-Line Poe Budget | 1,080W (single PS), 2,160W (dual PS) |
| Included Power Supplies | (2) PS-ACDC-1200 |
| Hvdc Low-Line Poe Budget | 900W (single PS), 1,800W (dual PS) |
| Hvdc High-Line Poe Budget | 1,080W (single PS), 2,160W (dual PS) |
| Maximum Power Consumption Without Poe | 79 Watts with dual AC power modules |
Business account holders on Managed Switches typically save 11% vs. retail pricing. Create a free account to see your price.

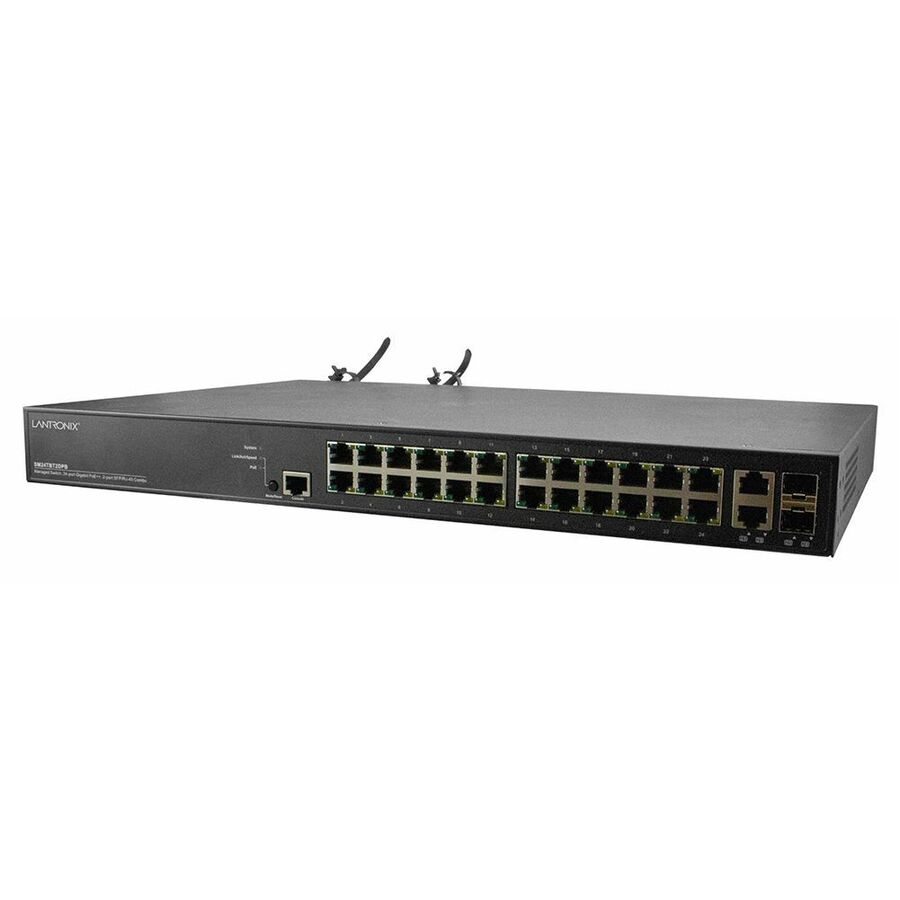

It provides (24) 10/100/1000 RJ-45 ports, (2) 100/1000 SFP/RJ-45 combo ports, and (1) RJ console port.
It includes 19” rack mount brackets, (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables, and Australia power cords.
Yes. The SM24TBT2DPB can provide full PoE++ output on all 24 ports when equipped with dual hot-swappable PS-ACDC-1200 power supplies, and this SKU includes two PS-ACDC-1200 power supplies.
The switch is integrated with Lantronix’s Percepxion cloud based IoT edge solutions platform. DMS is accessible by Percepxion or the local web manager and includes topology view, floor view, map view, traffic monitoring, and network diagnostics.
