| Depth | 11.8” [300 mm] |
| Width | 17.4” [442 mm] |
| Height | 1.73” [44 mm] |
| Humidity | 10% to 90% (non-condensing) |
| Backplane | 52 Gbps |
| Protocols | CSMA/CD |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| Jumbo Frame | Up to 9K bytes |
| Console Port | (1) RJ console port |
| Copper Ports | (24) 10/100/1000 RJ-45 ports |
| Poe Compliance | IEEE 802.3af PoE |
| Power Supplies | Dual Hot-Swappable Power Supplies |
| Poe+ Compliance | IEEE 802.3at PoE+ |
| Poe++ Compliance | IEEE 802.3bt PoE++ |
| Power Redundancy | Failover |
| Ac Low-Line Input | 100 - 120VAC |
| Mac Address Table | 8K |
| Ac High-Line Input | 200 - 277VAC |
| Power Supply Model | PS-ACDC-1200 |
| Hvdc Low-Line Input | 192 - 254VDC |
| Poe Output Per Port | Max 90 Watts output per port |
| Hvdc High-Line Input | 306-334VDC |
| Operating Temperature | 0°C to +40°C |
| Poe Budget Ac Low-Line Dual Ps | 1,800W |
| Poe Budget Ac High-Line Dual Ps | 2,160W |
| Poe Budget Ac Low-Line Single Ps | 900W |
| Poe Budget Ac High-Line Single Ps | 1,080W |
| Power Consumption Without Poe Dual Ac Power Modules | 79 Watts |
| Power Consumption Without Poe Single Ac Power Module | 52 Watts |
Business account holders on Managed Switches typically save 13% vs. retail pricing. Create a free account to see your price.

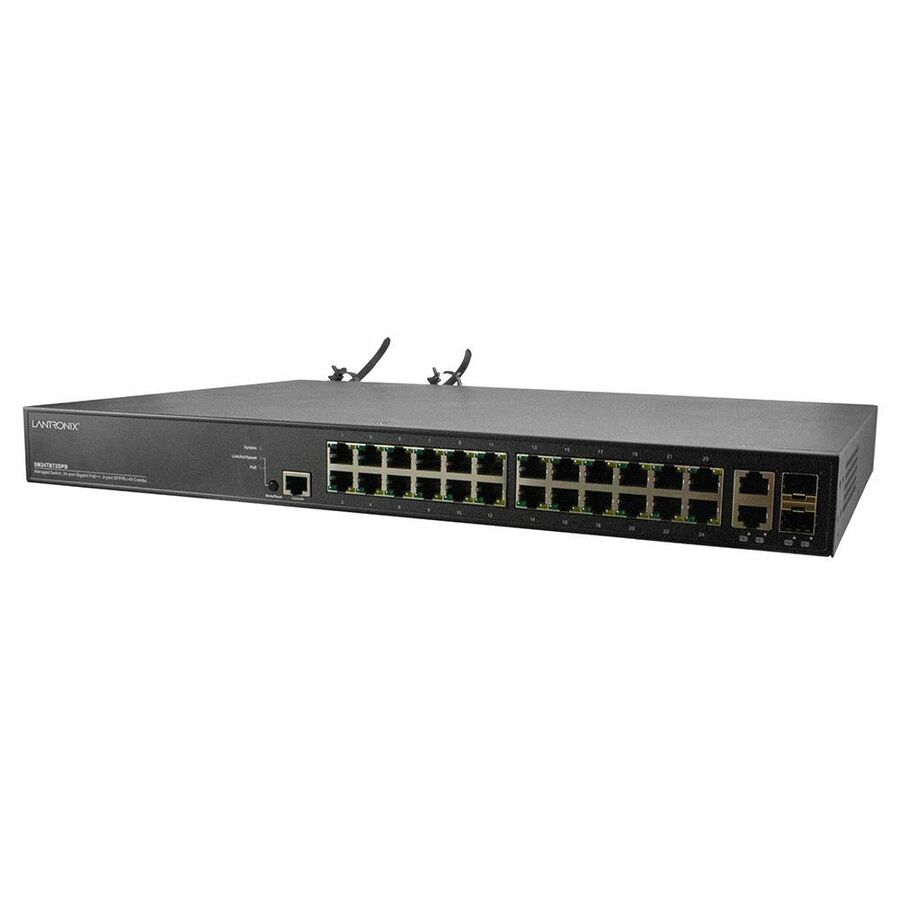

It includes (24) 10/100/1000Base-T ports and (2) 100/1000Base-X SFP/RJ-45 combo ports, plus (1) RJ console port.
Yes. This SKU includes (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables and United Kingdom power cords.
The switch supplies up to 90 Watts per port and can provide full PoE++ output on all 24 ports when equipped with the dual hot-swappable PS-ACDC-1200 power supplies included with this SKU.
Management options listed for the SM24TBT2DPB include Web Management, SNMP V1/V2c/V3, Telnet and CLI. DMS is accessible by Percepxion or the local web manager.
