| Weight | 13.3 lbs [6.03 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Protocol | CSMA/CD |
| Backplane | 52 Gbps |
| Dimensions | 17.4” [442 mm] x 11.8” [300 mm] x 1.73” [44 mm] |
| Rj-45 Ports | (24) 10/100/1000 RJ-45 ports |
| Console Port | (1) RJ console port |
| Poe Standard | IEEE 802.3bt; IEEE 802.3af |
| Certification | FCC Class A; CE; UL62368-1 |
| Poe+ Standard | IEEE 802.3at |
| Included Cables | (2) Saf-D adapter cables |
| Limited Warranty | 5 Year Limited Warranty |
| Power Redundancy | Failover: PS-ACDC-1200 |
| Ac Low-Line Input | 100 - 120VAC |
| Included Brackets | 19” rack mount brackets |
| Mac Address Table | 8K MAC address table |
| Ac High Line Input | 200 - 277VAC |
| Hvdc Low-Line Input | 192 - 254VDC |
| Poe Output Per Port | Max 90 Watts output per port |
| Hvdc High-Line Input | 306-334VDC |
| Included Power Cords | Japan power cords |
| Power Supply Modules | Dual Hot-Swappable Power Supplies |
| Operating Temperature | 0°C to +40°C |
| Sfp Rj-45 Combo Ports | (2) 100/1000 SFP/RJ-45 combo ports |
| Included Power Supplies | (2) PS-ACDC-1200 |
| Power Consumption Without Poe | 79 Watts with dual AC power modules |
| Poe Budget Ac Low-Line Dual Power Supplies | 1,800W |
| Poe Budget Ac High Line Dual Power Supplies | 2,160W |
| Poe Budget Hvdc Low-Line Dual Power Supplies | 1,800W |
| Poe Budget Hvdc High-Line Dual Power Supplies | 2,160W |
Business account holders on Managed Switches typically save 11% vs. retail pricing. Create a free account to see your price.
Yes. The part row lists (2) PS-ACDC-1200 power supplies, (2) Saf-D adapter cables, 19” rack mount brackets and Japan power cords.

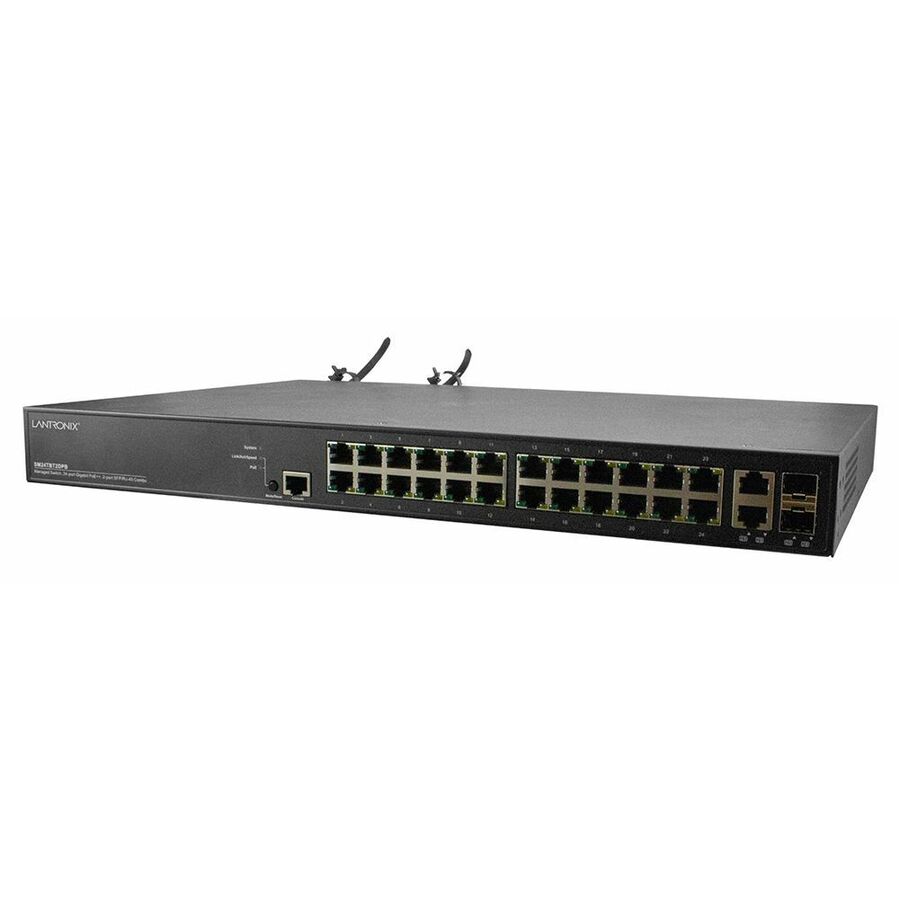

It provides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and supplies up to 90 Watts per port.
The listed management features include Web Management, SNMP V1/V2c/V3, Telnet and CLI. DMS is accessible by Percepxion or the local web manager.
The operating range is 0°C to +40°C, with 10% to 90% humidity, non-condensing.
