| Cli | CLI (over Serial Ports, Telnet or SSH) |
| Dram | 256 MB DRAM |
| Flash | 8 MB Flash |
| Sd Card | 4 GB SD Card (internal only) |
| Security | SSLv3, TLS1.0, TLS1.1 Client and Server – up to 4096-bit certificates. |
| Ip Rating | 20 |
| Processor | 600MHz ARM 11 processor |
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; USB 2.0 |
| Usb Ports | 2 USB Host ports – USB-A receptacle connectors |
| Data Rates | Up to 921 Kbps |
| Encryption | AES |
| Management | Percepxion™; secure cloud and on-premise platform for remote device management |
| Power Input | IEC60320 C14 receptacle without a power switch |
| Network Port | 1 x Network (RJ-45) |
| Serial Ports | 4 x Serial Port |
| Authentication | SHA-1, MD5, Base-64 |
| Esd Protection | 15kV |
| Ethernet Speed | 10/100/1000Mbps |
| Thermal Sensor | Onboard Thermal Sensor |
| Real Time Clock | Real Time Clock with Battery back-up |
| Serial Interface | RS-232 Interface |
| Serial Connectors | RJ-45 (DTE) |
| Ethernet Technology | Gigabit Ethernet |
| Storage Temperature | -30°C to +80° C |
| Management Interface | Web Browser (SSL option for secure login) |
| Configuration Records | XML Configuration Records via CLI or FTP |
| Operating Temperature | 0°C to +50° C (32°F to 122°F) |
| Usb Output Capability | 0.5A |
| Circuit And Port Isolation | 1.5KVAC |
| Relative Humidity Operating | 20% to 90% non-condensing |
Business account holders on Enterprise IoT Gateways typically save 6% vs. retail pricing. Create a free account to see your price.

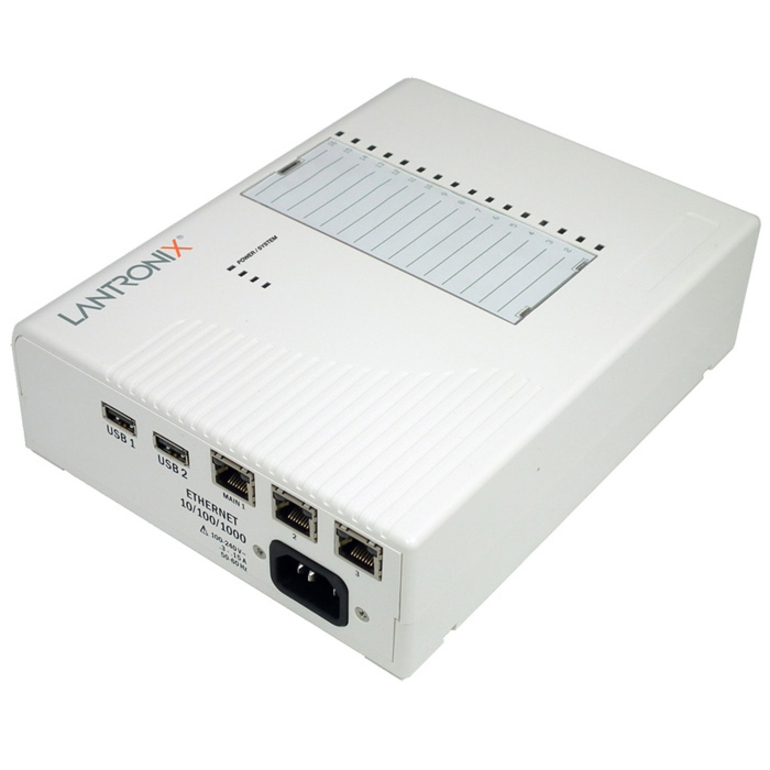

EDSOR04P-01 is the 4-port EDS-MD device server. The EDS-MD series is available with 4, 8 or 16 ports.
It uses an RS-232 interface with RJ45 (DTE) serial connectors. The listed data rates are up to 921 Kbps.
Management options include Percepxion™, Web Browser with SSL option for secure login, CLI over Serial Ports, Telnet or SSH, and XML Configuration Records via CLI or FTP.
Yes. Lantronix describes EDS-MD as specifically designed for the medical industry, with UL and IEC-60601 compliance and galvanic port isolation to protect connected medical devices.
