| Cpu | Cortex A9 |
| Ram | 4 Gbit (512 MB) |
| Flash | 4 Gbit (512 MB) |
| Power | 100-240VAC, 50 to 60 Hz IEC-type cord |
| Parity | Odd, Even, None |
| Series | EDS3000PS |
| Ethernet | 10/100/1000Mbps |
| Software | Lantronix Provisioning Manager; ComPort Redirector™; Secure ComPort Redirector |
| Protocols | HTTP, HTTPS, FTP, TFTP, Telnet, TCP, UDP, DHCP, SSHv2 , SSLv3, SNMPv2, Auto IP, RSS, ARP, ICMP, SYSLOG, AES, SMTP, DNS, BOOTP |
| Stop Bits | 1 or 2 |
| Characters | 7 or 8 data bits |
| Management | Internal web server, SNMP v1, SNMP v2, SNMP v3, Serial Login, Telnet SSH login, XML; Percepxion TM |
| Form Factor | Desktop, Wall Mountable |
| Flow Control | XON/XOFF (software), CTS/RTS (hardware), None |
| Serial Ports | 16 RJ-45 software selectable serial ports |
| Network Ports | 1 x Network (RJ-45) |
| Hash Algorithms | MD5,SHA-1,SHA-2 |
| On-Board Memory | 8MB Flash |
| Firmware Upgrade | Upgradeable FW via the Web Manager, FTP or serial port |
| Power Consumption | 20 Watts |
| Serial Data Rates | Software selectable data rates from 300 to 230K Baud |
| Security Protocols | SSL 3, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3s |
| Ethernet Technology | Gigabit Ethernet |
| Internal Web Server | Customizable with CGI; Web content on local file system and updatable through ftp |
| Password Protection | Password protection |
| Storage Temperature | -40° to 70° C (-40° to 151° F) |
| Ip Address Filtering | IP address filtering |
| Modem Control Signals | CTS, RTS, DTR, DCD |
| Operating Temperature | 0° to 55° C (32° to 131° F) |
| Public Key Algorithms | RSA, DSA and ECDSA |
Business account holders on Enterprise IoT Gateways typically save 6% vs. retail pricing. Create a free account to see your price.

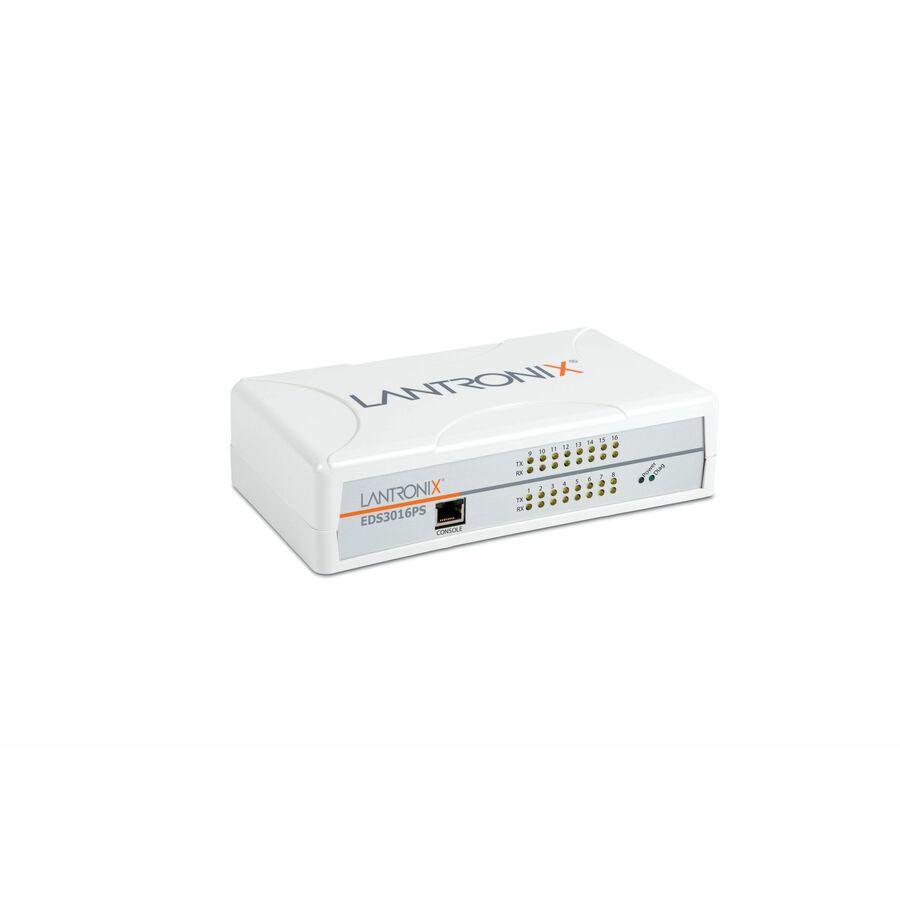

EDS3016PS1NS is the 16-port serial configuration of the EDS3000PS secure serial device server. The series uses RJ45 software selectable serial ports.
It provides 1 GbE Ethernet with a 10/100/1000Mbps network interface.
Yes. The EDS3000PS is described as desktop or wall-mount, and this SKU is listed as desktop with a NORAM power cord included.
The listed warranty is 3 years limited.
