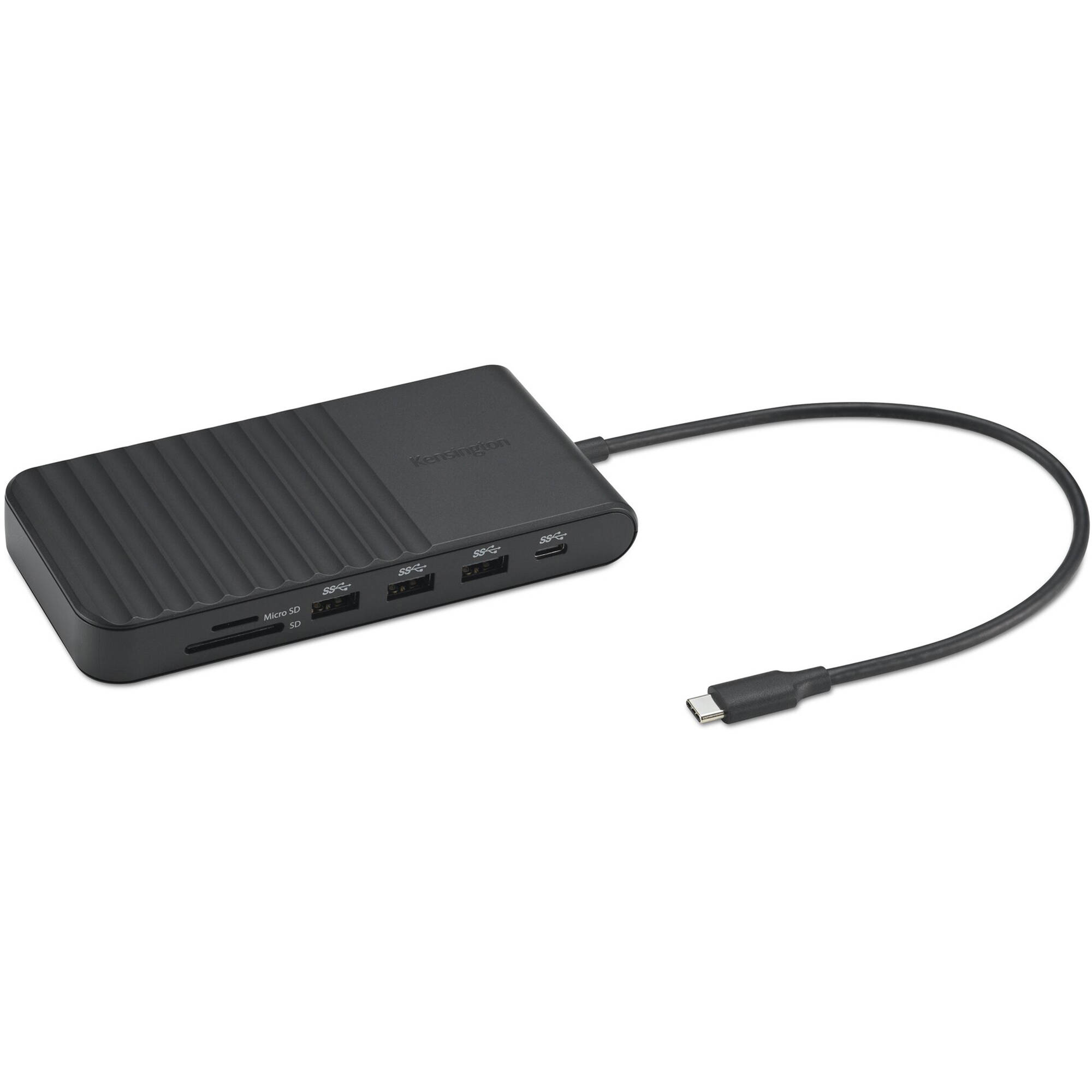

Kensington UH1510P EQ USB-C Triple Video Mobile Dock

Name: Kensington UH1510P EQ USB-C Triple Video Mobile Dock
Brand: Kensington
SKU: K34040WW
Price: 80.25 USD
Availability: InStock

Kensington|

MPN: K34040WW

UPC: 085896340409

In Stock

$80.25$99.99

Request for QuoteCall 224-955-1644 for Sales

Free 2-Day ShippingArrives by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Save 25% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

11-in-1 USB-C expansion with 3 display outputs
2 x HDMI 2.0 and 1 x DisplayPort 1.4 Dual Mode
Up to 85 W USB-C Power Delivery pass-through
3 x USB-A and 1 x USB-C at up to 5 Gbps
10/100/1,000 Mb/s RJ45 Ethernet
Driverless support for Windows 10+ and macOS 11+

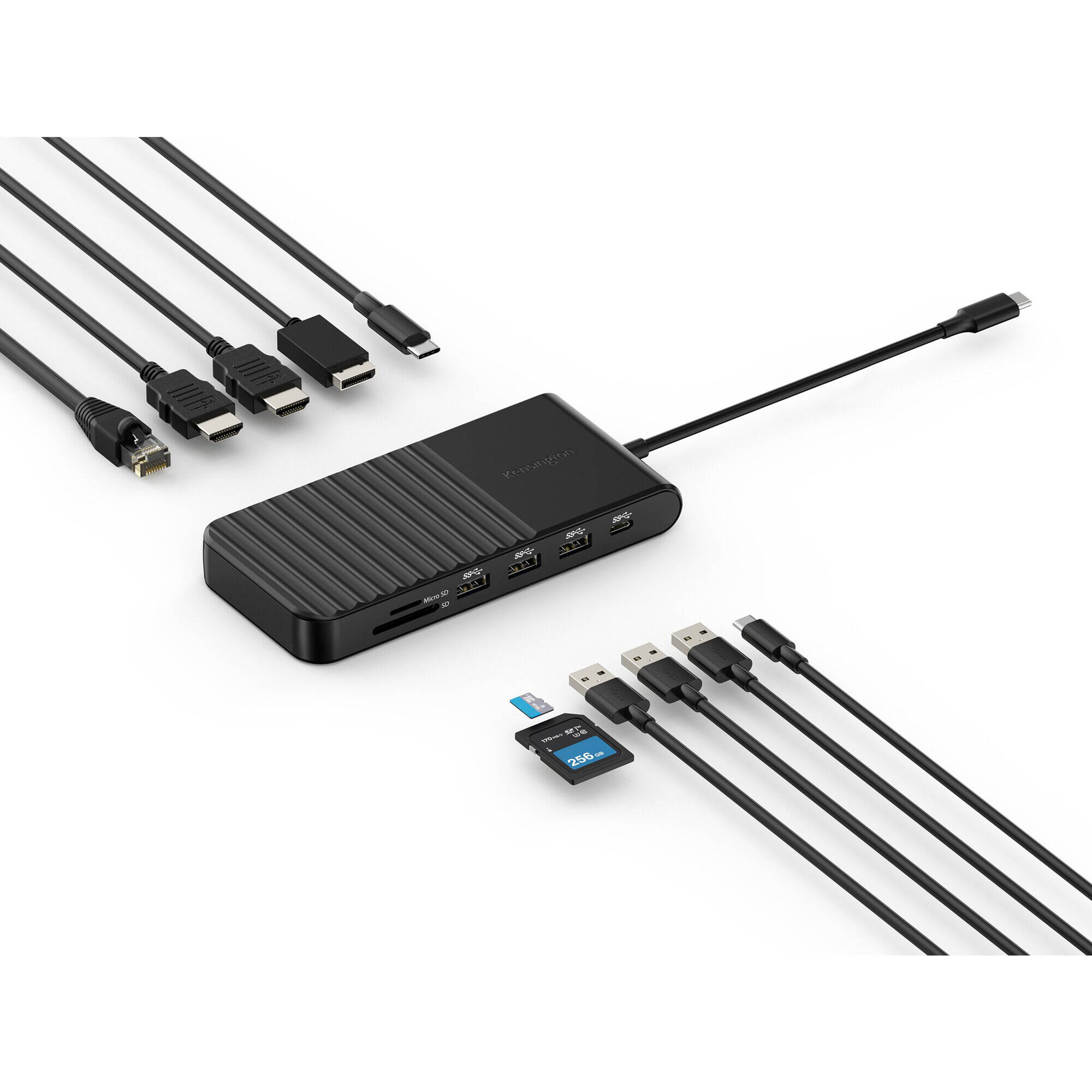

Connect a USB-C laptop to displays, wired networking, removable media, and USB peripherals through one compact mobile dock. The Kensington K34040WW provides two HDMI 2.0 outputs, one DisplayPort 1.4 Dual Mode output, Gigabit Ethernet, three USB-A ports, one downstream USB-C port, and separate SDHC and microSDHC reader slots. Its integrated 17 cm USB-C host cable connects directly to a compatible notebook and supports USB Power Delivery pass-through up to 85 W. Video capability scales with the display arrangement. A single external display can operate at up to 3,840 x 2,160 at 60 Hz, as can a dual-display Windows configuration. For three connected displays, Windows supports up to 1,920 x 1,080 at 60 Hz on each screen. The dock operates without a separate display driver installation and supports Windows 10 or later and macOS 11 or later. HDCP 2.3 support is available on the video outputs. Three USB-A 3.2 Gen 1 ports and one USB-C 3.2 Gen 1 port provide peripheral connectivity at up to 5 Gbps. The RJ45 port supports 10/100/1,000 Mb/s Ethernet where Wi-Fi is unavailable or unsuitable. Bus-powered operation supports travel use, while an optional USB-C AC adapter can supply pass-through charging. The plastic enclosure measures 5.9 x 2.8 x 0.8 in, keeping the dock suited to mobile workspaces that still require a wired desktop-style connection set.

Ideal For

Mobile professionals connecting a USB-C notebook to meeting-room displays, wired Ethernet, and USB accessories.
Shared desk workspaces requiring dual 4K displays, keyboard, mouse, network access, and laptop charging through one cable.
Windows productivity setups using three 1080p displays at 60 Hz.
Field and travel workstations needing SDHC and microSDHC media transfer without separate card readers.

Why This Product

1Combines 2 HDMI outputs and 1 DisplayPort output for up to three external displays.
2Supports dual 4K displays at 60 Hz or three 1080p displays at 60 Hz on Windows.
3Provides up to 85 W USB-C Power Delivery pass-through through an integrated 17 cm host cable.
4Adds SDHC and microSDHC readers alongside Gigabit Ethernet and four USB peripheral ports.

Video

HDCP Support	HDCP 2.3
Driver Requirement	Driverless operation

General

Power Source	Bus powered or optional USB-C AC adapter
Dock Interface	USB-C 3.1/3.2 Gen 2 host connection via integrated cable

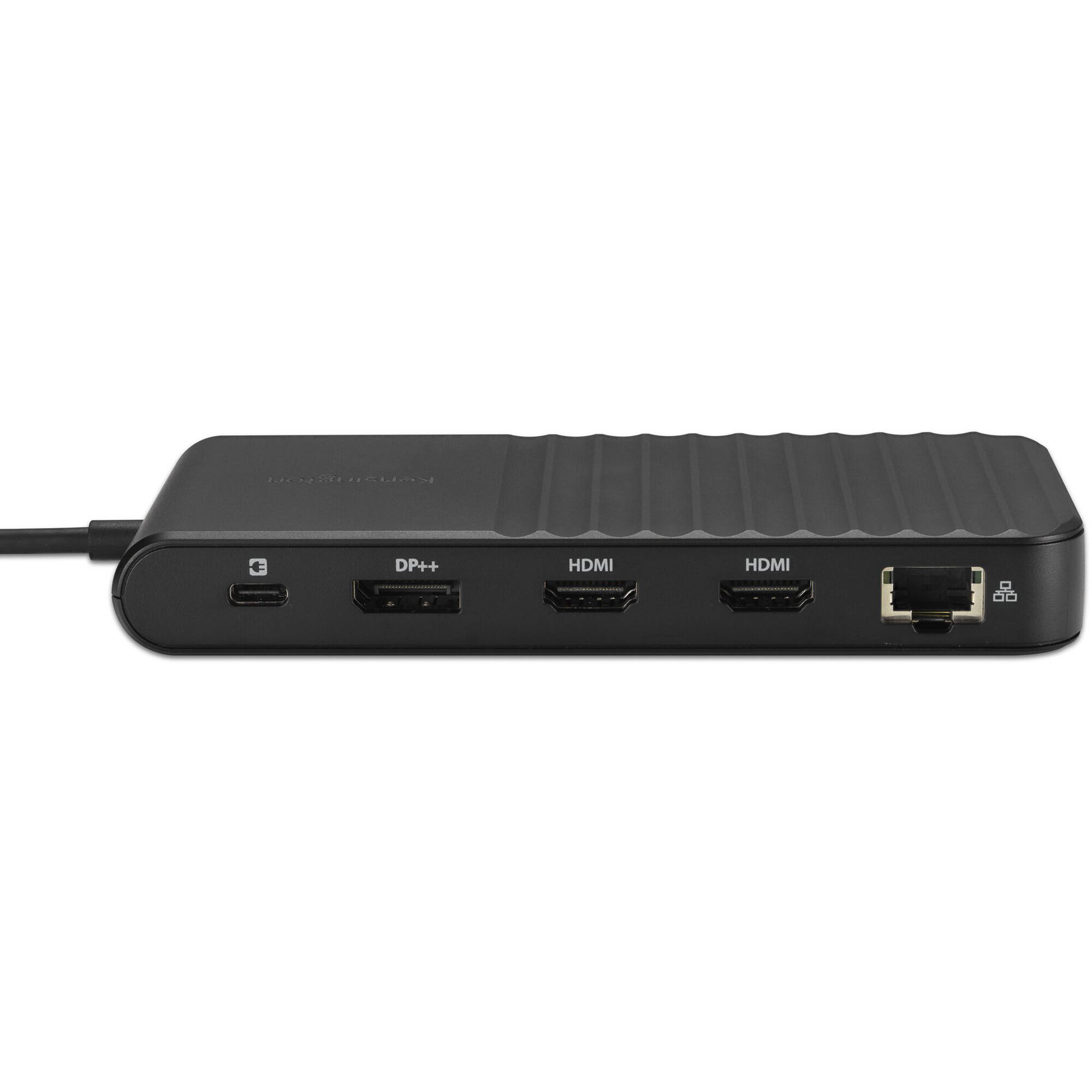

Display Outputs	2 x HDMI 2.0 and 1 x DisplayPort 1.4 Dual Mode (DP++)
Enclosure Material	Plastic enclosure
Platform Supported	Windows 10 or later; macOS 11 or later
Power Delivery (W)	Up to 85 W USB-C Power Delivery pass-through
Maximum External Displays	Up to 3 external displays
Maximum Display Resolution	Single: 3,840 x 2,160 at 60 Hz; dual: 3,840 x 2,160 at 60 Hz; triple: 1,920 x 1,080 at 60 Hz

Connectivity

HDMI Ports	2 x HDMI 2.0 ports
Ethernet Port	1 x RJ45 Ethernet port, 10/100/1,000 Mb/s
USB Data Rate	Up to 5 Gbps USB data transfer

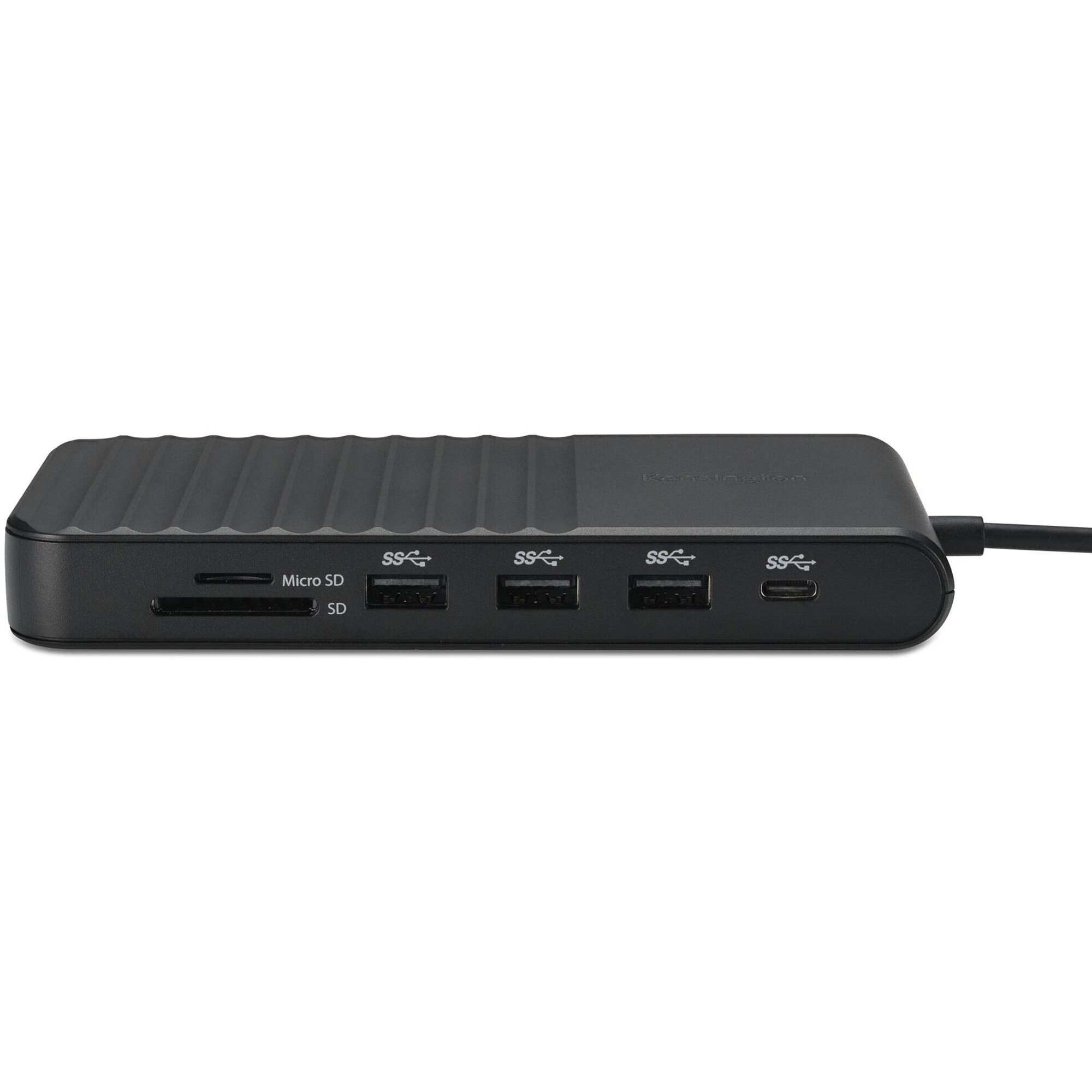

SD Card Reader	1 x SDHC and 1 x microSDHC card reader
Built-In USB Hub	4-port USB hub
USB Type-A Ports	3 x USB-A 3.2 Gen 1 ports
USB Type-C Ports	1 x USB-C 3.2 Gen 1 downstream port
DisplayPort Ports	1 x DisplayPort 1.4 Dual Mode (DP++) port
Host Cable Length	17 cm integrated USB-C host cable
Audio Jack (3.5mm)	No audio I/O
Security Lock Slot	No security lock slot

Environmental

Operating Humidity	0 to 85% relative humidity
Storage Temperature	-25 to 70 °C storage temperature
Operating Temperature	0 to 45 °C operating temperature

Identification And Logistics

UPC	085896340409
Shipping Weight	0.55 to 0.60 lb

Purchasing this for your business?

Business account holders on Docking Stations & USB Hubs typically save 25% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Frequently Asked Questions

What is the difference between UH1510P EQ and K34040WW?▾

UH1510P EQ is the Kensington product model designation. K34040WW is the ordering code for that model. Both names refer to the same USB-C triple-video mobile dock with HDMI, DisplayPort, Ethernet, USB, and media-card connectivity.

How many displays can the K34040WW support?▾

The dock supports up to three external displays. Single-display and dual-display configurations support up to 3,840 x 2,160 at 60 Hz. A triple-display Windows configuration supports up to 1,920 x 1,080 at 60 Hz on each connected display.

Can the UH1510P EQ charge a connected laptop?▾

Yes. Its integrated USB-C host connection supports USB Power Delivery pass-through up to 85 W for a compatible laptop. The dock can operate on bus power or with an optional USB-C AC adapter, depending on the connected system and power requirement.

Which operating systems work with this mobile dock?▾

The dock supports Windows 10 or later and macOS 11 or later. It operates without a separate display driver installation and provides USB, Ethernet, video, SDHC, and microSDHC connectivity through the integrated USB-C host cable.
