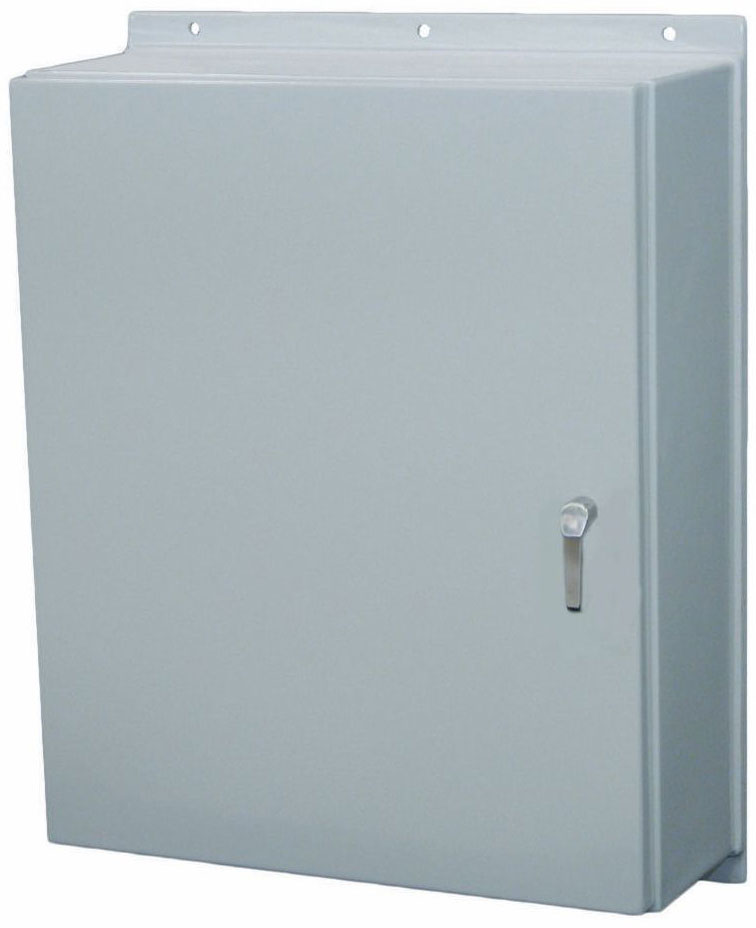

The PJEC3630123PT is a Type 4X fiberglass polyester wallmount enclosure from the PJW Series, sized at a nominal 36.25 x 30.25 x 12 in (921 x 768 x 305 mm). It is built for instrument enclosures, electric, hydraulic or pneumatic control housings, junction boxes and terminal wiring enclosures where equipment may be hosed down, very wet, exposed to high temperatures or to highly corrosive environments.

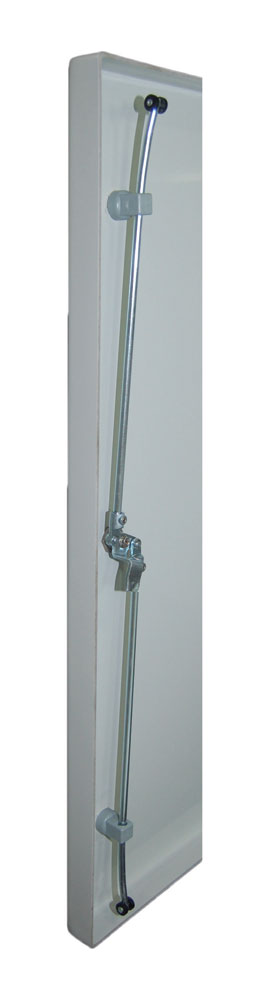

The body and matching cover are compression molded fiberglass reinforced polyester in a gray finish, with enhanced UV inhibitors for outdoor weathering. The material is easily punched, cut or drilled for conduit and device openings. The door swings on a 316 stainless steel hinge and closes with a 316 stainless steel 3-point latch with padlock provision, sealing against an FIP polyurethane gasket.
Per the series ordering table, the enclosure measures 36.48 in H x 30.50 in W x 12.18 in D (927 x 775 x 309 mm). Six 3/8 plated carbon steel screws in molded-in brass inserts accept the optional 18P3327 inner panel, which measures 33.00 x 27.00 in (838 x 686 mm). An integrated mounting flange handles wall installation.
Shipping weight is 56 lbs (25.40 kg). The PJEC3630123PT is RoHS and REACH compliant. A latch-style version is listed as PJEC363012T.
| Series | PJW Series |
| Door Style | Continuous hinge door with 3-point handle |
| Description | N4X Wallmount Encl - 36.25 x 30.25 x 12 - Fiberglass |
| Product Type | Type 4X polyester wallmount enclosure |
| Short Description | NON MET WALLMT 36X30X12 |
| Latch Version Part No. | PJEC363012T |
| 3 Pt Handle Version Part No. | PJEC3630123PT |
| Enclosure Depth | 12.18 in (309 mm) |
| Enclosure Width | 30.50 in (775 mm) |
| Enclosure Height | 36.48 in (927 mm) |
| Nominal Size (H X W X D) | 36.25 in x 30.25 in x 12 in (921 mm x 768 mm x 305 mm) |
| Optional Inner Panel Width | 27.00 in (686 mm) |
| Optional Inner Panel Height | 33.00 in (838 mm) |
| Series Accessories | Additional inner panels, pole mounting kit, window kits, climate control, general accessories |
| Optional Inner Panel Finish | White powder coated finished steel |
| Optional Inner Panel Part No. | 18P3327 |
| UPC | 623980411729 |
| UNSPSC | 39121324 |
| Part Number | PJEC3630123PT |
| Shipping Weight | 56 lbs (25.40 kg) |
| Hinge | 316 stainless steel hinge |
| Latch | 316 stainless steel 3-point latch with padlock provision |
| Finish | Gray fiberglass polyester |
| Gasket | FIP polyurethane gasket |
| Material | Compression molded fiberglass reinforced polyester |
| Mounting | Integrated mounting flange |
| Machinability | Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled |
| Gasket (Series) | Captive oil resistant gasket provides a positive seal |
| Optional Back Panel | White steel, 0.105 in (2.66 mm) thick |
| Inner Panel Mounting | (6) each 3/8 plated carbon steel screws and molded-in brass inserts |
| Impact Index | 6.78 J (5 ft/lb) |
| UV Protection | Enhanced UV inhibitors protect against outdoor weathering |
| Ingress Protection | IP66 |
| Operating Temperature | 130°C to -40°C (266°F to -40°F) |
| NEMA | Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 |
| UL/CUL | UL/cUL 508A Type 1, 2, 3, 4, 4X, 12 and 13 |
| IEC 60529 | IP66 |
| CUL (CSA) | cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Its nominal size is 36.25 x 30.25 x 12 in (921 x 768 x 305 mm). The series ordering table lists the enclosure at 36.48 in H x 30.50 in W x 12.18 in D (927 x 775 x 309 mm).
It uses a 316 stainless steel 3-point latch with padlock provision, on a 316 stainless steel hinge.
The optional inner panel is part number 18P3327, measuring 33.00 x 27.00 in (838 x 686 mm). Optional inner panels are white powder coated finished steel.
UL/cUL 508A Type 1, 2, 3, 4, 4X, 12 and 13, cUL per CSA 22.2 No. 94, and it complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 and IEC 60529 IP66.
Yes. The series ordering table lists PJEC363012T as the latch version of this size.
Between 130°C and -40°C (266°F to -40°F).
