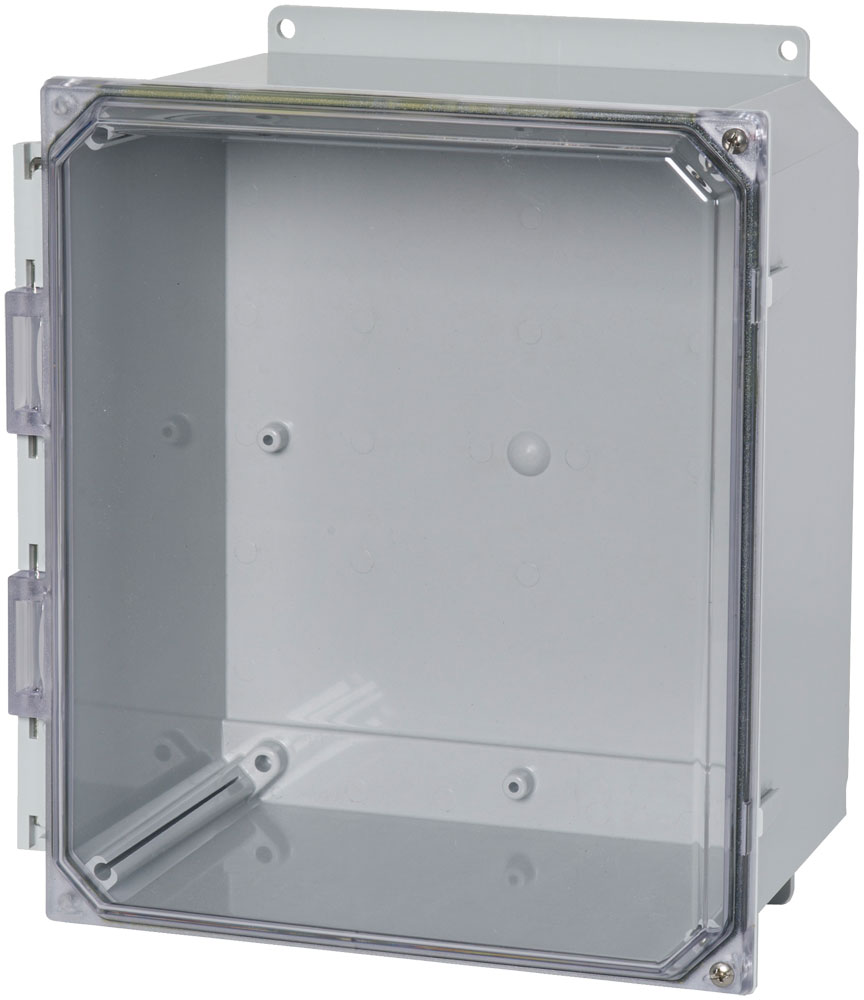

The PCJ1084CCHF is a Type 4X polycarbonate junction box in the 10 x 8 x 4 in nominal size, fitted with a hinged, screw-fastened clear cover and polycarbonate flanges. The clear lid leaves the contents visible with the cover closed; the light gray body and the cover are both injected polycarbonate. It is designed to insulate and protect controls and components in indoor and outdoor conditions, with applications that include industrial pump controls, waste water, irrigation control, solar/wind and chemical plants.
The 10 x 8 x 4 in body measures 9.93 in (252 mm) high, 8.15 in (207 mm) wide and 3.98 in (101 mm) deep, a mid-depth option between the 2 in and 6 in versions of the same footprint. The optional PCJR0907 inner panel, 8.75 in x 6.88 in (222 mm x 175 mm), fixes to four #10-32 brass inserts with plated carbon steel truss screws and is drawn in 0.100 in (2.54 mm) aluminum or 0.075 in (1.91 mm) white steel. A closed cell neoprene gasket seals the cover, which hinges on a stainless steel pin and fastens with two stainless steel captive cover screws.
The PCJ1084CCHF mounts through four polycarbonate flanges (glued), with four .34 in (8.65 mm) mounting holes at 10.75 in (273.04 mm) by 6.00 in (152.40 mm) centers. Flange screws thread into #10-32 brass inserts (stainless steel flange and feet screws), and mounting hardware is included.
Across the PCJ series the enclosure is UL 508A and cUL (CSA 22.2 No. 94) listed as Type 1, 2, 3, 3R, 4, 4X, 12 and 13, complies with the same NEMA Types, and is rated IP66 per IEC 60529, V-0 per UL 94 and UV (f1) per UL746C. It operates from -35°C to 130°C (-31°F to 266°F), has a 16 J (12 ft/lb) impact index, and is RoHS and REACH compliant. Shipping weight is 5 lbs (2.27 kg).
| Flanges | (4) polycarbonate flanges (glued) |
| Other Options | Polycarbonate flange or foot mount brackets for multi-directional mounting (series) |
| Mounting Hardware | Included |
| Accessory Mounting | Threaded brass inserts for optional inner panel or terminal kit mounting |
| Mounting Hole Spacing | 10.75 in (273.04 mm) x 6.00 in (152.40 mm) |
| Flange / Feet Fasteners | (4) #10-32 brass inserts with stainless steel flange and feet screws |
| Series | PCJ Series |
| Cover Type | Clear polycarbonate cover, hinged, screw fastened |
| Description | Polycarb 10X8X4 Hinge Clr w/Flange |
| Product Type | Type 4X Polycarbonate Junction Box (Solid and Clear Cover), Hinged Screw Cover |
| Mounting Style | Polycarbonate flanges |
| Short Description | PC NON MET HINGE CLR FLANGE |
| Enclosure Depth | 3.98 in (101 mm) |
| Enclosure Width | 8.15 in (207 mm) |
| Enclosure Height | 9.93 in (252 mm) |
| Nominal Size (H X W X D) | 10 in x 8 in x 4 in (254 mm x 203 mm x 102 mm) |
| UPC | 623980982359 |
| UNSPSC | 39121324 |
| Part Number | PCJ1084CCHF |
| Shipping Weight | 5 lbs (2.27 kg) |
| Clear Cover, Feet | PCJ1084CCH |
| Solid Cover, Feet | PCJ1084H |
| Clear Cover, Flange | PCJ1084CCHF |
| Solid Cover, Flange | PCJ1084HF |
| Hinge | Molded hinge; stainless steel hinge pin |
| Finish | Light gray polycarbonate; clear polycarbonate cover |
| Gasket | Closed cell neoprene gasket (drawing); captive oil resistant gasket provides a positive seal (series) |
| Box Material | Injected polycarbonate |
| Manufacturing | Injection moulded polycarbonate thermoplastic enclosure with matching cover; easily punched, cut, or drilled |
| Cover Material | Injected polycarbonate (clear) |
| Cover Fasteners | (2) #10-32 brass inserts with stainless steel captive cover screws |
| Screw Fasteners (Series) | Stainless steel 316 |
| Panel Mounting | (4) #10-32 brass inserts with plated carbon steel truss screws |
| Inner Panel Width | 6.88 in (175 mm) |
| Inner Panel Height | 8.75 in (222 mm) |
| Inner Panel Part Number | PCJR0907 |
| Series Inner Panel Finishes | White powder coated finished steel, unfinished aluminum, or fiberglass |
| Panel Materials Shown On Drawing | 0.100 in [2.54 mm] thick aluminum; 0.075 in [1.91 mm] thick white steel |
| UV Rating | (f1) per UL746C - UV stabilized for outdoor use |
| Flammability | V-0 per UL 94 |
| Impact Index | 16 J (12 ft/lb) |
| UV Protection | Enhanced UV inhibitors protect against outdoor weathering |
| Ingress Protection | IEC 60529, IP66 |
| Operating Temperature | Between 130°C and -35°C (266°F to -31°F) |
| UL Listing | UL 508A Type 1, 2, 3, 3R, 4, 4X, 12 and 13 |
| CUL Listing | cUL Type 1, 2, 3, 3R, 4, 4X, 12 and 13 per CSA 22.2 No. 94 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| NEMA Type Compliance | NEMA Type 1, 2, 3, 3R, 4, 4X, 12 and 13 |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
The ordering table lists the enclosure at 9.93 in (252 mm) high, 8.15 in (207 mm) wide and 3.98 in (101 mm) deep. The listed nominal size is 10 in x 8 in x 4 in (254 mm x 203 mm x 102 mm).
The optional inner panel is PCJR0907, measuring 8.75 in (222 mm) by 6.88 in (175 mm). It mounts on four #10-32 brass inserts with plated carbon steel truss screws.
Yes. It is listed to Type 3, 3R, 4 and 4X among others, rated IP66 per IEC 60529, and carries a UV (f1) rating per UL746C with enhanced UV inhibitors against outdoor weathering.
It uses four polycarbonate flanges (glued) fastened with stainless steel flange and feet screws into #10-32 brass inserts, and mounting hardware is included.
Yes. The solid cover equivalent with the same flange mounting is PCJ1084HF; the feet mounted version with the same cover is PCJ1084CCH.
The series operates between -35°C and 130°C (-31°F to 266°F).
