The PBR50CLYE is a yellow continuous beam module for PBR Series stack lights. It provides a steady yellow stage on a modular signal tower for showing machine status, and it is intended for OEM machine builders, panel builders and plant maintenance staff.

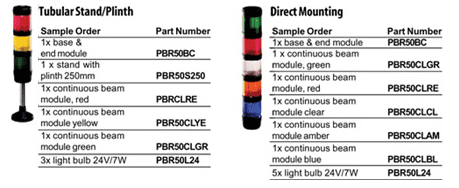

PBR stack lights are modular and ordered as separate components, allowing each tower to be built with the base, mounting parts and up to five light stages that the installation needs. Continuous beam modules are made in yellow, red, green, amber, blue and transparent. For a flashing yellow stage, the series offers the PBR50BLYE24V blinking module.
The module body is polycarbonate and the light covers a 360 degree angle of beam. It uses a BA 15d lamp socket. Continuous beam ratings are 230 V, 50/60 Hz, -15% to +10% with a current capacity rating of 0.035 A (AC) and 24 V, -15% to +20% with 0.3 A (DC). Rated power is 7W maximum and 5W with five stages. The listed service life of the light bulb/tube is approx. 1500h, with a listed percentage duty cycle of 1.
The PBR system carries an IP 54 protection rating and is specified for -25 °C to +45 °C with a relative humidity figure of 0.9. It can be installed vertically or horizontally on a mounting stand, by tube mounting or by direct mounting. The PBR50CLYE is REACH and RoHS compliant and ships at 0.22 lbs (0.10 kg).
| Angle Of Beam | 360 degrees |
| Modular Stages | Max. 5 |
| Continuous Beam Colours Offered | Yellow, Red, Green, Amber, Blue, Transparent |
| Colour | Yellow |
| Series | PBR Series Stack Lights |
| Product Type | Continuous beam module |
| Short Description | LIGHT YELLOW |
| Manufacturer Description | Stacklight-continuous beam, yellow |
| Ordering Table Description | Continuous beam module, yellow |
| Lamp Socket | BA 15d |
| AC Voltage Rating | 230 V, 50/60 Hz, -15% to +10% |
| DC Voltage Rating | 24 V, -15% to +20% |
| Rated Power, Max. | 7W |
| Percentage Duty Cycle | 1 |
| Rated Power With 5 Stages | 5W |
| AC Current Capacity Rating | 0.035 A |
| DC Current Capacity Rating | 0.3 A |
| Service Life Of Light Bulb/Tube | approx. 1500h |
| UPC | 623980003993 |
| UNSPSC | 39112001 |
| Part Number | PBR50CLYE |
| Installation | Vertical or horizontal |

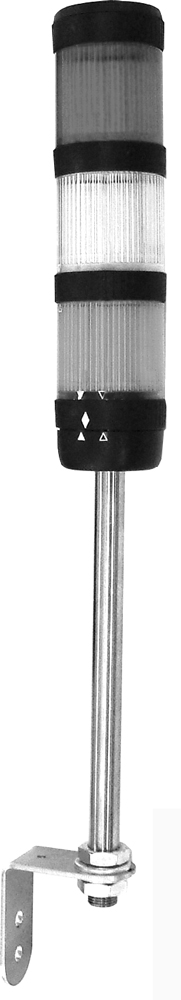

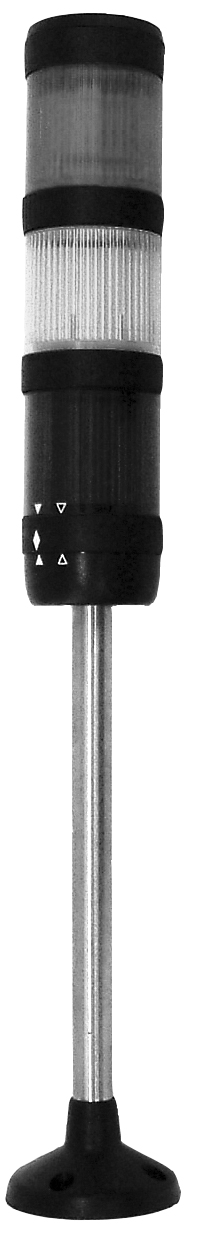

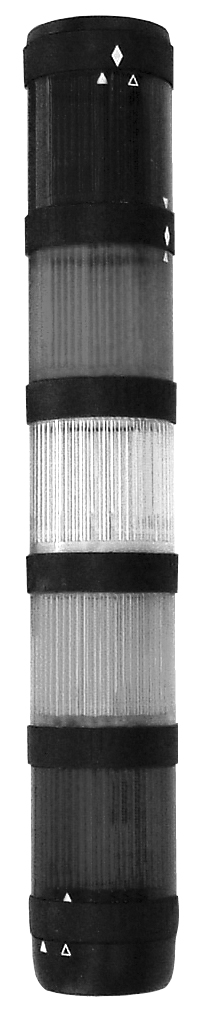

| Mounting Options (System) | Mounting stand, tube mounting or direct mounting |
| Shipping Weight | 0.22 lbs (0.10 kg) |
| Module Material | Polycarbonate |
| Relative Humidity | 0.9 |
| Operating Temperature | -25 °C to +45 °C |
| Protection Rating (PBR System) | IP 54 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
A yellow continuous beam module for the PBR Series modular stack light.
Yes, the PBR50BLYE24V is the 24V blinking yellow module.
230 V, 50/60 Hz, -15% to +10% with 0.035 A, and 24 V DC, -15% to +20% with 0.3 A; rated power 7W max, 5W with 5 stages.
-25 °C to +45 °C.
The shipping weight is 0.22 lbs (0.10 kg).
