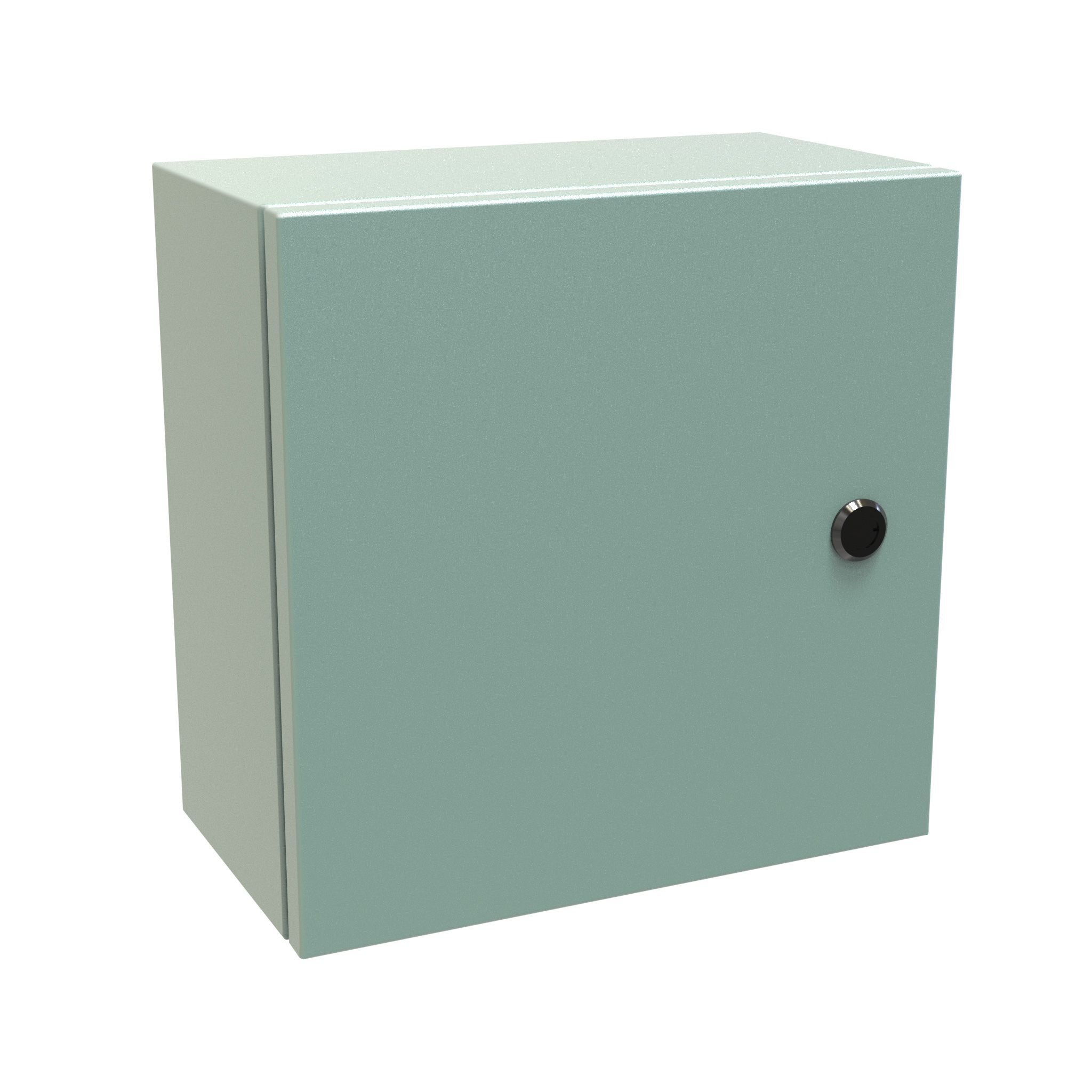

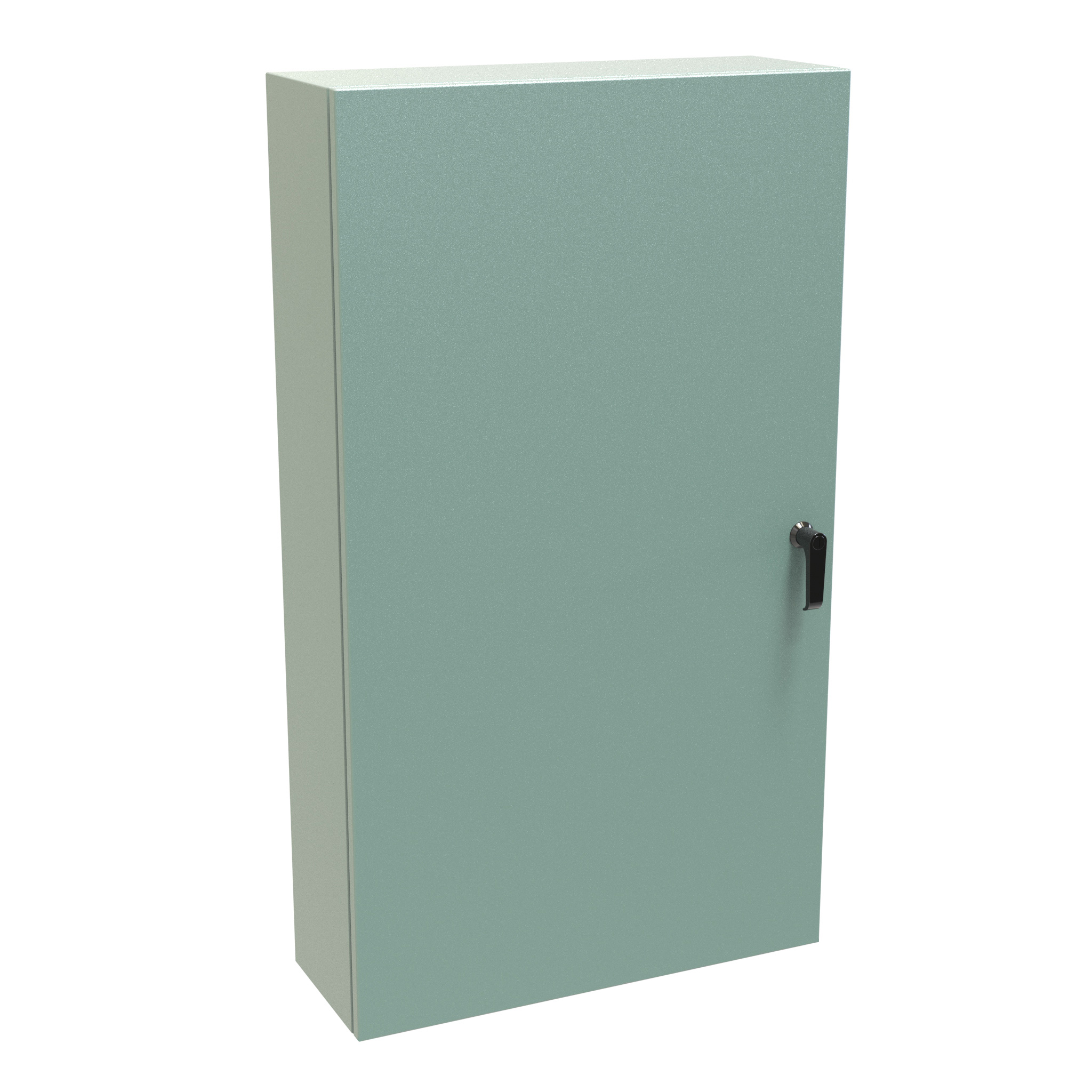

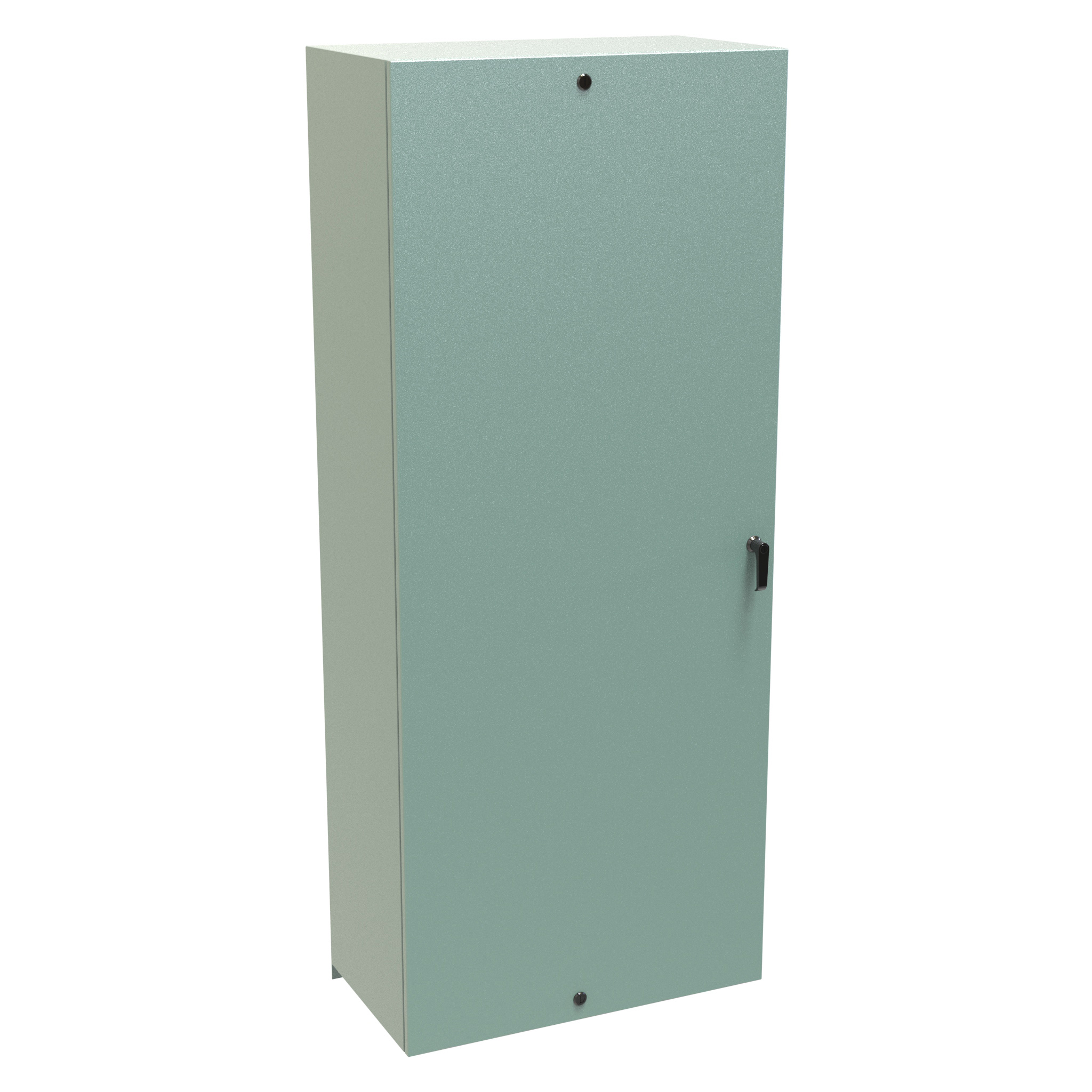

Panel builders and electrical contractors who need a sealed wall-hung cabinet can specify the EN4SD423612GY: a 42 x 36 x 12 in (1,067 mm x 914 mm x 305 mm) Eclipse Series single-door wallmount enclosure in mild steel. It carries NEMA Type 3R, 4 and 12 ratings and is intended to enclose electrical and electronic equipment exposed to harsh industrial conditions.
Construction is 14 gauge formed steel with continuously welded seams ground smooth. A formed lip on the body keeps flowing liquids and contaminants out, and a seamless poured-in-place gasket completes the seal. Hinges are 304 stainless steel with stainless steel pins. Inside and out, the enclosure is phosphatized and finished in a recoatable ANSI 61 smooth gray powder coat; order EN4SD423612LG for the RAL 7035 light gray version.
This size uses Type B latching, a handle with 3-point latching; the multi-point handle (key lockable) is zinc diecast with a black epoxy finish. The door opening measures 34.31 x 40.31 in, and the drawing shows 30.65 x 37.85 in of clear space available on the door. As a 36 in wide enclosure it includes a door alignment guide. Doors can be removed for modification, and door swing can be reversed by ordering adapter kit EHLLSAK. Shipping weight is 120 lbs (54.43 kg).
Collar studs are provided for mounting an inner panel; the optional EP4236 panel measures 40.20 in (1021 mm) high by 34.20 in (869 mm) wide. A hardware kit with panel mounting nuts and sealing washers for the wall mounting holes is included, along with a bonding stud on the door and a grounding stud in the enclosure. The EN4SD423612GY is UL 508A (File E65324) and CSA (LR21001) listed for Type 3R, 4 and 12; a mounting foot kit is required to maintain UL/CSA external mounting requirements, and because this enclosure is wider than 24 in, an inner panel is required to maintain UL/CSA. It is REACH and RoHS compliant.
| Mounting Foot Kit | Required to maintain UL/CSA external mounting requirements |
| Inner Panel Mounting | Collar studs provided for mounting inner panel |
| Mounting Hole Diameter | 0.50 in |
| Wall Mounting Hardware | Hardware kit with panel mounting nuts and sealing washers for wall mounting holes included |
| Optional Inner Panel Width | 34.20 in (869 mm) |
| Optional Inner Panel Height | 40.20 in (1021 mm) |
| Optional Inner Panel Part No. | EP4236 |
| Wall Mounting Hole Pattern (W X H) | 34.50 in x 40.50 in |
| Color | ANSI 61 smooth gray (GY) |
| Style | Hinge door with quarter turn/handle; single door wallmount |
| Series | Eclipse Series Type 4 Mild Steel Wallmount Enclosure |
| Long Description | N4,12 Eclipse encl. - 42 x 36 x 12 - Steel/Gray |
| Short Description | ECLIPSE N4 1 DR. WALLMOUNT |
| RAL 7035 Light Gray Equivalent Part No. | EN4SD423612LG |
| Depth | 12.00 in (305 mm) |
| Width | 36.00 in (914 mm) |
| Height | 42.00 in (1067 mm) |
| Size (H X W X D) | 42 in x 36 in x 12 in (1,067 mm x 914 mm x 305 mm) |
| Door Size (H X W) | 41.97 in x 35.97 in |
| Door Opening (W X H) | 34.31 in x 40.31 in |
| Clear Space Available On Door | 30.65 in x 37.85 in |
| UPC | 623980447414 |
| UNSPSC | 39121324 |
| Part Number | EN4SD423612GY |
| Drawing Date | Feb. 27, 2023 |
| Hinges | 304 stainless steel, hidden |
| Door Swing | Reversible - requires adapter kit EHLLSAK |
| Hinge Pins | Stainless steel |
| Latch Type | B - handle with 3 point latching |
| Door Removal | Doors easily removed for modifications and interchangeable |
| Latch Material | Multi-point handle (key lockable): zinc diecast with black epoxy finish |
| Door Stiffeners | Provided where required for strength and rigidity; also permit additional mounting options |
| Door Alignment Guide | Provided (36 in wide enclosure) |
| Packaging Type | Box |
| Shipping Weight | 120 lbs (54.43 kg) |
| Seams | Continuously welded, ground smooth |
| Finish | Phosphatized; recoatable powder coat inside and out |
| Gasket | Seamless poured-in-place |
| Material | Mild steel, formed 14 gauge |
| Grounding | Bonding stud on door; grounding stud installed in enclosure |
| Liquid Protection | Formed lip on enclosure to exclude flowing liquids and contaminants |
| IP Rating | IP66 (IEC 60529) |
| NEMA Rating | Type 3R, 4 and 12 |
| UL | UL 508A Type 3R, 4 and 12 |
| CSA | CSA Type 3R, 4 and 12 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes (RoHS Directive 2011/65/EU; Directive (EU) 2015/863) |
| REACH Compliant | Yes |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU; EN 60204-1:2006 / IEC 60204-1:2005-10; EN 60529:1992 + A2:2013 / IEC 60529:2001-02 + A2:2013-08 |
| UL/CSA Inner Panel Requirement | Sizes >24 in (600 mm) wide require inner panel to maintain UL/CSA |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
It measures 42 in x 36 in x 12 in (1,067 mm x 914 mm x 305 mm) (H x W x D). The drawing shows a door opening of 34.31 x 40.31 in and an overall depth of 12.84 in.
It uses latch Type B, a handle with 3 point latching. The multi-point handle is key lockable and zinc diecast with a black epoxy finish.
The inner panel is optional: part EP4236, 40.20 in (1021 mm) high x 34.20 in (869 mm) wide, mounts on the collar studs provided. Because this enclosure is wider than 24 in, an inner panel is required to maintain UL/CSA.
NEMA Type 3R, 4 and 12, IP66 per IEC 60529, UL 508A Type 3R, 4 and 12 (File E65324) and CSA Type 3R, 4 and 12 (Cert. LR21001). A mounting foot kit is required to maintain UL/CSA external mounting requirements.
Yes. Reversing the door swing requires ordering adapter kit EHLLSAK.
Yes. EN4SD423612GY is ANSI 61 smooth gray; the same size in RAL 7035 textured light gray is EN4SD423612LG.
