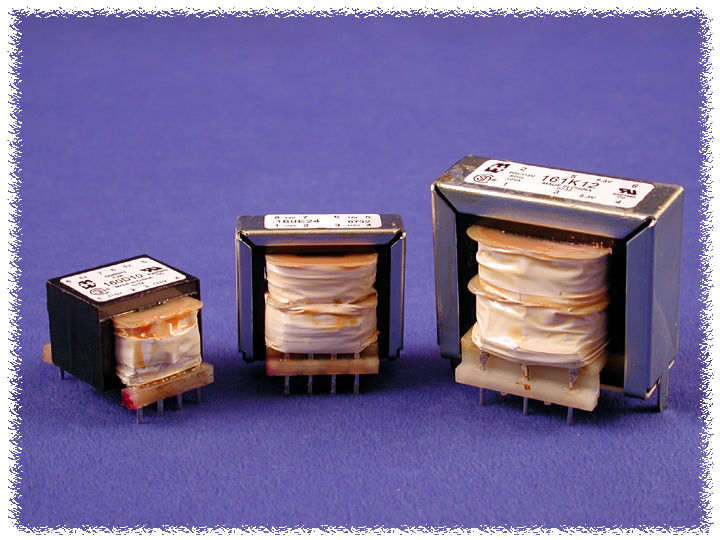

Create Free Business AccountThe 160D16 is a compact 1 VA low voltage PC board mount power transformer for circuit designers who need a small isolated AC supply on the board. It uses the universal dual 115/230V primary for 50/60 Hz operation, so the same part can be wired for either line voltage.
The secondary is rated 16V C.T. @ 55ma with the windings in series, giving a 16V centre-tapped output, or 8V @ 110ma with the two halves in parallel, doubling the available current to 110ma at 8V. Pick the 160D16 when your circuit needs a 8V or 16V C.T. AC rail at these current levels.
Construction is a vertical mount, split bobbin design, and the 1 VA size is concentric wound. Low primary to secondary coupling means no electrostatic shield is required. Insulation is Class B (130 degrees C) and the series is hipot tested to 2,000V RMS.
The 160 Series mechanical table lists this 1 VA size with overall dimensions of A 1.00", B 1.38" and C 0.83", with 0.02" x 0.04" pins (D), E 1.20" and G 0.20" (inch). Shipping weight is 0.13 lbs (0.06 kg).
The 160-161 Series is CSA certified (File # LR3902) and UL recognized (File #E207860), and the 160D16 is RoHS and REACH compliant. If you only need a 115V, 60 Hz primary, the economical single-primary equivalent with the same secondary rating is the 161D16.
| Series | 160-161 Series (160 Series, dual primary) |
| Power Rating | 1 VA |
| Product Type | Transformer, low voltage PCB mount |
| Short Description | POWER TX 1VA 115/230V |
| Single Primary (115V) Equivalent | 161D16 |
| Dimension A (Series Table) | 1.00 in |
| Dimension B (Series Table) | 1.38 in |
| Dimension C (Series Table) | 0.83 in |
| Dimension E (Series Table) | 1.20 in |
| Dimension G (Series Table) | 0.20 in |
| Dimension D Width (Series Table) | 0.04 in |
| Dimension D Thickness (Series Table) | 0.02 in |
| Hipot | 2,000V RMS |
| Primary | Dual primary 115/230V, 50/60 Hz |
| Secondary (RMS) Series | 16V C.T. @ 55ma |
| Secondary (RMS) Parallel | 8V @ 110ma |
| Primary To Secondary Coupling | Low - no electrostatic shield required |
| UPC | 623980300542 |
| UNSPSC | 39121301 |
| Shipping Weight | 0.13 lbs (0.06 kg) |
| Bobbin | Split bobbin design |
| Winding | Concentric wound |
| Mounting | P.C. board mount, vertical |
| Insulation Class | Class B - 130 degrees C |
| UL | UL recognized (File #E207860) |
| CSA | CSA certified (File # LR3902) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Wired in series the secondary gives 16V C.T. @ 55ma; wired in parallel it gives 8V @ 110ma.
Yes. It has the universal dual 115/230V primary for 50/60 Hz operation.
Yes. The 161D16 is the single primary 115V, 60 Hz only equivalent with the same 1 VA size and secondary rating.
The 160 Series mechanical table lists the 1 VA size as A 1.00", B 1.38", C 0.83", D Thickness 0.02", D Width 0.04", E 1.20", G 0.20". Values are in inches.
No. The series has low primary to secondary coupling, so no electrostatic shield is required.
The series is CSA certified (File # LR3902) and UL recognized (File #E207860). The 160D16 is RoHS and REACH compliant.
