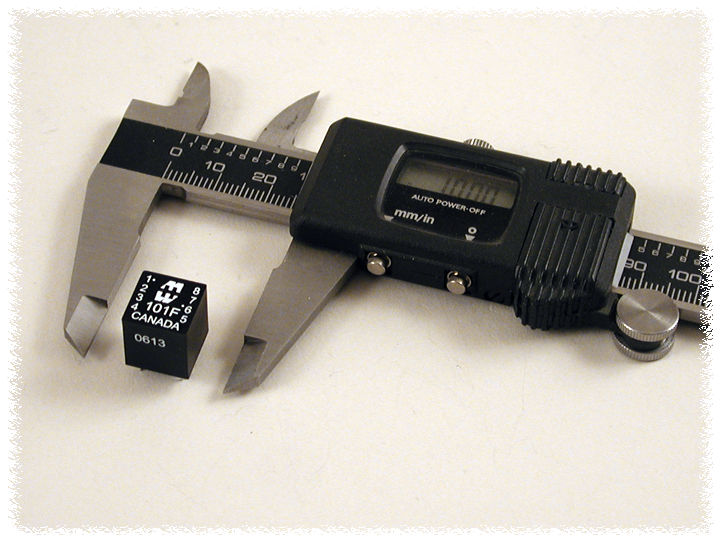

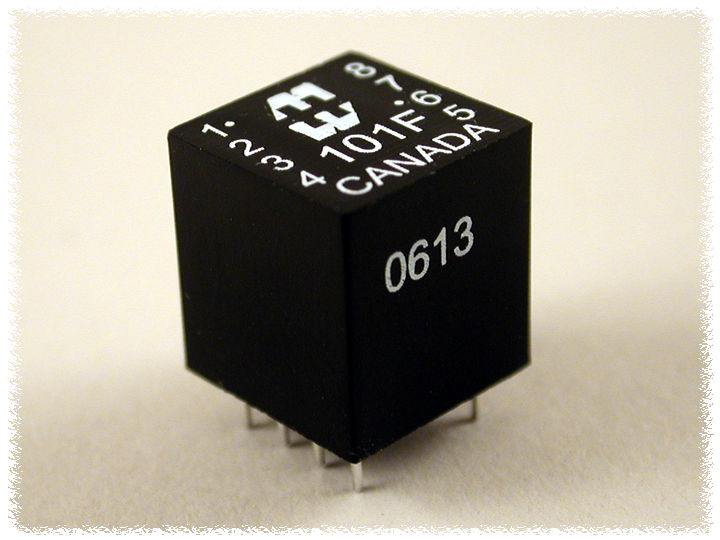

Create Free Business AccountThe 101H is a miniature potted audio transformer for P.C. board mounting that steps a 1200 ohm center-tapped primary down to a 600 ohm center-tapped secondary. It is a practical choice for designers matching a higher-impedance audio stage to a 600 ohm line in a compact, board-level part.
The pin-type package uses rugged potted construction to produce a completely sealed unit that withstands severe environmental conditions. Net weight is only 0.1 oz. Either winding may be used as the primary, so the 101H can also step 600 ohms up to 1200 ohms.
Nominal DC resistance is 80 ohms on the primary and 53 ohms on the secondary. The useful impedance range extends from 600/300 to 2400/1200 ohms primary/secondary, so the same part covers a range of source and load pairs at the same 2:1 impedance ratio.
Series performance data for the 101H:
This part is RoHS and REACH compliant and ships at 0.01 lbs.
| Series | 101 Series Miniature Audio Potted |
| Description | Audio transformer, potted, primary impedance 1200 CT, secondary impedance 600 CT |
| Product Type | Audio transformer, potted |
| Short Description | AUDIO TX POTTED |
| Net Weight | 0.1 oz |
| Winding Use | Secondary may be used as primary and primary as secondary |
| Frequency Range @ +10 DBm | 200 Hz to 100 kHz +/- 0.5 dB |
| Frequency Range @ +15 DBm | 200 Hz to 100 kHz +/- 0.5 dB |
| Frequency Range @ +20 DBm | 300 Hz to 100 kHz +/- 0.5 dB |
| Primary Nominal Impedance | 1200 CT ohms |
| Primary Nominal Resistance | 80 ohms |
| Secondary Nominal Impedance | 600 CT ohms |
| Secondary Nominal Resistance | 53 ohms |
| Frequency Measurement Condition | No D.C. current saturation |
| Power Level / Minimum Frequency Range | 300 Hz to 100 kHz +/- 0.5 dB @ 100 mW |
| Useful Impedance Range (Pri/Sec To Pri/Sec) | 600/300 to 2400/1200 ohms |
| UPC | 623980178103 |
| UNSPSC | 39121301 |
| Shipping Weight | 0.01 lbs (0.00 kg) |
| Size | Miniature |
| Mounting | P.C. board mount, pin type |
| Construction | Rugged potted construction; completely sealed unit withstanding severe environmental conditions |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
1200 ohm center-tapped primary to 600 ohm center-tapped secondary, with a useful range of 600/300 to 2400/1200 ohms.
Yes. The secondary may be used as the primary and the primary as the secondary.
80 ohms nominal on the primary and 53 ohms on the secondary.
300 Hz to 100 kHz +/- 0.5 dB, measured with no DC current saturation.
