The 1490MH9 is the 22.5 mm H size in the 1490 Series of Type 12 mild steel pushbutton consolets, with nine holes for 22.5 mm pushbuttons, switches and pilot lights. Its squarer body, 9.50 in H x 8.50 in W x 7.88 in D (241 x 216 x 200 mm), is ideal for wall or surface mounting to present controls at a usable angle.

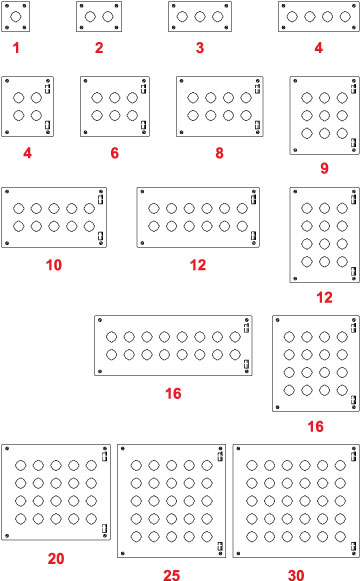

The drawing lists an 8.87 x 9.87 in door, 0.89 in holes on 2.25 in centres, and 0.25 in holes in the welded mounting brackets. Mounting position gives the front cover either a 30° or 60° slope.
Formed 16 gauge steel with smooth continuously welded seams makes up the body, and an oil resistant gasket and adhesive seal the cover against dirt, dust, oil and water. The internally hinged removable cover is designed to hold open during wiring and is secured by captive screws that thread into sealed wells. Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating; a bonding stud on the door and grounding stud on the enclosure are provided.
The 1490MH9 is rated UL 508A Type 12 and 13 and CSA Type 12 and 13, and complies with NEMA Type 12 and 13 and IEC 60529 IP54 with appropriate components. Shipping weight is 10 lbs (4.54 kg). The 30.5 mm equivalent is 1490H9.
| Mounting Method | Welded brackets for wall or surface mounting |
| Front Cover Slope | 30° or 60°, depending on mounting position |
| Mounting Hole Diameter | 0.25 in |
| Mounting Hole Spacing, Width (Drawing) | 7.63 in |
| Series | 1490 Series Type 12 Mild Steel Pushbutton Enclosure, Sloped Consolet |
| Application | Accepts standard heavy duty oil tight pushbuttons, switches and pilot lights; wall or surface mounting |
| Description | N12 PB Consolet - 9 PB x 22.5mm - Steel/Gray |
| Pushbutton Size | 22.5 mm |
| Number Of Pushbutton Holes | 9 |
| 30.5 Mm Pushbutton Equivalent | 1490H9 |
| Manufacturer Short Description | N12 SLPG FRNT P/B BOX |
| Enclosure Depth | 7.88 in (200 mm) |
| Enclosure Width | 8.50 in (216 mm) |
| Enclosure Height | 9.50 in (241 mm) |
| Size (H X W X D) | 9.5 in x 8.5 in x 7.9 in (241 mm x 216 mm x 201 mm) |
| Door Width (Drawing) | 8.87 in |
| Door Height (Drawing) | 9.87 in |
| Pushbutton Hole Spacing | 2.25 in |
| Pushbutton Hole Diameter | 0.89 in |
| UPC | 623980099378 |
| UNSPSC | 39121326 |
| Packaging Type | Box |
| Shipping Weight | 10 lbs (4.54 kg) |
| Cover | Internally hinged removable cover that holds open during wiring; captive cover screws thread into sealed wells |
| Seams | Smooth continuously welded |
| Colour | Gray |
| Finish | Phosphatized, ANSI 61 gray powder coating (cover and enclosure) |
| Gasket | Oil resistant gasket and adhesive |
| Material | Formed 16 gauge steel |
| Grounding | Bonding stud on door; grounding stud on enclosure |
| Protection | Protection from dirt, dust, oil and water |
| UL File # | E65324 |
| UL Rating | UL 508A Type 12 and 13 |
| CSA Rating | CSA Type 12 and 13 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| NEMA / IEC Compliance | NEMA Type 12 and 13; IEC 60529, IP54 (appropriate components required to maintain these standards) |
| Additional Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| Applicable Standard (IP Code) | EN 60529: 1992 + A2: 2013 / IEC 60529: 2001-02 + A2: 2013-08 |
| EU Low Voltage Directive (Declaration Of Conformity) | 2014/35/EU |
| Applicable Standard (Electrical Equipment Of Machines) | EN 60204-1: 2006 / IEC 60204-1: 2005-10 |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Nine, in 0.89 in holes on 2.25 in spacing per the drawing.
9.50 in H x 8.50 in W x 7.88 in D (241 x 216 x 200 mm); the part page size attribute lists 9.5 x 8.5 x 7.9 in (241 x 216 x 201 mm).
Yes, an internally hinged removable cover designed to hold open during wiring.
UL 508A Type 12 and 13 and CSA Type 12 and 13; complies with NEMA Type 12 and 13 and IEC 60529, IP54 with appropriate components.
1490H9.
