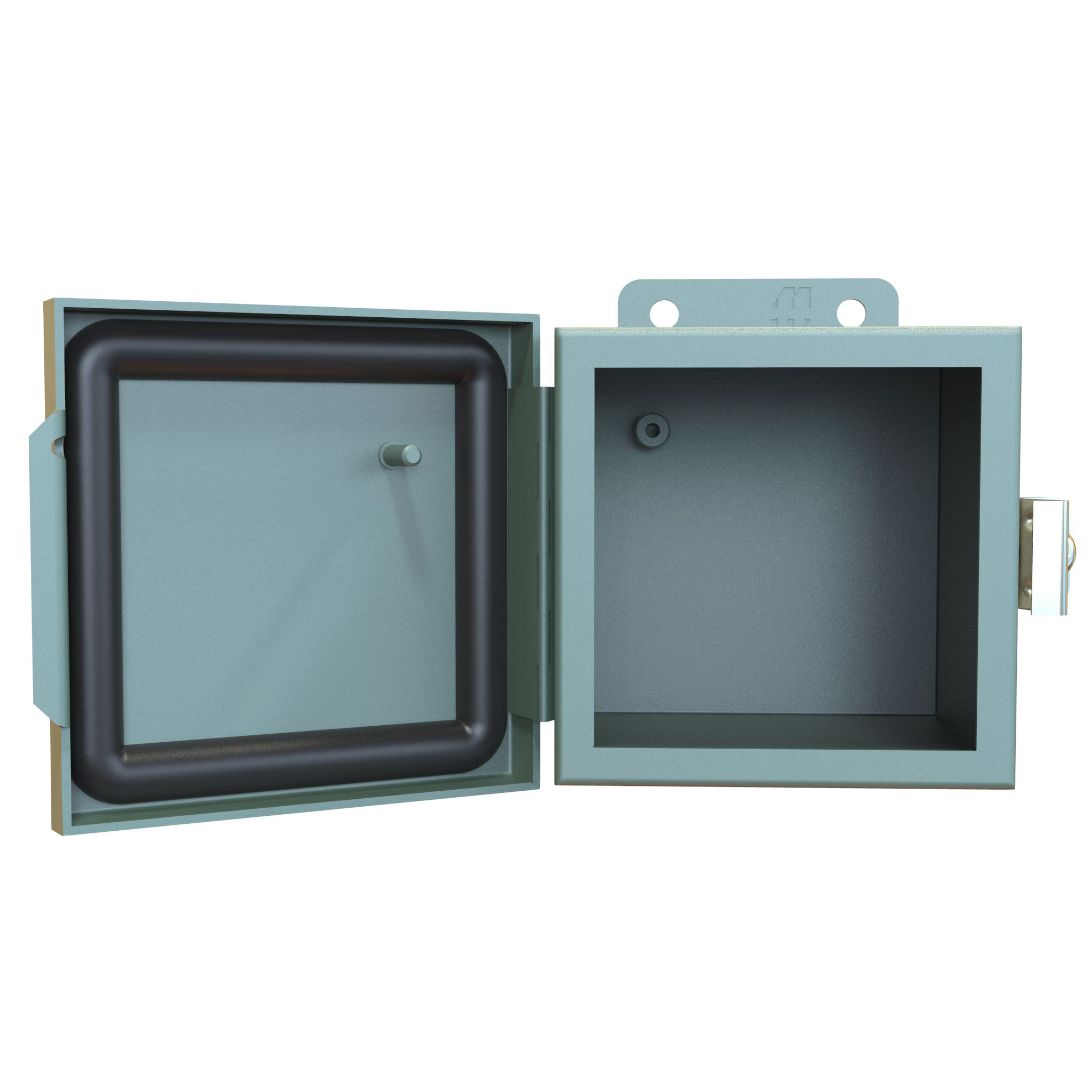

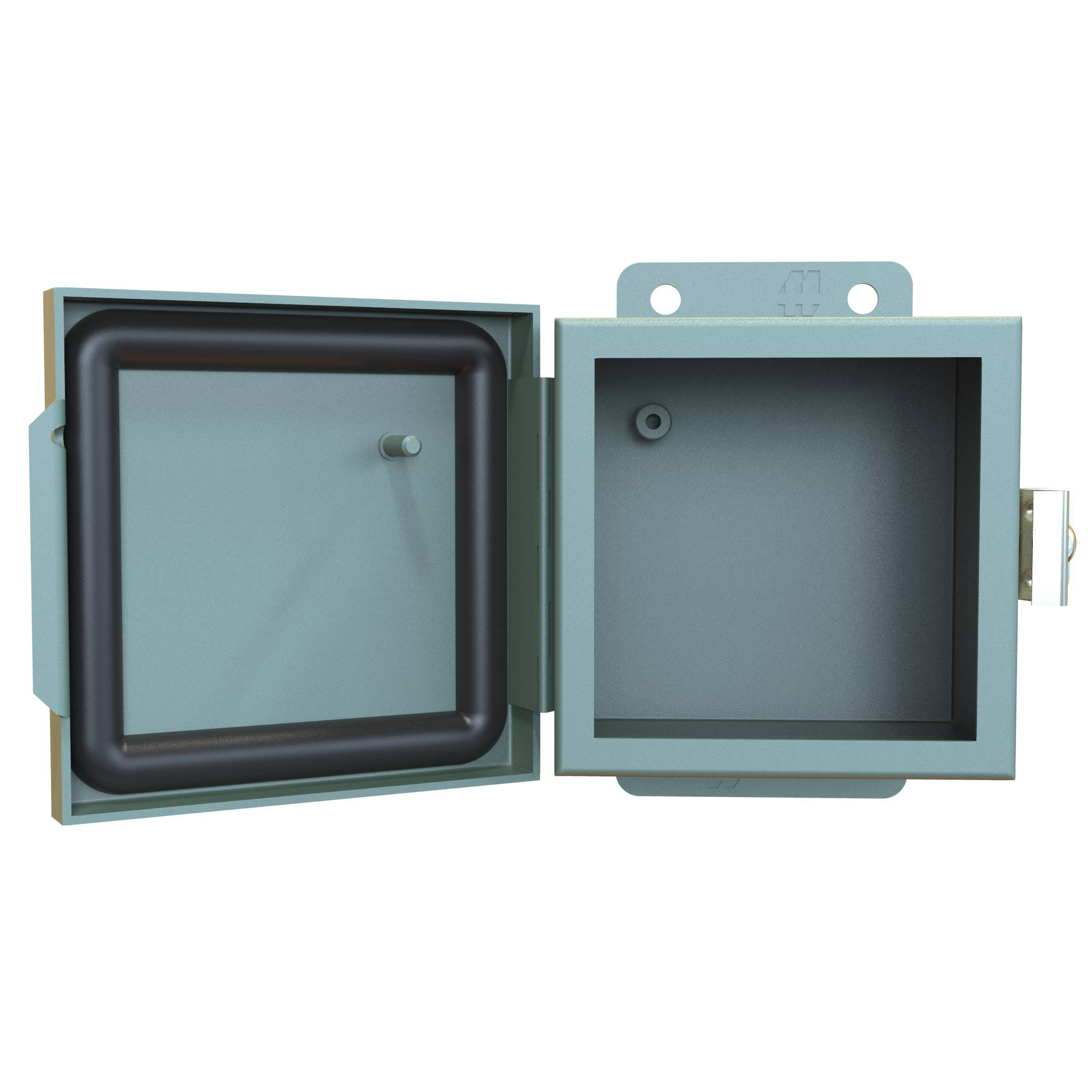

The 1414PHKC4 is a 12 x 6 x 4 in (305 x 152 x 102 mm) Type 12 mild steel junction box from the 1414 PH Series, with a continuously hinged cover secured by stainless steel clamps and plated steel screws. It is intended for instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes and terminal wiring enclosures that need a degree of protection from falling dirt, dust, oil and water.
The 1414PHKC4 is a tall, narrow 12 x 6 x 4 in format with a 10.75 in x 4.88 in inner panel, and an 11.30 in x 5.30 in door opening.
The body is formed from 16 gauge or 14 gauge steel and the cover from 14 gauge steel, with smooth, continuously welded seams and no knockouts, cutouts or holes. A seamless poured-in place gasket seals the cover. A removable 14 gauge inner panel mounts on internal threaded weld studs and is finished in white powder coating. Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating.
Per the drawing, the 1414PHKC4 has a door opening of 5.30 in wide x 11.30 in high, 3.35 in of usable depth, and 11.08 in x 5.08 in of clear space available on the door. Welded brackets with 0.31 in mounting holes provide for enclosure mounting, and a bonding stud on the door plus a grounding stud on the body simplify grounding. Shipping weight is 10 lbs (4.54 kg).
Ratings: UL 508A Type 12, 13; CSA Type 12, 13; complies with NEMA Type 12 and 13 and IEC 60529, IP54. RoHS and REACH compliant. It carries UL File E65324 and CSA certificate LR21001, and the series is covered by an EU declaration of conformity to the Low Voltage Directive 2014/35/EU.
| Enclosure Mounting | Welded mounting brackets |
| Inner Panel Mounting | Internal threaded weld studs |
| Mounting Hole Diameter | 0.31 in (typ.) |
| Series | 1414 PH Series |
| Cover Style | Continuous Hinge Door with Clamps |
| Description | N12 J Box, Hinge Cover w/panel - 12 x 6 x 4 - Steel/Gray |
| Part Number | 1414PHKC4 |
| Product Type | Type 12 Mild Steel Junction Box |
| Short Description | PIANO HINGED 1414PH |
| Usable Depth | 3.35 in |
| Enclosure Depth | 4.00 in (102 mm) |
| Enclosure Width | 6.00 in (152 mm) |
| Enclosure Height | 12.00 in (305 mm) |
| Size (H X W X D) | 12 in x 6 in x 4 in (305 mm x 152 mm x 102 mm) |
| Door Size (H X W) | 12.31 in x 6.31 in |
| Inner Panel Width | 4.88 in (124 mm) |
| Door Opening Width | 5.30 in |
| Inner Panel Height | 10.75 in (273 mm) |
| Door Opening Height | 11.30 in |
| Clear Space Available On Door (H X W) | 11.08 in x 5.08 in |
| Series Accessories | Additional Inner Panels; Terminal Kit Assemblies; Swing Panel Kit; Door Clamping Hardware; Junction Box Quick Release Clamp; Climate Control; Junction Box Padlock Kit; General Accessories |
| UPC | 623980350707 |
| UNSPSC | 39121324 |
| Packaging Type | Box |
| Shipping Weight | 10 lbs (4.54 kg) |
| Body | Formed from 16 gauge or 14 gauge steel |
| Cover | Formed from 14 gauge steel |
| Seams | Smooth, continuously welded seams without knockouts, cutouts or holes |
| Colour | Gray |
| Finish | Cover and enclosure phosphatized, finished in ANSI 61 gray recoatable powder coating |
| Gasket | Seamless poured-in place gasket |
| Material | Mild steel |
| Grounding | Bonding stud on the door; grounding stud in the enclosure |
| Inner Panel | Removable 14 gauge inner panel included |
| Cover Closure | Continuously hinged cover secured with stainless steel clamps and plated steel screws |
| Inner Panel Finish | White powder coating |
| Protection | A degree of protection from falling dirt, dust, oil and water |
| Enclosure Rating | NEMA Type 12 and 13 |
| Ingress Protection | IEC 60529, IP54 |
| UL | UL 508A Type 12, 13 |
| CSA | CSA Type 12, 13 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| Complies With | NEMA Type 12 and 13; IEC 60529, IP54 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| DoC Applicable Standards | EN 60204-1: 2006; IEC 60204-1: 2005-10 (Safety of Machinery - Electrical Equipment of Machines - Part 1: General Requirements); EN 60529: 1992 + A2: 2013; IEC 60529: 2001-02 + A2: 2013-08 (Degrees of protection provided by enclosures, IP code) |
| DoC Additional Declarations | RoHS Directive 2011/65/EU; Directive (EU) 2015/863 |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
It is a tall, narrow enclosure: 12 in high x 6 in wide x 4 in deep, with a 10.75 in x 4.88 in inner panel and an 11.30 in x 5.30 in door opening.
The series is listed to UL 508A Type 12, 13 and CSA Type 12, 13, and complies with NEMA Type 12 and 13 and IEC 60529, IP54.
It is mild steel: the body is formed from 16 gauge or 14 gauge steel and the cover from 14 gauge steel, phosphatized and finished in ANSI 61 gray powder coating.
Welded brackets provide for enclosure mounting; the drawing shows 0.31 in mounting holes. Inner panels mount on internal threaded weld studs.
The shipping weight is 10 lbs (4.54 kg), and it is packaged in a box.
Its listed ratings are UL 508A and CSA Type 12, 13 and IEC 60529 IP54, providing a degree of protection from falling dirt, dust, oil and water. No Type 4 or outdoor rating is listed for the 1414 PH Series.
