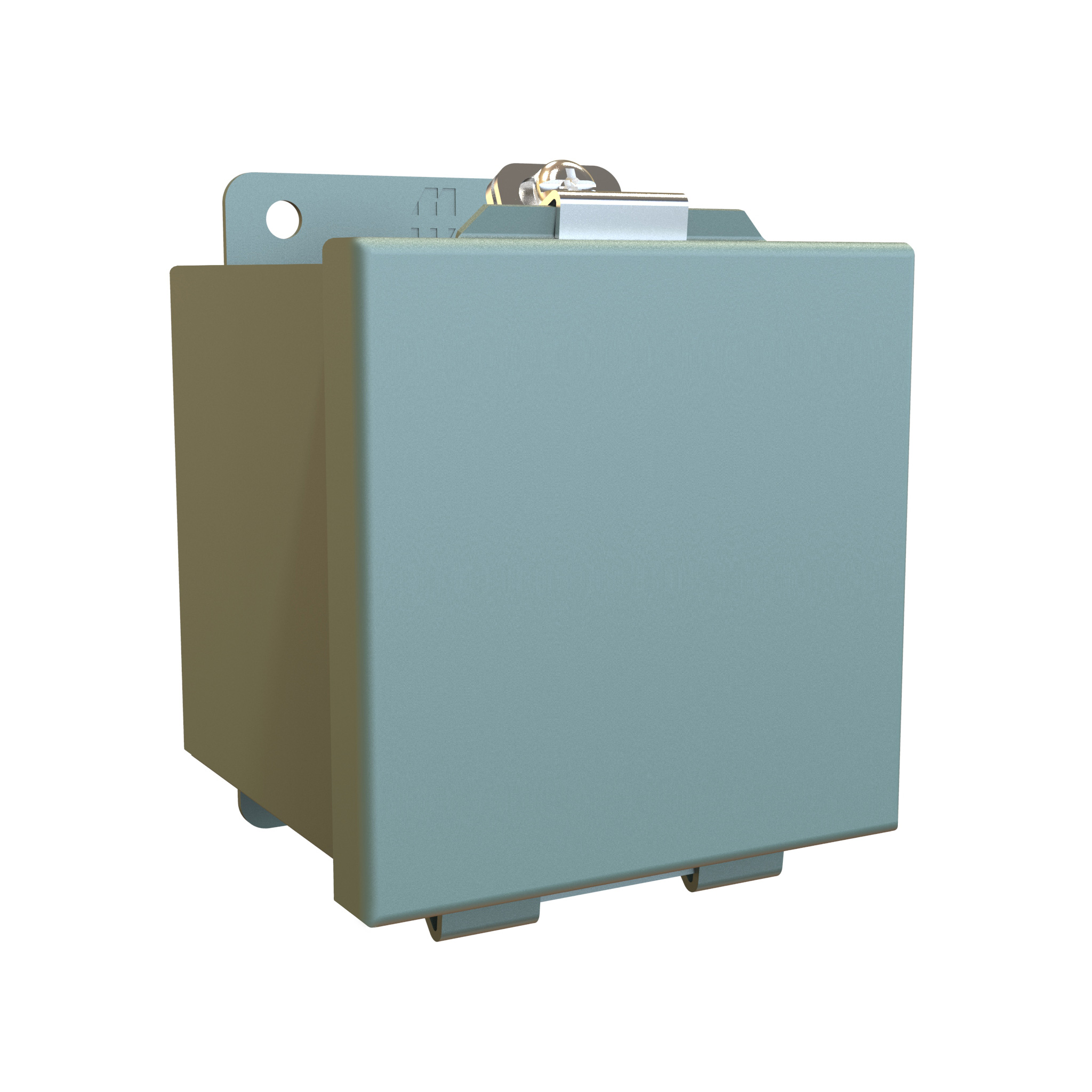

The 1414A is the smallest box in the 1414 Series: a Type 12 mild steel junction box measuring 4 x 4 x 3 in (102 x 102 x 76 mm) with a lift-off cover held by clamps. It is a compact choice for electricians and OEM builders who need a sealed splice point, small terminal housing or instrument box indoors.
The body is formed from 16 or 14 gauge mild steel with smooth, continuously welded seams and no knockouts, cutouts or holes. The 14 gauge lift-off cover is secured with stainless steel clamps and plated steel screws, sealed by a seamless poured-in place gasket, and retained with a plated chain when open so it stays with the box during service. Welded brackets provide for enclosure mounting.
At 4 x 4 in it is below the size where the series adds an inner panel, so no inner panel is included; components mount directly inside the 3 in deep body. Internal threaded weld studs are provided for mounting an inner panel. Additional inner panels, a swing panel kit, terminal kit assemblies and door clamping hardware are listed as accessories.
The 1414 Series is rated UL 508A and CSA Type 12 and 13 and complies with NEMA Type 12 and 13 and IEC 60529 IP54, giving a degree of protection from falling dirt, dust, oil and water. Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating, a bonding stud is provided on the door and a grounding stud on the enclosure, and the part is REACH and RoHS compliant. Shipping weight is 2 lbs (0.91 kg).
| Series | 1414 Series |
| Cover Style | Lift-Off Cover with Clamps |
| Description | N12 J Box, Lift Off Cover - 4 x 4 x 3 - Steel/Gray |
| Product Type | Type 12 Mild Steel Junction Box |
| Short Description | NEMA12 RMVBL CVR 4X4X3 |
| Inner Panel | None (models larger than 4 x 4 in include a panel) |
| Enclosure Depth | 3.00 in (76 mm) |
| Enclosure Width | 4.00 in (102 mm) |
| Enclosure Height | 4.00 in (102 mm) |
| Size (H X W X D) | 4 in x 4 in x 3 in (102 mm x 102 mm x 76 mm) |
| Cover Size (W X H, Drawing) | 4.31 in x 4.31 in |
| Door Opening (W X H, Drawing) | 3.30 in x 3.30 in |
| Clear Space Available On Door (W X H, Drawing) | 3.10 in x 3.10 in |
| Available Accessories | Additional Inner Panels, Swing Panel Kit, Terminal Kit Assemblies, Door Clamping Hardware, Climate Control, General Accessories |
| UPC | 623980341804 |
| UNSPSC | 39121324 |
| Part Number | 1414A |
| Mounting | Welded brackets for enclosure mounting |
| Mounting Hole Diameter (Drawing) | Ø0.31 in (typ.) |
| Packaging Type | Box |
| Shipping Weight | 2 lbs (0.91 kg) |
| Body | Formed from 16 gauge or 14 gauge steel |
| Cover | Formed from 14 gauge steel |
| Seams | Smooth, continuously welded, without knockouts, cutouts or holes |
| Colour | Steel/Gray |
| Gasket | Seamless poured-in place |
| Material | Mild steel |
| Cover Retention | Lift-off cover secured with stainless steel clamps and plated steel screws; retained with a plated chain when open |
| Enclosure Finish | Phosphatized, ANSI 61 gray recoatable powder coating (cover and enclosure) |
| Bonding / Grounding | Bonding stud on the door; grounding stud on the enclosure |
| Inner Panel Mounting | Internal threaded weld studs |
| IP Rating | IEC 60529, IP54 |
| NEMA Type | Complies with NEMA Type 12 and 13 |
| Protection | A degree of protection from falling dirt, dust, oil and water |
| UL | UL 508A Type 12 and 13 |
| CSA | CSA Type 12 and 13 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
No. The ordering table shows no panel for the 1414A; the series includes a removable inner panel only on models larger than 4 x 4 in.
It is rated UL 508A and CSA Type 12 and 13 and complies with NEMA Type 12 and 13 and IEC 60529 IP54, providing a degree of protection from falling dirt, dust, oil and water.
No. The body has smooth, continuously welded seams without knockouts, cutouts or holes.
The lift-off cover is secured with stainless steel clamps and plated steel screws, sealed with a seamless poured-in place gasket, and retained with a plated chain when open.
Welded brackets on the enclosure provide for mounting; the drawing shows Ø0.31 in mounting holes.
