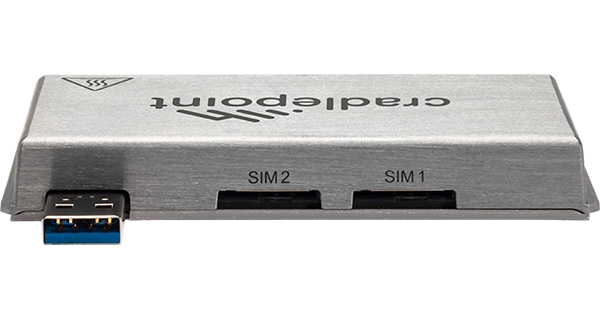

Cradlepoint MC400-1200M-B LTE Advanced Pro modular modem card for mobile routers.

Cradlepoint MC400-1200M-B Cat 18 LTE Advanced Pro Modular Modem for Mobile Routers

Name: Cradlepoint MC400-1200M-B Cat 18 LTE Advanced Pro Modular Modem for Mobile Routers
Brand: Cradlepoint
SKU: MA-MC400-1200M-B
Price: 544.95 USD
Availability: InStock

Cradlepoint|

MPN: MA-MC400-1200M-B

UPC: 810007800912

In Stock

$544.95$708.00

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Thursday, Oct 22

Authorized Dealer — Full manufacturer warranty

Save 8% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Cat 18 LTE Advanced Pro with peak rates of 1.2 Gbps downlink and 150 Mbps uplink
4x4 MIMO, up to 5 CA downlink and 2 CA uplink, up to 256 QAM
Dual 2FF SIM slots with SIM-based auto-carrier selection
Active GPS and SMS support
AT&T and Verizon operator certifications; FirstNet Capable and Verizon Frontline

The Ericsson Cradlepoint MC400-1200M-B is a Gigabit-Class LTE modular modem for MC400-capable routers. This MA-MC400-1200M-B kit is the mobile version. It includes an IBR1700 modem door with screw and a COR Extensibility Dock modem door with screw, so it fits vehicle and in-field deployments built on those platforms. It ships without antennas and uses the host installation's existing cellular antennas. Installed as a second modem, it adds carrier diversity and failover. It can also switch automatically to the second SIM when the primary plan's data cap is reached. The modem is Cat 18 LTE Advanced Pro on 3GPP Release 12, with WCDMA/DC-HSPA+ fallback. It supports up to 5 CA downlink and 2 CA uplink, 4x4 MIMO and up to 256 QAM. Peak rates are 1.2 Gbps downlink and 150 Mbps uplink on LTE. LTE coverage spans FDD bands B1 through B71, including B13, B14 and B71, plus TDD bands including CBRS Band 48. Dual 2FF SIM slots support SIM-based auto-carrier selection. The module also provides active GPS and SMS. The MC400-1200M-B lists AT&T and Verizon network operator certifications with PTCRB and GCF. It is FirstNet Capable and supports Verizon Frontline for public-safety fleets, and private cellular support includes FCC Part 96 (CBRS Band 48). The module operates from -30 °C to 70 °C and takes power over USB from the host. It complies with MIL STD 810G and SAEJ1455 when inserted in an IBR1700, a COR Extensibility Dock attached to an IBR900, or an R1900 with an RX30-MC managed accessory. A manufacturer datasheet is available.

Ideal For

Adding a second LTE modem to IBR1700 vehicle routers for failover
Expanding IBR900 or IBR600C routers with a COR Extensibility Dock modem
Public-safety fleets on FirstNet or Verizon Frontline
Dual-carrier connectivity for transit, utility and field-service vehicles
Private LTE use on CBRS Band 48

Why This Product

1Mobile kit with IBR1700 and COR Extensibility Dock doors and no antennas; the BF branch kit includes four antennas
2Cat 18 LTE at 1.2 Gbps; the MC400-5GB variant adds 5G FR1
3Uses 2FF SIM slots, while the MC400-5GB uses 4FF
4Active GPS, compared with passive GNSS on the MC400-5GB

Bands

3g	1, 2, 4, 5, 8, 9, 19
Lte Fdd	B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
Lte Tdd	B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)

Modem

3g	WCDMA/DC-HSPA+
Sim	Dual SIM slots, 2FF form factor
Sms	Yes
Gnss	Active GPS
Mimo	4x4 MIMO
5g Nr	Not supported (LTE modem)
Modulation	Up to 256 QAM
Technology	Cat 18 LTE Advanced Pro
Peak Uplink	LTE: 150 Mbps; DC-HSPA+: 5.76 Mbps
3gpp Release	3GPP Release 12
Peak Downlink	LTE: 1.2 Gbps; DC-HSPA+: 42.2 Mbps
Carrier Selection	SIM-based auto-carrier selection
Carrier Aggregation	Up to 5 CA downlink, 2 CA uplink

Power

Required

Provided through USB by the host router

General

Mpn	MA-MC400-1200M-B
Upc	810007800912
Brand	Cradlepoint (Ericsson)
Model	MC400 Modular Modem (MC400-1200M-B)
Regions	North America, Europe, Asia-Pacific
Kit Type	LTE Advanced Pro (1200 Mbps) modem upgrade for Mobile
Taa Part Number	TAA-MA-MC400-1200M-B (TAA version)
Accessory Family	Modular

Package

Contents

MC400-1200M-B modular modem, IBR1700 modem door with screw, COR Extensibility Dock modem door with screw (no antennas)

Antennas

Connectors	SMA female connectors
Included Antennas	No antennas included with this mobile kit

Physical

Size	93 x 74 x 13 mm (3.7 x 2.9 x 0.5 in)
Weight	0.104 kg (3.7 oz)

Rf Power

Lte	LTE 23 dBm ± 1 (typical conducted)
Dc Hspa Plus	DC-HSPA+ 23 dBm ± 1 (typical conducted)

Compatibility

Kit Doors For	Includes doors for IBR1700 and COR Extensibility Dock
Mc400 1200m B Supported Endpoints	AER1600; AER2200; CBA850; IBR1700; IBR900, IBR600C and R500 (require COR Extensibility Dock); E300; E3000; R1900 (requires RX30-MC managed accessory); R920 (requires RX20-MC managed accessory)

Environmental

Storage Humidity	5% to 95%
Operating Humidity	5% to 95%
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature	-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety	UL/cUL; CB Scheme; EN 60950-1; EN 62368-1
Regulatory	FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ)
Public Safety	FirstNet Capable; Verizon Frontline
Private Cellular	Yes, includes FCC Part 96 (CBRS Band 48)
Substance Compliance	WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity	Compliant with MIL STD 810G and SAEJ1455 when inserted in an IBR1700, a COR Extensibility Dock attached to an IBR900, or an R1900 with an RX30-MC managed accessory
Network Operator Standards	PTCRB (U.S., Canada); GCF (Worldwide)
Network Operator Certifications	AT&T; Verizon

Purchasing this for your business?

Business account holders on Modems & Gateways typically save 8% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Cradlepoint MC400 Datasheet

0.2mb

R1900 Data Sheet

Frequently Asked Questions

Is this a 5G modem?▾

No. The MC400-1200M-B is a Cat 18 LTE Advanced Pro modem with peak rates up to 1.2 Gbps downlink. 5G is offered in the separate MC400-5GB variant.

What is included in the MA-MC400-1200M-B kit?▾

The MC400-1200M-B modular modem, an IBR1700 modem door with screw, and a COR Extensibility Dock modem door with screw. Antennas are not included.

Which routers support the MC400-1200M-B?▾

The manufacturer lists the AER1600, AER2200, CBA850, IBR1700, E300 and E3000. It also lists the IBR900, IBR600C and R500 with a COR Extensibility Dock, the R1900 with an RX30-MC, and the R920 with an RX20-MC. This mobile kit includes doors for the IBR1700 and the COR Extensibility Dock.

What SIM size does it use?▾

It has dual SIM slots in the 2FF form factor, with SIM-based auto-carrier selection.

Is it rated for vehicle use?▾

It operates from -30 °C to 70 °C and complies with MIL STD 810G and SAEJ1455 when installed in an IBR1700, a COR Extensibility Dock attached to an IBR900, or an R1900 with an RX30-MC.
