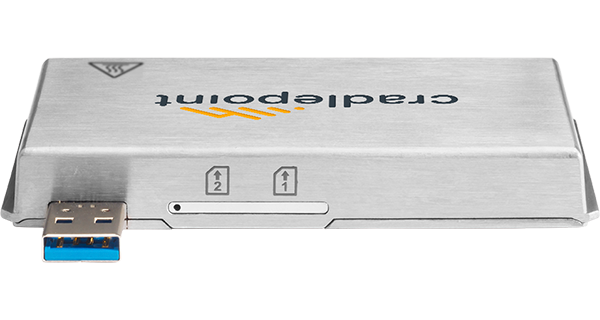

Cradlepoint MC400-5GB 5G modular modem card for E300 and E3000 branch routers.

Cradlepoint MC400-5GB 5G Modular Modem Upgrade for E300 and E3000 Branch Routers

Name: Cradlepoint MC400-5GB 5G Modular Modem Upgrade for E300 and E3000 Branch Routers
Brand: Cradlepoint
SKU: BF-MC400-5GB
Price: 939.55 USD
Availability: InStock

Cradlepoint|

MPN: BF-MC400-5GB

UPC: 840292700390

In Stock

$939.55$999.99

Request for QuoteCall 224-955-1644 for Sales

Ground ShippingArrives by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Save 8% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

5G FR1 NSA/SA and LTE Advanced Pro Category 20 on 3GPP Release 15
Peak rates up to 4.14 Gbps downlink and 660 Mbps uplink, with 4x4 MIMO
Dual 4FF SIM slots with SIM-based auto-carrier selection
Broad 5G NR coverage including n41, n48, n71, n77, n78 and n79
AT&T, T-Mobile and Verizon operator certifications; FirstNet Capable, T-Mobile Connecting Heroes, Verizon Frontline

The Ericsson Cradlepoint MC400-5GB is a modular 5G modem that installs in the modem slot of MC400-capable routers. This BF-MC400-5GB kit is packaged for the E300 and E3000 enterprise branch routers. It lets IT teams move a branch to 5G without replacing the router, or add a second modem to improve availability and coverage. With two modems, the router can fail over when one connection drops. It can also switch automatically to the second modem and SIM when the primary plan's data cap is reached. The modem covers 5G FR1 in both non-standalone and standalone modes, plus LTE Advanced Pro Category 20 and WCDMA/DC-HSPA+ fallback, on 3GPP Release 15. The 5G NR band list runs from n71 (600 MHz) through n77, n78 and n79. It includes n41 and n48, and LTE coverage spans FDD and TDD bands including B71 and CBRS Band 48. Peak rates reach up to 4.14 Gbps downlink and up to 660 Mbps uplink, with 4x4 MIMO, EN-DC, and up to 7 CA downlink on LTE. Dual 4FF (nano) SIM slots support SIM-based auto-carrier selection. The module also offers passive GNSS and SMS. The MC400-5GB lists AT&T, T-Mobile and Verizon network operator certifications, along with PTCRB and GCF. It is FirstNet Capable and supports T-Mobile Connecting Heroes and Verizon Frontline. Private cellular support includes FCC Part 96 (CBRS Band 48). The module operates from -30 °C to 70 °C and draws power over USB from the host router. The kit includes modem door covers and four external 600 MHz–6 GHz paddle antennas with SMA connectors. A 4FF SIM is required. A manufacturer datasheet is available.

Ideal For

Upgrading LTE E300 or E3000 branch routers to 5G in place
Adding a second modem and carrier for branch WAN failover
Dual-SIM data-cap management across two carrier plans
Public-safety sites on FirstNet, Verizon Frontline or T-Mobile Connecting Heroes
Private LTE/5G deployments on CBRS Band 48

Why This Product

15G FR1 NSA/SA with up to 4.14 Gbps downlink, versus 1.2 Gbps LTE on the MC400-1200M-B
2Uses dual 4FF (nano) SIM slots, while the MC400-1200M-B uses 2FF
3Adds T-Mobile operator certification and T-Mobile Connecting Heroes to the AT&T/Verizon listings
4This BF branch kit includes four antennas and E300/E3000 doors

Bands

3g	1, 2, 3, 4, 5, 6, 8, 9, 19
5g Nr	NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Lte Fdd	B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
Lte Tdd	B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)

Modem

3g	WCDMA/DC-HSPA+
Sim	Dual SIM slots, 4FF form factor (SIM required, not included)
Sms	Yes
Gnss	Passive GNSS (multiplexed with DIV/MIMO2 antenna ports)
Mimo	4x4 MIMO
Modulation	5G FR1 Downlink up to 256 QAM; Uplink up to 256 QAM (uplink 256 QAM only enabled on particular carrier equipment)
Technology	5G FR1 NSA/SA and 4G LTE; LTE Advanced Pro Category 20
Peak Uplink	Up to 660 Mbps (2 Layers LTE + TDD, 100 MHz BW, 256 QAM, SISO)
3gpp Release	3GPP Release 15
Peak Downlink	Up to 4.14 Gbps (20 Layers LTE + TDD, 100 MHz BW, 256 QAM, 4x4)
Carrier Selection	SIM-based auto-carrier selection
Carrier Aggregation Lte	LTE only: Downlink up to 7 CA; Uplink up to 2 CA
Carrier Aggregation Endc	LTE + 5G NR EN-DC: Downlink 1 CA; Uplink 1 CA

Power

Required

Provided through USB by the host router

General

Mpn	BF-MC400-5GB
Upc	840292700390
Brand	Cradlepoint (Ericsson)
Model	MC400 Modular Modem (MC400-5GB)
Regions	North America, Europe, Asia-Pacific
Kit Type	5G modem upgrade for E300/E3000 Branch Routers
Taa Part Number	TAA-BF-MC400-5GB (TAA version)
Accessory Family	Modular

Package

Contents

MC400-5GB modular modem, modem doors, 4 cellular antennas (600 MHz–6 GHz, SMA)

Antennas

Connectors	SMA female connectors
Included Antennas	4 external 600 MHz–6 GHz cellular paddle antennas (included with supported Branch routers kit)

Physical

Size	93 x 74 x 13 mm (3.7 x 2.9 x 0.5 in)
Weight	0.104 kg (3.7 oz)

Rf Power

Lte	23 dBm ± 1 (typical conducted)
Endc	LTE + 5G NR EN-DC: 20 dBm ± 1 (typical conducted)
5g Nr	23 dBm ± 1.5 (typical conducted)
Lte Hpue	25 dBm ± 1 (B41 standalone mode only)

Compatibility

Kit Designed For	Ericsson Cradlepoint E300 and E3000 Branch Routers
Mc400 5gb Supported Endpoints	AER2200; IBR1700; E300; E3000; R1900 (requires RX30-MC managed accessory); R920 (requires RX20-MC managed accessory)

Environmental

Storage Humidity	5% to 95%
Operating Humidity	5% to 95%
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature	-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety	UL/cUL; CB Scheme; EN 62368-1
Regulatory	FCC (U.S.); IC (Canada); CE (EU); RCM (AU/NZ)
Public Safety	FirstNet Capable; T-Mobile Connecting Heroes; Verizon Frontline
Private Cellular	Yes, includes FCC Part 96 (CBRS Band 48)
Substance Compliance	WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity	Compliant with MIL STD 810G and SAEJ1455 when inserted in an IBR1700 router or an R1900 router with an RX30-MC managed accessory
Network Operator Standards	PTCRB (U.S., Canada); GCF (Worldwide)
Network Operator Certifications	AT&T; T-Mobile; Verizon

Purchasing this for your business?

Business account holders on Modems & Gateways typically save 8% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Cradlepoint MC400 Datasheet

0.2mb

E300 Data Sheet

Frequently Asked Questions

Which routers is the BF-MC400-5GB kit for?▾

This kit is the MC400-5GB 5G modem upgrade for Ericsson Cradlepoint E300 and E3000 Branch Routers, and it includes the matching doors and four cellular antennas.

What SIM does it take?▾

The MC400-5GB has dual SIM slots in the 4FF (nano) form factor. A SIM is required and not included.

Does it support 5G standalone?▾

Yes. It supports 5G FR1 in both non-standalone (NSA) and standalone (SA) modes, as well as LTE Advanced Pro Category 20.

Can I use it as a second modem for failover?▾

Yes. The MC400 is designed to upgrade a router's modem or serve as a second modem, providing failover connectivity and automatic switching to the second SIM when a data cap is reached.

Does it support CBRS private networks?▾

Yes. Private cellular support includes FCC Part 96 (CBRS Band 48).
