| Mpn | ANT-LTE5G-025 |
| Rohs | RoHS Compliant |
| Brand | Advantech |
| Life Cycle | Available |

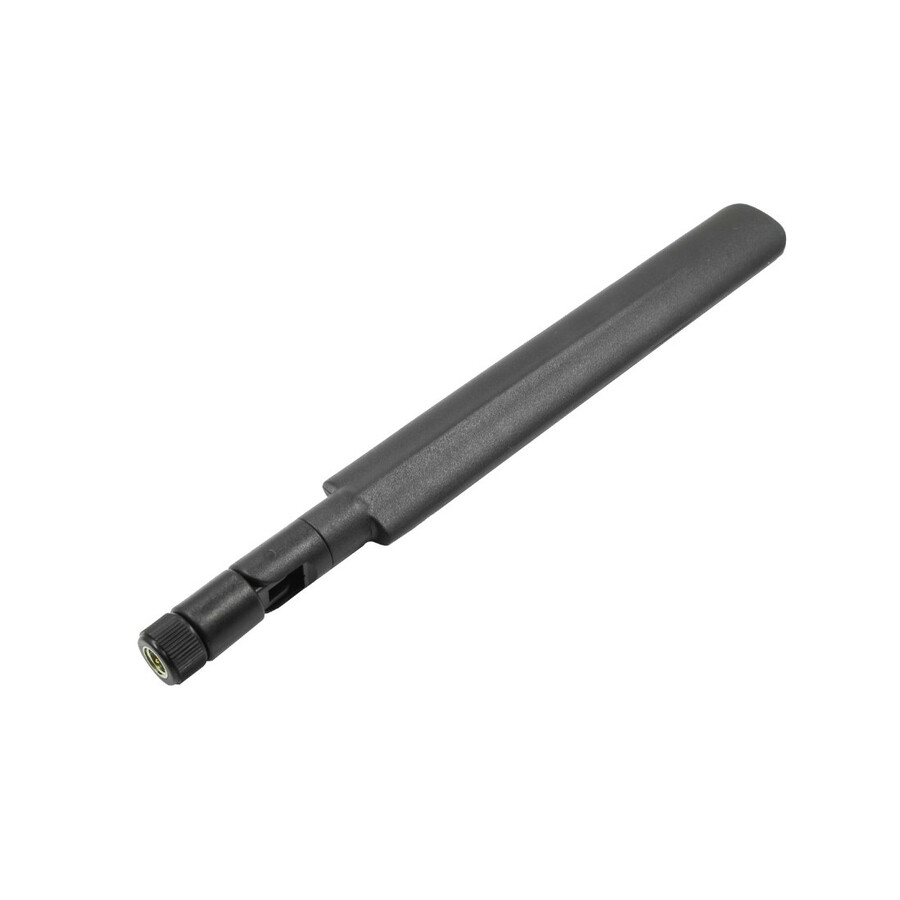

| Description | 5G NR / 4G LTE / 3G / 2G Terminal Antenna |
| Hinge | Hinged 90° |
| Casing | PC + ABS |
| Ip Rating | IP55 |
| Antenna Size | 199 mm × Φ 22 mm |
| Radome Color | Black |
| Connector Type | SMA Male (center pin) |
| Working Temperature | -40 °C to +80 °C |
| Application | For cellular routers using LTE and 5G |
| Compatible Advantech Routers | ICR-4453, SR309, ICR-1601, ICR-2031, ICR-2041, ICR-2431, ICR-2432, ICR-2437, ICR-2441, ICR-2452 RedCap, ICR-2531, ICR-2545, ICR-2631, ICR-2734 Libratum, ICR-2834, ICR-4133, ICR-4161, ICR-4261, SR308, ICR-4233, ICR-4434, ICR-4461, ICR-4272, ICR-4172, ICR-3211, ICR-3231, ICR-3232, SL305, SR304, SR310, SR305, ICR-4171, ICR-4271, ICR-3241 |
| Mhz 700 | 700 MHz: -2.44 dBi |
| Mhz 780 | 780 MHz: -0.5 dBi |
| Mhz 840 | 840 MHz: 0.66 dBi |
| Mhz 960 | 960 MHz: 0.65 dBi |
| Mhz 1000 | 1000 MHz: 2.68 dBi |
| Mhz 1700 | 1700 MHz: 2.93 dBi |
| Mhz 1950 | 1950 MHz: 1.71 dBi |
| Mhz 2200 | 2200 MHz: 2.66 dBi |
| Mhz 2450 | 2450 MHz: 0.33 dBi |
| Mhz 2700 | 2700 MHz: 2.46 dBi |
| Mhz 3300 | 3300 MHz: -1.31 dBi |
| Mhz 3525 | 3525 MHz: 0.6 dBi |
| Mhz 3750 | 3750 MHz: 1.3 dBi |
| Mhz 3975 | 3975 MHz: 2.08 dBi |
| Mhz 4200 | 4200 MHz: 0.18 dBi |
| Mhz 4400 | 4400 MHz: 0.22 dBi |
| Mhz 4560 | 4560 MHz: 1.57 dBi |
| Mhz 4720 | 4720 MHz: 3 dBi |
| Mhz 4880 | 4880 MHz: 4.12 dBi |
| Mhz 5000 | 5000 MHz: 4.71 dBi |
| Mhz 698 | 698 MHz: 3.22 |
| Mhz 824 | 824 MHz: 1.26 |
| Mhz 960 | 960 MHz: 2.09 |
| Mhz 1710 | 1710 MHz: 2.34 |
| Mhz 2690 | 2690 MHz: 1.34 |
| Mhz 3400 | 3400 MHz: 2.26 |
| Mhz 4400 | 4400 MHz: 2.12 |
| Mhz 5000 | 5000 MHz: 1.35 |
| Vna | Keysight E5063A VNA, 100 kHz – 6.5 GHz |
| Chamber | RayZone 2800 5G (FR1) Chamber, 400 MHz – 6.0 GHz |
| Gain | ≤ 4.7 dBi |
| Vswr | VSWR ≤ 3.0 |
| Polarization | Linear |
| Frequency Range | 698–960 MHz, 1710–5000 MHz |
| Input Impedance | 50 Ω |
| Mhz 700 | 700 MHz: 39.05% |
| Mhz 780 | 780 MHz: 47.34% |
| Mhz 840 | 840 MHz: 65.18% |
| Mhz 960 | 960 MHz: 69.71% |
| Mhz 1000 | 1000 MHz: 71.27% |
| Mhz 1700 | 1700 MHz: 70.81% |
| Mhz 1950 | 1950 MHz: 58.72% |
| Mhz 2200 | 2200 MHz: 60.62% |
| Mhz 2450 | 2450 MHz: 66.25% |
| Mhz 2700 | 2700 MHz: 74.38% |
| Mhz 3300 | 3300 MHz: 35.32% |
| Mhz 3525 | 3525 MHz: 43.54% |
| Mhz 3750 | 3750 MHz: 43.95% |
| Mhz 3975 | 3975 MHz: 46.81% |
| Mhz 4200 | 4200 MHz: 28.84% |
| Mhz 4400 | 4400 MHz: 38.82% |
| Mhz 4560 | 4560 MHz: 61.86% |
| Mhz 4720 | 4720 MHz: 87.88% |
| Mhz 4880 | 4880 MHz: 75.98% |
| Mhz 5000 | 5000 MHz: 74.22% |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.
It covers 698–960 MHz and 1710–5000 MHz, supporting 5G NR, 4G LTE, 3G and 2G.
It uses an SMA male (center pin) connector and mounts directly on a router's SMA antenna port.
Advantech lists it for the ICR-4453, SR309, ICR-1601, ICR-2031, ICR-2041, ICR-2431, ICR-2432, ICR-2437, ICR-2441, ICR-2452 RedCap, ICR-2531, ICR-2545, ICR-2631, ICR-2734 Libratum, ICR-2834, ICR-4133, ICR-4161, ICR-4261, SR308, ICR-4233, ICR-4434, ICR-4461, ICR-4272, ICR-4172, ICR-3211, ICR-3231, ICR-3232, SL305, SR304, SR310, SR305, ICR-4171, ICR-4271 and ICR-3241.
The radome is rated IP55 and the antenna works from -40 °C to +80 °C, so it tolerates dust and water spray in industrial environments.
Rated gain is up to 4.7 dBi. Measured gain in the datasheet ranges from -2.44 dBi at 700 MHz to 4.71 dBi at 5000 MHz.
