| Mpn | BB-2J6A24BA-150 |
| Brand | Advantech |
| Life Cycle | Available |

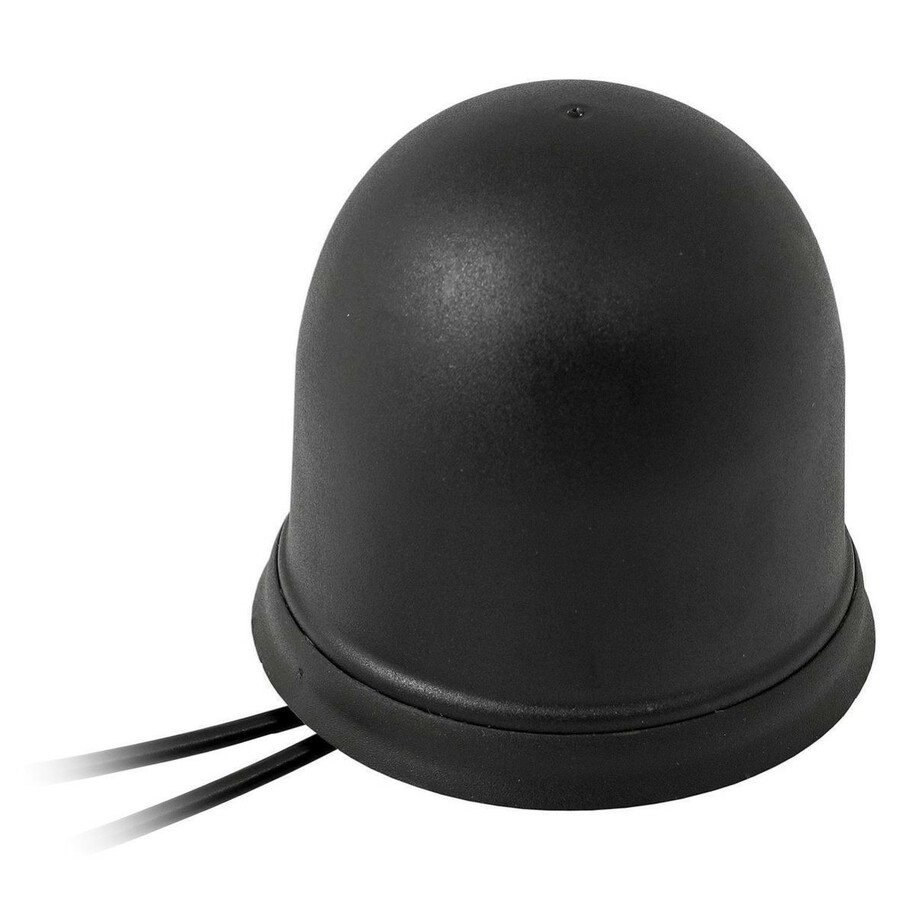

| Description | 4G LTE MIMO Screw Mount Antenna |
| Configuration | 2-in-1 MIMO (2x cellular/LTE) |
| Shipping Weight | 0.44 lb |
| Country Of Origin | Slovakia |
| Compatible Routers | Advantech SR309, ICR-1601, ICR-2031, ICR-2041, ICR-2431, ICR-2432, ICR-2437, ICR-2441, ICR-2531, ICR-2631, ICR-2734 Libratum, ICR-2834, ICR-4133, SR308, ICR-4233, ICR-4434, ICR-3231, ICR-3232, SL305, SR304, SR310, SR305, ICR-3241 |
| Band | 700/850/900, 1700/1800/1900/2100, 2600 MHz |
| Vswr | ~2.8:1 / ~1.7:1 / ~1.3:1 |
| Frequency | 698-960 / 1710-2170 / 2500-2700 MHz |
| Impedance | 50 Ohm |
| Peak Gain | ~-0.8 / ~2.5 / ~3.4 dBi |
| Standards | 2G, 3G and 4G |
| Cable Type | Dacar302 |
| Efficiency | ~35% / ~51% / ~49% |
| Return Loss | ~-7.1 / ~-12.2 / ~-18.5 dB |
| Average Gain | ~-4.6 / ~-2.9 / ~-3.1 dB |
| Cable Length | 150 cm (standard) |
| Polarisation | Linear |
| Connector Type | SMA-Male (standard) |
| Max Input Power | 25 W |
| Radiation Pattern | Omni-directional |
| Band | 700/850/900, 1700/1800/1900/2100, 2600 MHz |
| Vswr | ~2.9:1 / ~1.4:1 / ~1.8:1 |
| Frequency | 698-960 / 1710-2170 / 2500-2700 MHz |
| Impedance | 50 Ohm |
| Peak Gain | ~-1.0 / ~1.7 / ~3.2 dBi |
| Standards | 2G, 3G and 4G |
| Cable Type | Dacar302 |
| Efficiency | ~34.2% / ~41.1% / ~36.7% |
| Return Loss | ~-6.8 / ~-15.8 / ~-10.8 dB |
| Average Gain | ~-4.7 / ~-3.9 / ~-4.4 dB |
| Cable Length | 150 cm (standard) |
| Polarisation | Linear |
| Connector Type | SMA-Male (standard) |
| Max Input Power | 25 W |
| Radiation Pattern | Omni-directional |
| Cables | 2x cable, 1.5 m each |
| Connectors | LTE: 2x SMA-male |
| Ground Plane | Ground plane dependent |
| Anti Rotation | Anti-rotation mechanism |
| Test Cable | 200 cm of Dacar302 cable |
| Ground Plane | Mounted on 30 x 30 cm ground plane |
| Test Chamber | Certified CTIA 3D anechoic chamber |
| Gasket | TPE |
| Radome | ASA |
| Dimensions | Ø 77.3 x 65.5 mm |
| Antenna Base | Zamak |
| Certificates | IP67, IK09, IP69K |
| Radome Color | Black |
| Mounting Type | Screw mount |
| Storage Temperature | -40 to +85 °C |
| Substance Compliance | RoHS |
| Operating Temperature | -40 to +85 °C |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.
No. Advantech specifies it for 2G, 3G and 4G LTE across 698-960, 1710-2170 and 2500-2700 MHz.
Two. Each MIMO element has its own 1.5 m Dacar302 cable terminated in an SMA-male connector.
It is ground plane dependent. Advantech measured its performance mounted on a 30 x 30 cm ground plane, so a metal roof or panel gives the best results.
Advantech lists the SR304, SR305, SR308, SR309, SR310, SL305, ICR-1601, ICR-2031, ICR-2041, ICR-2431, ICR-2432, ICR-2437, ICR-2441, ICR-2531, ICR-2631, ICR-2734 Libratum, ICR-2834, ICR-3231, ICR-3232, ICR-3241, ICR-4133, ICR-4233 and ICR-4434.
Yes. The housing is certified IP67, IP69K and IK09, and the antenna operates from -40 to +85 °C.
