Zebra TC27 5G Mobile Computer WCMTA-T27B8ABD8-NA

Name: Zebra TC27 5G Mobile Computer with SE4710 Scanner, 8GB/128GB, BLE Battery, 8-Pin, North America
Brand: Zebra Technologies
SKU: WCMTA-T27B8ABD8-NA
Price: 1470.85 USD
Availability: InStock

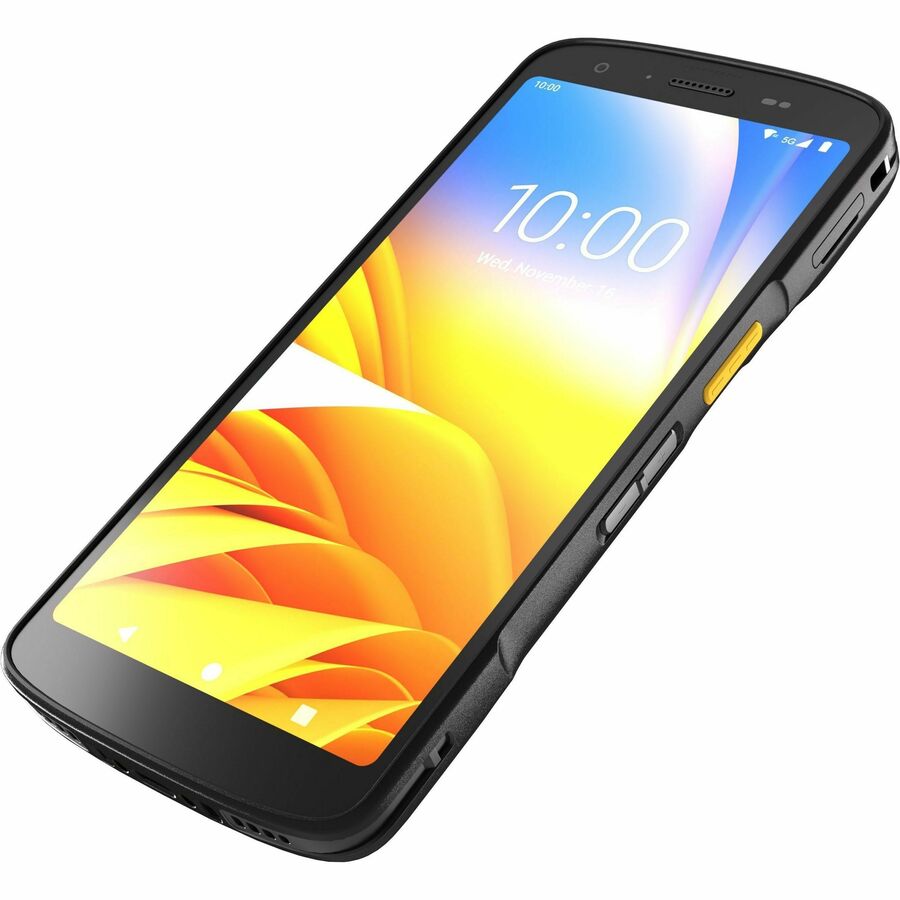

Zebra TC27 5G handheld mobile computer with 6-inch touchscreen, integrated barcode scanner and 8-pin rear connector.

The Zebra TC27 is the 5G model of Zebra's third-generation TC2x Series and the successor to the TC26. SKU WCMTA-T27B8ABD8-NA is the higher-memory North America build. It combines 8 GB RAM and 128 GB UFS flash with the SE4710 1D/2D scan engine, 16 MP rear and 5 MP front cameras, an 8-pin rear connector and Google Mobile Services. A microSD slot accepts cards up to 2 TB. This configuration uses the 3800 mAh / 14.63 Wh BLE battery. It carries a secondary Bluetooth Low Energy radio for beaconing, so missing devices can be tracked and located even when the battery is dead. That capability requires a separate Zebra Device Tracker licence. Like every TC27 battery, it is user-removable, so a device does not have to leave service to charge. For connectivity, the TC27 offers: - 5G NR Sub-6 (NSA and SA), Gigabit LTE-A, VoLTE and dual SIM/dual standby using one Nano SIM and one eSIM - Private 5G and CBRS private LTE support (CBRS in the US only) - 2x2 MU-MIMO Wi-Fi 6, with Wi-Fi 6E enabled through the Mobility DNA Enterprise License - Bluetooth 5.2 NFC supports contactless payments and is Apple VAS and Google Smart Tap certified. A programmable button can be assigned to push-to-talk. A Qualcomm 5430 hex-core 2.1 GHz processor drives a 6.0 in. 1080 x 2160, 450-nit display under Corning Gorilla Glass. The device is sealed to IP68 and IP65 and drop-tested to MIL-STD-810H, and it operates from 14°F to 122°F. Mobility DNA Professional tools are preloaded at no cost for staging, app control and barcode-to-app data entry.

Ideal For

Courier and last-mile delivery with proof-of-delivery photos and payment on delivery
Field service and facilities teams running data-heavy apps offline
Retail inventory, price checks, click-and-collect and mPOS
Staff communications with push-to-talk on the programmable button
Fleets that need BLE-based device locating with Zebra Device Tracker

Why This Product

18 GB/128 GB memory versus the 6 GB/64 GB TC27 configuration
2The BLE battery adds secondary BLE beaconing for device locating, which the standard and extended batteries lack; the extended 5200 mAh option trades this for longer runtime
3Same SE4710 standard scan engine as base TC27 SKUs; the SE55 Advanced Range variant reads from longer distances
4TC27 adds 5G/LTE WWAN over the Wi-Fi-only TC22

General

Mpn	WCMTA-T27B8ABD8-NA
Brand	Zebra Technologies
Model	Zebra TC27 Mobile Computer
Region	NA (North America) configuration
Replaces	Replaces Zebra TC26
In The Box	TC27 Mobile Computer
Sku Radios	WWAN 5G, Wi-Fi 6, Bluetooth, NFC
Sku Back Io	8-pin rear connector
Sku Battery	Standard 3800 mAh battery with BLE
Sku Software	Google Mobile Services (GMS)
Sku Scan Engine	SE4710 1D/2D scan engine

Services

Recommended Services

Zebra OneCare Special Value (SV); Zebra VisibilityIQ Foresight; Professional Services Video on Device

Software

Mobility Dna

Mobility DNA Professional preloaded and pre-licensed at no cost; full Mobility DNA suite requires Mobility DNA Enterprise License; Device Tracker requires a separate licence

Warranty

Hardware Warranty

1 year from date of shipment against defects in workmanship and materials, per Zebra hardware warranty statement

Compliance

General Certifications	ARCore Google certified
Environmental Compliance	RoHS Directive 2011/65/EU, Amendment 2015/863; REACH SVHC 1907/2006

Data Capture

Nfc	NFC ISO 14443 Type A and B; Mifare, FeliCa and ISO 15693 cards; NFC Forum tags 2, 3, 4, 5; Host Card Emulation; contactless payment support; VAS and wallet support; Apple ECP1.0 and ECP2.0; Apple VAS and Google Smart Tap certified; VAS Library/SDK
Scanning	SE4710 1D/2D scan engine
Uhf Rfid	Supports RFD40 UHF RFID Sled and RFD90 Ultra-Rugged UHF RFID Sled
Rear Camera	16 MP rear camera
Front Camera	5 MP front camera

Wireless Lan

Fast Roam	PMKID caching; Cisco CCKM; 802.11r; OKC
Data Rates	6 GHz 802.11ax 20/40/80/160 MHz up to 2402 Mbps; 5 GHz 802.11a/n/ac/ax 20/40/80/160 MHz up to 2402 Mbps; 2.4 GHz 802.11b/g/n/ax 20 MHz up to 286.8 Mbps
Wlan Radio	IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax; 2x2 MU-MIMO; Wi-Fi 6 Certified; Wi-Fi 6E (802.11ax, requires Mobility DNA Enterprise License); dual band simultaneous; IPv4, IPv6
Certifications	Wi-Fi CERTIFIED n, ac and 6; Enhanced Open; WPA2/WPA3 Personal and Enterprise (incl. 192-bit); Protected Management Frames; Agile Multiband; WMM, WMM-Power Save, WMM Admission Control; Voice-Enterprise; Wi-Fi Direct; QoS Management; OCE
Operating Channels	Channel 1-13 (2401-2483 MHz); Channel 36-165 (5150-5850 MHz); Channel 1-233 (5925-7125 MHz); bandwidth 20/40/80/160 MHz; actual channels depend on regulatory rules
Security Encryption	WEP (40/104 bit); Enhanced Open (OWE); WPA/WPA2 Personal (TKIP, AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP, AES); WPA3 Enterprise (AES) with EAP-TTLS, EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP, EAP-PWD; WPA3 Enterprise 192-bit (GCMP256) EAP-TLS; EAP-SIM, EAP-AKA, EAP-AKA Prime on WWAN models

Wireless Pan

Bluetooth

Class 2, Bluetooth v5.2; secondary BLE for beaconing within BLE battery

Wireless Wan

Gnss	GPS, GLONASS, Galileo, BeiDou, QZSS; dual-band GNSS concurrent L1/G1/E1/B1 + L5/E5a/BDSB2a; a-GPS; supports XTRA
3g Bands	North America 3G: B2/4/5
4g Bands	North America 4G: B2/4/5/7/12/13/14/17/25/26/29/38/41/48/66/71
5g Bands	North America 5G FR1: n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78
Wwan Features	Dual SIM/Dual Standby, VoLTE, Gigabit LTE-A, 5G NR Sub-6 (NSA, SA), LTE/NR carrier aggregation, private networking (LTE/5G)
Private Networks	5G private network and CBRS private LTE (CBRS US only)

User Environment

Esd	+/-15 kV air discharge, +/-8 kV direct discharge, +/-8 kV indirect discharge
Sealing	IP68 and IP65, with battery, per applicable IEC sealing specifications
Humidity	5% - 95% non-condensing
Drop Spec	Multiple 5 ft./1.5 m drops to concrete over operating temp with protective boot per MIL-STD-810H; multiple 4.5 ft/1.3 m drops to tile over concrete over operating temp per MIL-STD-810H
Tumble Spec	500 tumbles, 1.6 ft./0.5 m; 500 tumbles, 3.3 ft./1.0 m with optional protective boot
Storage Temperature	-40°F to 158°F / -40°C to 70°C
Operating Temperature	14°F to 122°F / -10°C to 50°C

Physical Characteristics

Sim	1 Nano SIM and 1 eSIM
Audio	Two microphones with noise cancellation; dual speakers; Bluetooth wireless headset support; high quality speakerphone; PTT headset (Zebra USB-C) support; HD Voice incl. Super-wideband, Wideband and Fullband
Power	User removable, rechargeable Li-Ion, PowerPrecision real-time battery metrics; BLE battery: 3800 mAh / 14.63 Wh
Keypad	On-screen keypad
Weight	Published: 8.32 oz/236 g (TC22 with 3800 mAh battery); 9.24 oz/262 g with 5200 mAh battery
Buttons	Dual dedicated scan buttons; programmable button for PTT or other use; volume up/down; power
Display	6.0 in. color Full High Definition+ (1080 x 2160); LED backlight; 450 nits; Corning Gorilla Glass
Dimensions	6.5 in. L x 3.0 in. W x 0.49 in. D; 165 mm L x 76.3 mm W x 12.5 mm D
Touch Panel	Multi mode capacitive touch with bare or light gloved fingertip input
Imager Window	Corning Gorilla Glass
Notifications	Audible tone; multi-color LEDs; vibration
Expansion Slot	User accessible microSD card, supports up to 2 TB
Interface Ports	USB 3.1 (bottom Type-C) SuperSpeed, host and client; 8-pin rear connector
Network Connections	WWAN, WLAN, WPAN

Performance Characteristics

Cpu	Qualcomm 5430 hex-core, 2.1 GHz
Memory	8 GB RAM / 128 GB UFS Flash
Operating System	Android with GMS; supported versions listed at zebra.com/android-versions

Interactive Sensor Technology

Light Sensor	Automatically adjusts display backlight brightness
Magnetometer	eCompass to detect direction
Motion Sensor	3-axis accelerometer with MEMS gyro
Pressure Sensor	Altitude for locating (TC27 North America)
Proximity Sensor	Disables display and touch input when held to the head during calls

Purchasing this for your business?

Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

TC22/TC27 Mobile Computers Spec Sheet

0.2mb

TC22/TC27 Quick Start Guide

1.4mb

TC22/TC27 Accessory Guide

5.0mb

TC22/TC27 Product Overview Brochure

10.9mb

TC22/TC27 Product Reference Guide

9.4mb

Frequently Asked Questions

What does the BLE battery do?▾

It is a 3800 mAh / 14.63 Wh removable battery with a secondary Bluetooth Low Energy radio for beaconing. With a separately licensed Zebra Device Tracker, missing devices can be located even when the battery is dead.

How much memory does WCMTA-T27B8ABD8-NA have?▾

It has 8 GB RAM and 128 GB UFS flash, and a user-accessible microSD slot supports cards up to 2 TB.

Which scanner is in this model?▾

It uses the Zebra SE4710 1D/2D scan engine, operated with dual dedicated scan buttons.

Does the TC27 support Wi-Fi 6E?▾

The WLAN radio is Wi-Fi 6 certified. Wi-Fi 6E operation in the 6 GHz band requires the Mobility DNA Enterprise License.

Is this model intended for North America?▾

Yes. The -NA suffix denotes the North America configuration, which supports 5G bands n2/5/7/12/13/14/25/26/29/38/41/48/66/71/77/78 and LTE bands B2/4/5/7/12/13/14/17/25/26/29/38/41/48/66/71.
