Wilson Electronics weBoost 4G NMO Antenna 314405, Low-Profile Vehicle Cellular Antenna

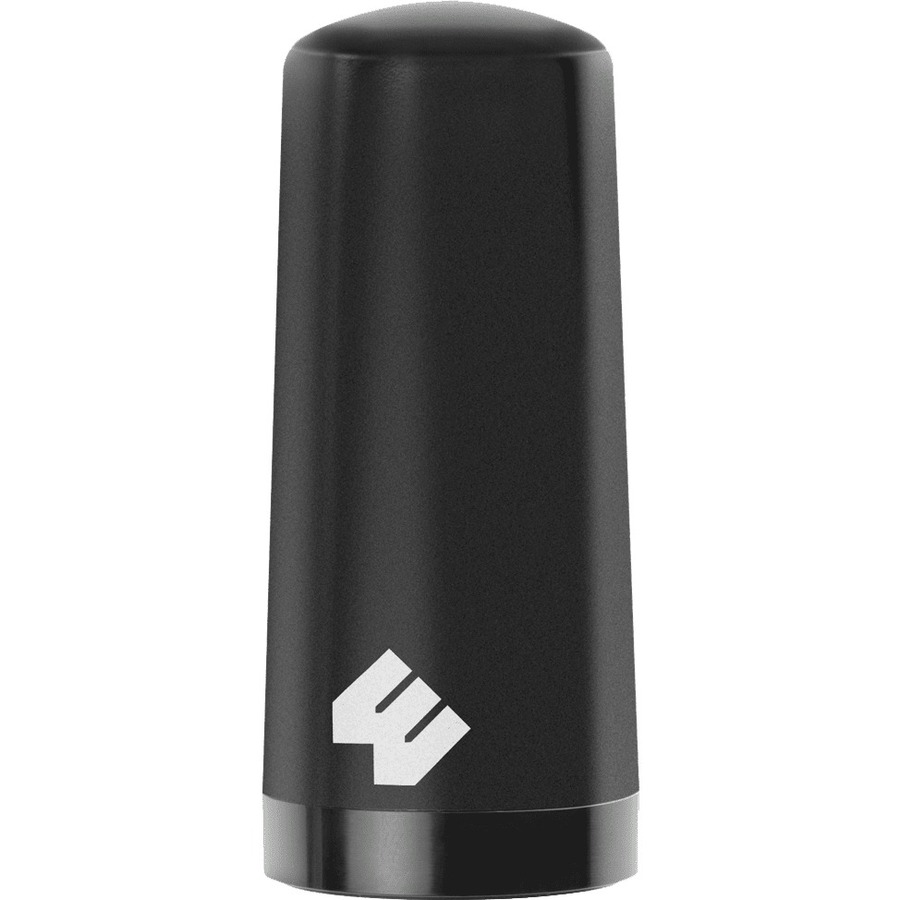

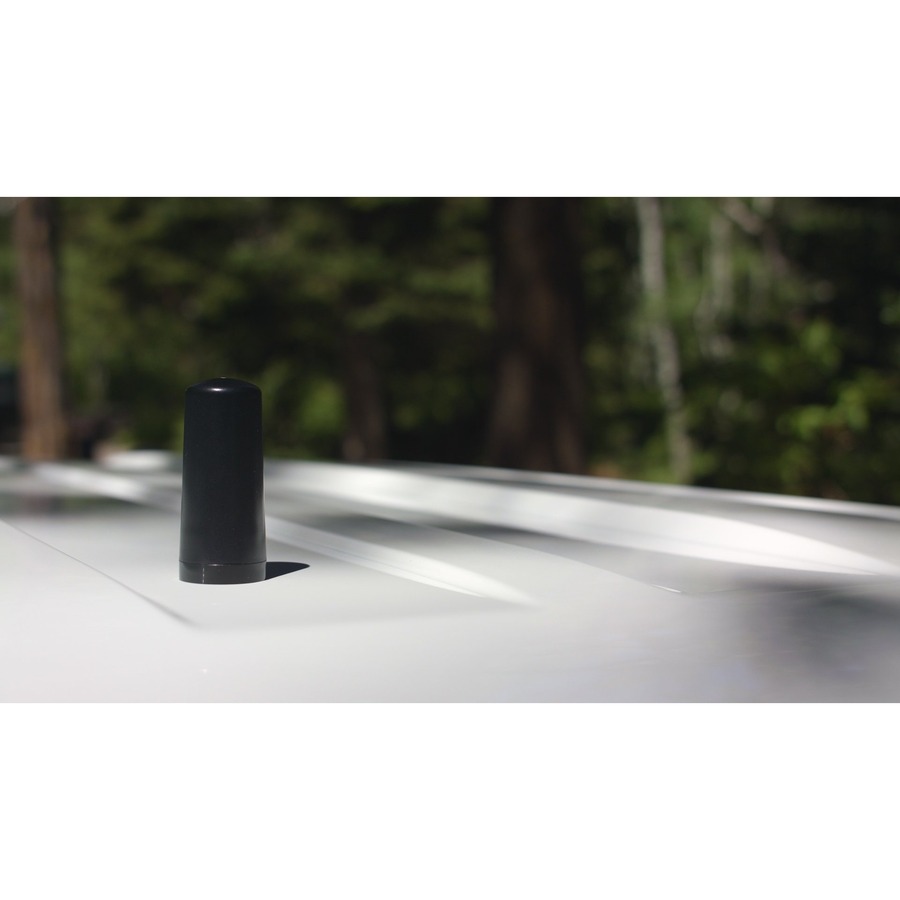

The weBoost 4G NMO Antenna (314405) is a compact, permanent-mount vehicle antenna for fleets, service vehicles and RVs that depend on cellular voice and data. At 3.3 in tall and 1.44 in in diameter, its low profile suits car, truck and RV roofs. The omni-directional, vertically polarized design gives 360-degree horizontal coverage, so the vehicle does not need to face a particular tower. Electrically, the antenna covers 698-960 MHz and 1710-2700 MHz. It supports LTE, CDMA, GSM, UMTS and AWS for voice and 4G data. Third-party testing published on the spec sheet shows peak gain of 3.2 at 698-814 MHz, 3.1 at 814-960 MHz, 1.9 at 1695-2180 MHz and 0.9 at 2180-2700 MHz. The antenna has 50 Ohm impedance and handles up to 100 W. The antenna terminates in a standard NMO connector and installs on any NMO antenna mount. weBoost lists mounts 901150 and 905814, which are required and sold separately. The mount carries RG58U cable to the booster or modem. The spec sheet lists cable loss for 14 ft of RG-58 at 1.7 to 3.4 dB across the four bands. The radome is black high-heat ABS, rated for IPX weather exposure, with a published operating temperature range of -40 to +131. It connects to cell phone signal boosters and cellular modems, suits M2M installations, and works in indoor and outdoor applications. It is commonly used as the outside antenna for the weBoost Drive Reach Fleet booster kit (470254). weBoost backs the antenna with a 2-year warranty, and a manufacturer spec sheet is available.
