| Active PoE Input | Active IEEE 802.3af PoE Class 0 input |
| DC Input Voltage | 9-57 VDC via 2-pin power socket |
| Passive PoE Input | 16-57 VDC passive PoE input on LAN1 spare pairs |
| Power Consumption | 12.94 W PoE Class 0 power level |
| SIM Slots | 2 physical SIM slots |
| Cellular Type | 4G LTE Category 4 |
| Cellular Generation | 4G LTE |
| Fallback Connectivity | 2G/3G fallback support |
| Frequency Band | 2.4 GHz |
| Wireless LAN Standard | 2.4 GHz Wi-Fi 4 (802.11b/g/n) |
| LAN Ports | 2 x 10/100 Mbps RJ45 Ethernet ports |
| WAN Ports | 1 configurable Ethernet WAN port |
| Port Count | 2 x RJ45 Ethernet ports |

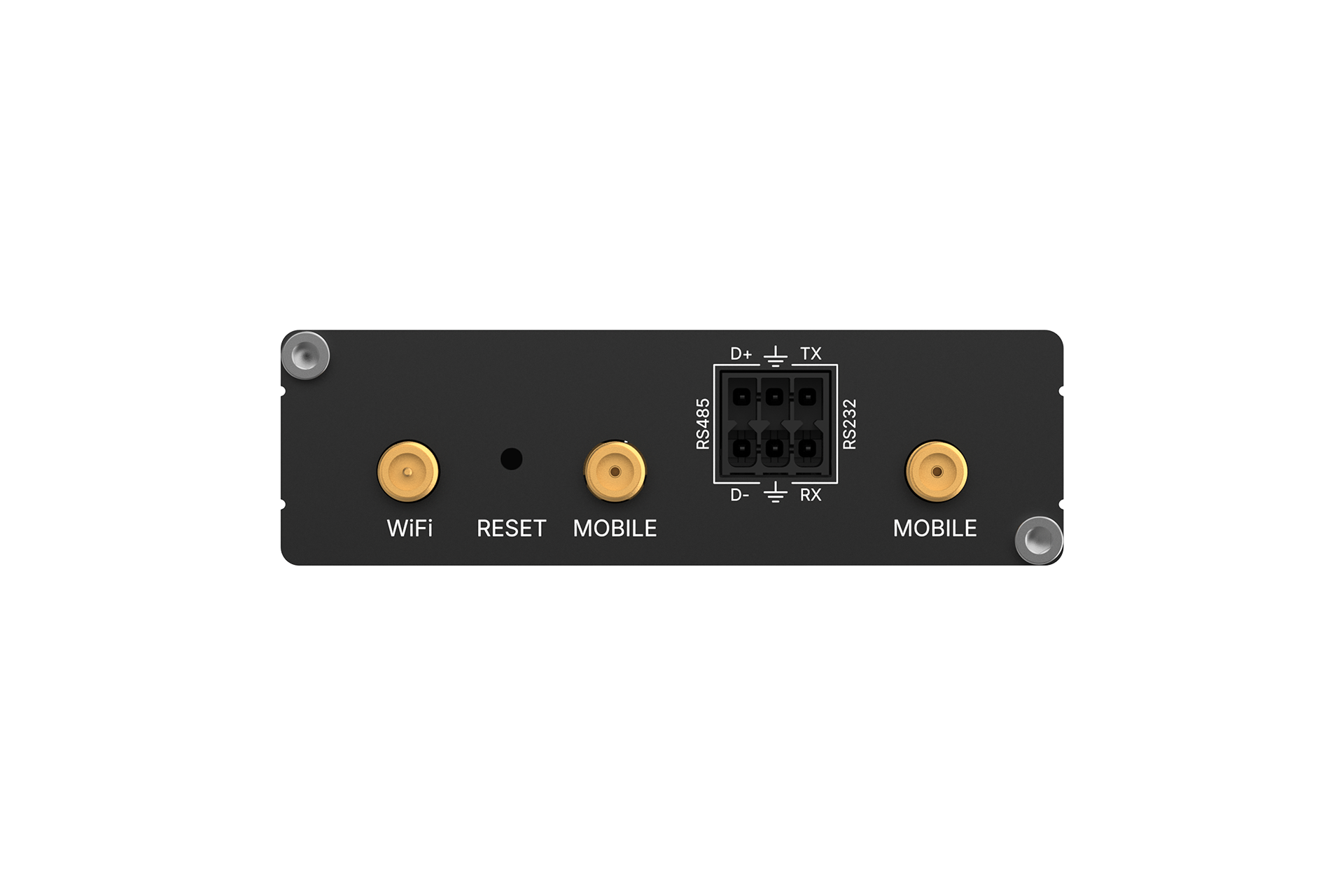

| Serial Interfaces | RS232 and RS485 via 6-pin terminal block |
| Ethernet Technology | 10/100 Mbps Fast Ethernet |
| Expansion Slot Type | Internal microSD card slot |
| UPC | UPC 4779051842056 |
| Depth | 83 mm depth |
| Width | 83 mm width |
| Height | 25 mm height |
| Shipping Weight | 0.39 lb shipping weight |
| Weight Approximate | 138 g housing and PCB mass |
| IP Support | IPv4 and IPv6 operation |
| Management | RutOS management with HTTPS, SSH, and RMS support |
| Failover Support | Connection failover support |
| Integrated Firewall | Integrated firewall policy and NAT |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
RUT206 names the router model, while RUT206020000 is its exact manufacturer ordering code. Use the full ordering code when matching the unit to an approved configuration or installed-equipment record, and use RUT206 when comparing the platform’s interfaces and operating role.
Yes. The router provides both RS232 and RS485 connectivity through a six-pin terminal block. This lets serial controllers, meters, sensors, and machine interfaces communicate through the router’s Ethernet, Wi-Fi, or cellular network connection without a separate serial gateway.
Power options include a 9-57 VDC two-pin socket, active IEEE 802.3af PoE Class 0 on the LAN Ethernet path, and passive PoE input on LAN1 spare pairs at 16-57 VDC. Passive PoE voltage must only be applied to LAN1.
RUT206020000 includes one LTE Category 4 cellular radio, two physical SIM slots, two 10/100 Mbps Ethernet ports, 2.4 GHz Wi-Fi, RS232, RS485, digital I/O, and an internal microSD card slot for local storage-related functions.
