Teltonika TAP400 WI-FI 6 ACCESS POINT | TAP400000000

Name: Teltonika TAP400 — WI-FI 6 ACCESS POINT
Brand: TELTONIKA NETWORKS
SKU: TAP400000000
Price: 90.00 USD
Availability: BackOrder

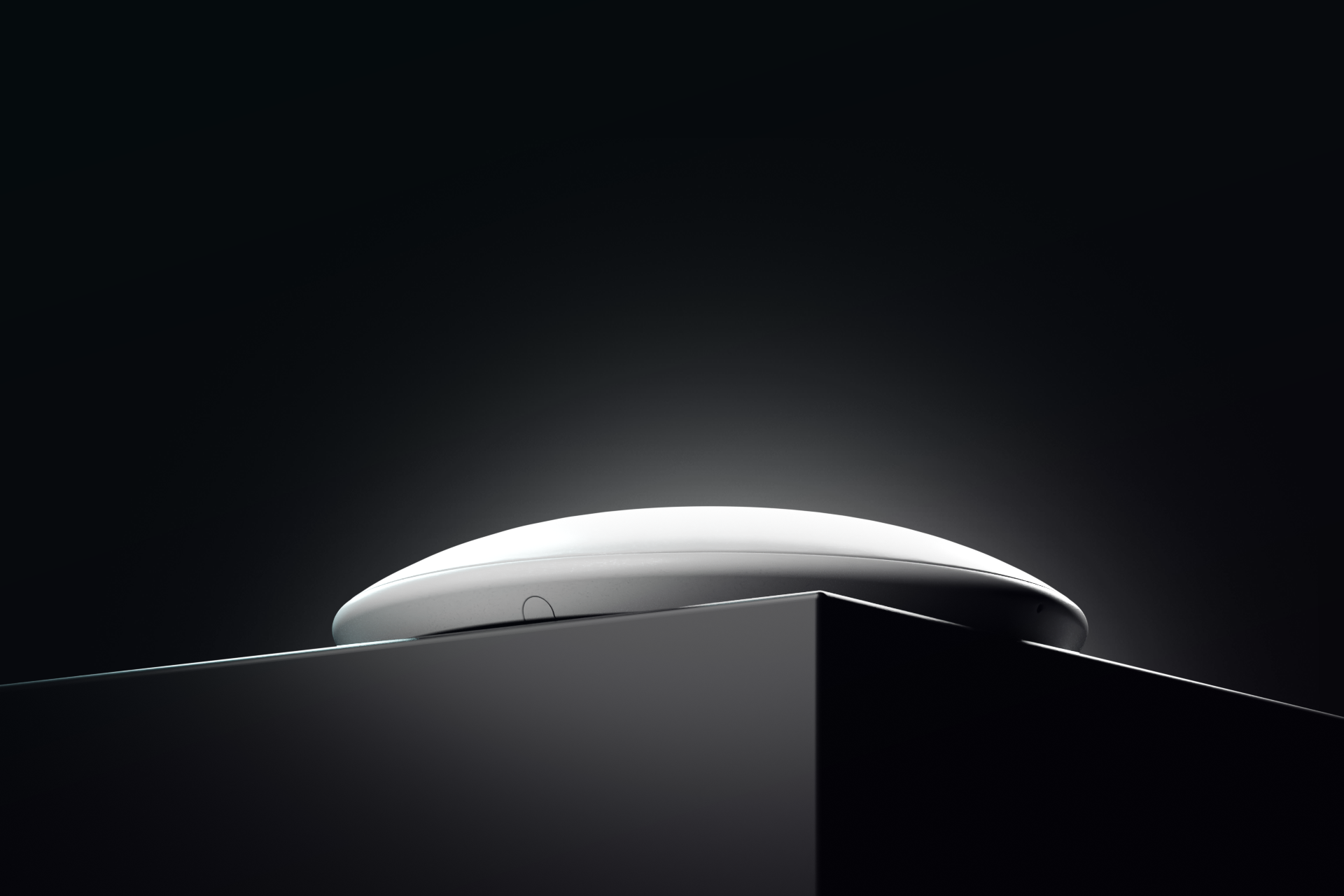

Teltonika TAP400 industrial networking device

The TAP400 is a high-performance Wi-Fi 6 access point designed for SMBs that need fast, efficient wireless coverage and simple centralized management. Experience ultra-fast throughput with the dedicated 2.5 GbE uplink and multi-user efficiency of Wi-Fi 6. The device ensures network continuity and seamless expansion with Fast Roaming and Mesh. All network configuration, monitoring, and troubleshooting can be handled remotely via Teltonika RMS, allowing you to seamlessly reach and control other devices on the network. Upgrade your business to high-performance connectivity that covers every corner. Every TAP400 runs RutOS and is fully compatible with Teltonika RMS for remote access, monitoring, mass configuration, and firmware management. As an authorized Teltonika Networks partner we supply genuine hardware with the full manufacturer warranty, US-based support, and volume pricing for rollouts.

RF

Standards

EN 300 328 V2.2.2; EN 300 893 V2.1.1; EN 300 440 V2.2.1

API

Teltonika Networks Web API (Beta) Support

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Power

Connector	RJ45 Socket
PoE Standards	802.3af PoE Class 3
Power Consumption	Idle: < 7 W / Max: < 11 W
Input Voltage Range	44.0 – 57.0 V, surge protection >64.4 VDC 10us max

Safety

Standards

IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020 EN IEC 62311:2020

Network

Hotspot 2.0	Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
DNS Over HTTPS	DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network Protocols	TCP, UDP, ICMP, GRE, ESP, RIP, OSPF, BGP, IPsec, IPv4, IPv6, ARP, IPsec, PPP, HTTP, TTPS
Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Ethernet

1 x RJ45 port 100/1000/2500 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Security

VLAN	Tag-based VLAN separation
802.1x	Port-based network access control client
Access Control	Flexible access control of SSH, Web interface, CLI and Telnet
Authentication	SSH key based, HTTPS, CLI, IP & Login attempts block, time-based login blocking, built-in random password generator
Certificate Manager	Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

Wireless

SSID/ESSID	SSID stealth mode and access control based on MAC address
TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device
Wi-Fi Users	Up to 512 simultaneous connections
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Once scanned, a user will automatically enter your network without needing to input login information
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

Data To Server

Protocol	HTTP(S), MQTT, Azure MQTT
Data To Server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

Physical Interfaces

Reset	Reboot/User default reset/Factory reset button
Antennas	3 x Internal for 2.4 GHz Wi-Fi and 5 GHz Wi-Fi antennas
Ethernet	1 x RJ45 port, 100/1000/2500 Mbps
Status LEDs	1 x Power LED (can be turned off from web-UI)
Antennas Specifications	3x 2400 - 2500 MHz, peak gain < 4.33 dBi & 5150 - 5850 MHz, peak gain < 4.9 dBi, omnidirectional

Operating Environment

Operating Humidity	10% to 90% non-condensing
Operating Temperature	0 °C to 50 °C
Ingress Protection Rating	IP30

FIRMWARE CUSTOMISATION

Operating System	RutOS (OpenWrt based Linux OS)
Development Tools	SDK package with build environment provided
GPL Customization	You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Supported Languages	Busybox shell, Lua, C, C++

Firmware/Configuration

RMS	Update FW/configuration for multiple devices at once
FOTA	Update FW
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
Keep Settings	Update FW without losing current configuration
Factory Settings Reset	A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Physical Specification

Weight	285 g
Casing Material	UV stabilized plastic, aluminum

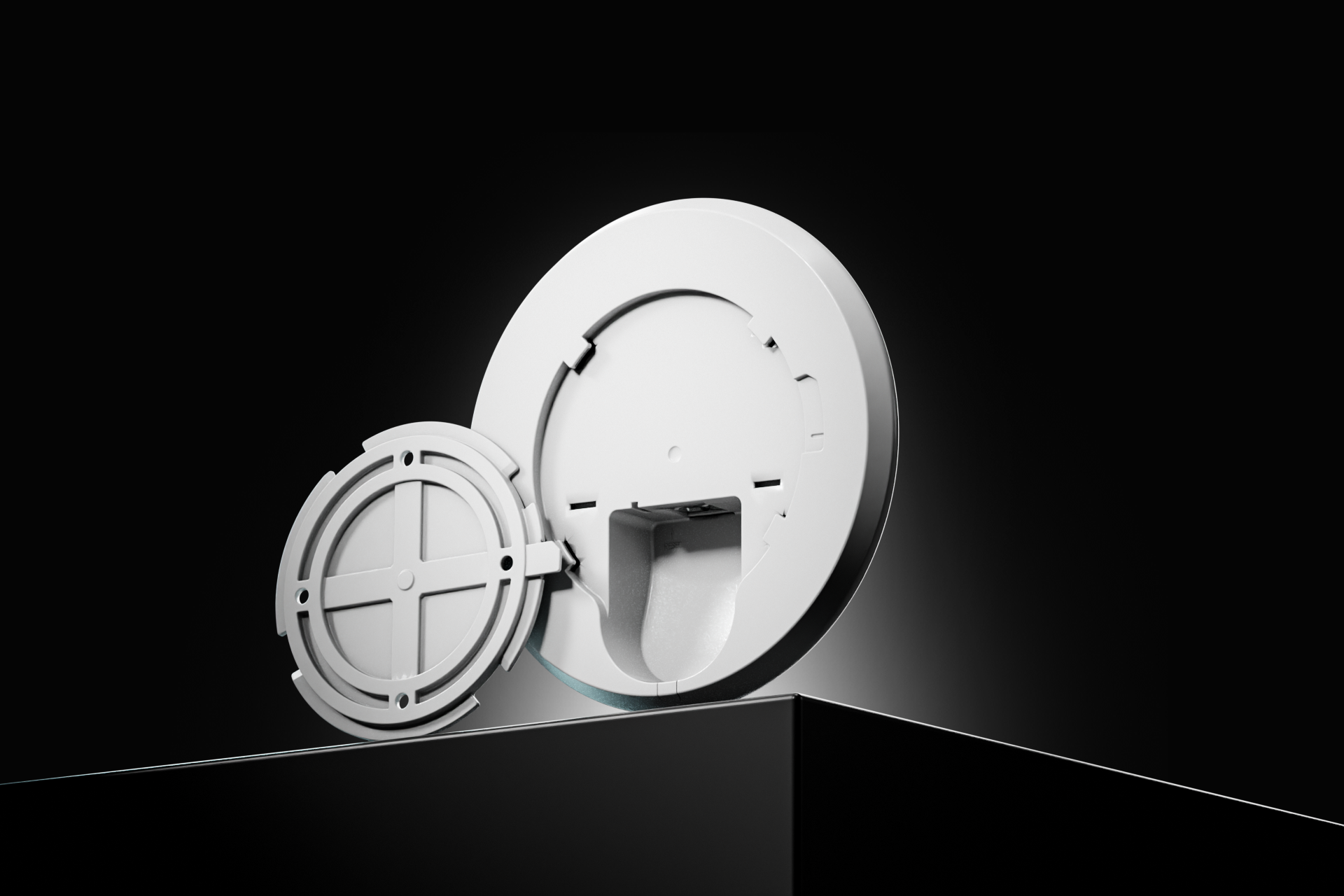

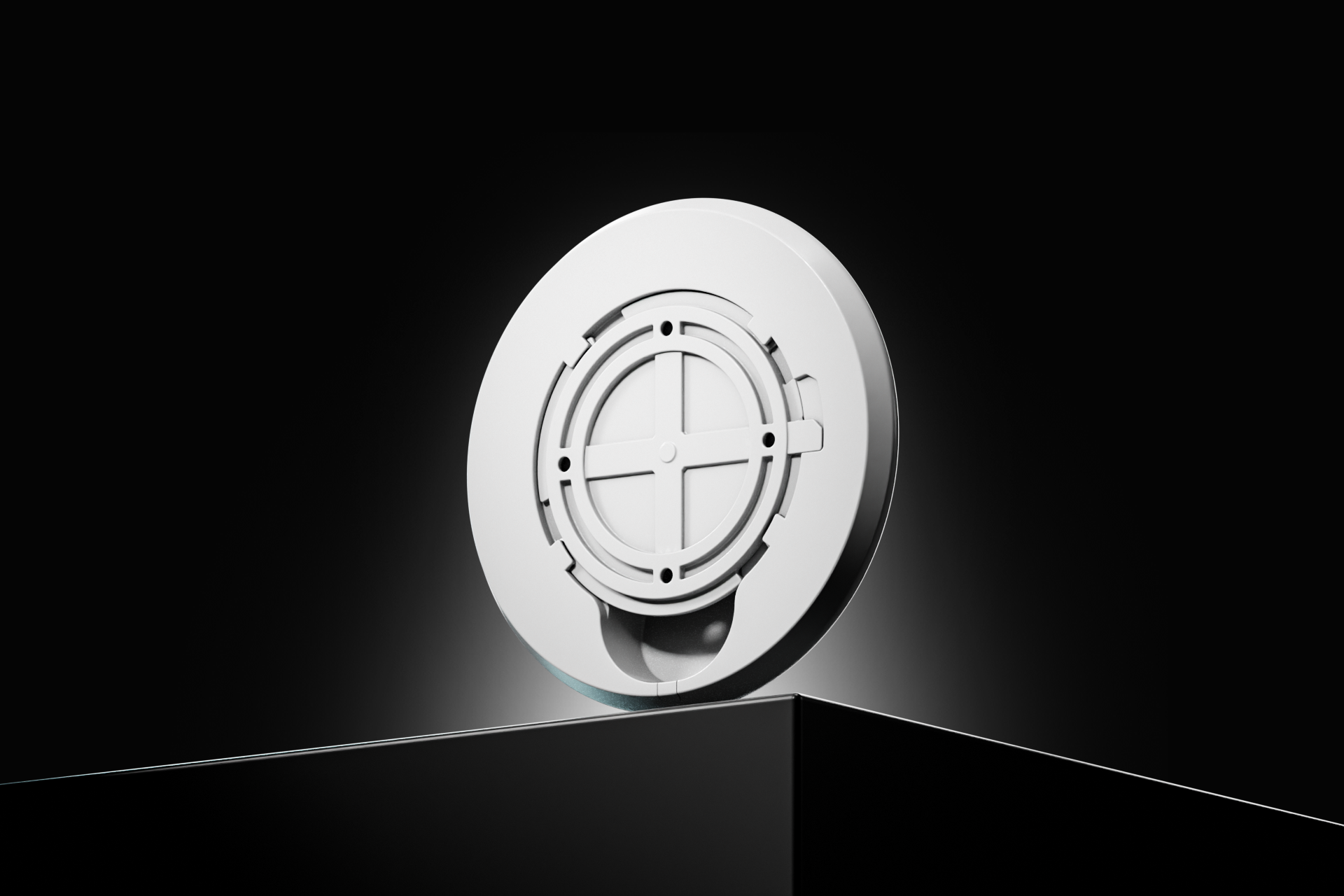

Mounting Options	AP mounting bracket (for ceiling mount)
Dimensions (W X H X D)	Ø 158 mm x 31.4 mm

System Characteristics

CPU	Mediatek, Dual-Core, 1.3 Ghz
RAM	512 MB, DDR3
FLASH Storage	16MB SPI NOR Flash, 512MB SPI NAND Flash

Monitoring & Management

RMS	Teltonika Remote Management System (RMS)
SSH	SSH (v1, v2)
FOTA	Firmware update from server, automatic notification
Email	Receive email message status alerts of various services
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log
JSON-RPC	Management API over HTTP/HTTPS
Wi-Fi Scanner	Wi-Fi Scanner scans and collects information about wireless devices in surrounding area

EMC Emissions & Immunity

CS	EN 61000-4-6:2014
DIP	EN IEC 61000-4-11:2020
EFT	EN 61000-4-4:2012
ESD	EN 61000-4-2:2009
Standards	EN 55032:2015+A11:2020 EN 55035:2017+A11:2020 EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC 61000-3-2:2019+A1:2021 EN 301 489-1 V2.2.3 EN 301 489-17 V3.2.4
Radiated Immunity	EN IEC 61000-4-3:2020
Surge Immunity (AC Mains Power Port)	EN 61000-4-5:2014 + A1:2017

Regulatory & Type Approvals

Regulatory

CE, UKCA, CB, EAC, UCRF, RCM, FCC, IC, WEEE

Purchasing this for your business?

Business account holders on Indoor Access Points typically save 7% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

TAP400 Wiki — Datasheet, Manuals & Firmware

Frequently Asked Questions

What connectivity does the TAP400 support?▾

The TAP400 supports 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402 Mbps on 5GHz and 576 Mbps on 2.4GHz (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA).

Can the TAP400 handle harsh environments?▾

Yes — its rated operating range is IP30.

How is the TAP400 powered?▾

Idle: < 7 W / Max: < 11 W.

Does the TAP400 work with Teltonika RMS?▾

Yes. Every Teltonika Networks device we sell integrates with Teltonika RMS for remote management, monitoring, and configuration — see /products/rms for details.

Where is the TAP400 documentation?▾

Teltonika's wiki knowledge base carries the full datasheet, configuration guides, and firmware for the TAP400 — linked under Documents on this page.

Is this a genuine Teltonika Networks product with warranty?▾

Yes — we are an authorized Teltonika Networks partner. Every unit is genuine, new, and carries the full manufacturer warranty, with US-based support before and after the order.
