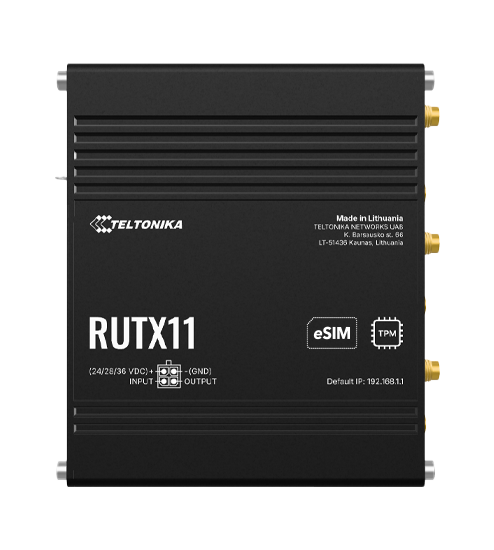

TELTONIKA NETWORKS RUTX11300400

Name: Teltonika RUTX11 4G LTE Cat 6 Dual-SIM Industrial Router, North America (RUTX11300400)
Brand: TELTONIKA NETWORKS
SKU: RUTX11300400
Price: 398.00 USD
Availability: InStock

Teltonika RUTX11 industrial 4G LTE Cat 6 dual-SIM router with four Gigabit Ethernet ports and mobile, Wi-Fi, GNSS and Bluetooth antenna connectors.

The Teltonika RUTX11 is a gigabit cellular router built for professional applications that need reliable, high-throughput connectivity. Its LTE Cat 6 module reaches up to 300 Mbps down and 50 Mbps up with carrier aggregation. This RUTX11300400 SKU is the North America hardware version and is T-Mobile certified. It covers LTE-FDD bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71 and LTE-TDD bands B41 and B48. This hardware version does not include TPM or eSIM. The RUTX11 has two Mini SIM slots. The router can fail over automatically between carriers, and SIM idle protection periodically brings up the unused SIM so the card is not blocked. Wired, mobile, Wi-Fi WAN and VRRP links can each serve as automatic failover, or you can load-balance traffic across multiple WANs. Four Gigabit RJ45 ports (1 WAN, 3 LAN) support port- and tag-based VLANs. Dual-band Wi-Fi 5 with MU-MIMO serves up to 150 simultaneous users, and Bluetooth 5.0 LE and multi-constellation GNSS are built in. Devices can be powered by passive PoE on LAN1 or the 4-pin 9–50 VDC industrial connector. RutOS, which is based on OpenWrt, provides BGP, OSPF, RIP, EIGRP and policy-based routing. VPN options include OpenVPN, IPsec, WireGuard, DMVPN, ZeroTier and Tailscale. For industrial and building systems, the router supports Modbus, DNP3, OPC UA, BACnet, DLMS and MQTT. It connects to Azure IoT Hub, AWS IoT Core, ThingWorx and Cumulocity. Fleets can be managed through Teltonika RMS, TR-069, SNMP or the Web API. The RUTX11 is rated for -40 °C to 75 °C with an IP30 housing. That makes it suited to cabinets, kiosks, vehicles and remote sites. The standard package includes the router, an 18 W PSU, two mobile antennas, two Wi-Fi antennas, a GNSS antenna, a Bluetooth antenna, an Ethernet cable, a SIM adapter kit and a quick start guide.

Ideal For

Primary or failover WAN for retail branches, kiosks and POS networks
Industrial IoT gateway for PLCs, meters and controllers using Modbus, DNP3, OPC UA or DLMS
Building automation connectivity via BACnet with remote RMS management
Vehicle, fleet and remote-site connectivity with GNSS tracking and geofencing
Secure site-to-site VPN for field offices, construction trailers and pop-up locations

Why This Product

1LTE Cat 6 with carrier aggregation (300/50 Mbps) and a North America band set including B12, B13, B14, B66 and B71
2Four Gigabit Ethernet ports, Wi-Fi 5, Bluetooth LE and GNSS in one industrial unit rated -40 °C to 75 °C
3This hardware version has no TPM or eSIM; those are offered on other RUTX11 hardware versions
4Wide industrial protocol support (Modbus, DNP3, OPC UA, BACnet, DLMS) plus WireGuard, Tailscale and DMVPN

Api

Web Api	Configurable endpoints to retrieve or change data
Teltonika Networks Web Api Beta Support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Usb

Data Rate	USB 2.0
Applications	Samba share, USB-to-serial
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
External Devices	HDD, flash drive, additional modem, printer, USB-serial adapter

Vpn

Gre	GRE tunnel, GRE over IPsec
Sstp	Client
Tinc	Client and server
Dmvpn	Phase 2, Phase 3 and Dual Hub
Ipsec	XFRM, IKEv1, IKEv2, 14 encryption methods
Openvpn	Multiple clients and server simultaneously, 27 encryption methods
Stunnel	TLS encryption proxy
Zerotier	Client
Pptp L2tp	Client/server simultaneously, L2TPv3, L2TP over IPsec
Tailscale	Supported
Wireguard	Client and server
Openvpn Encryption	27 methods including AES-128/192/256 CBC, CFB, OFB and GCM

Dnp3

Supported Modes	Station, Outstation
Supported Connection	Connection: TCP, USB

Power

Connector	4-pin industrial DC power socket
Poe Passive	Via LAN1, Mode B, 9–50 VDC (not 802.3af/at/bt compatible)
Power Consumption	16 W max
Input Voltage Range	9–50 VDC with reverse polarity and surge/transient protection

Bacnet

Supported Modes	Router
Configuration Options	Multiple BACnet/IP interfaces, network numbers, BBMD BDT entries
Supported Connection Types	Connection Types: IP, RTU (USB)

Mobile

Apn	Auto APN
Sms	Status, configuration, Email to SMS, SMS to Email/HTTP/SMS, scheduled SMS, autoreply, SMPP
Ussd	Send and read USSD messages
Bridge	Direct connection between mobile ISP and LAN device
Status	IMSI, ICCID, operator, signal (RSSI, SINR, RSRP, RSRQ), CA indicator, band, cell ID and more
Passthrough	Mobile WAN IP assigned to a LAN device
3gpp Release	Release 12
Multiple Pdn	Different PDNs for multiple network access and services
Mobile Module	4G LTE Cat 6 up to 300 DL / 50 UL Mbps; 3G up to 42 DL / 5.76 UL Mbps
Band Management	Band lock, used band status display
Block Allow List	Operator block/allow list by country or operator
Sim Pin Management	Set, change or disable SIM PIN
Sim Idle Protection	Periodic data connection on unused SIM to prevent blocking
Sim Pin Code Management	SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
Sim Idle Protection Service	Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

Modbus

Supported Modes	Server, Client
Custom Registers	Modbus TCP custom register block requests
Supported Data Formats	Data Formats: 8/16/32-bit INT, UINT, float, HEX, ASCII
Supported Connection Types	Connection Types: TCP, USB

Opc Ua

Supported Modes	Client, Server
Supported Connection Types	Connection Types: TCP

General

Mpn	Order Code (MPN): RUTX11300400
Upc	4779051843114
Brand	Teltonika Networks
Model	RUTX11
Tpm Esim	Not included on this hardware version
Package Type	Standard package with US PSU
Shipping Weight	2.00 lb
Hardware Version	RUTX11 3***** / North America
Carrier Certification	T-Mobile

Network

Ddns	More than 77 providers, others configurable manually
Dhcp	Static/dynamic allocation, relay, server, static leases with MAC wildcards
Sshfs	Mount remote file systems via SSH
Hotspot	Captive portal, RADIUS, SMS/SSO auth, walled garden, user groups, 9 customisable themes
Qos Sqm	Priority queuing by source/destination, service, protocol or port, WMM, 802.11e
Routing	Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based
Firewall	Port forward, traffic rules, custom rules, TTL target customisation
Vrf Support	Initial VRF support
Dns Over Https	Supported
Load Balancing	Across multiple WAN connections
Network Backup	Wi-Fi WAN, Mobile, VRRP, Wired, each usable as automatic failover
Port Management	Enable/disable ports, auto-configuration, speed settings
Network Topology	Visual network map
Voip Passthrough	H.323 and SIP-ALG NAT helpers
Network Protocols	Protocols: TCP, UDP, IPv4, IPv6, VRRP, PPPoE, SNMP, MQTT, VXLAN and more
Traffic Management	Real-time monitoring, signal charts, usage history
Firewall Status Page	Statistics, rules and rule counters
Connection Monitoring	Ping/Wget/Periodic reboot, LCP and ICMP

Package

Contents

In the Box: RUTX11, 18 W PSU, 2 mobile + 2 Wi-Fi antennas, GNSS antenna (3 m), Bluetooth antenna (1.5 m), 1.5 m Ethernet cable, SIM adapter kit, quick start guide

Ethernet

Lan	3 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
Wan	1 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Security

Vlan	Port- and tag-based separation
802 1x	Port-based network access control client
Firewall	Preconfigured WebUI rules, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64
Web Filter	Block list and allow list
Access Control	SSH, Web UI, CLI and Telnet
Authentication	PSK, X.509 certificates, TACACS+, RADIUS, login blocking, password generator
Attack Prevention	DDoS and port scan prevention
Certificate Manager	CA, server, client, Let's Encrypt, SCEP
Mobile Quota Control	Data limit, period, start time, warning limit

Wireless

Ssid Essid	Stealth mode, MAC-based access control
Travelmate	Forward hotspot landing page to a connected device
Wifi Users	Up to 150 simultaneous connections
Wifi Security	WPA2-Enterprise, WPA2/WPA3, OWE, AES-CCMP, TKIP, EAP-TLS, 802.11w PMF
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, dual band, MU-MIMO, AP/STA
Wireless Mac Filter	Allowlist, blocklist
Wireless Qr Code Generator	QR Code Generator: Join Wi-Fi by scanning a QR code
Wireless Connectivity Features	Connectivity Features: 802.11s mesh, 802.11r, Relayd, 802.11v, 802.11k

Bluetooth

Bluetooth 5 0

Bluetooth LE for short-range communication

Dlms Cosem

Dlms Support	Utility meter data exchange
Supported Modes	Client
Supported Connection Types	Connection Types: TCP, USB

Regulatory

Safety	CE EN IEC 62368-1, EN IEC 62311; CB IEC 62368-1; RCM AS/NZS 62368.1
Hs Code	851762
Hts Code	8517.62.00
Rf Exposure	FCC 47 CFR § 2.1091, ISED RSS-102
Rf Standards	CE/UKCA EN 300 328, EN 301 893, EN 301 908 series; RCM
Rf Standards Wifi	FCC Part 15.247/15.407, ISED RSS-247, RSS-Gen

Rf Exposure

Standards

FCC: 47 CFR - § 2.1091; KDB 447498 D04 Interim General RF Exposure Guidance v01; IC (ISED): RSS-102 Issue 6 (December 2023)

Input Output

Input	1 x digital input (0–6 V low, 8–30 V high)
Events	Email, RMS, SMS
Output	1 x open collector digital output, max 30 V, 300 mA
Io Juggler	I/O conditions trigger events

Mqtt Gateway

Modbus Mqtt Gateway

Modbus server commands/data via MQTT broker

Site Manager

Functionalities	Central management of Teltonika TAP access points and managed switches
Supported Modes	Manager

Iot Platforms

Thingworx	WAN and mobile status monitoring
Cumulocity	Device and mobile monitoring, reboot and firmware upgrade
Aws Iot Core	Cloud interaction with AWS Jobs support
Azure Iot Hub	Data to Server, Direct methods, zero-touch DPS provisioning

Data To Server

Protocol	HTTP(S), MQTT, Azure MQTT
Data To Server	Multi-source parameter collection to one server, custom Lua scripting

Location Tracking

Gnss	GPS, GLONASS, BeiDou, Galileo, QZSS
Nmea	NMEA 0183
Ntrip	Supported
Geofencing	Multiple configurable zones
Coordinates	Via WebUI, SMS, TAVL, RMS
Server Software	TAVL, RMS

Physical Interfaces

Ios	1 x DI, 1 x DO on 4-pin power connector
Sim	2 x Mini SIM (2FF) slots, 1.8 V/3 V, external holders
Usb	1 x USB A
Other	1 x grounding screw
Power	1 x 4-pin connector
Reset	Reboot / user default / factory reset button
Antennas	2 x SMA mobile, 2 x RP-SMA Wi-Fi, 1 x RP-SMA Bluetooth, 1 x SMA GNSS
Ethernet	4 x RJ45, 10/100/1000 Mbps
Status Leds	WAN type, mobile type/strength, LAN, power, 2.4G/5G Wi-Fi

Monitoring Management

Rms	Teltonika Remote Management System
Sms	Status, configuration
Ssh	v1, v2
Call	Reboot, status, mobile data, output and Wi-Fi on/off
Fota	Firmware update from server, automatic notification
Mqtt	Broker, publisher
Snmp	v1, v2, v3, traps, brute force protection
Tr 069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
Web Ui	HTTP/HTTPS, status, configuration, FW update, CLI, logs, troubleshooting
Json Rpc	Management API over HTTP/HTTPS

Operating Environment

Ingress Protection	IP30
Operating Humidity	10% to 90% non-condensing
Operating Temperature	-40 °C to 75 °C

Supported Frequencies

Lte Fdd	4G LTE-FDD: B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66, B71
Lte Tdd	4G LTE-TDD: B41, B48

Emc Emissions Immunity

Cs	EN 61000-4-6:2014
Dip	EN 61000-4-11:2004; EN 61000-4-11:2020
Eft	EN 61000-4-4:2012
Esd	EN 61000-4-2:2009
Standards	CE/UKCA: EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2:2019 + A1:2021; EN 61000-3-3:2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2; EN 301 489-17 V3.3.1; EN 301 489-19 V2.2.1; EN 301 489-51 V1.2.1; FCC/ISED(IC): 47 CFR Part 15 Subpart B; ICES-003: Issue 7 (October 2020); RCM: AS/NZS CISPR 32:2015 + A1
Radiated Immunity	EN IEC 61000-4-3:2006 + A1:2008 + A2:2010; EN IEC 61000-4-3:2020
Surge Immunity Ac Power Line	EN 61000-4-5:2014 + A1:2017
Surge Immunity Ac Mains Power Port	EN 61000-4-5:2014 + A1:2017

Firmware Configuration

Rms	Update FW/configuration for multiple devices at once
Fota	Update FW
Web Ui	Update FW from file, check FW on server, configuration profiles and backup
Keep Settings	Update FW without losing current configuration
Factory Settings Reset	A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Package Manager	Install additional software
Operating System	RutOS (OpenWrt-based Linux)
Development Tools	SDK with build environment
Gpl Customization	Custom branded firmware and web UI
Supported Languages	Busybox shell, Lua, C, C++, Python and Java (Package Manager)

Physical Specification

Weight	456 g
Casing Material	Anodised aluminium housing and panels
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)
Dimensions W X H X D	115 x 44.2 x 95.1 mm

System Characteristics

Cpu	Quad-core ARM Cortex A7, 717 MHz
Ram	256 MB DDR3
Flash Storage	256 MB SPI Flash

Regulatory Type Approvals

Vehicle	ECE R10 (E-mark)
Operator	AT&T, Verizon, T-Mobile, Deutsche Telekom AG
Regulatory	CE, UKCA, FCC, EAC, UCRF, CITC, ICASA, ANRT, IC, PTCRB, RCM, IMDA, SIRIM, NTC, E-mark, Railway, UL/CSA Safety, CB, IC (ISED), RCM, ETA-WPC, MTCTE

Purchasing this for your business?

Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

RUTX11 Datasheet v1.4

5.4mb

RUTX11 Datasheet

4.8mb

RUTX11 Flyer

2.9mb

RUTX11 Wiki — Datasheet, Manuals & Firmware

Frequently Asked Questions

Is the RUTX11300400 a 5G router?▾

No. The RUTX11 uses an LTE Cat 6 module with carrier aggregation, delivering up to 300 Mbps down and 50 Mbps up.

Which LTE bands does this North America version support?▾

It supports LTE-FDD bands B2, B4, B5, B7, B12, B13, B14, B25, B26, B29, B30, B66 and B71, and LTE-TDD bands B41 and B48. This SKU is also T-Mobile certified.

Does this model include TPM or eSIM?▾

No. The RUTX11300400 hardware version has two physical Mini SIM (2FF) slots and does not include TPM or eSIM. Those features are offered on other RUTX11 hardware versions.

How can the RUTX11 be powered?▾

It accepts 9–50 VDC through a 4-pin industrial connector and can also be powered by passive PoE (Mode B, 9–50 VDC) on the LAN1 port. An 18 W power supply is included in the standard package.

What comes in the box?▾

The standard package contains the router, an 18 W PSU, two mobile antennas, two Wi-Fi antennas, an adhesive GNSS antenna, a magnetic Bluetooth antenna, a 1.5 m Ethernet cable, a SIM adapter kit and a quick start guide.
