TELTONIKA NETWORKS RUTM54000000

Name: Teltonika RUTM54 5G Router with Telit Modem, Dual SIM + eSIM and 5 Gigabit Ethernet Ports
Brand: TELTONIKA NETWORKS
SKU: RUTM54000000
Price: 693.00 USD
Availability: InStock

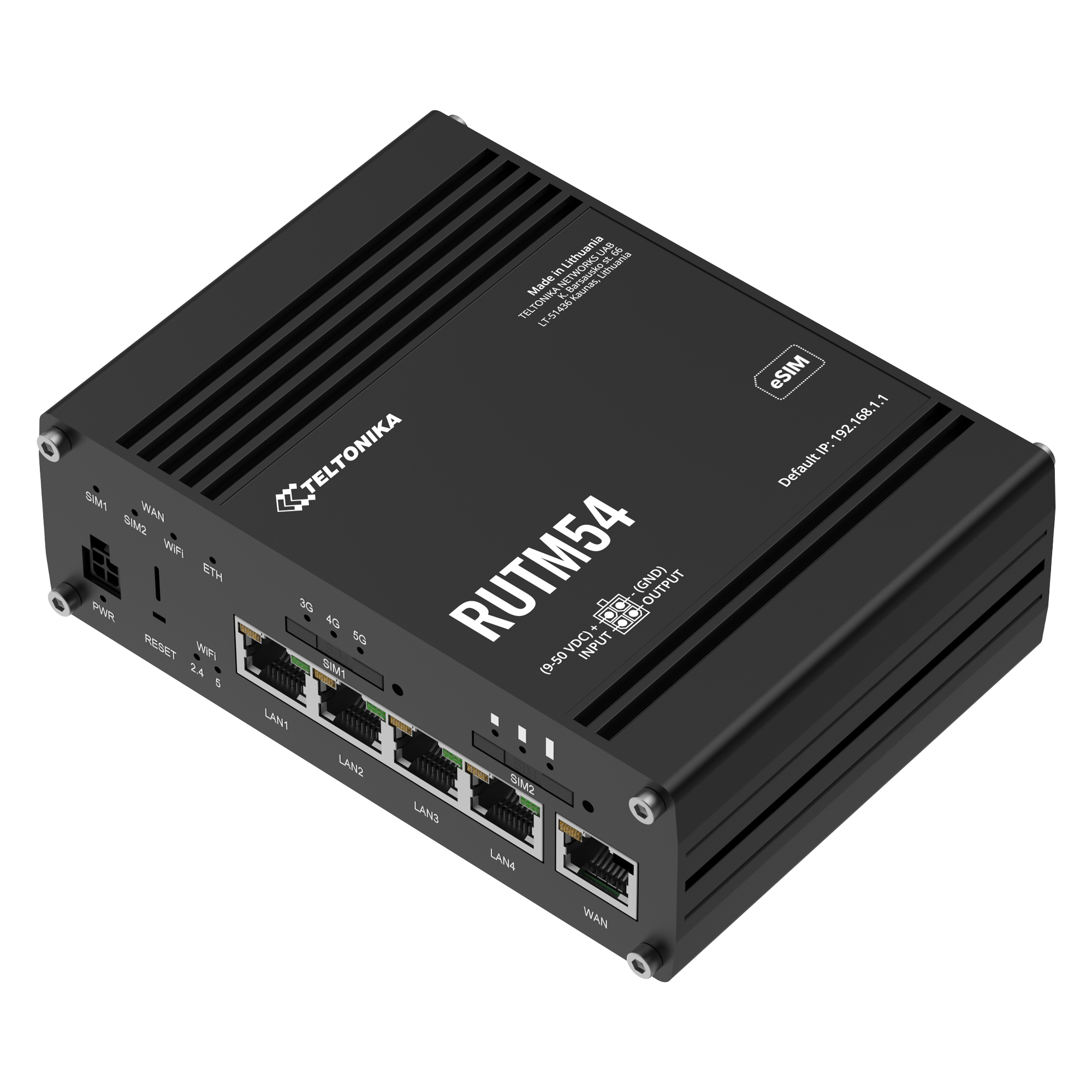

Teltonika RUTM54 5G router with four mobile antenna connectors, two Wi-Fi connectors, a GNSS connector and five Gigabit Ethernet ports.

The Teltonika RUTM54 is a high-performance 5G router for IT and operations teams that need fast primary or backup cellular connectivity. Inside is a US-made Telit 5G Sub-6 GHz module (3GPP Release 16) that supports both SA and NSA 5G. It reaches 2.5/3.4 Gbps downlink with 4x4 MIMO and 900/550 Mbps uplink. On LTE it falls back to Cat 19 at up to 1.6 Gbps down and Cat 18 at 211 Mbps up. The global hardware version covers a broad set of 5G NR, LTE and 3G bands, including n41, n71 and n77 alongside B2, B4, B12, B13, B14, B66 and B71. For resilience, the router has two Mini SIM slots and a consumer-type eSIM that holds up to 7 profiles. SIM switching can be triggered by weak signal, data limits, roaming, no network or a failed data connection. Network backup can also fail over between mobile, wired WAN, Wi-Fi WAN and VRRP, and load balancing spreads traffic across multiple WANs. The wired side has 1 Gigabit WAN and 4 Gigabit LAN ports. Dual-band 802.11ac Wave 2 Wi-Fi supports up to 150 users, with mesh and fast roaming. RutOS brings an extensive routing and security toolkit: • Routing: BGP, OSPF and policy-based routing • VPN: WireGuard, OpenVPN, IPsec, DMVPN, ZeroTier and Tailscale • Security: TPM 2.0, attack prevention and VLAN separation • Industrial protocols: Modbus, BACnet, DNP3, OPC UA and DLMS • Monitoring and management: GNSS location tracking and Teltonika RMS remote management The hardware operates from -40 °C to 75 °C and accepts 9-50 VDC or passive PoE. It has one digital input and one digital output for site automation. The standard package includes an 18 W US power supply and four swivel mobile antennas. It also includes two magnetic Wi-Fi antennas, a GNSS antenna, an Ethernet cable and a SIM adapter kit.

Ideal For

Primary 5G or failover WAN for branch offices, retail stores and clinics
Industrial and utility sites that need Modbus, DNP3, DLMS or OPC UA data collection over cellular
Building automation networks that route BACnet over IP or RS485
Pop-up, construction and event sites that need Gigabit LAN, Wi-Fi and GNSS location from one box
Remote monitoring cabinets in unconditioned spaces from -40 °C to 75 °C

Why This Product

1Adds an eSIM with up to 7 profiles to two physical SIM slots, giving three routes to carrier redundancy
2Five Gigabit Ethernet ports (1 WAN, 4 LAN) remove the need for a separate small switch at many sites
3Supports both 5G SA and NSA with 4x4 MIMO, falling back to LTE Cat 19 at up to 1.6 Gbps
4Industrial feature set is built in: -40 °C to 75 °C operation, 9-50 VDC input, digital I/O, GNSS and industrial protocols

Api

Web Api	Teltonika Networks Web API (beta): Configurable endpoints to retrieve or change data
Teltonika Networks Web Api Beta Support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Usb

Data Rate	USB 2.0
Applications	Samba share, USB-to-serial
Storage Formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
External Devices	HDD, flash drive, printer, USB-serial adapter

Vpn

Gre	GRE tunnel, GRE over IPsec
Sstp	Client
Tinc	Client and server with encryption, authentication and compression
Dmvpn	Phase 2, Phase 3 and Dual Hub support
Ipsec	XFRM, IKEv1, IKEv2, 14 encryption methods
Openvpn	Multiple clients and a server simultaneously, 27 encryption methods
Stunnel	TLS encryption proxy for existing clients and servers
Zerotier	Client
Pptp L2tp	Simultaneous client/server, L2TPv3, L2TP over IPsec
Tailscale	Encrypted point-to-point connections over WireGuard
Wireguard	Client and server
Openvpn Encryption	DES, RC2, DES-EDE, DES-EDE3, DESX, BF, CAST5 and AES-128/192/256 (CBC, CFB, CFB1, CFB8, OFB, GCM) - 27 methods

Dnp3

Supported Modes	Station, Outstation
Supported Connection	TCP, USB

Power

Connector	4-pin industrial DC power socket
Poe Passive	Via LAN1, Mode B, 9-50 VDC; not compatible with IEEE 802.3af/at/bt
Power Consumption	Idle < 4 W, Max < 14 W
Input Voltage Range	9-50 VDC, reverse polarity protection, surge protection >51 VDC 10 µs max

Bacnet

Supported Modes	Router
Configuration Options	Multiple BACnet/IP interfaces, network number assignment, preconfigured BDT entries for BBMD
Supported Connection Types	IP, RTU (RS485, USB)

Mobile

Apn	Auto APN
Sms	Status, configuration, email to SMS, SMS to email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP
Esim	Consumer type, profile download/removal, up to 7 profiles; data plans not included
Ussd	Send and read USSD messages
Bridge	Direct connection between mobile ISP and LAN device
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
Sim Switch	2 SIM cards; auto-switch on weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Passthrough	Mobile WAN IP assigned to a LAN device
3gpp Release	Release 16
Multiple Pdn	Different PDNs for multiple network access and services
Mobile Module	5G Sub-6GHz SA/NSA 2.5/3.4 Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); LTE Cat 19 1.6 Gbps DL, Cat 18 211 Mbps UL; 3G 42 Mbps DL, 5.7 Mbps UL
Framed Routing	Supports an IP network behind 5G UE
Band Management	Band lock, used band status display
Block Allow List	Operator block/allow list by country or individual operator
Sim Pin Management	SIM PIN Code Management: Set, change or disable SIM PIN
Sim Idle Protection	Periodically activates the unused SIM to prevent it being blocked
Sim Pin Code Management	SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
Sim Idle Protection Service	Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked

Modbus

Supported Modes	Server, Client
Custom Registers	Modbus TCP custom register block read/write to file, extends client functionality
Supported Data Formats	8-bit INT/UINT; 16-bit INT/UINT (MSB/LSB first); 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC); HEX; ASCII
Supported Connection Types	TCP, USB

Opc Ua

Supported Modes	Client, Server
Supported Connection Types	TCP

General

Mpn	Order Code (MPN): RUTM54000000
Upc	4779051842995
Brand	Teltonika Networks
Model	RUTM54
Modem	Telit, US-made module
Package Type	Standard package with US PSU
Hardware Version	RUTM54 0***** / Global

Network

Ddns	More than 77 providers, others configurable manually
Dhcp	Static/dynamic allocation, relay, server configuration, status, static leases with MAC wildcards
Sshfs	Mount remote file system via SSH
Hotspot	Captive portal, internal/external RADIUS, RADIUS MAC auth, SMS authorisation, SSO, landing pages, walled garden, user scripts, URL parameters, user groups and limits, user management, 9 customisable themes plus custom theme upload/download
Qos Sqm	QoS / Smart Queue Management: Priority queuing by source/destination, service, protocol or port; WMM, 802.11e
Routing	Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based
Firewall	Port forward, traffic rules, custom rules, TTL target customisation
Vrf Support	Initial VRF support
Dns Over Https	Secure DNS resolution proxy
Load Balancing	Across multiple WAN connections
Network Backup	Wi-Fi WAN, mobile, VRRP, wired; each usable as automatic failover
Port Management	View, enable/disable ports, auto-configuration, transmission speed
Network Topology	Visual map of connected devices
Voip Passthrough	H.323 and SIP-ALG NAT helpers
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
Traffic Management	Real-time monitoring, wireless signal charts, usage history
Firewall Status Page	Statistics, rules and rule counters
Connection Monitoring	Ping reboot, Wget reboot, periodic reboot, LCP and ICMP link inspection

Package

Contents	Package Contents: RUTM54 router, 18 W PSU, 4 x swivel SMA mobile antennas, 2 x magnetic RP-SMA Wi-Fi antennas (1.5 m), 1 x adhesive SMA GNSS antenna (3 m), 1.5 m Ethernet cable, SIM adapter kit, Quick Start Guide
Power Supply	18 W, US plug
Shipping Weight	2.50 lb

Ethernet

Lan	4 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX
Wan	1 x 10/100/1000 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX

Security

Tpm	TPM 2.0 identification and authentication module
Vlan	Port and tag-based separation
802 1x	Port-based network access control client
Firewall	Preconfigured rules via WebUI, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64
Web Filter	Block list and allow list
Access Control	SSH, web interface, CLI and Telnet
Authentication	PSK, digital and X.509 certificates, TACACS+, internal/external RADIUS, IP and login attempt blocking, time-based login blocking, random password generator
Attack Prevention	DDoS (SYN flood, SSH, HTTP/HTTPS) and port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan)
Certificate Manager	CA, server, client, Let's Encrypt, SCEP certificates
Mobile Quota Control	Data limit, custom period, start time, warning limit, phone number

Wireless

Ssid Essid	Stealth mode and MAC-based access control
Travelmate	Forwards Wi-Fi hotspot landing page to a connected device
Wifi Users	Up to 150 simultaneous connections
Wifi Security	WPA2-Enterprise PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, auto-cipher, client separation, EAP-TLS with PKCS#12, disable auto-reconnect, 802.11w PMF
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5), up to 867 Mbps, dual band, MU-MIMO, 802.11r, AP and STA
Wireless Mac Filter	Allowlist, blocklist
Wireless Qr Code Generator	Join the network by scanning, no login entry needed
Wireless Connectivity Features	Mesh (802.11s), fast roaming (802.11r), Relayd, 802.11v, 802.11k

Dlms Cosem

Dlms Support	Utility meter data exchange protocol
Supported Modes	Client
Supported Connection Types	TCP

Regulatory

Hs Code	851762
Hts Code	8517.62.00
Rf Standards	CE/UKCA EN 300 328, EN 303 413, EN 300 440, EN 301 893, EN 301 908-1/-2/-13/-25 (draft); FCC/ISED 47 CFR Part 15.247 and 15.407, RSS-247, RSS-Gen, KDB 905462 D02/D04
Safety Standards	CE/UKCA EN IEC 62368-1:2020 + A11:2020; CB IEC 62368-1:2018
Rf Exposure Standards	CE/UKCA EN IEC 62311:2020; FCC/ISED 47 CFR 2.1091, KDB 447498 D04, RSS-102 Issue 5 Amendment 1

Input Output

Input	1 x digital input; 0-6 V logic low, 8-30 V logic high
Events	Email, RMS, SMS
Output	1 x digital open collector output, max 30 V, 300 mA
Io Juggler	I/O conditions trigger events

Mqtt Gateway

Modbus Mqtt Gateway

Commands and data to/from Modbus server via MQTT broker

Site Manager

Functionalities	Central management of Teltonika TAP access points and managed switches: pairing/grouping, FOTA, status monitoring, reboot scheduling with ping/wget checks, SSID configuration, VLAN assignment
Supported Modes	Manager

Iot Platforms

Thingworx	WAN type, WAN IP, operator name, signal strength, network type
Cumulocity	Device model, revision, serial, WAN type/IP, cell ID, ICCID, IMEI, connection type, operator, signal strength; reboot and firmware upgrade actions
Aws Iot Core	AWS cloud interaction, device API calls via AWS Jobs
Azure Iot Hub	Data to Server, Direct methods for RutOS API calls, zero-touch provisioning via DPS
Cumulocity Cloud Of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

Data To Server

Protocol	HTTP(S), MQTT, Azure MQTT
Data To Server	Collect parameters from multiple sources/protocols and send to one server; custom Lua scripting

Frequency Bands

3g	B1, B2, B4, B5, B6, B8, B19
Lte Fdd	4G LTE-FDD: B1, B2, B25, B3, B4, B66, B5, B7, B8, B12, B17, B13, B14, B18, B19, B20, B26, B28, B29, B30, B32
Lte Tdd	4G LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B46 (SDL), B48, B71
5g Nr Sa Nsa	5G NR SA and NSA: n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79

Location Tracking

Gnss	GPS, GLONASS, BeiDou, Galileo, QZSS
Nmea	NMEA 0183
Ntrip	Networked Transport of RTCM via IP
Geofencing	Multiple configurable zones
Coordinates	Via WebUI, SMS, TAVL, RMS
Server Software	TAVL, RMS

Physical Interfaces

Io	1 x digital input, 1 x digital output on 4-pin power connector
Sim	2 x Mini SIM (2FF) slots, 1.8 V/3 V
Usb	1 x USB-A for external devices
Other	1 x grounding screw
Power	1 x 4-pin connector
Reset	Reboot / user default / factory reset button
Antennas	4 x SMA mobile, 2 x RP-SMA Wi-Fi, 1 x SMA GNSS
Ethernet	5 x RJ45, 10/100/1000 Mbps
Status Leds	4 x WAN type, 3 x mobile type, 3 x mobile strength, 10 x Ethernet status, 1 x power, 2 x Wi-Fi (2.4G/5G)

Monitoring Management

Rms	Teltonika Remote Management System
Sms	Status, configuration
Ssh	v1, v2
Call	Reboot, status, mobile data on/off, output on/off, answer/hang-up with timer, Wi-Fi on/off
Fota	Firmware update from server, automatic notification
Mqtt	Broker, publisher
Snmp	v1, v2, v3, traps, brute force protection
Email	Status alerts for various services
Modbus	TCP status/control
Tr 069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly Tech, AVSystem
Web Ui	HTTP/HTTPS, status, configuration, firmware update, CLI, troubleshooting, multiple event log servers, update notifications, event/system/kernel logs, Internet status
Json Rpc	Management API over HTTP/HTTPS

Operating Environment

Ingress Protection	IP30
Operating Humidity	10% to 90% non-condensing
Operating Temperature	-40 °C to 75 °C

Emc Emissions Immunity

Cs	EN 61000-4-6:2014
Dip	EN IEC 61000-4-11:2020
Eft	EN 61000-4-4: 2012
Esd	EN 61000-4-2: 2009
Standards	CE/UKCA: EN 55032:2015 + A11:2020 + A1:2020; EN 55035:2017 + A11:2020; EN IEC 61000-3-2:2019 + A1:2021; EN 61000-3-3:2013 + A1:2019 + A2:2021; EN 301 489-1 V2.2.3; EN 301 489-3 V2.3.2; EN 301 489-17 V3.3.1; EN 301 489-19 V2.2.1; EN 301 489-52 V1.2.1; FCC/ISED: 47 CFR Part 15 Subpart B; ICES-003: Issue 7 (October 2020)
Radiated Immunity	EN IEC 61000-4-3:2020
Surge Immunity Ac Mains Power Port	EN 61000-4-5: 2014 + A1:2017

Firmware Configuration

Rms	Update FW/configuration for multiple devices at once
Fota	Update FW
Web Ui	Update FW from file, check FW on server, configuration profiles, configuration backup
Keep Settings	Update FW without losing current configuration
Factory Settings Reset	A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

Firmware Customisation

Package Manager	Install additional software
Operating System	RutOS (OpenWrt-based Linux)
Development Tools	SDK with build environment
Gpl Customization	Custom branded firmware and web UI
Supported Languages	Busybox shell, Lua, C, C++

Physical Specification

Weight	530 g
Casing Material	Anodised aluminium housing and panels
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)
Dimensions W X H X D	132 x 44.2 x 95 mm

System Characteristics

Cpu	MediaTek, Dual-core, 880 MHz, MIPS1004Kc
Ram	256 MB, DDR3
Flash Storage	16 MB serial NOR flash, 256 MB serial NAND flash

Regulatory Type Approvals

Operator	AT&T, T-mobile
Regulatory	CE, UKCA, CB, FCC, IC, PTCRB, WEEE, RoHS, REACH, UN ECE R10 (E-mark)

Purchasing this for your business?

Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

RUTM54 Datasheet

4.2mb

RUTM54 Flyer

4.3mb

RUTM54 Wiki — Datasheet, Manuals & Firmware

Frequently Asked Questions

Does the RUTM54 support both 5G SA and NSA networks?▾

Yes. The Telit 5G Sub-6 GHz module supports both standalone and non-standalone 5G, with 2.5/3.4 Gbps downlink using 4x4 MIMO. It falls back to LTE Cat 19 (1.6 Gbps down) and 3G.

How does the eSIM work, and does it include a data plan?▾

The RUTM54 has a consumer-type eSIM that supports profile download and removal and stores up to 7 profiles. No data plan is included. The eSIM sits alongside two physical Mini SIM (2FF) slots.

What is included with order code RUTM54000000?▾

This is the global hardware version in the standard package with a US power supply. The box contains the router, an 18 W PSU, four swivel mobile antennas and two magnetic Wi-Fi antennas. It also includes an adhesive GNSS antenna, a 1.5 m Ethernet cable, a SIM adapter kit and a Quick Start Guide.

Can the RUTM54 be powered over Ethernet?▾

It accepts passive PoE on the LAN1 port (Mode B, 9-50 VDC). This passive PoE input is not compatible with the IEEE 802.3af, 802.3at or 802.3bt standards. It can also run from 9-50 VDC through its 4-pin industrial power connector.

Can I manage a fleet of RUTM54 routers remotely?▾

Yes. The router supports Teltonika RMS, TR-069, SNMP v1/v2/v3, a JSON-RPC API, SSH and over-the-air firmware updates. It also integrates with Azure IoT Hub, AWS IoT Core, ThingWorx and Cumulocity.
